Overview

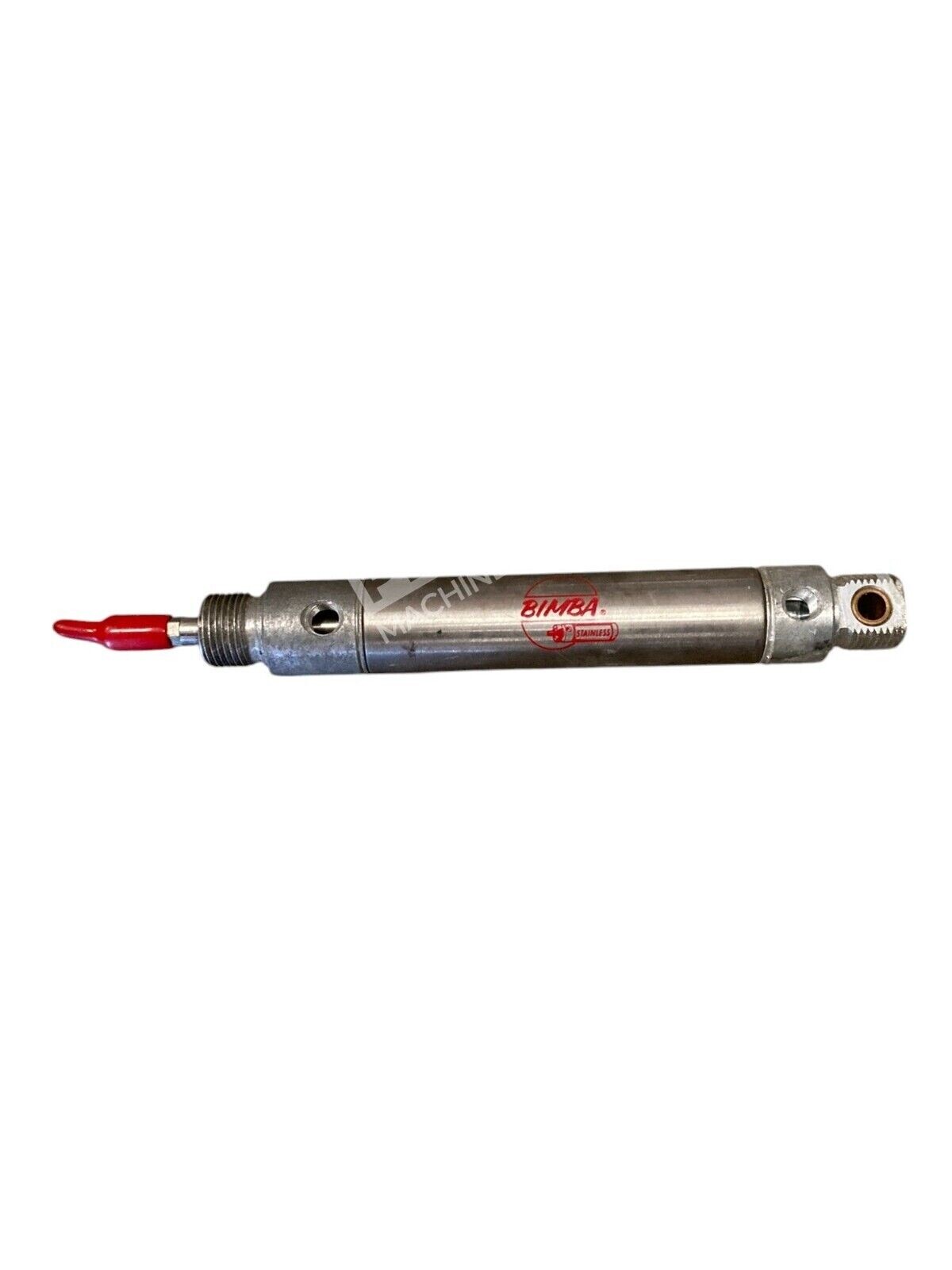

The Bimba 093-DUZ is a double-acting pneumatic cylinder from Bimba’s Original Line series, engineered for dependable air-powered actuation in industrial automation. This unit combines a 1-1/16″ bore with a 3″ stroke and features universal mounting capability, making it adaptable to diverse mounting configurations. The integral magnetic piston simplifies proximity sensing integration, reducing external sensor requirements.
Key Features
- Double-acting design with air return for efficient two-direction operation
- Built-in magnetic piston for position feedback without external sensors
- Universal mounting—compatible with both double-end and rear-pivot configurations
- NPT-threaded ports on both ends for flexible plumbing integration
- Permanent grease lubrication—no ongoing maintenance required during service
- Proven design from Bimba’s Original Line series with extended operational life
Technical Specifications
- Bore Diameter: 1-1/16 inch
- Stroke Length: 3 inches
- Actuator Type: Double-Acting Pneumatic
- Piston Rod Material: Standard steel (stainless options available)
- Piston Rod Size: 5/16-24 UNF-2A male threaded
- Pneumatic Ports: 1/8″ NPT threaded (both ends)
- Mounting Style: Universal (double-end or rear-pivot)
- Magnetic Piston: Yes
- Cushioning: None
- Rod Wiper: No
- Weight: Approximately 0.55 lbs
Typical Applications
The Bimba 093-DUZ is commonly deployed in:
- Packaging and material handling machinery
- Factory automation positioning systems
- Assembly line clamping and ejection mechanisms
- Test fixtures and automated workstations
- Light industrial motion control requiring compact, reliable cylinders
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems rated for double-acting cylinders
- Proportional directional control valves (DCV) with 1/8″ ports
- Proximity sensors and magnetic switch assemblies
- Pneumatic manifold blocks and sandwich-style valve stacks
- ISO 4400-1 and CETOP-03 compliant valve interfaces
Replaces / Drop-In Replacement For
- Bimba 093-D (with appropriate mounting adaptation)
- Other Bimba 09-series cylinders with 1-1/16″ bore and 3″ stroke
- Similar universal-mount cylinders from equivalent manufacturers in the same displacement class
Works With
- Proportional and directional control valves with CETOP and sandwich interfaces
- Pneumatic pressure regulators and flow control valves
- Reed switches and inductive proximity sensors for position detection
- Air preparation units (filters, regulators, lubricators)
- Industrial pneumatic tubing and hose assemblies (1/8″ NPT connections)
