Overview

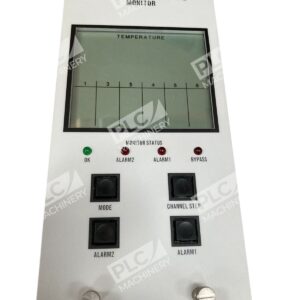

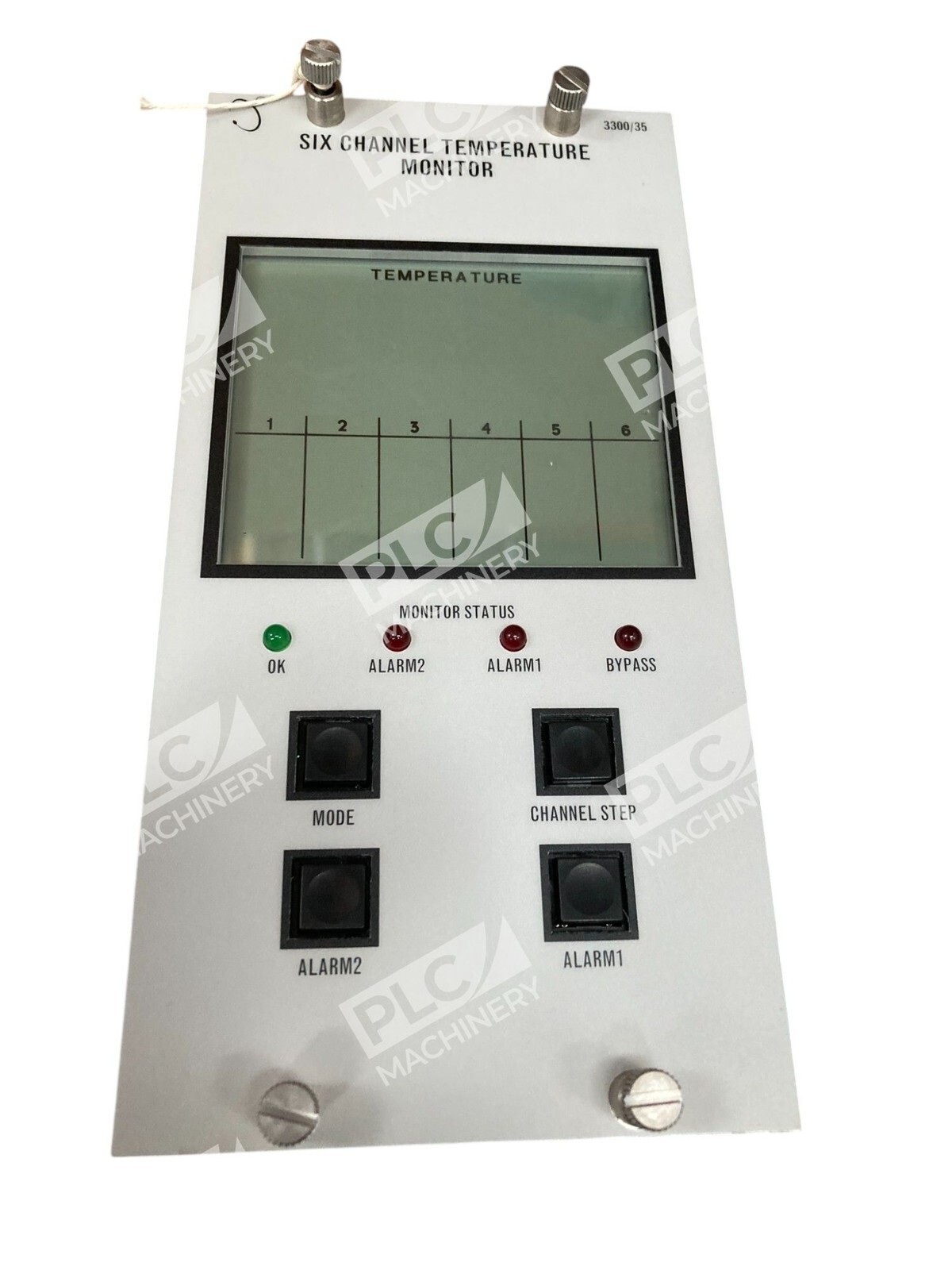

The Bently Nevada 84933-02 is a six-channel temperature monitor (model 3300/35) designed for precise industrial temperature measurement and monitoring. This RTD-based monitor enables simultaneous, independent temperature measurement from up to six different sources, making it ideal for machinery monitoring, process control, and predictive maintenance applications. The unit provides standard 4-20 mA analog output signals for direct integration with control systems and data acquisition platforms.
Key Features
- Six Independent Channels: Monitor temperature from six separate sources simultaneously
- RTD Input Support: Accepts Resistance Temperature Detector (RTD) sensors with user-programmable RTD types (e.g., 100 Platinum 0.00385, 4-wire configuration)
- 4-20 mA Output: Standard analog signal output for seamless integration with industrial control systems
- On-Line Monitoring: Real-time temperature measurement with dedicated alarm relay capability
- DIN Rail Mounting: Compact design enables straightforward installation in control panels
- Industrial Robustness: Suitable for harsh environments and demanding applications including machinery, power plants, and process industries
Technical Specifications

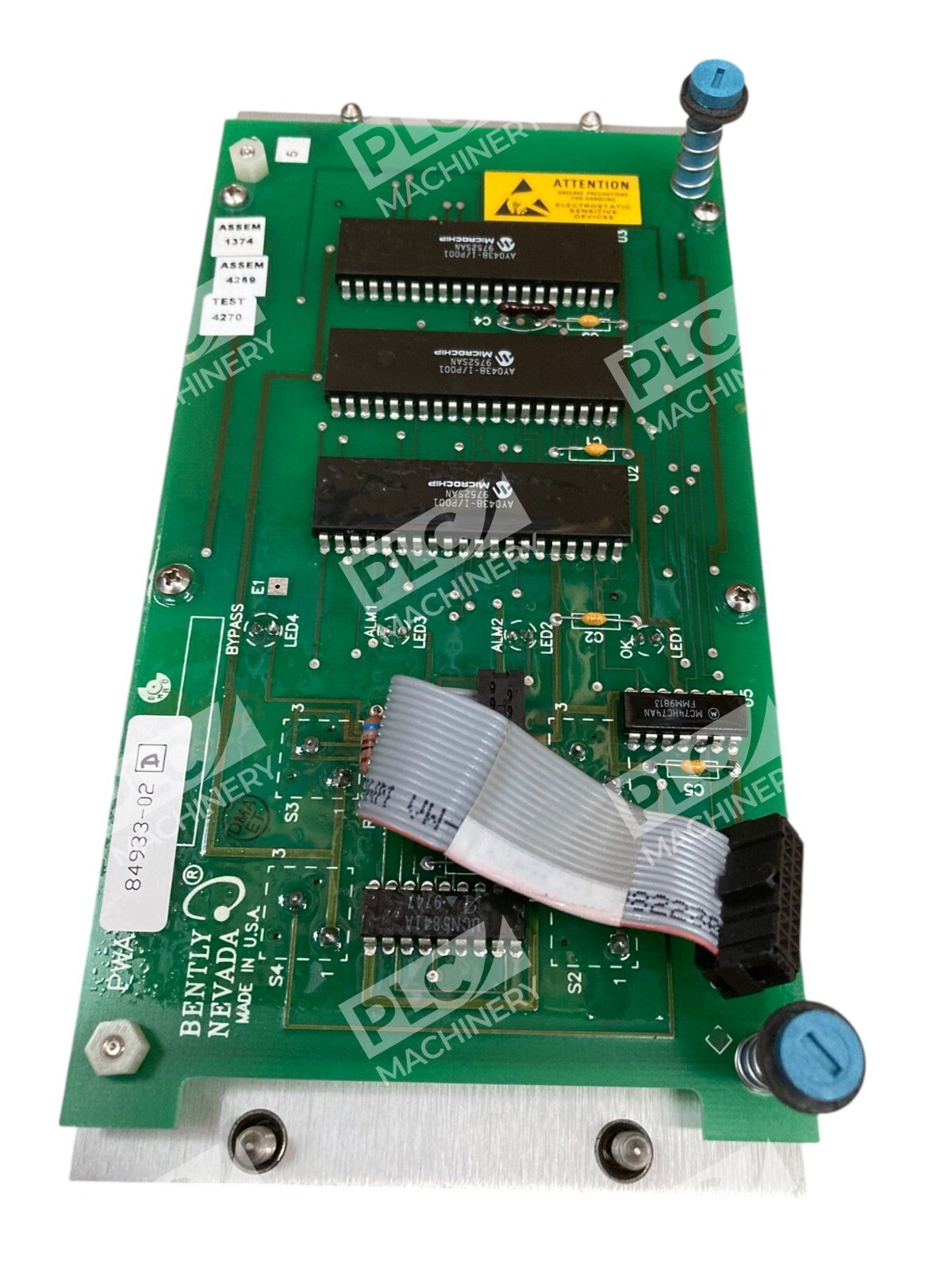

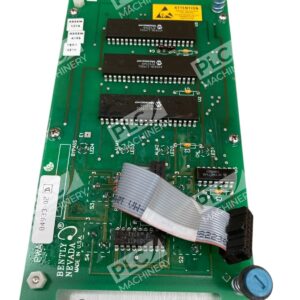

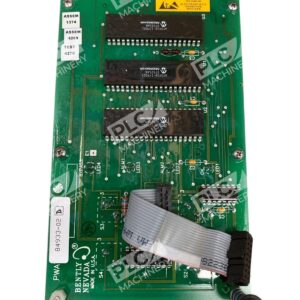

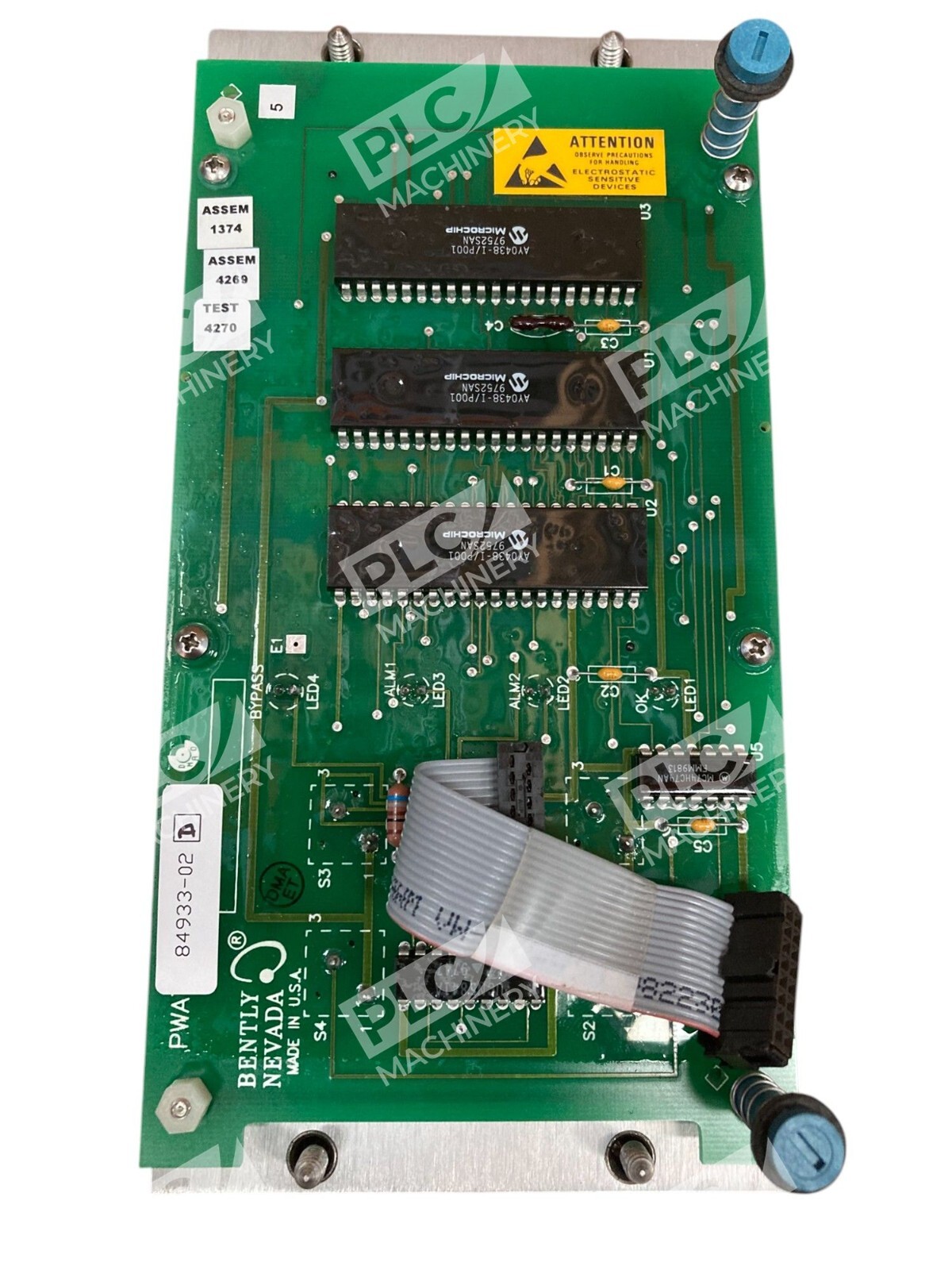

- Part Number (PWA): 84933-02

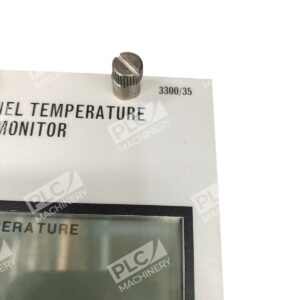

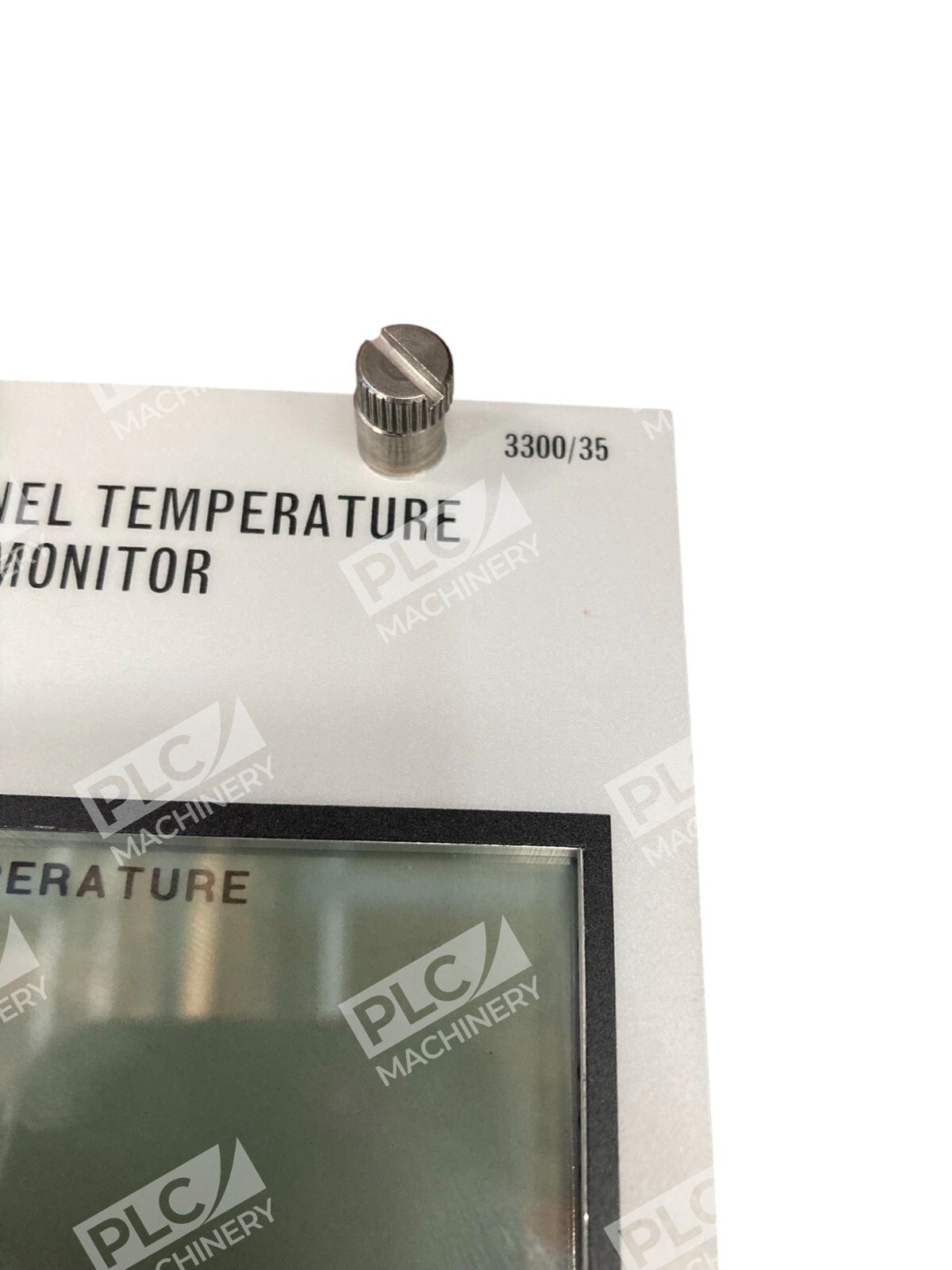

- Model: 3300/35
- Input Type: RTD (Resistance Temperature Detector)
- Number of Channels: 6 independent channels
- RTD Configuration: 4-wire (100 Platinum with 0.00385 coefficient)
- Full-Scale Range Option: 0–300°F
- Output Signal: 4–20 mA analog
- Alarm Relay Option: Epoxy-sealed
- Dimensions: 102 mm × 41 mm × 41 mm (4.0 in × 1.6 in × 1.6 in)
- Weight: Approximately 1.5 kg
- Mounting: DIN rail
- Country of Origin: United States
Typical Applications
The Bently Nevada 3300/35 temperature monitor is widely used in industrial environments for:
- Machinery Monitoring: Track temperatures of bearings, gearboxes, motor windings, and other rotating equipment
- Power Plant Operations: Monitor turbine, generator, and auxiliary equipment temperatures
- Process Control: Real-time thermal management in chemical, manufacturing, and refining processes
- Predictive Maintenance: Early detection of anomalous temperature trends to prevent equipment failure
- HVAC & Thermal Systems: Multi-point temperature monitoring for optimization and safety
Compatibility & Replacements
Compatible With
- Bently Nevada 3300 and 3500 monitoring system product lines
- Industrial control panels with DIN rail mounting
- Any system accepting standard 4–20 mA analog temperature inputs
- RTD sensor networks and multi-point thermal monitoring setups
Replaces / Drop-In Replacement For
- Other Bently Nevada 3300/35 six-channel RTD temperature monitors (revision variants)
- Legacy Bently Nevada temperature monitoring modules in the 3300 series
Works With
- Bently Nevada 3300 and 3500 system modules
- RTD sensors (Pt100 and other platinum RTD types)
- Industrial SCADA and DCS systems accepting analog 4–20 mA inputs
- Standard PLC and control system analog input modules
- Data acquisition systems and process monitoring software
