Overview
The Belden 9L28050 flat ribbon cable is a 100-foot grey, 50-conductor ribbon cable designed for reliable general-purpose electronic interconnect applications. The 9L28050 features tinned copper conductor and a PVC insulator, with standard .050″ (1.27mm) pitch spacing that ensures compatibility with widely-used IDC (Insulation Displacement Connector) termination methods.
Key Features
- 50 conductor, 28 AWG (7×36) tinned copper with PVC insulation
- Grey PVC with red polarity stripe for proper circuit alignment
- Provides reliable mass-termination to standard IDC connectors
- Tear feature design allows easy break-outs
- UL Flame Test VW-1 and CSA FT1 rated; RoHS compliant

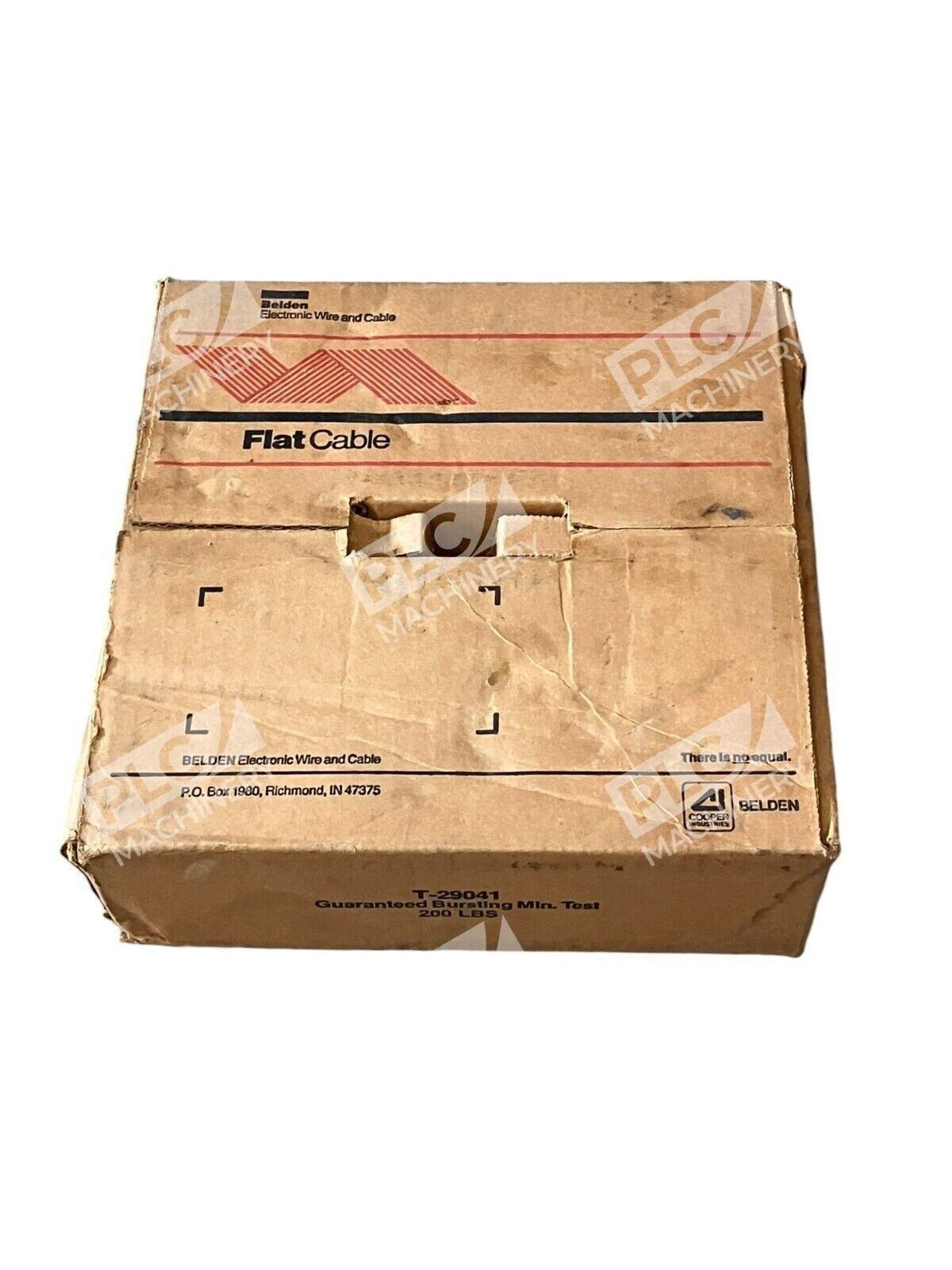

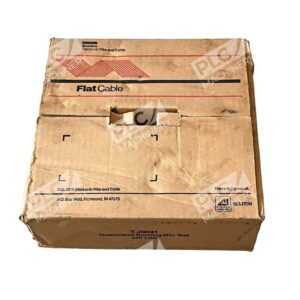

- 100-foot length in single H-100 packaging
Technical Specifications
The cable meets strict electrical and mechanical standards for industrial control and electronic assembly environments:
- Rated voltage: 300V RMS
- Operating temperature range: -40°C to 105°C
- Characteristic impedance: 150 Ω (GS), 105 Ω (GSG)
- Insulation resistance: 10 GΩ minimum
- Pitch spacing: 0.050″ (1.27mm)
- Cable length: 100.0 feet (30.48 meters)
Typical Applications
The cable is suited for internal interconnection and internal wiring of electronic equipment, with reliable mass-termination to standard IDC connectors. Common uses include computer peripheral interfaces, industrial control panels, test instrumentation, data acquisition systems, and general-purpose wire harnesses where organized, color-coded ribbon routing improves assembly and troubleshooting.
Compatibility & Replacements
Compatible With
- Standard 0.100″ (2.54mm) contact IDC connectors
- Flat cable termination tools and presses
- Electronic assembly and interconnect applications
- Industrial control systems with ribbon-cable harnesses
Replaces / Drop-In Replacement For

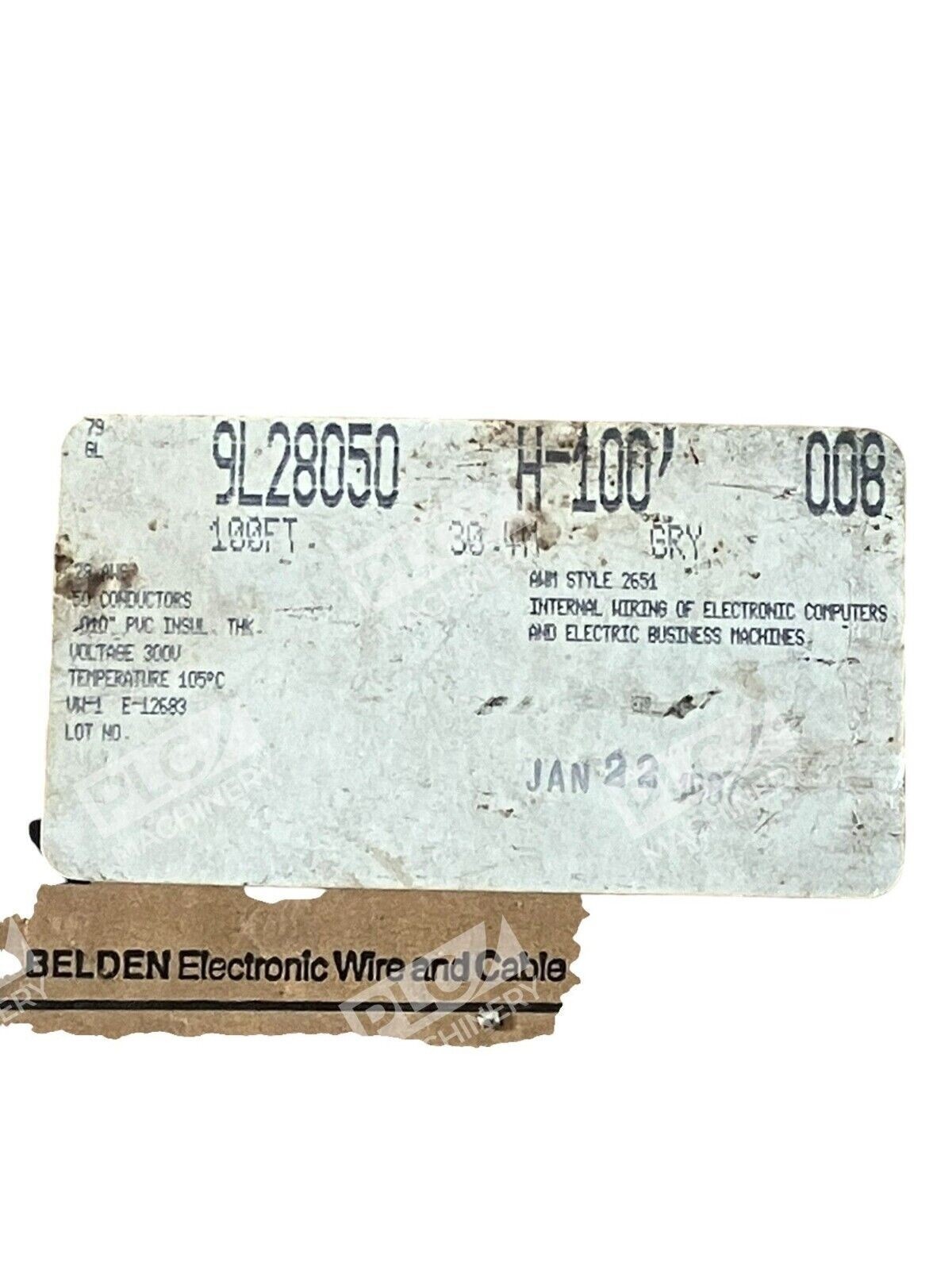

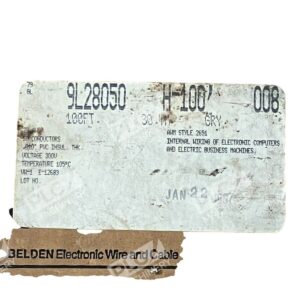

The Belden 9L28050 008H100 is the standard factory designation. Other Belden 9L280XX series models (such as 9L28016, 9L28060, 9L28064) are available in different conductor counts but share the same 0.050″ pitch and termination compatibility.
Works With
- IDC connectors and D-Sub ribbon interfaces
- Flat cable assembly equipment
- Industrial control and automation wiring harnesses
- Electronic test and measurement systems
