Overview

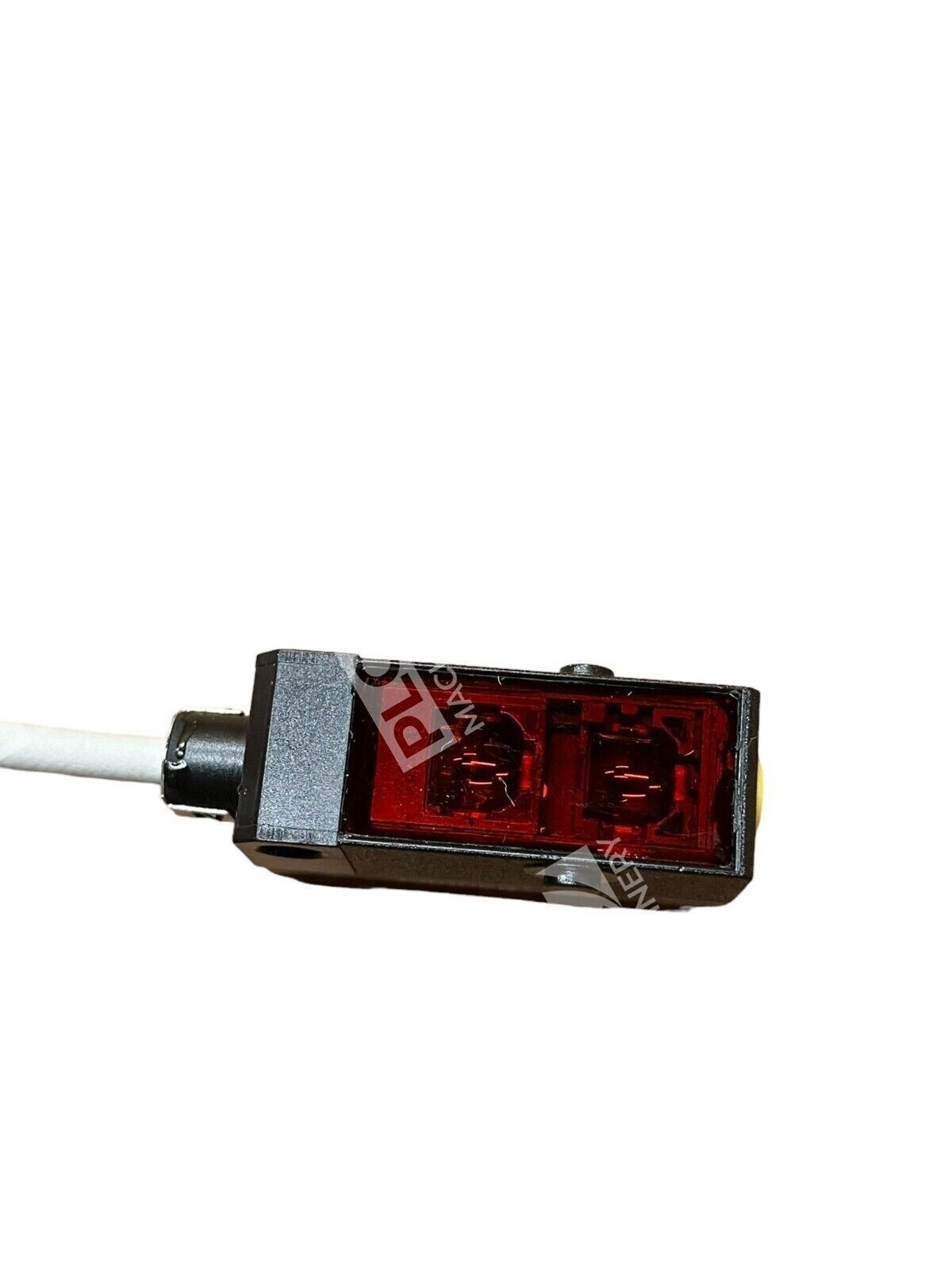

The Baumer FHDK 10P1412/KS35A is a subminiature diffuse photoelectric sensor engineered for reliable object detection in industrial automation applications. This sensor incorporates background suppression technology to eliminate false triggers from reflective surfaces beyond the target range, ensuring precise and consistent performance in challenging environments. With its compact design and robust M8 connector interface, the FHDK 10P1412/KS35A is ideal for machinery, packaging equipment, and material handling systems.
Key Features
- Diffuse Detection: Pulsed red LED with background suppression eliminates false detections from distant reflective surfaces

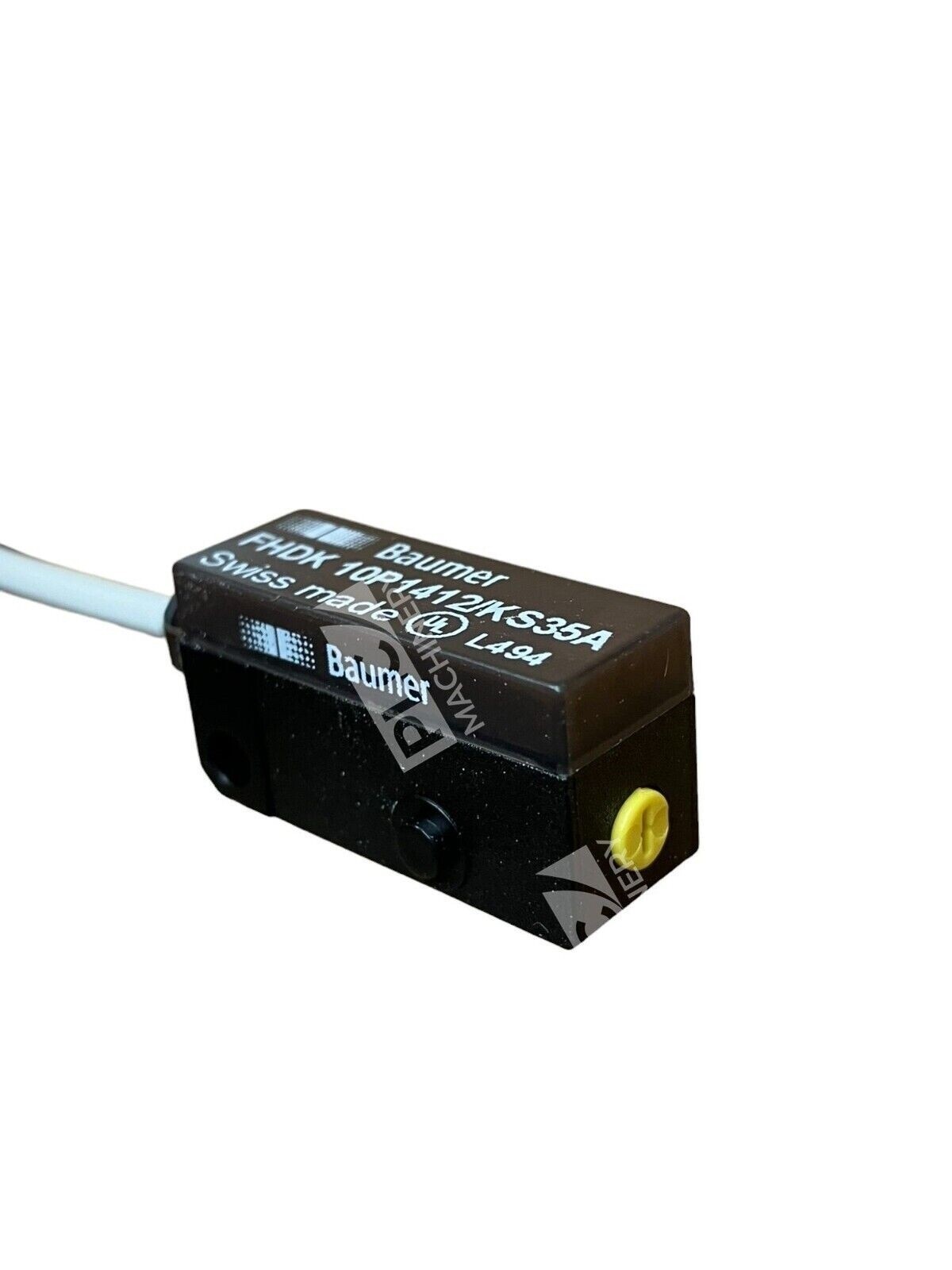

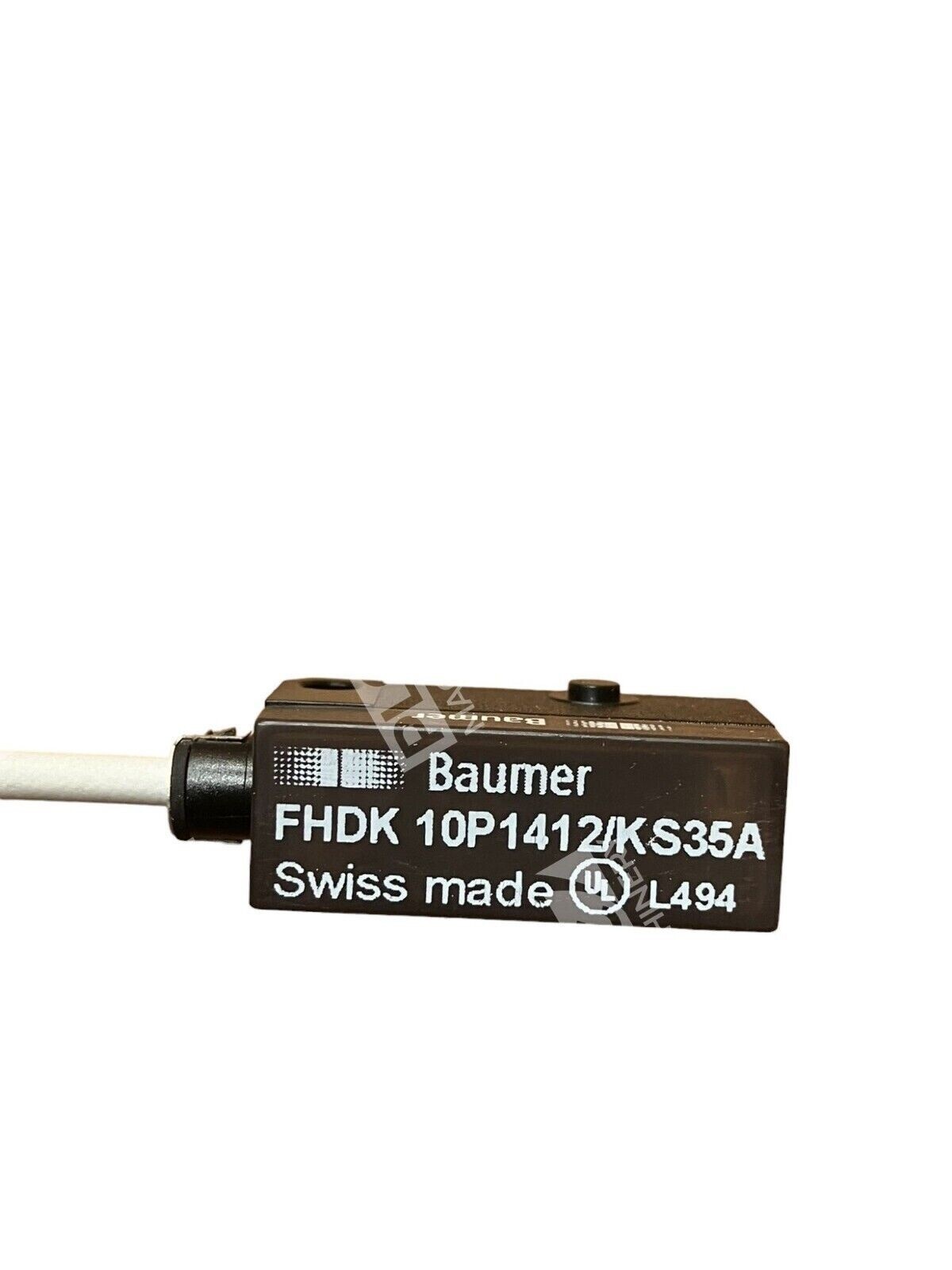

- Compact Housing: Subminiature plastic housing (MABS/PA/PMMA) for space-constrained installations
- Dual-Output Mode: Switchable Light-On and Dark-On operating modes for flexible system integration
- PNP Logic: Compatible with standard industrial 24 VDC control systems

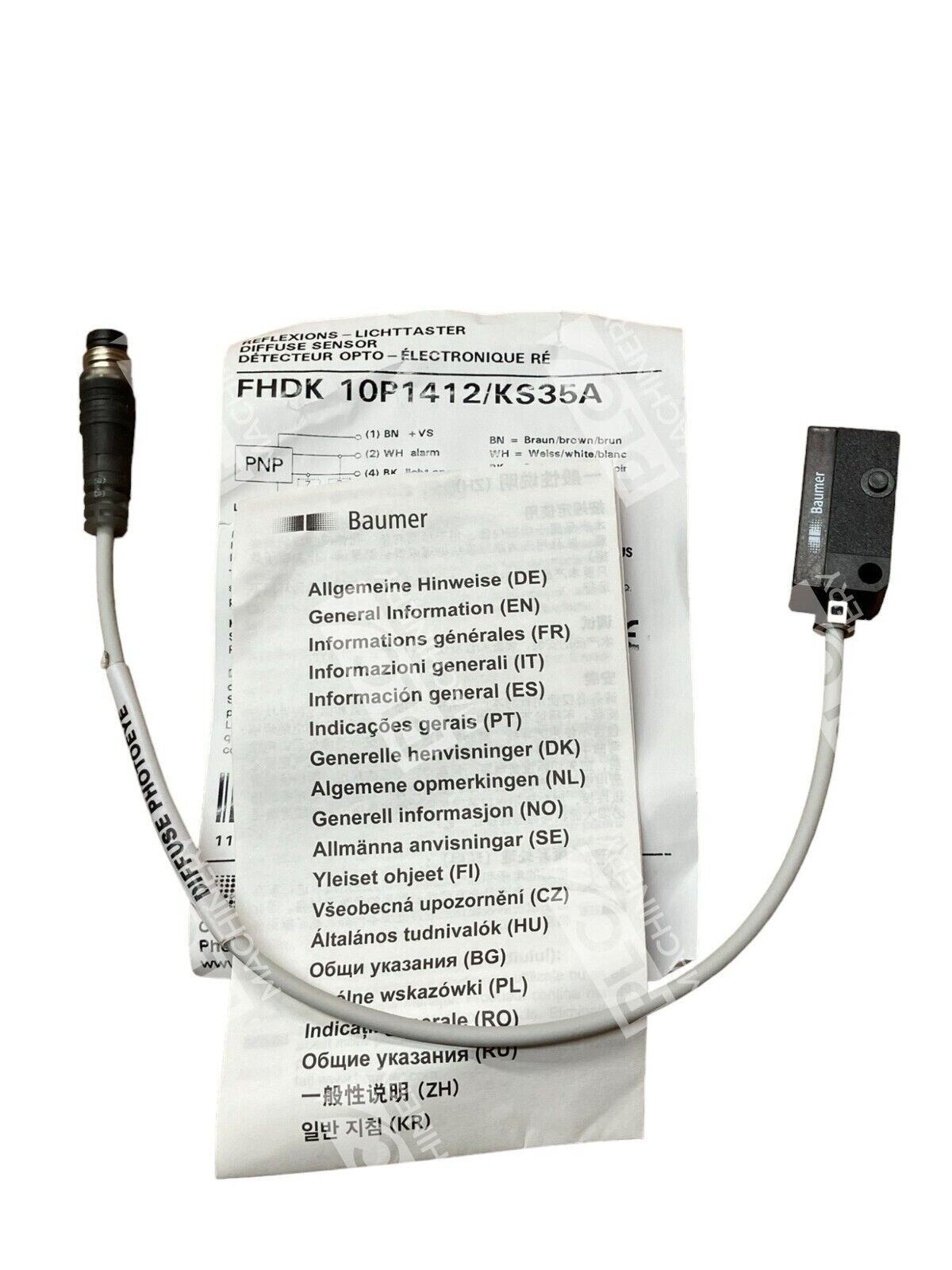

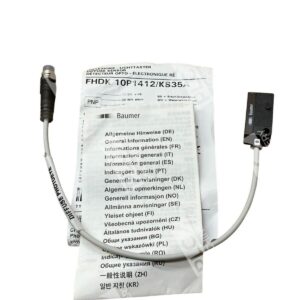

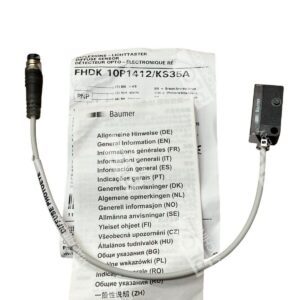

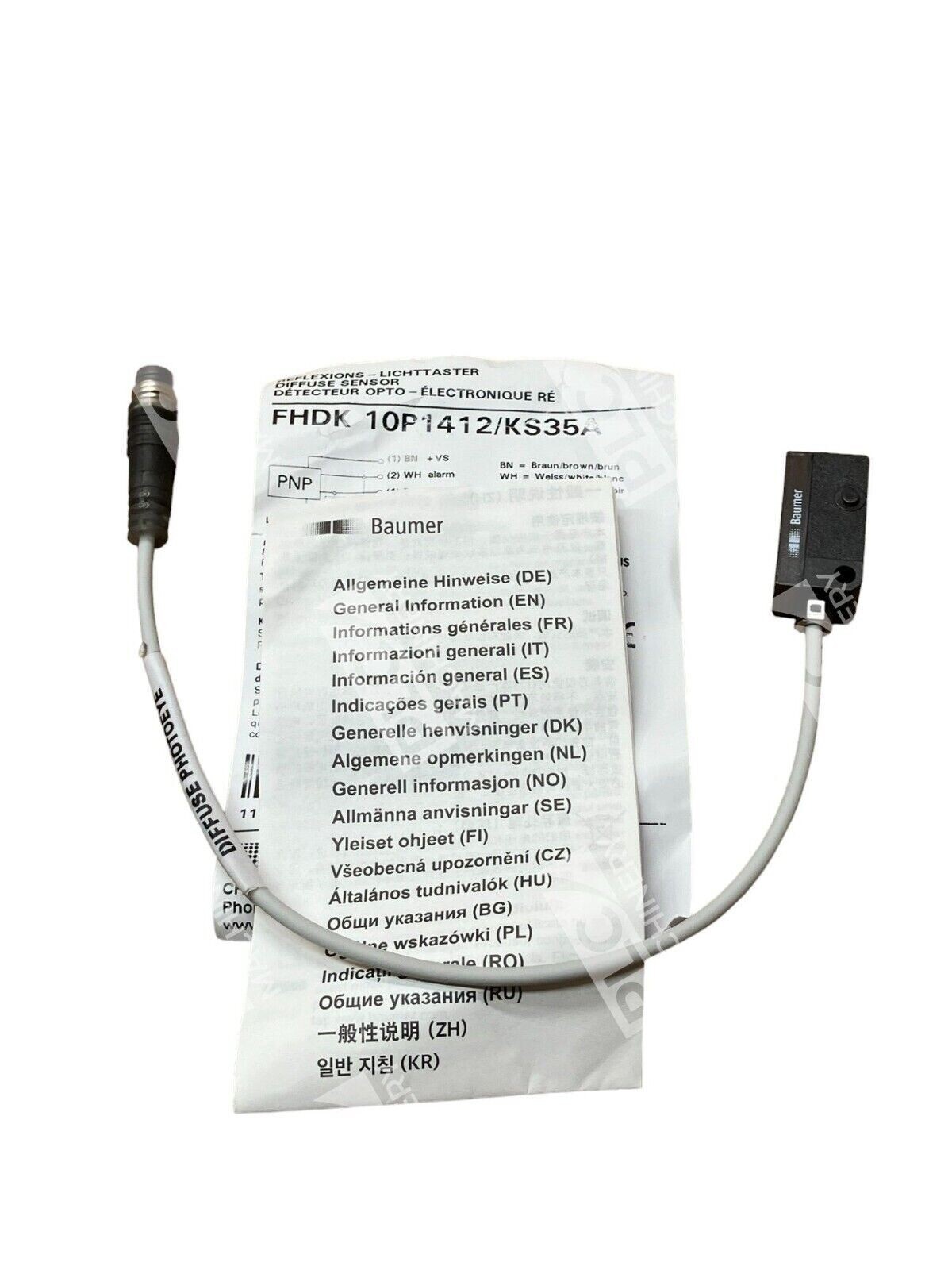

- M8 4-Pin Flylead: 200 mm pre-terminated cable with M8 connector for quick deployment
- IP65 Rating: Dust and splash-resistant for factory floor robustness
Technical Specifications
- Sensing Distance (Tw): Adjustable range typical of FHDK series
- Sensing Range (Tb): 2–60 mm at maximum distance
- Supply Voltage: 10–30 VDC
- Output Type: PNP, Light-On/Dark-On selectable
- Maximum Current Draw: <100 mA
- Light Source: Pulsed red LED (660 nm wavelength)

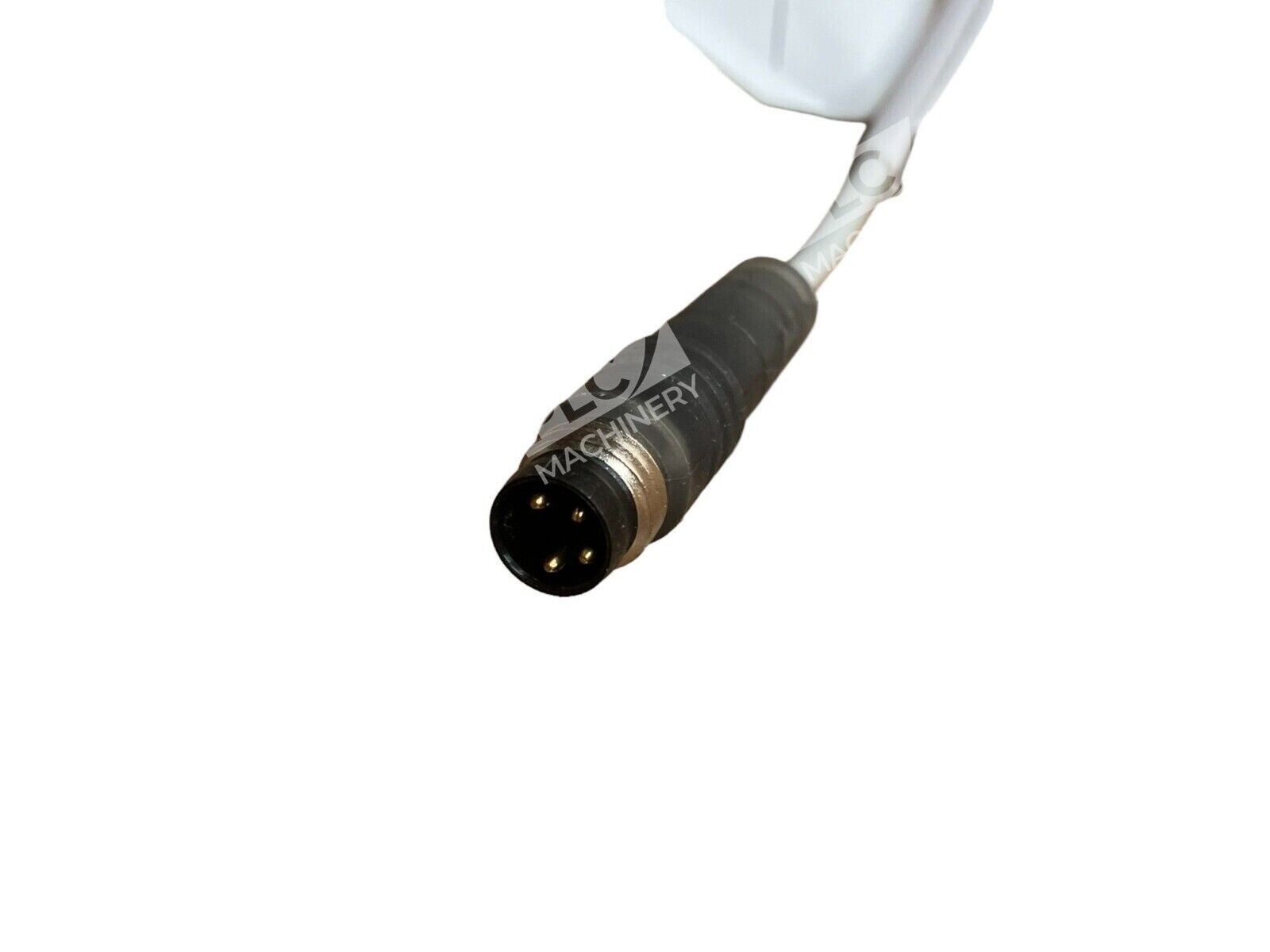

- Connector: 4-Pin M8 flylead, 200 mm cable
- Housing Material: MABS, polyamide, PMMA optics
- Operating Temperature: –20 to +50 °C
- Protection Rating: IP65
- Weight: Approximately 0.1–0.15 lbs
- Status Indicators: Green LED (alignment), yellow LED (output), flashing indicator (soiled lens)
Typical Applications
- Packaging and labeling machinery
- Material handling and conveyor systems
- Presence/absence detection in assembly lines
- Fill-level sensing in containers and hoppers
- Product counting and position verification
- Automation of small-part manufacturing processes
Compatibility & Replacements
Compatible With
- Standard 24 VDC industrial automation systems
- PLC/HMI control networks supporting discrete PNP inputs
- Allen-Bradley, Siemens, Omron, and other major automation platforms
- Industrial machinery with 10–30 VDC power supplies
- M8 connector-based sensor mounting infrastructure
Replaces / Drop-In Replacement For
- Previous-generation Baumer FHDK series diffuse sensors
- Generic subminiature diffuse sensors with M8 connectors and similar voltage ratings
- Verify compatibility with your specific system integrator before ordering if replacing legacy equipment
Works With
- M8 4-pin female connectors (straight and angled)
- PUR halogen-free extension cables rated for IP67/68
- Industrial automation control systems using 10–30 VDC logic
- Vision systems and position monitoring networks in Industry 4.0 environments
