Overview

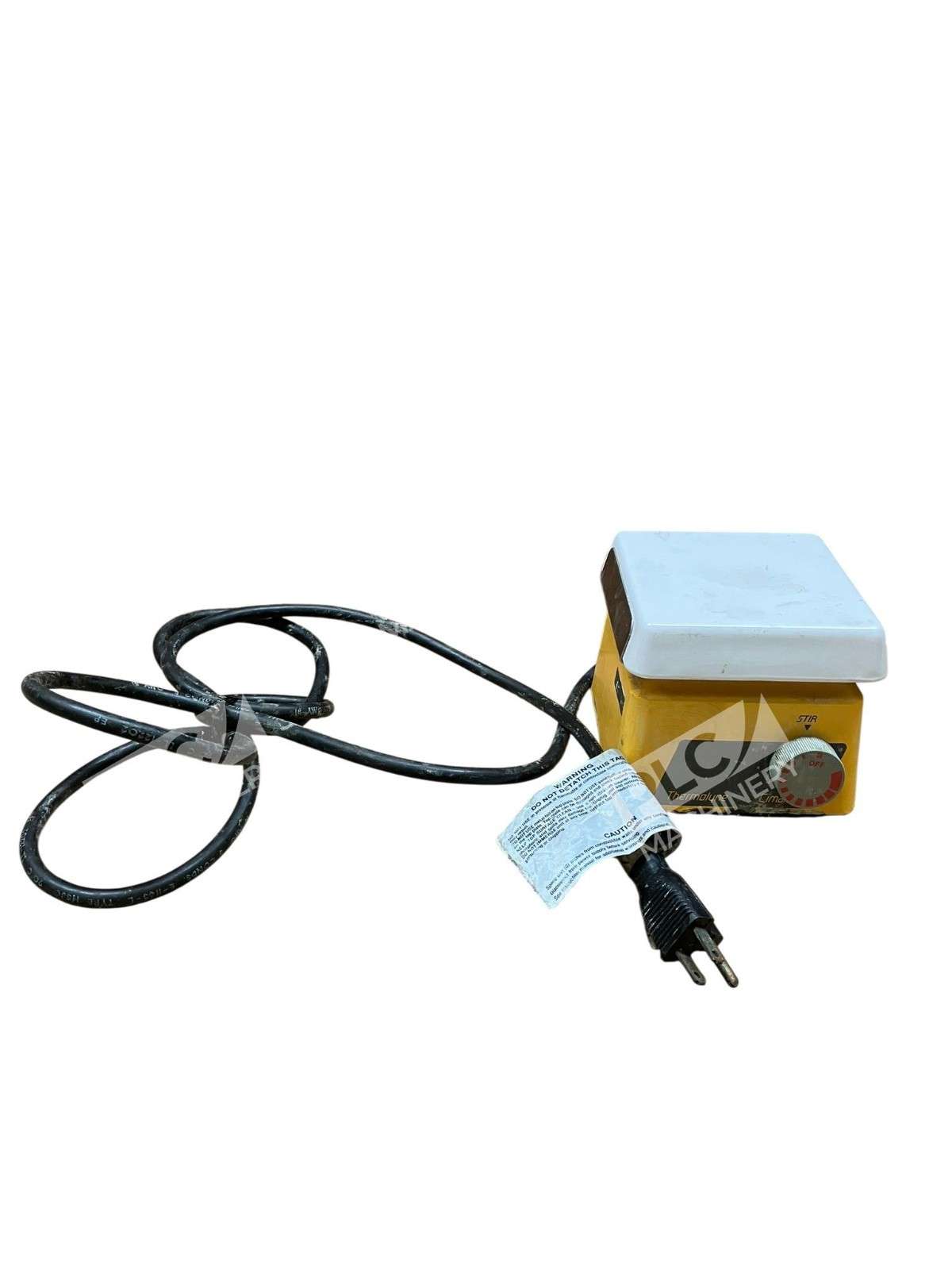

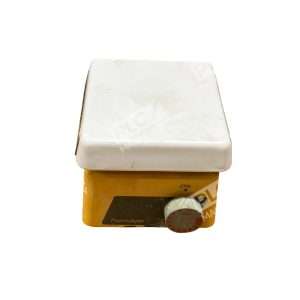

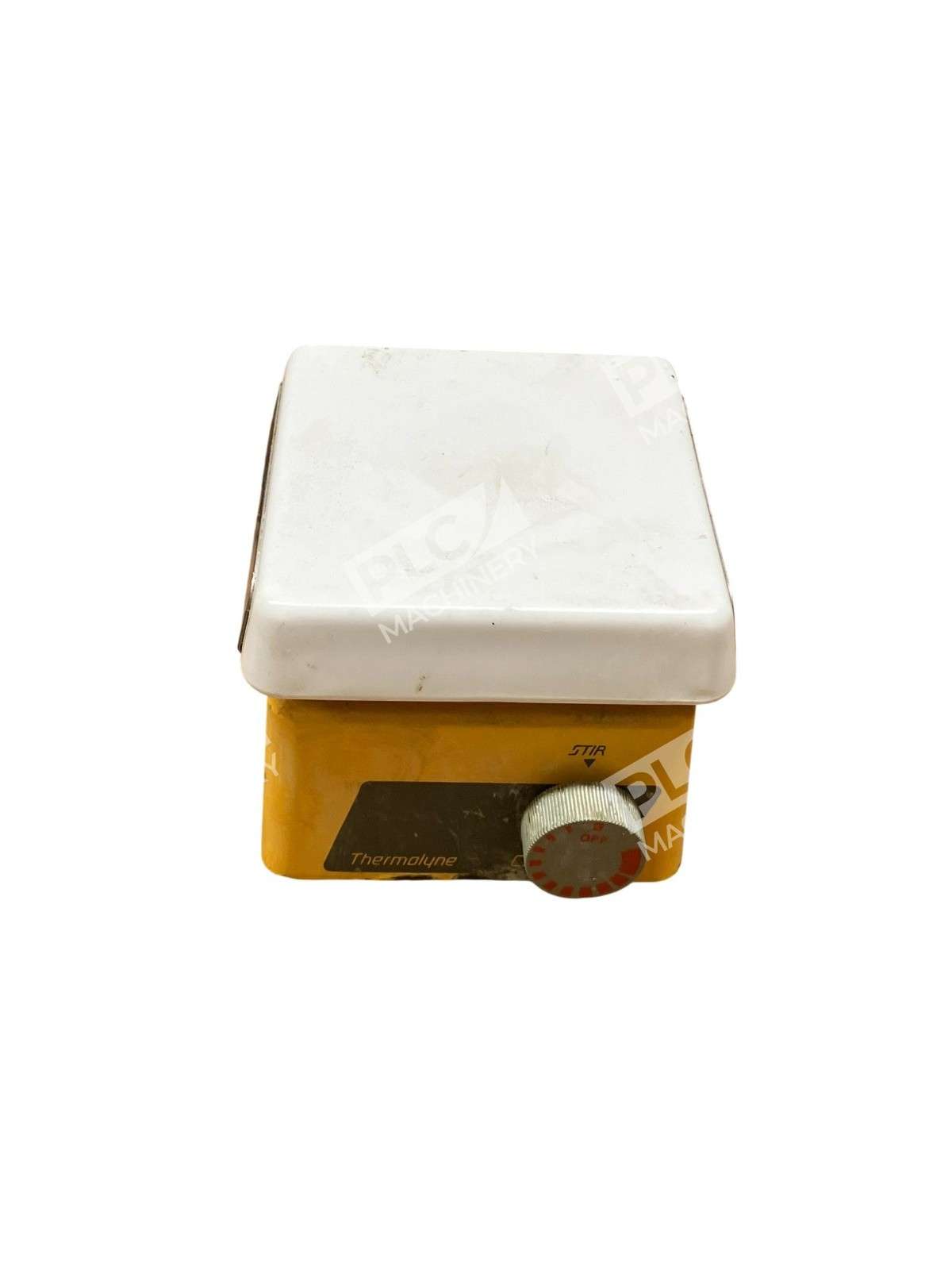

The Barnstead Thermolyne S46415 Cimarec 1 magnetic stirrer is a compact, bench-top mixing solution built for consistent performance in medical, microbiological, and biological laboratories. This unit features variable-speed magnetic stirring technology with excellent control across the full speed range, making it suitable for diverse mixing tasks in research and testing environments.
Key Features
- Variable Speed Control: Stirring speeds from 100 to 1000 RPM for flexible mixing applications
- Eddy Current Braking: Excellent speed control particularly at lower speeds through unique eddy current braking
- Magnetic Stirring Technology: Reliable magnetic coupling eliminates direct shaft contact for improved safety and durability
- 120V Operation: Standard laboratory power supply compatibility
- Compact Design: Space-efficient footprint suitable for bench-top lab setups
Technical Specifications
- Model: S46415
- Manufacturer: Barnstead Thermolyne
- Product Type: Magnetic Stirrer
- Voltage: 120V AC
- Speed Range: 100–1000 RPM
- Stirring Type: Magnetic coupling
- Speed Control: Variable, with eddy current braking
- Application: Laboratory mixing — medical, microbiological, biological research
- Shipping Weight: Approximately 12.37 kg (27.3 lbs)
- Typical Dimensions: 8 × 8 × 5 inches
Typical Applications
- Solution preparation and mixing in analytical laboratories
- Sample preparation in microbiological testing
- Cell culture and suspension mixing in biological research
- Chemical dissolution and homogenization in medical laboratories
- General-purpose benchtop stirring in academic and industrial research
Compatibility & Replacements
Compatible With
- Standard 120V AC laboratory power systems
- NEMA-standard electrical outlets
- Standard laboratory magnetic stirring bars
- Typical laboratory glassware (beakers, flasks, bottles)
Replaces / Drop-In Replacement For
- Other Cimarec 1 model units of equivalent configuration
- Verify compatibility with your specific lab setup before ordering
Works With
- Laboratory hot plate stirring configurations (when combined with heating units)
- Standard temperature monitoring equipment via external thermocouple sensors
- Manual speed control dial interface — no software or digital programming required
