Overview

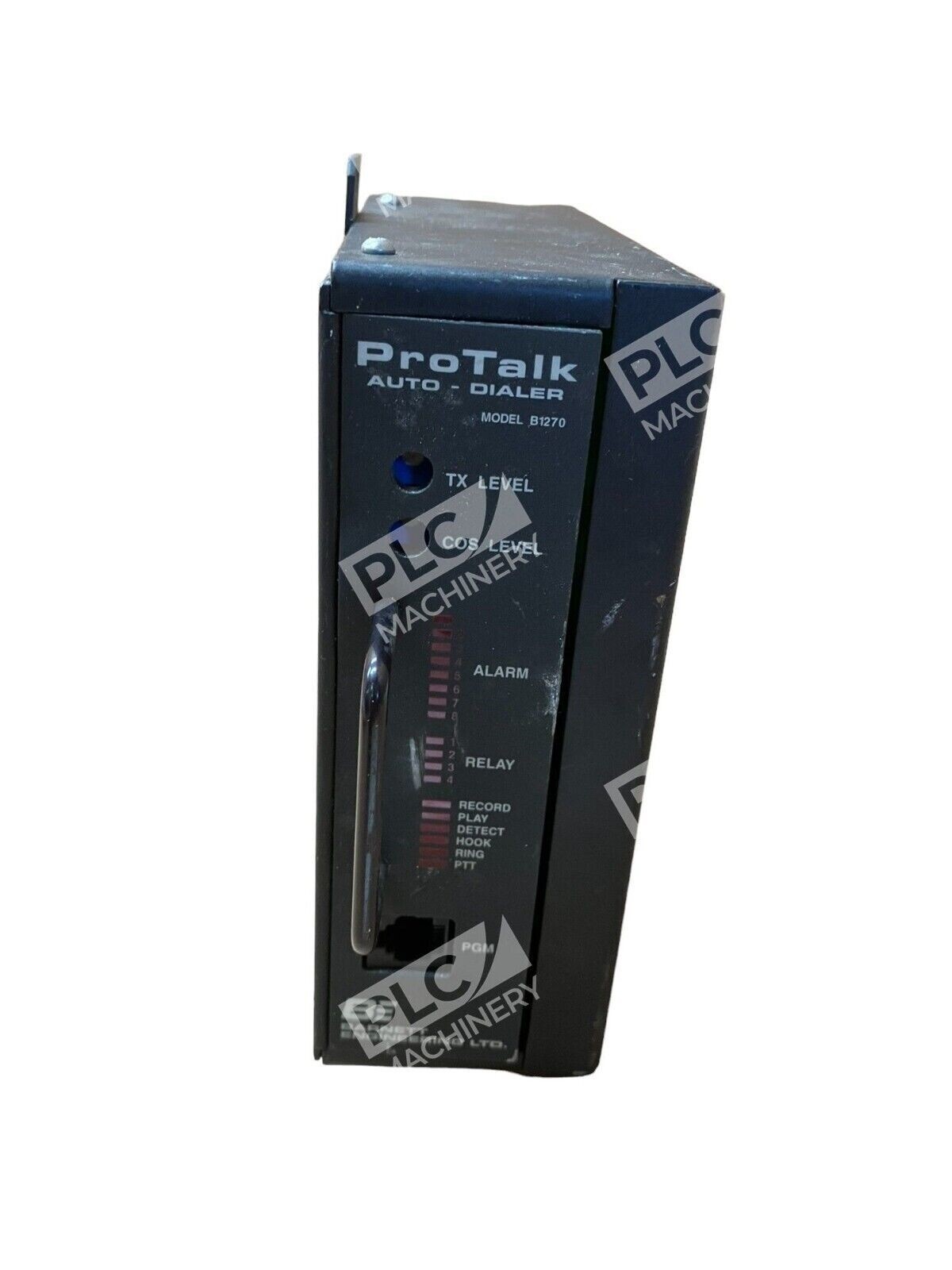

The Barnett Engineering B1270 ProTalk is a proven industrial alarm reporting system designed for remote site monitoring and critical alert distribution. This legacy model has earned a reliable track record across North America in electric substations, gas plants, water utilities, sewage treatment plants, and communications infrastructure. The B1270 delivers voice-based alarm announcements through flexible multi-channel notification including telephone lines, radio systems, and public address infrastructure.
Key Features
- Expandable architecture supporting multiple digital and analog alarm inputs
- Multi-channel announcement capability: telephone, radio, and PA systems
- Touch-tone phone programming and PC software configuration options
- Latched or momentary relay operation with programmable timing
- DTMF remote control signaling for authorized access
- Battery backup and AC power failure detection
- Modular design enabling field expansion for growing monitoring demands
Technical Specifications

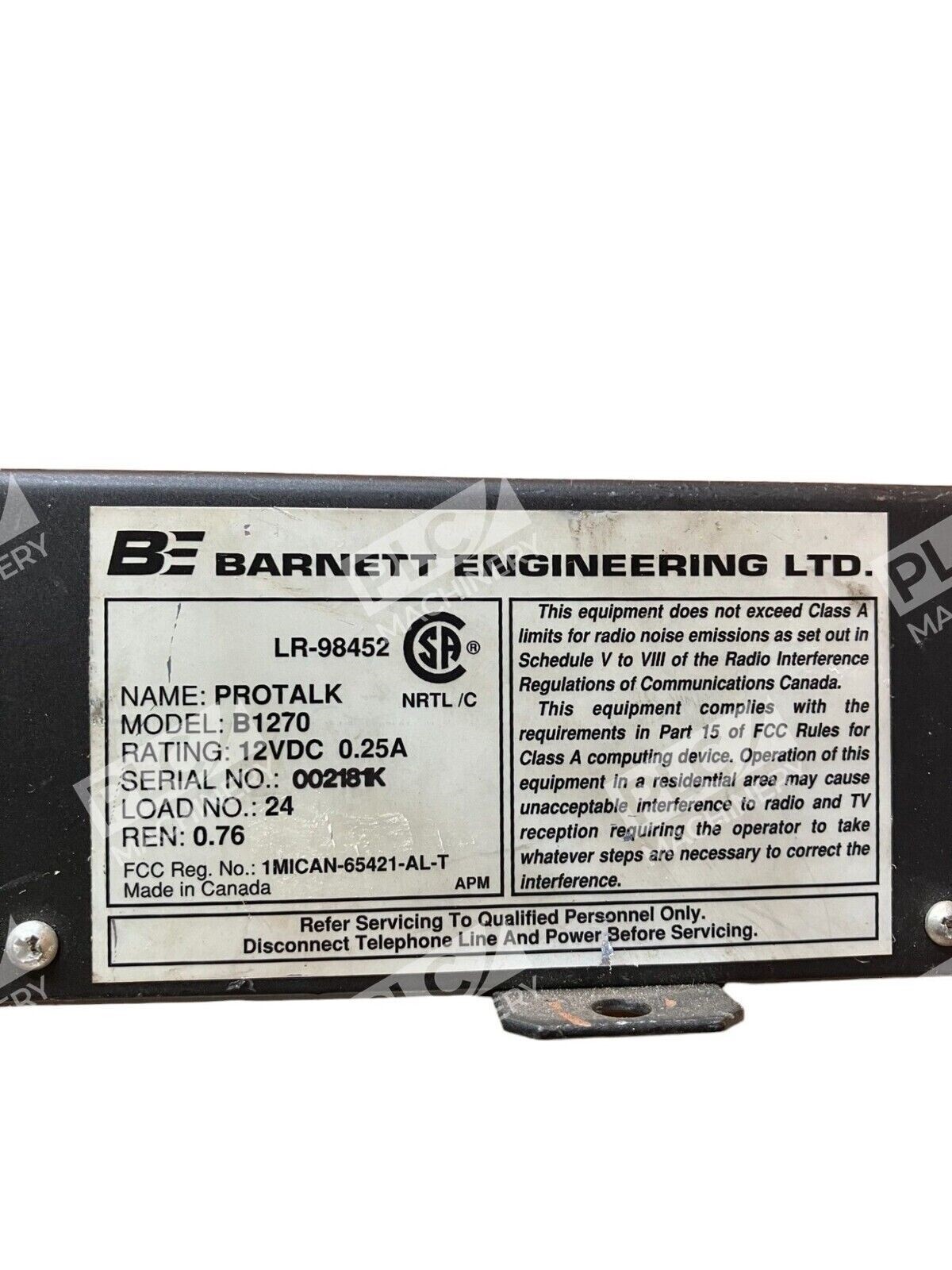

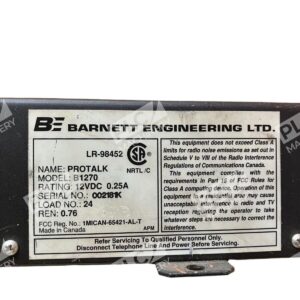

| Manufacturer | Barnett Engineering Ltd. |
| Model Number | B1270 |
| Product Family | ProTalk (Legacy) |
| System Type | Landline-based alarm auto-dialer with voice notification |
| Power Supply | AC with DC battery backup |
| Battery Capacity | 1.2 A-H (nominal) |
| Output Voltage | 13.8 VDC nominal, 400 mA max |
| Relay Outputs | Independently programmable for on/off or timed operation |
| Programming Interface | Touch-tone phone or PC Database Editor software |
| Remote Access | DTMF codes (1-7 digits), 3-level security |
| Notification Channels | Telephone, radio, PA systems (user-recordable announcements) |
| AC Failure Indicator | Form C relay contacts |
| Certifications | CSA certified, meets North American standards |
Typical Applications
- Electric Utility: Substation monitoring and fault alerts
- Gas & Water Systems: Plant condition monitoring with remote reporting
- Sewage Treatment: Equipment status and alarm notification
- Communications Infrastructure: Cell sites, radio towers, and PCS facilities
- Data Centers & HVAC: Temperature and equipment status alerts
- Cold Storage: Temperature excursion and system failure notification
- Industrial Facilities: Critical process monitoring and operator alert distribution
Compatibility & Replacements
Compatible With
- Standard PSTN telephone networks and landline infrastructure
- Radio communication systems and repeater networks
- Building public address (PA) systems
- Modicon master/slave networks (RTU and TCP modes)
- Allen-Bradley SLC500 and PLC5 controllers
- Standard digital alarm inputs (dry contact closure)
- 0-30 VDC analog alarm inputs
Replaces / Drop-In Replacement For
- Other first-generation ProTalk B-series models requiring legacy landline infrastructure
- Verify compatibility with your system integrator before ordering to confirm input/output module alignment
Works With
- ProTalk Database Editor PC software (included documentation)
- Touch-tone phone configuration (standard PSTN phones)
- Modicon RTU and TCP protocols
- Allen-Bradley SLC500 and PLC5 master configurations
- Hardwired dry-contact digital inputs
- 0-30 VDC analog input monitoring
