Overview

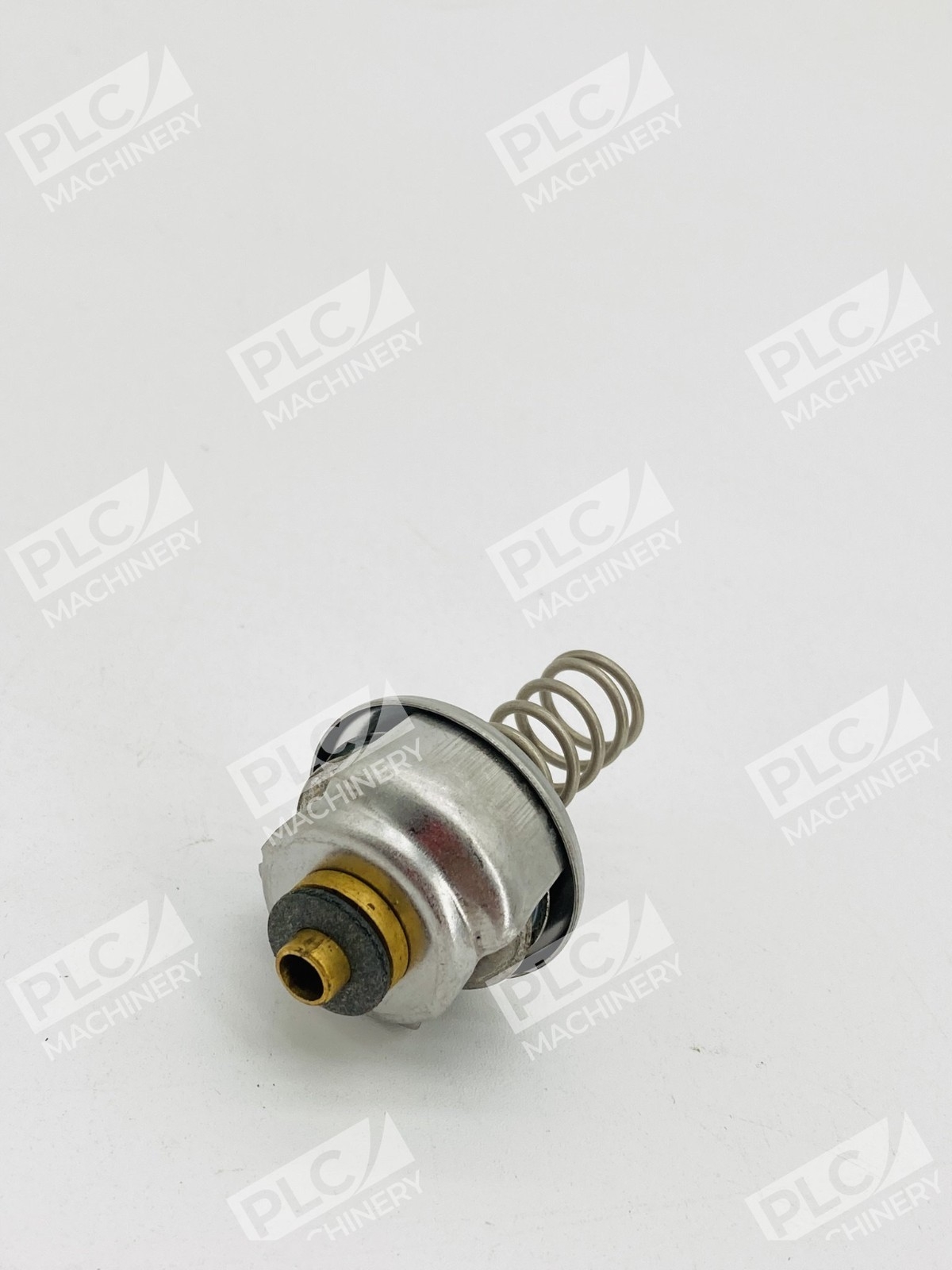

The Barnes & Jones 1748 cage unit is a precision-engineered thermostat and seating assembly designed to repair and restore Barnes & Jones C series steam traps. Unlike traditional repair kits with loose components, the 1748 operates as “a trap within a trap,” allowing you to replace the internal working parts while retaining the existing trap body. The unit features a 1/2″ female connection (Type C) and delivers factory-calibrated performance tested under live steam conditions.
Key Features

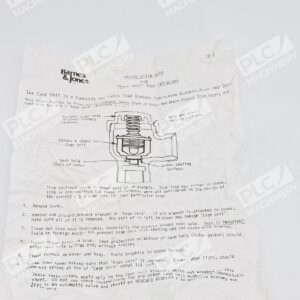

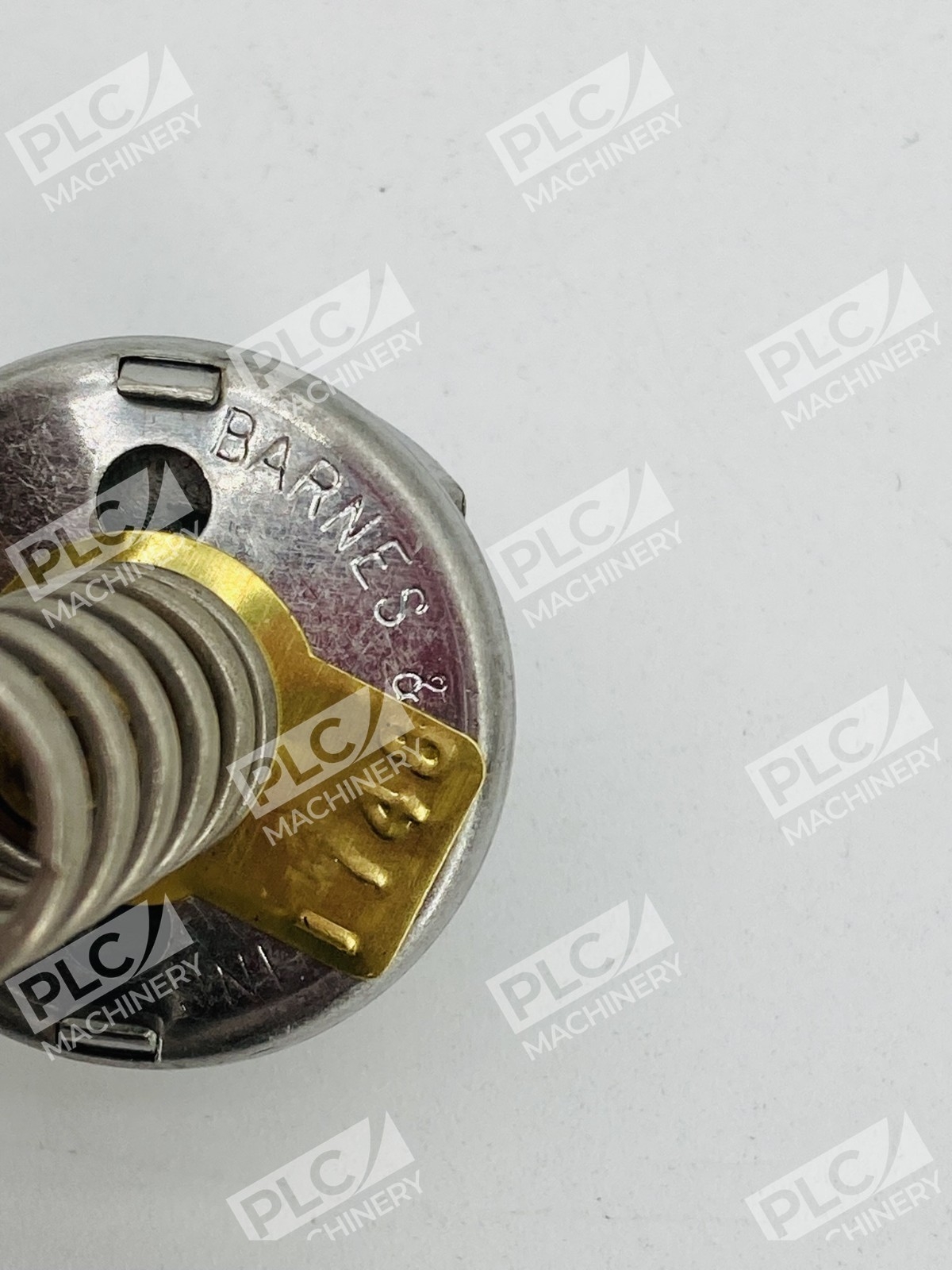

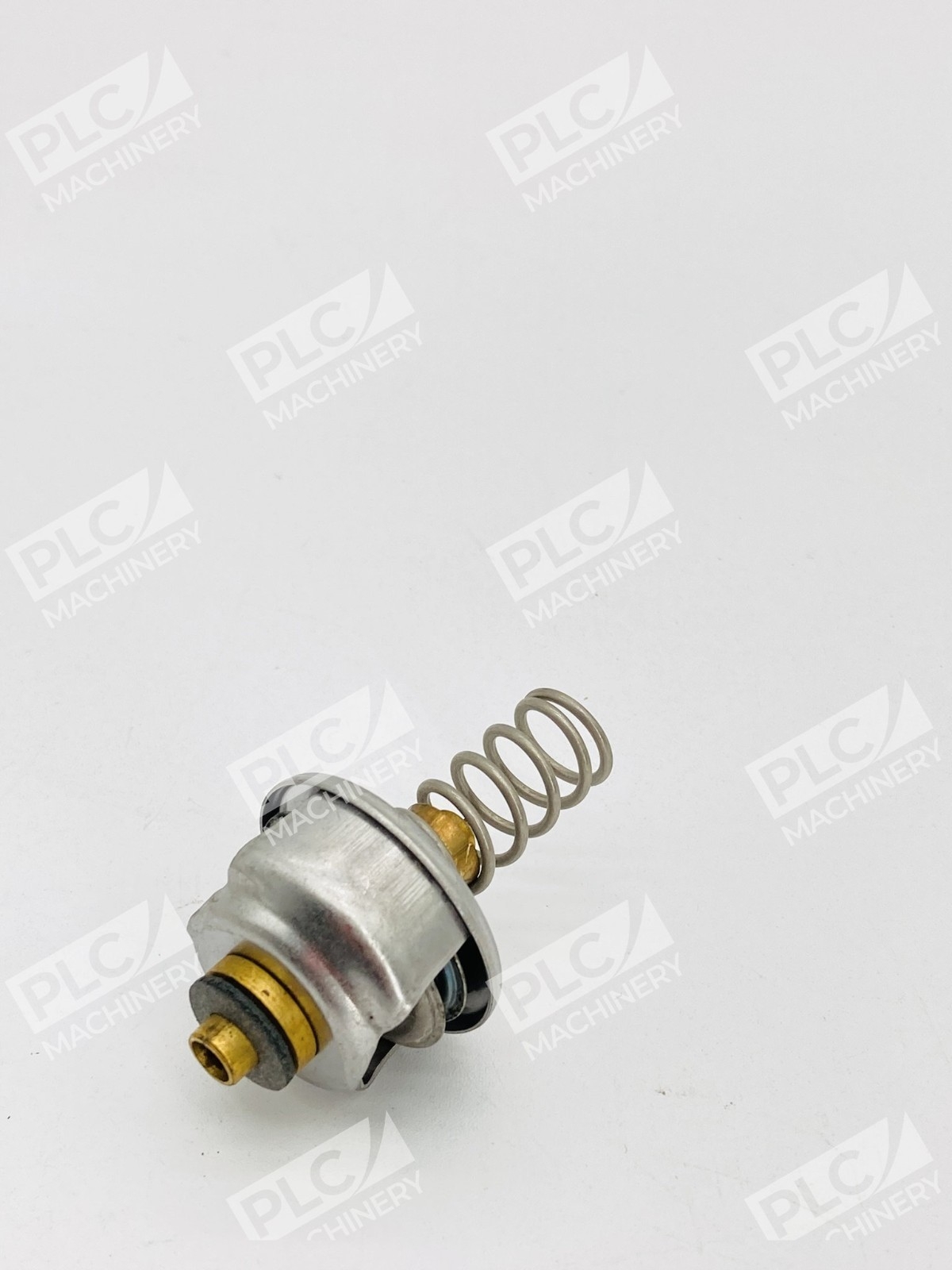

- Self-contained design: One-piece, stand-alone, fully removable and testable thermostatic element

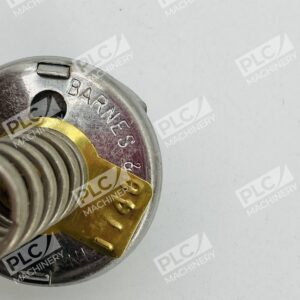

- Heavy-duty construction: Thermostatic element and seating units surrounded by protective stainless steel cage with precise calibration for solid opening and closing
- Reliable thermal sensing: When steam is detected the element expands to close the plunger seat, keeping steam contained until cooled; the element then contracts to raise the plunger and allow condensate to drain

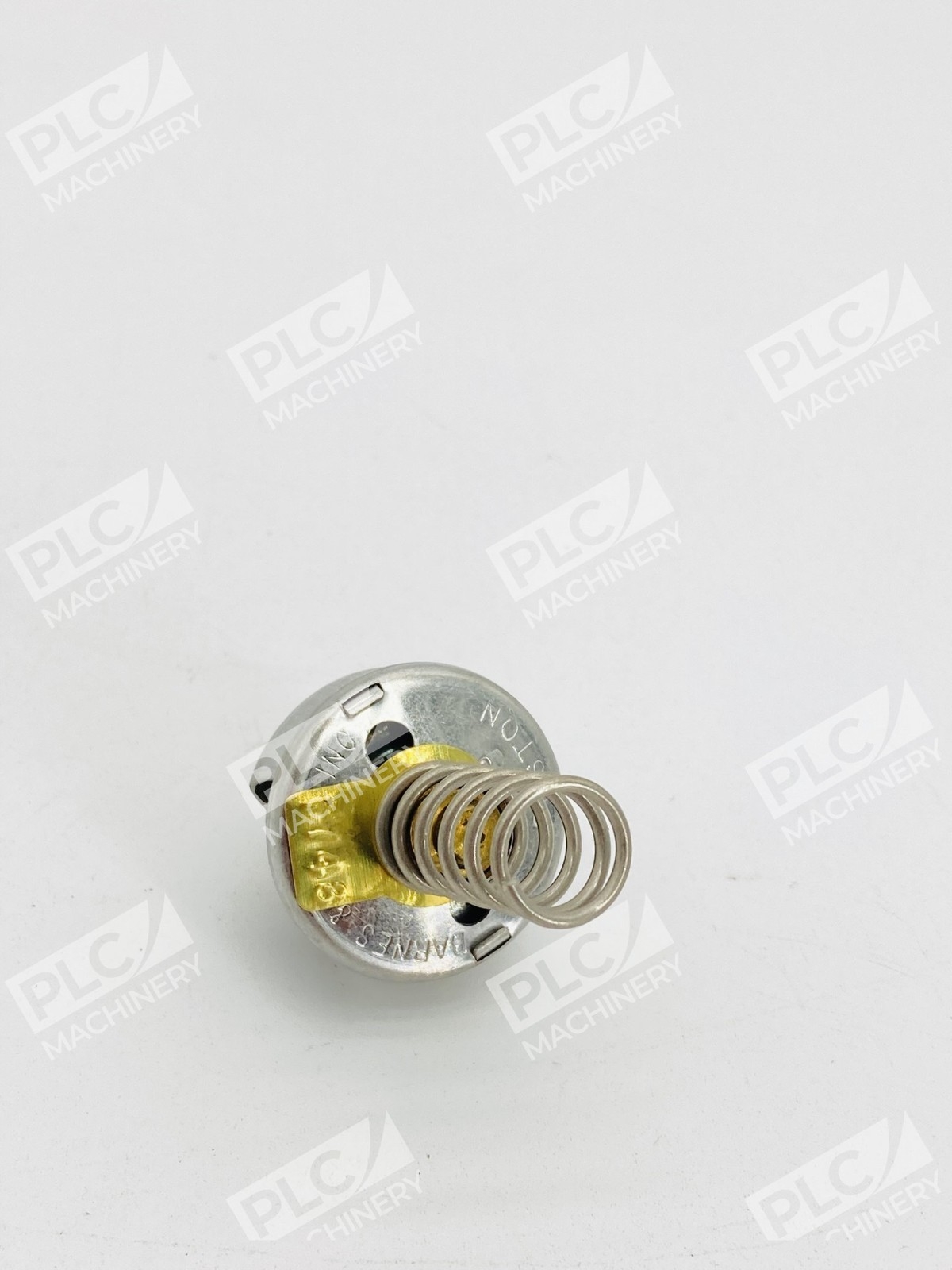

- Spring-tensioned mechanism: High-tension spring at the top applies pressure to the cover, eliminating movement

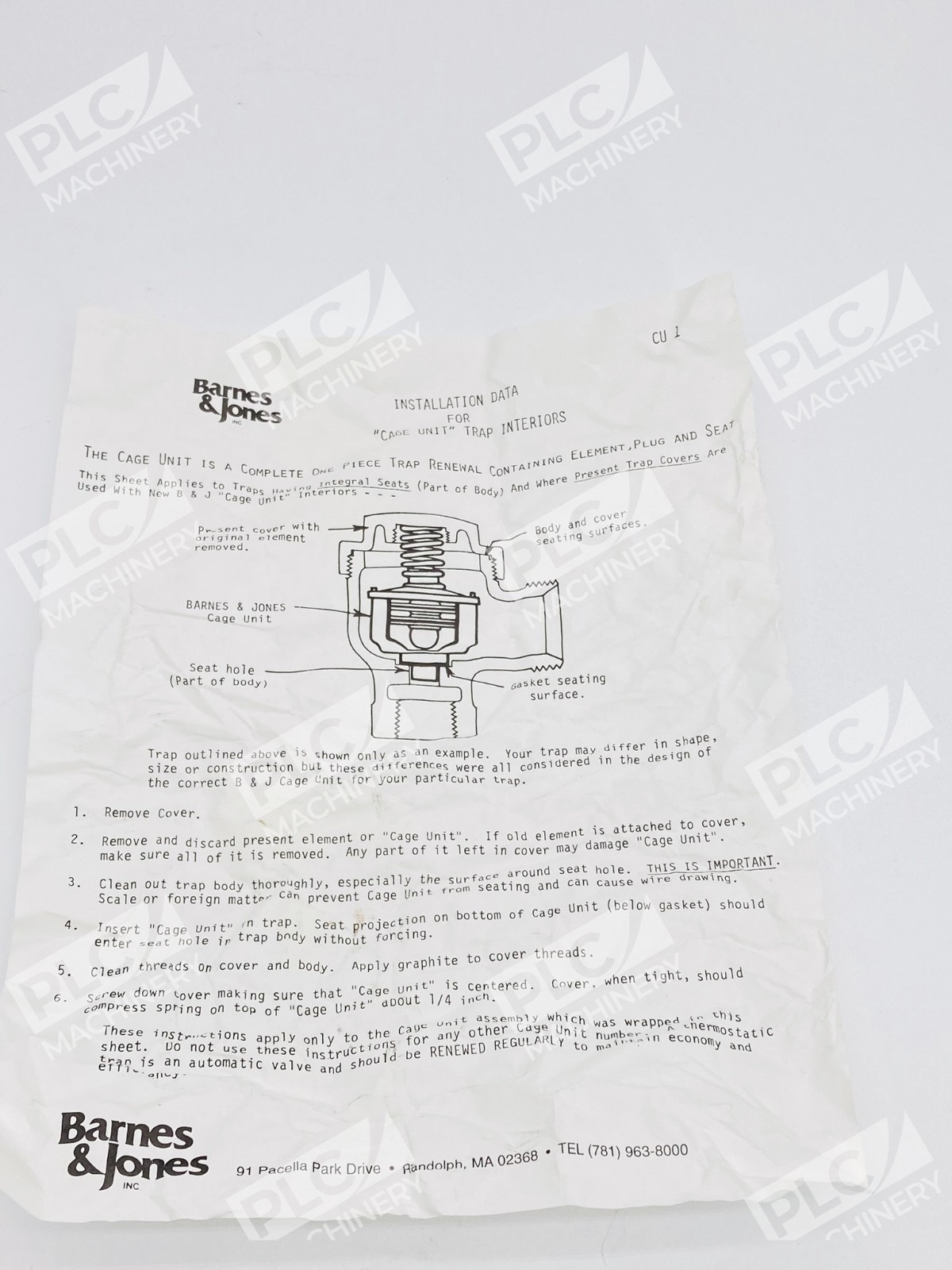

- No special tools required: Direct installation into existing trap body
- Factory tested: Factory calibrated and tested under live steam conditions to ensure uniform operation

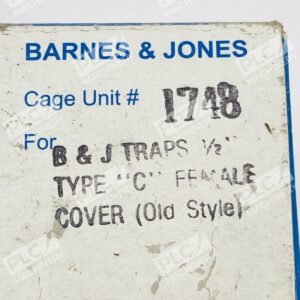

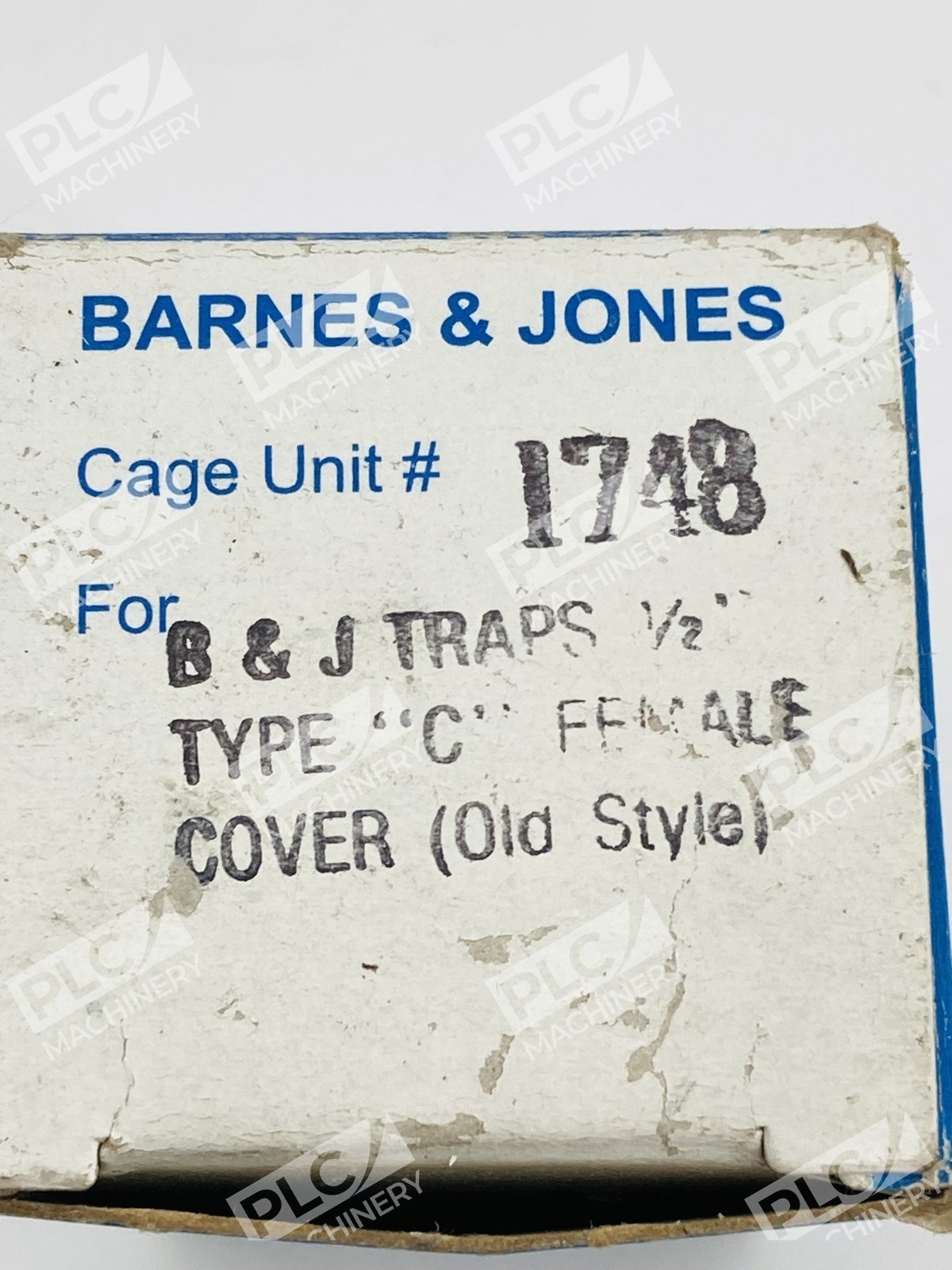

Technical Specifications
| Part Number | 1748 |
| Manufacturer | Barnes & Jones |
| Type | Cage Unit – Thermostatic Element Assembly |
| Connection Size | 1/2″ Female |
| Trap Series | C Series |
| Material (Cage) | Stainless Steel |
| Element Type | Thermostatic (A-Diaphragm) |
| Installation | Trap Body Insertion – Existing Body Retained |
Typical Applications
- Steam heating system repair and restoration
- Industrial steam trap maintenance in HVAC and plant steam lines
- Radiator and unit heater steam trap service
- Facilities with aging or failing thermostatic steam traps requiring in-place repair
- Commercial and industrial boiler condensate management
Compatibility & Replacements
Compatible With
- Barnes & Jones C series steam traps
- Existing trap bodies designed for C series cage units with 1/2″ female connections
- Thermostatic steam trap repair applications requiring internal element replacement
Replaces / Drop-In Replacement For
- Original thermostat and seating assemblies in Barnes & Jones C series traps
- Failed or worn thermostatic elements in existing C series trap bodies
- Verify compatibility with your specific trap body serial number and configuration before ordering
Works With
- C series trap bodies (1/2″ connection configuration)
- Standard steam system piping (threaded female NPT 1/2″)
- Live steam systems requiring thermostatic condensate control
- Verify compatibility with your system integrator before ordering if unsure of trap body designation
