Overview

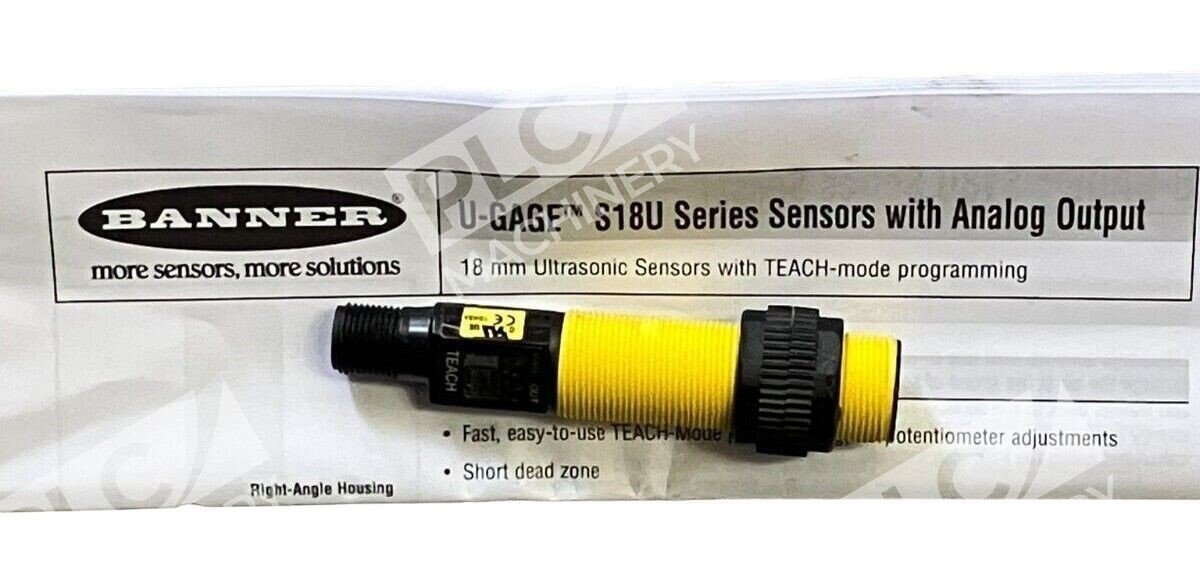

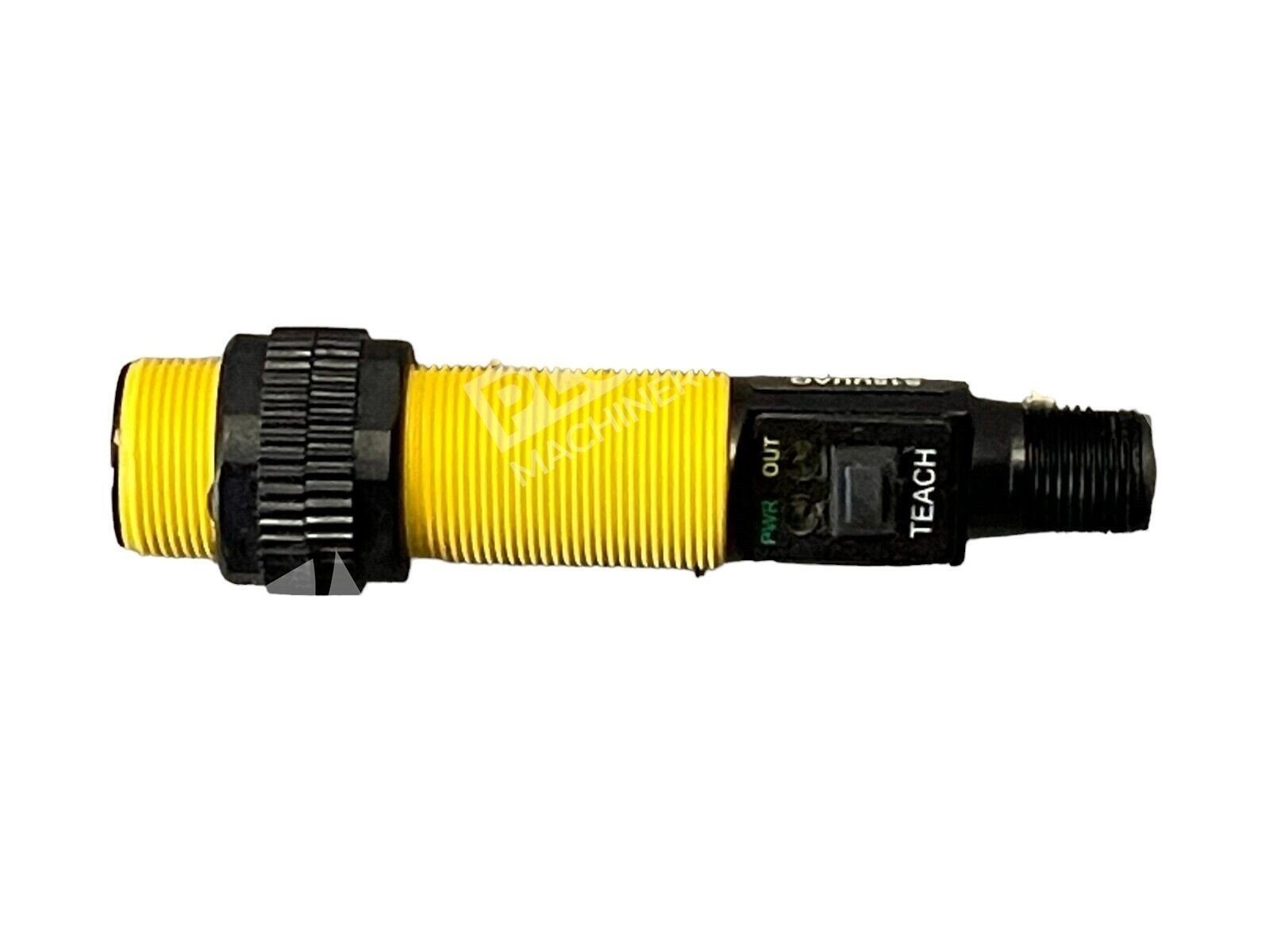

The Banner S18UUAQ is an 18mm cylindrical ultrasonic proximity sensor from the U-Gage S18U Series. It delivers analog 0–10V DC output and employs time-of-flight measurement technology for consistent, contactless distance detection. The TEACH-mode programming interface eliminates complex potentiometer adjustments, making it ideal for field technicians and system integrators who need fast configuration without specialized tools.
Key Features

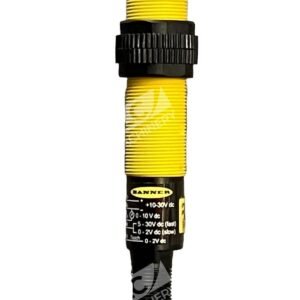

- Analog Output (0–10V DC): Direct integration with analog input modules and PLC systems without additional signal conditioning.

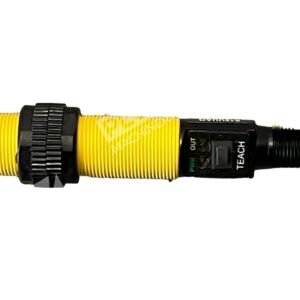

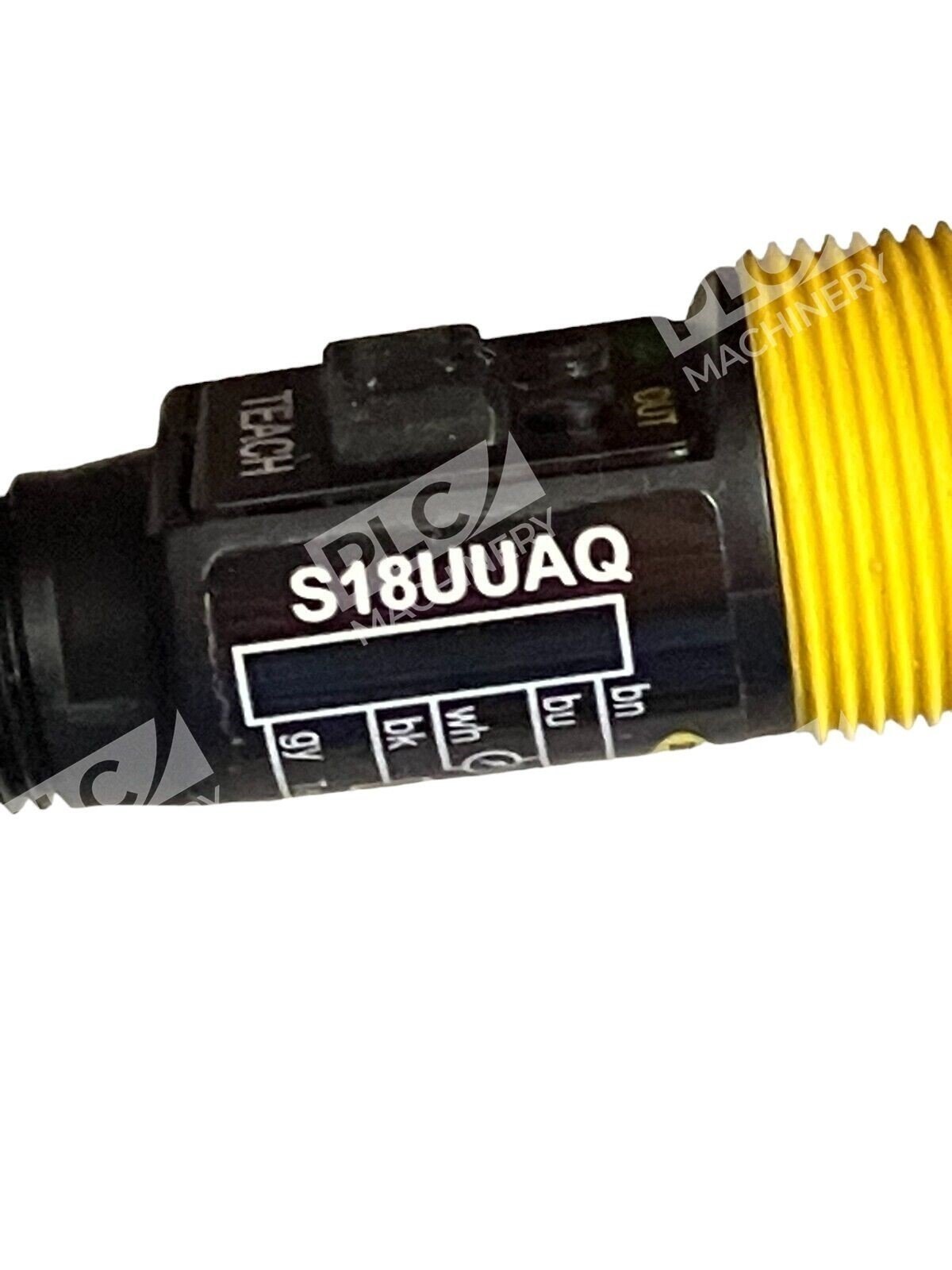

- TEACH-Mode Programming: Simple two-button configuration—no potentiometer tuning required.
- Sensing Range: 30–300 mm (1.2–11.8 inches) with short dead zone for improved near-target detection.

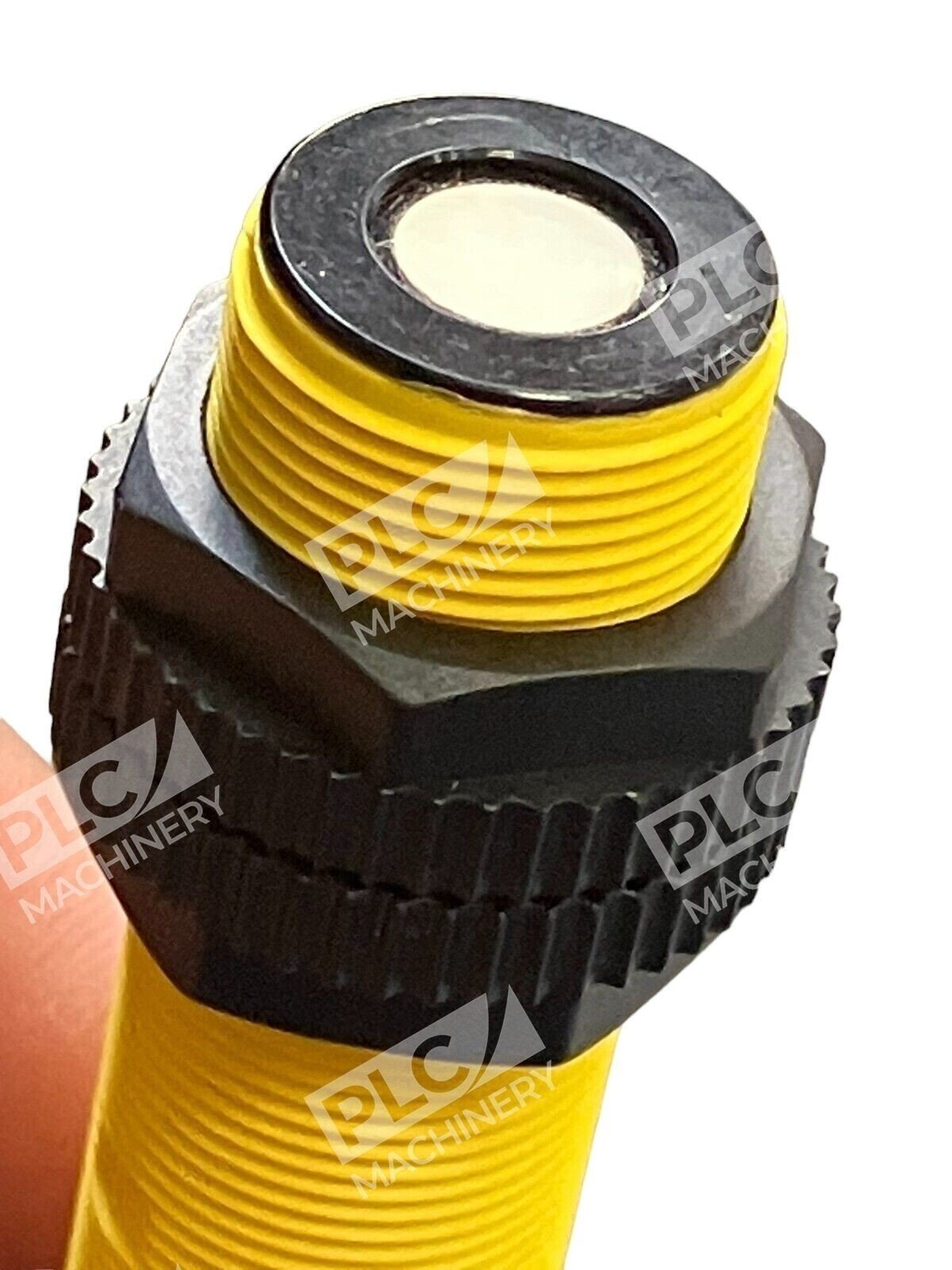

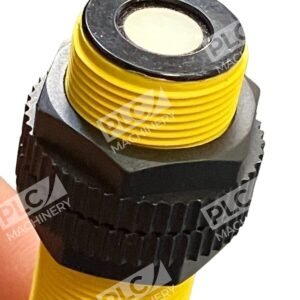

- Rugged M18 Housing: Thermoplastic body with IP67/NEMA 6P rating and temperature compensation for harsh industrial environments.

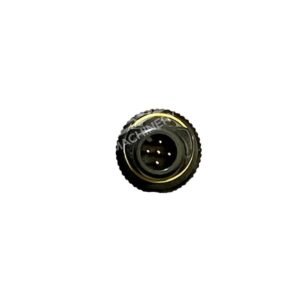

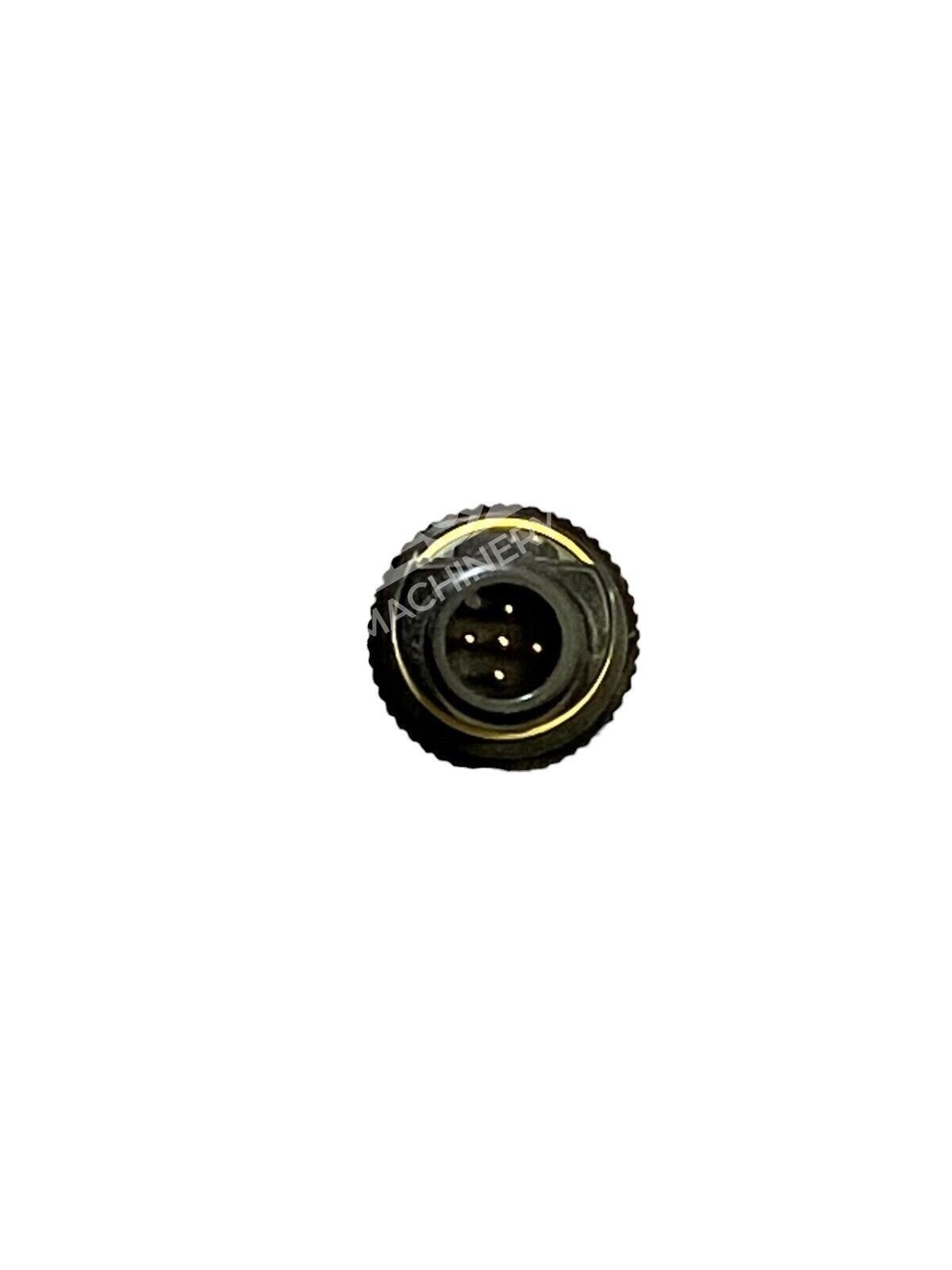

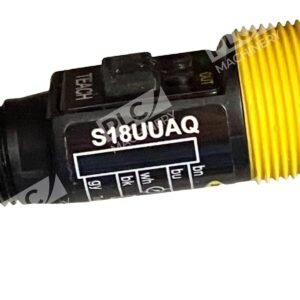

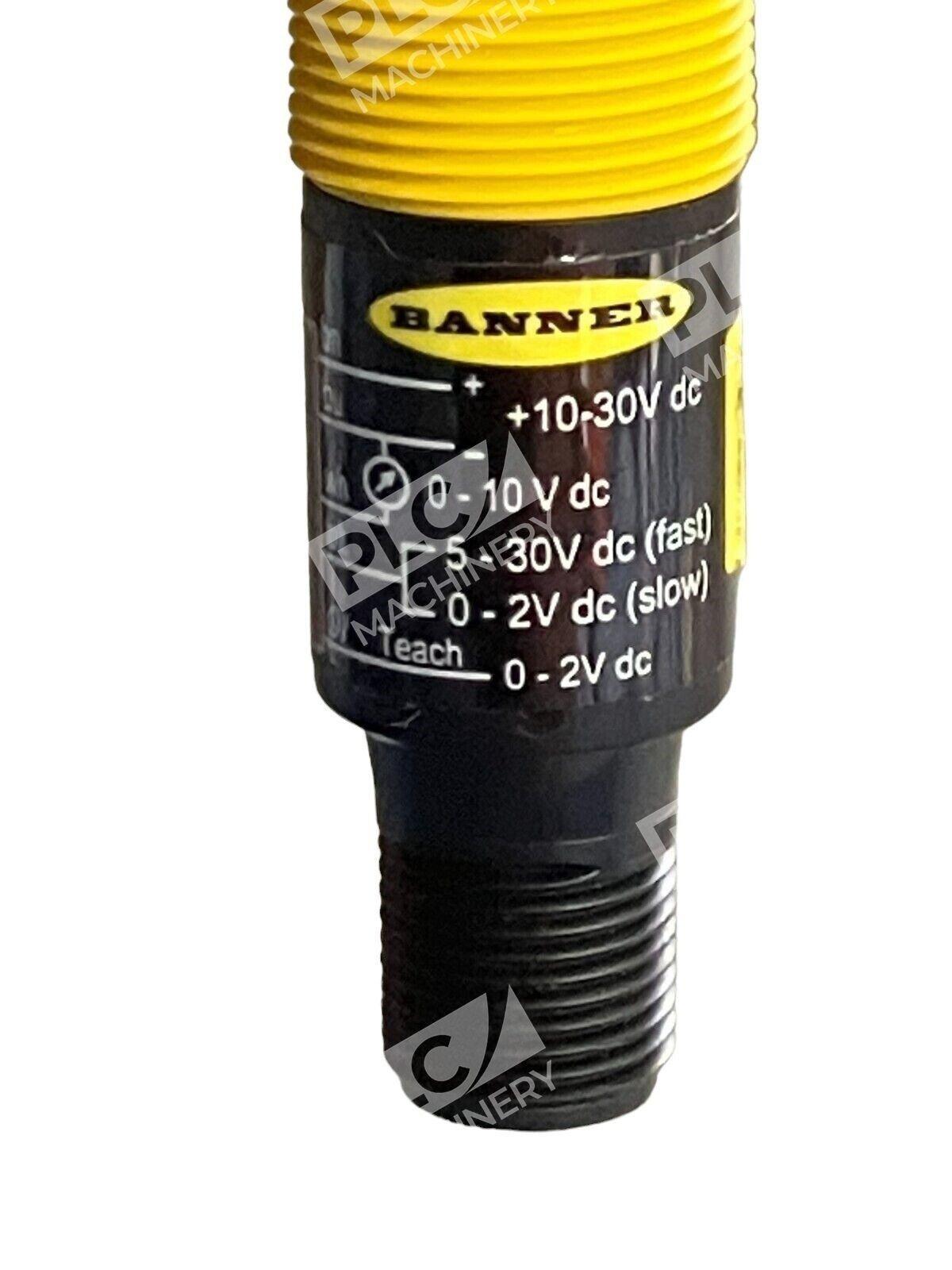

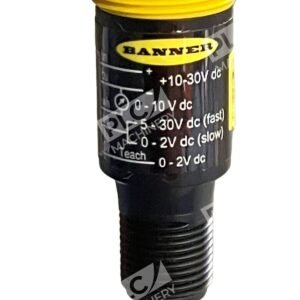

- M12 Quick-Disconnect (QD) Connector: 5-pin euro-style connector for fast plug-and-play cable connections.

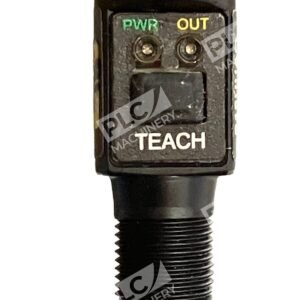

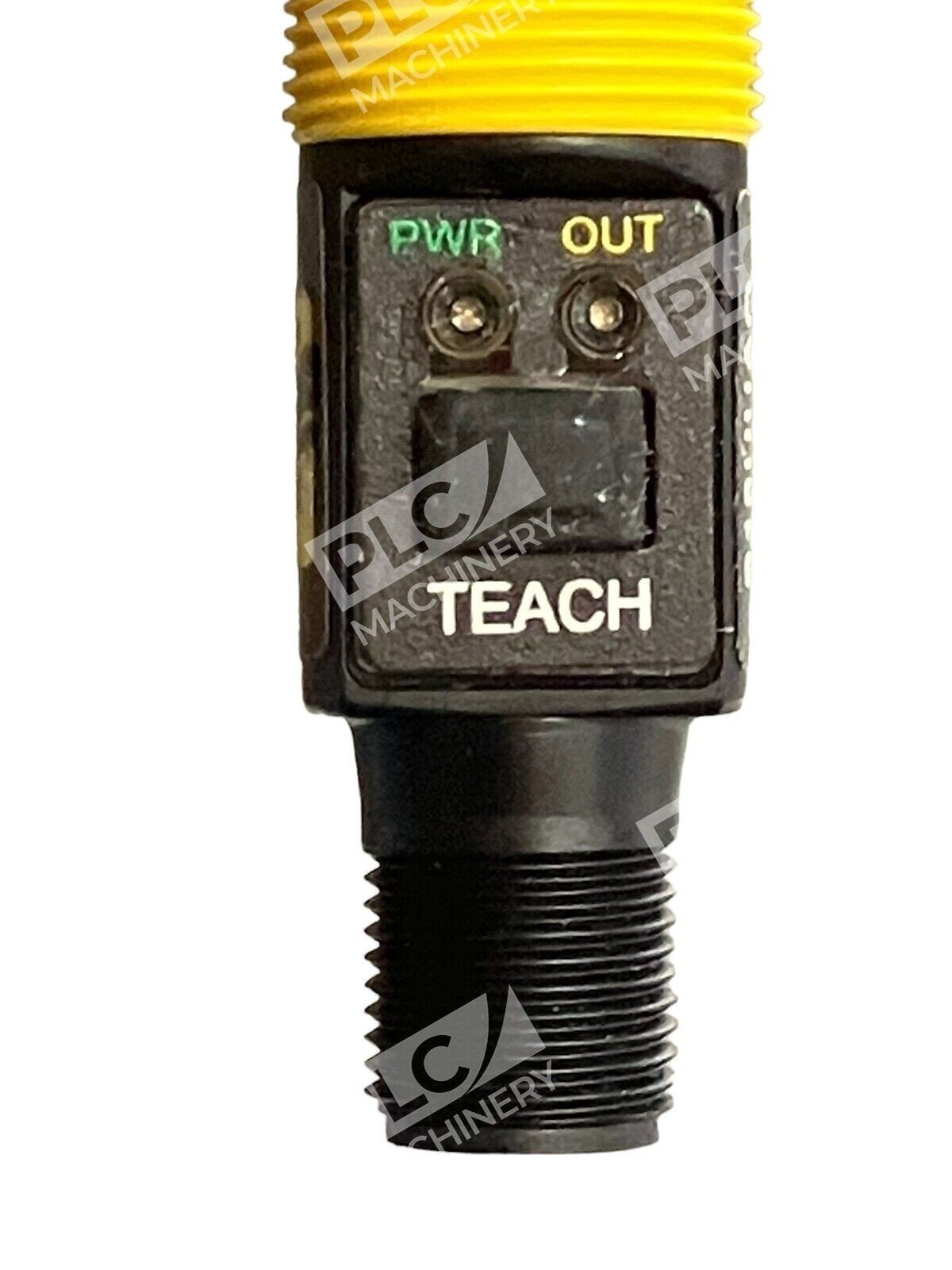

- Dual Status LEDs: Bi-colored indicators (red/green) for quick power and target status verification.
Technical Specifications
- Sensor Type: Ultrasonic proximity sensor (time-of-flight)
- Output Type: Analog 0–10V DC
- Sensing Range: 30–300 mm (straight housing)
- Supply Voltage: 10–30V DC (12V/24V nominal)
- Transmission Frequency: 300 kHz
- Housing Material: Thermoplastic polyester
- Connector Type: 5-pin M12 quick-disconnect (integral)
- Operating Temperature: −20°C to +60°C
- IP Rating: IP67 / NEMA 6P
- Housing Diameter: 18 mm (M18 thread)
- Response Time: Fast transducer response at 300 kHz
Typical Applications
- Level sensing and distance monitoring in food, beverage, and pharmaceutical processes.
- Conveyor belt monitoring and product detection on assembly lines.
- Bin and tank level indication for inventory management.
- Automated packaging and positioning in manufacturing.
- Mobile robotics and autonomous guided vehicle (AGV) obstacle detection.
- Material handling and warehouse automation systems.
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and PLC-5 analog input modules (via 4–20 mA or 0–10V terminals).
- Siemens S7-1200, S7-1500 analog input cards.
- Mitsubishi FX5 and QnA series PLCs with analog input modules.
- Industrial PCs and motion controllers with standard analog input ports.
- SCADA and HMI systems supporting 0–10V input signals.
Replaces / Drop-In Replacement For
- Banner S18UUAQ (same model; exact replacement for maintenance or spares).
- Other U-Gage S18U series variants with different connector or cable configurations (S18UUA, S18UIA, S18UIAR, S18UUARQ).
- Verify compatibility with your system integrator before ordering to ensure voltage, output type, and connector match your application.
Works With
- Studio 5000, TIA Portal, and other major PLC programming environments with analog input support.
- PROFINET, EtherNet/IP, and analog sensor networks via gateway modules.
- Banner IDEM sensor networks and condition monitoring systems.
- Standard industrial 0–10V analog instrumentation and DAQ cards.
