Overview

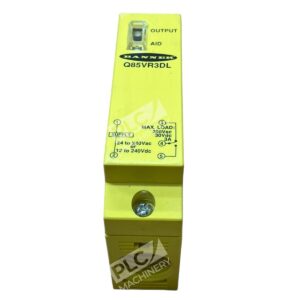

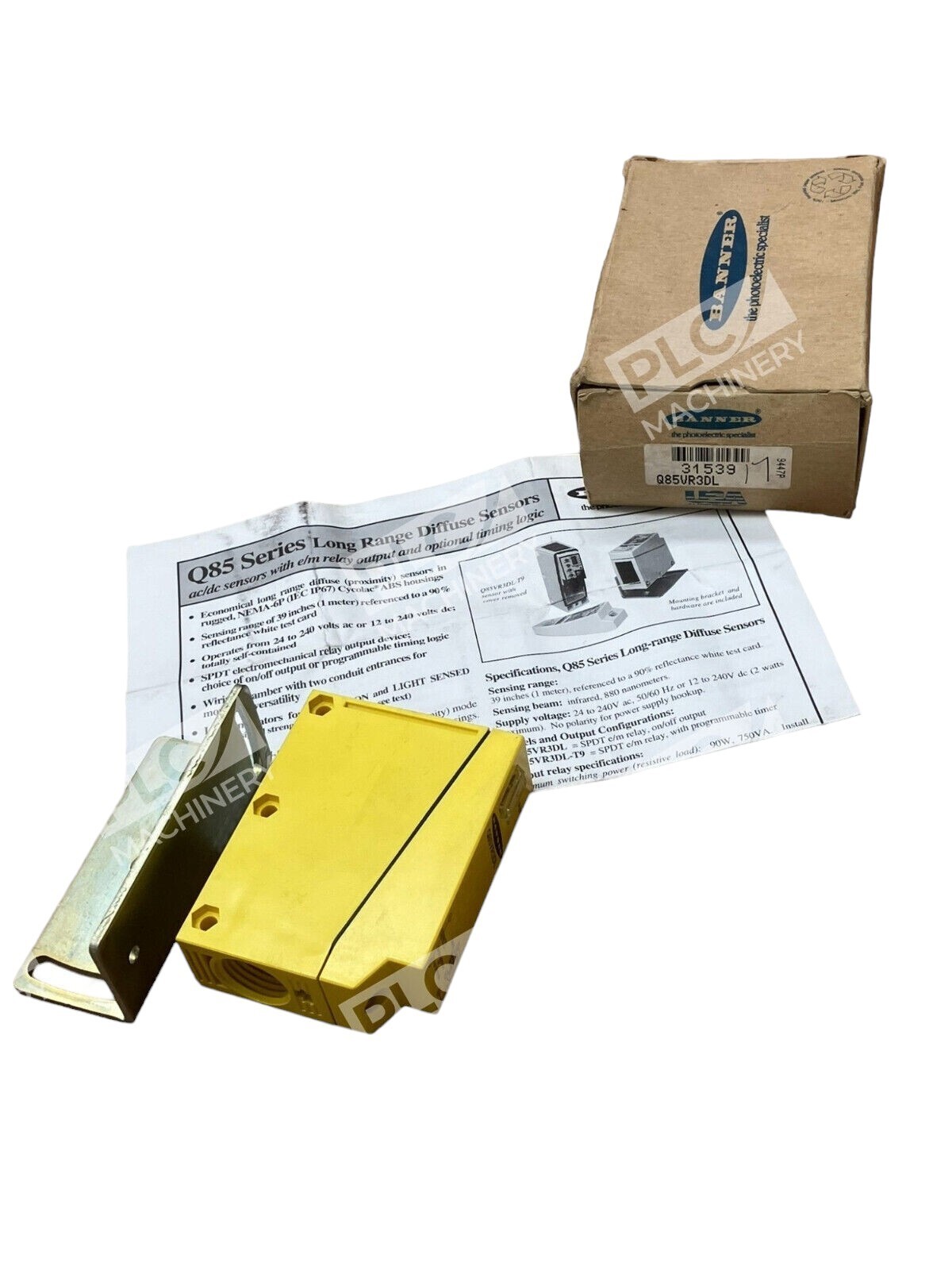

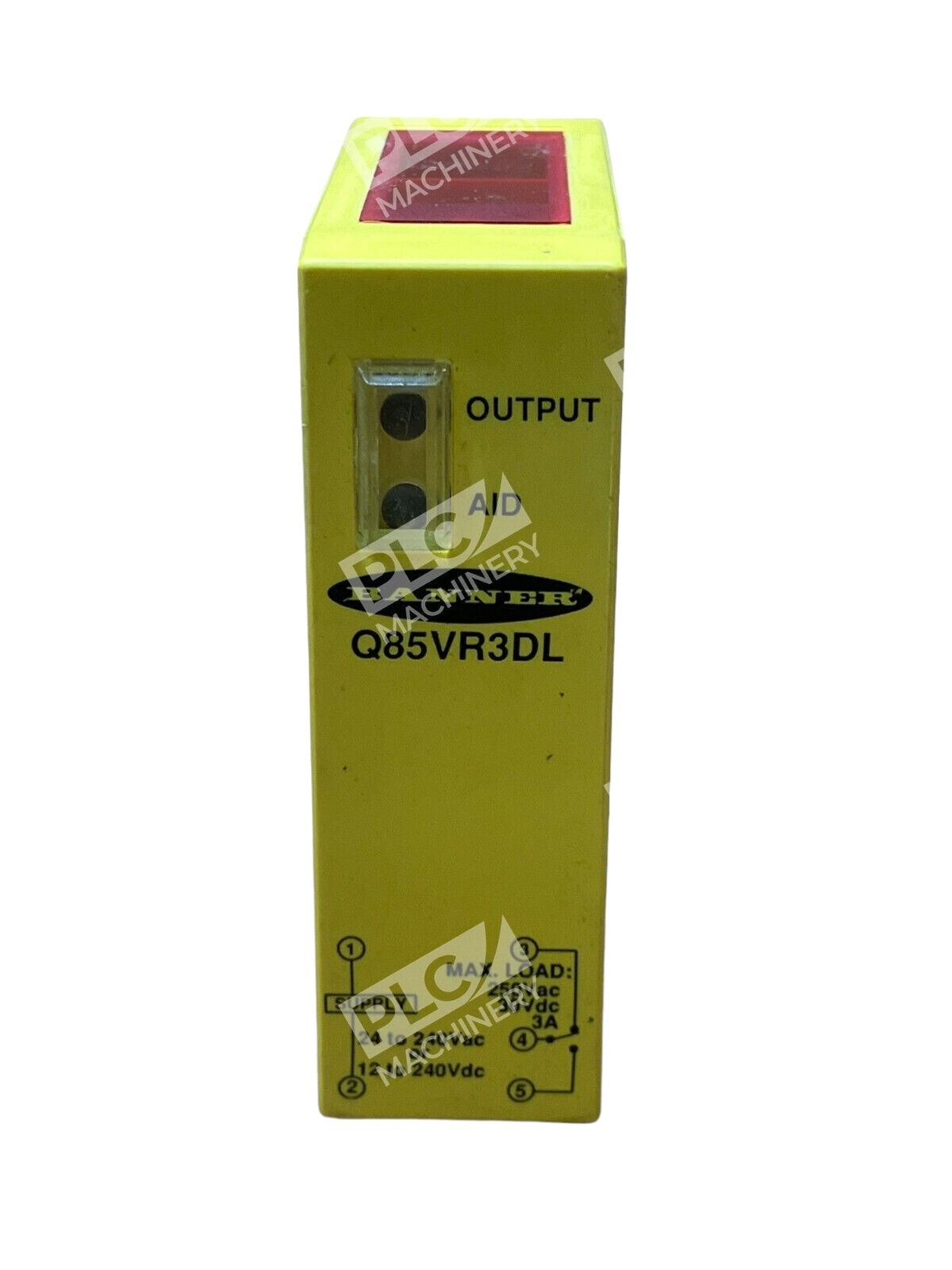

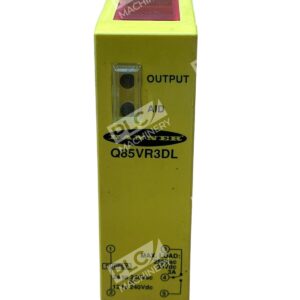

The Banner Q85VR3DL is a long range photoelectric sensor from Banner Engineering designed for diffuse-mode detection in industrial automation environments. This Q85 series sensor provides reliable object detection up to 1 meter with an SPDT electromechanical relay output, making it ideal for conveyor systems, package detection, equipment monitoring, and general-purpose proximity sensing applications where drop-in reliability is critical.
Key Features
- Diffuse sensing mode with 1-meter (3.3 ft) detection range
- AC/DC universal input: 12–240V DC or 24–240V AC operation
- SPDT (Single-Pole, Double-Throw) electromechanical relay output

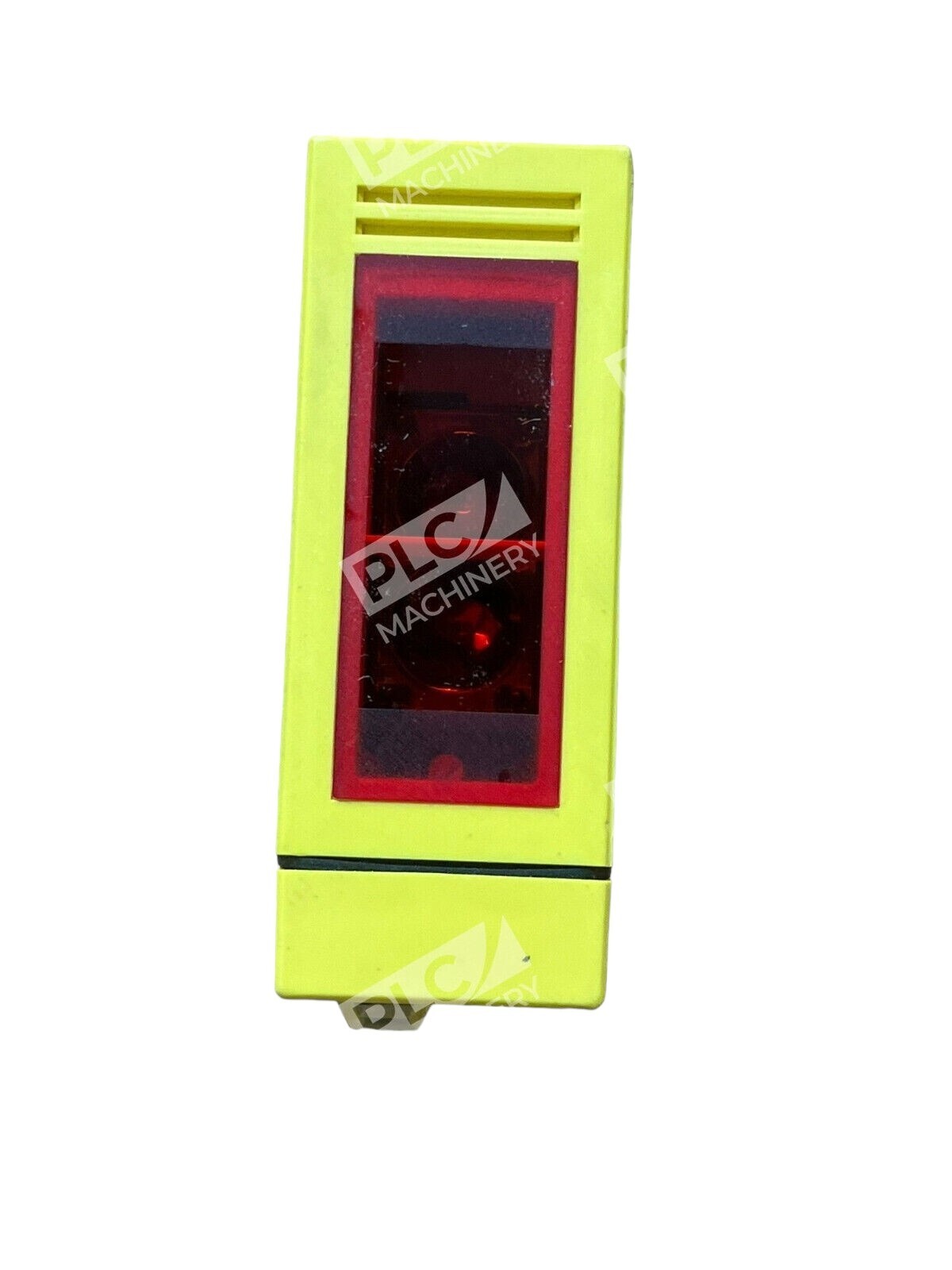

- Infrared LED sensing beam for stable, repeatable detection

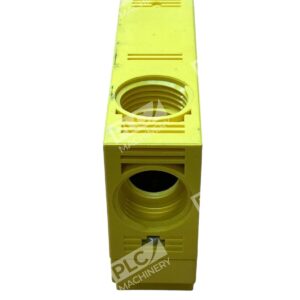

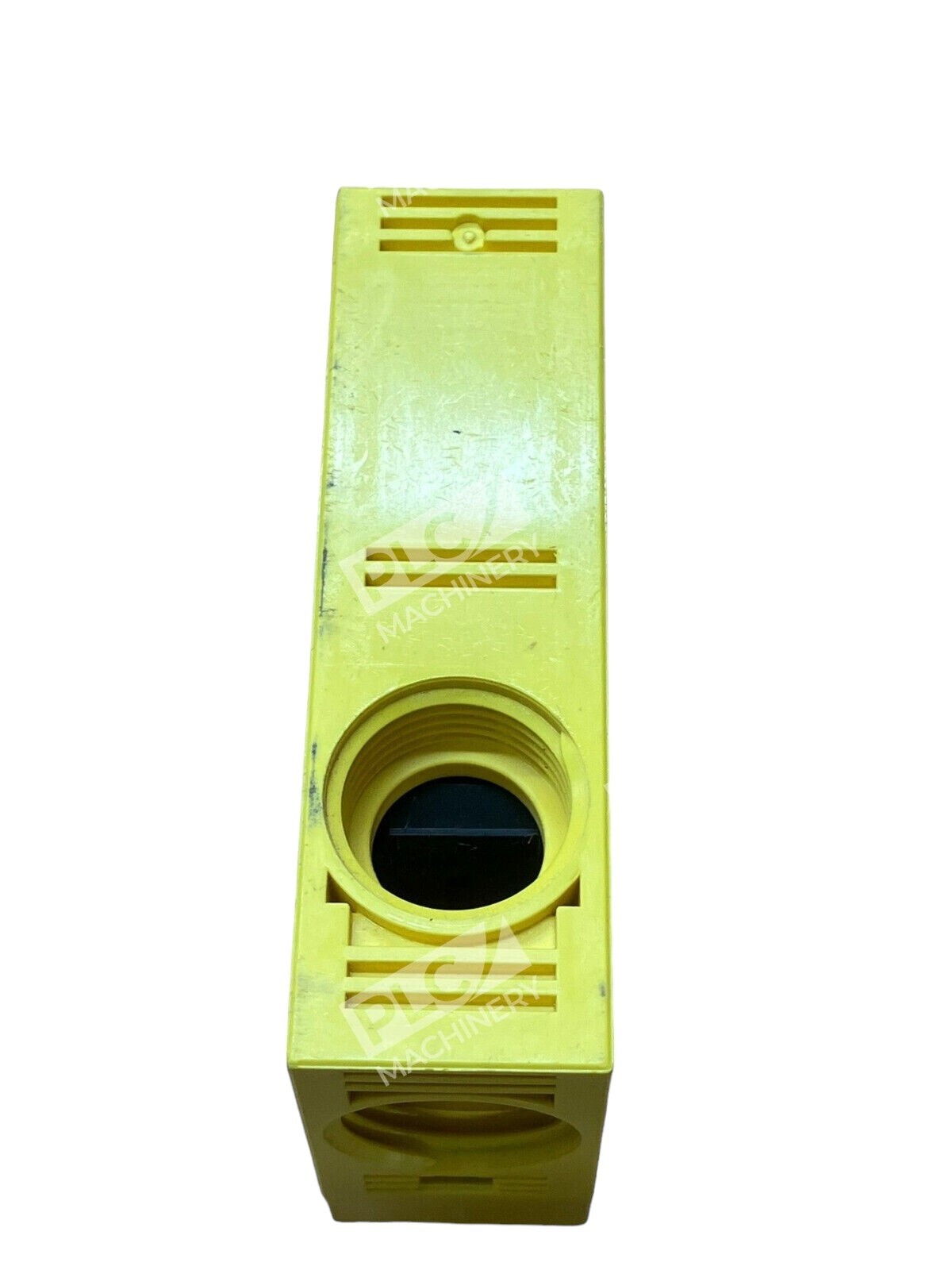

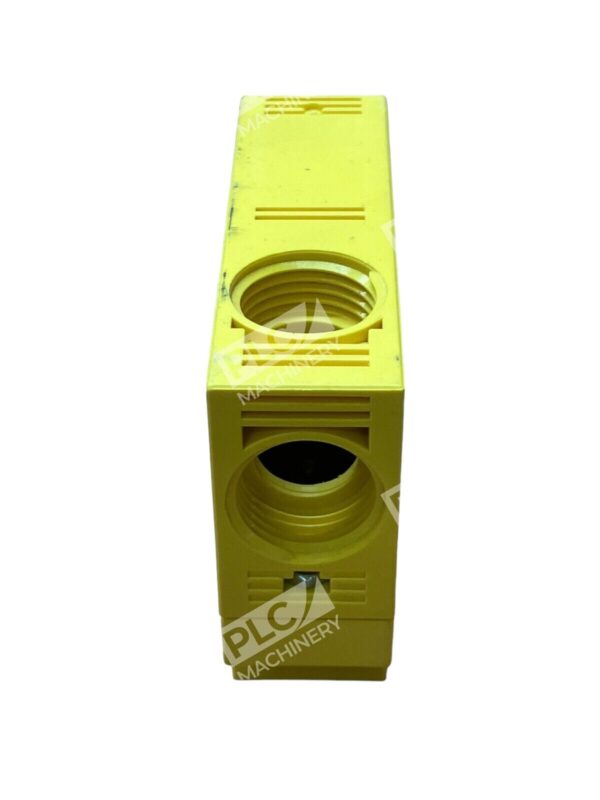

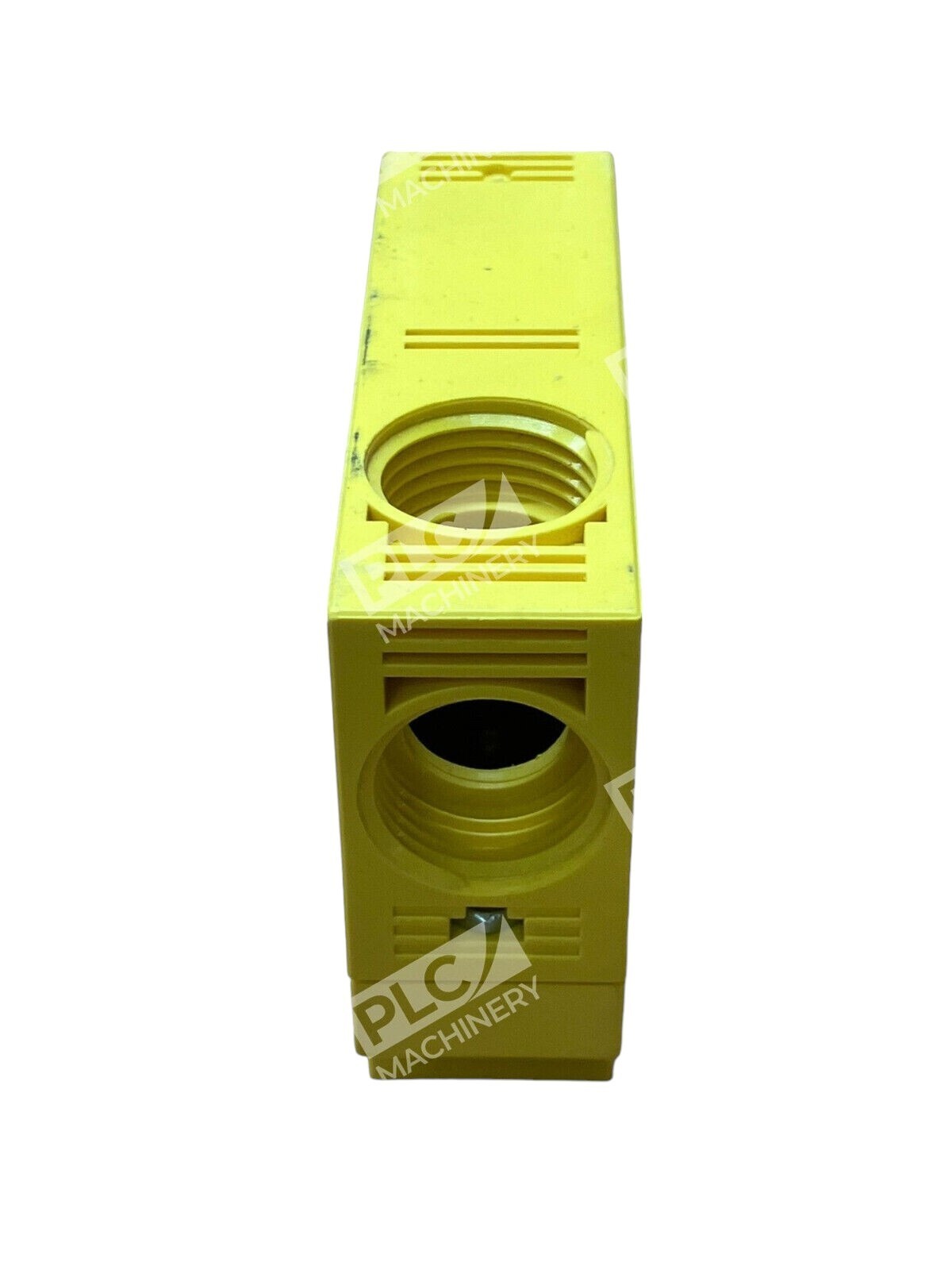

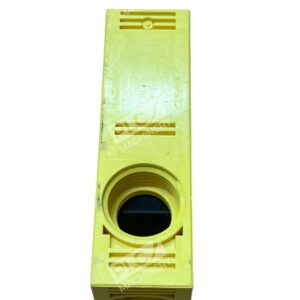

- Wiring chamber with two conduit entrances for flexible mounting
- NEMA 4X / IP67 enclosure rating for washdown and harsh environments
- Light/Dark operate selectable modes for application flexibility
Technical Specifications
- Sensing Range: 1 m (3.3 ft) diffuse mode
- Input Voltage: 12–240V DC / 24–240V AC
- Output Configuration: SPDT electromechanical relay
- Sensing Mode: Diffuse (background rejection)
- Beam Type: Infrared LED
- Housing Material: ABS thermoplastic, rectangular
- Enclosure Rating: NEMA 4X, IEC IP67
- Operating Temperature: −25°C to +55°C (−13°F to +131°F)
- Connection Type: Screw terminals
- Connection Size: 1/2-14 NPSM conduit
- Weight: 0.60 lbs (0.27 kg)
- Output Modes: Light Operate and Dark Operate
Typical Applications
- Conveyor system object detection and control
- Package/carton presence detection on production lines
- Proximity sensing for automated equipment
- Box and pallet counting in warehouses
- Machine guarding and safety interlock applications
- Level detection in bins or hoppers
- Washdown and wet-environment industrial settings
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC controllers and relay logic systems
- Siemens SIMATIC controllers and automation platforms
- Mitsubishi, Omron, and Schneider Electric control systems
- Standard 24V DC and 120/240V AC industrial power supplies
- Electromechanical relay panels and timer circuits
- Any control system with SPDT relay input capability
Replaces / Drop-In Replacement For
- Q85VR3DL (base model without timing logic)
- Other Banner Q85 series diffuse sensors with equivalent specifications
- Verify compatibility with your system integrator before ordering for non-Banner legacy systems
Works With
- SPDT relay circuit wiring and standard control schematics
- Light/Dark operate firmware selectable via sensor configuration
- Timing delay modules (external, compatible with T9 timer variant Q85VR3DL-T9)
- Industrial Ethernet gateways and remote I/O modules for data logging
- Standard relay logic and PLC discrete I/O cards
