Overview

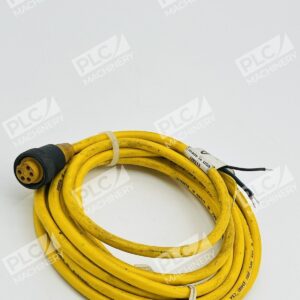

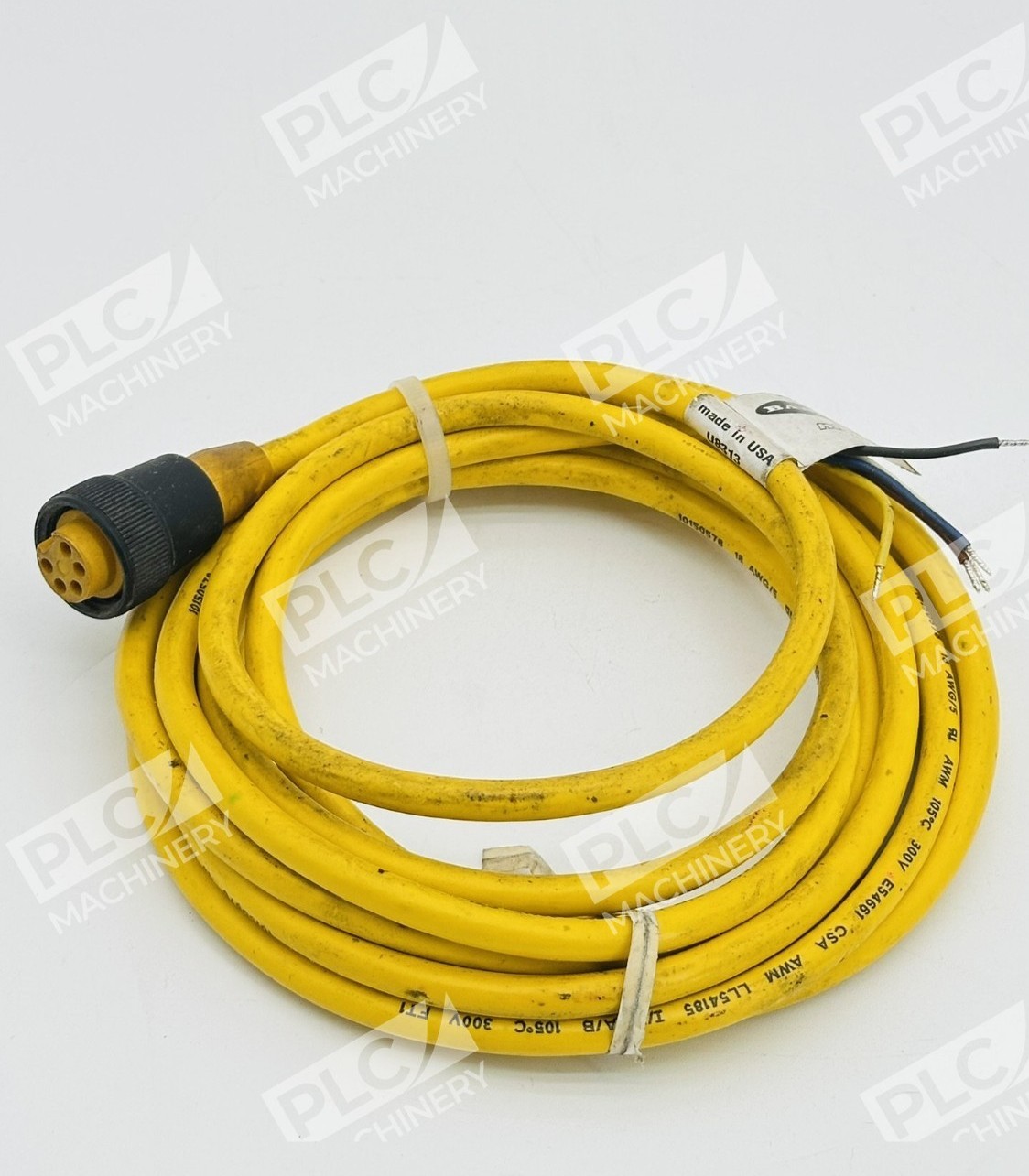

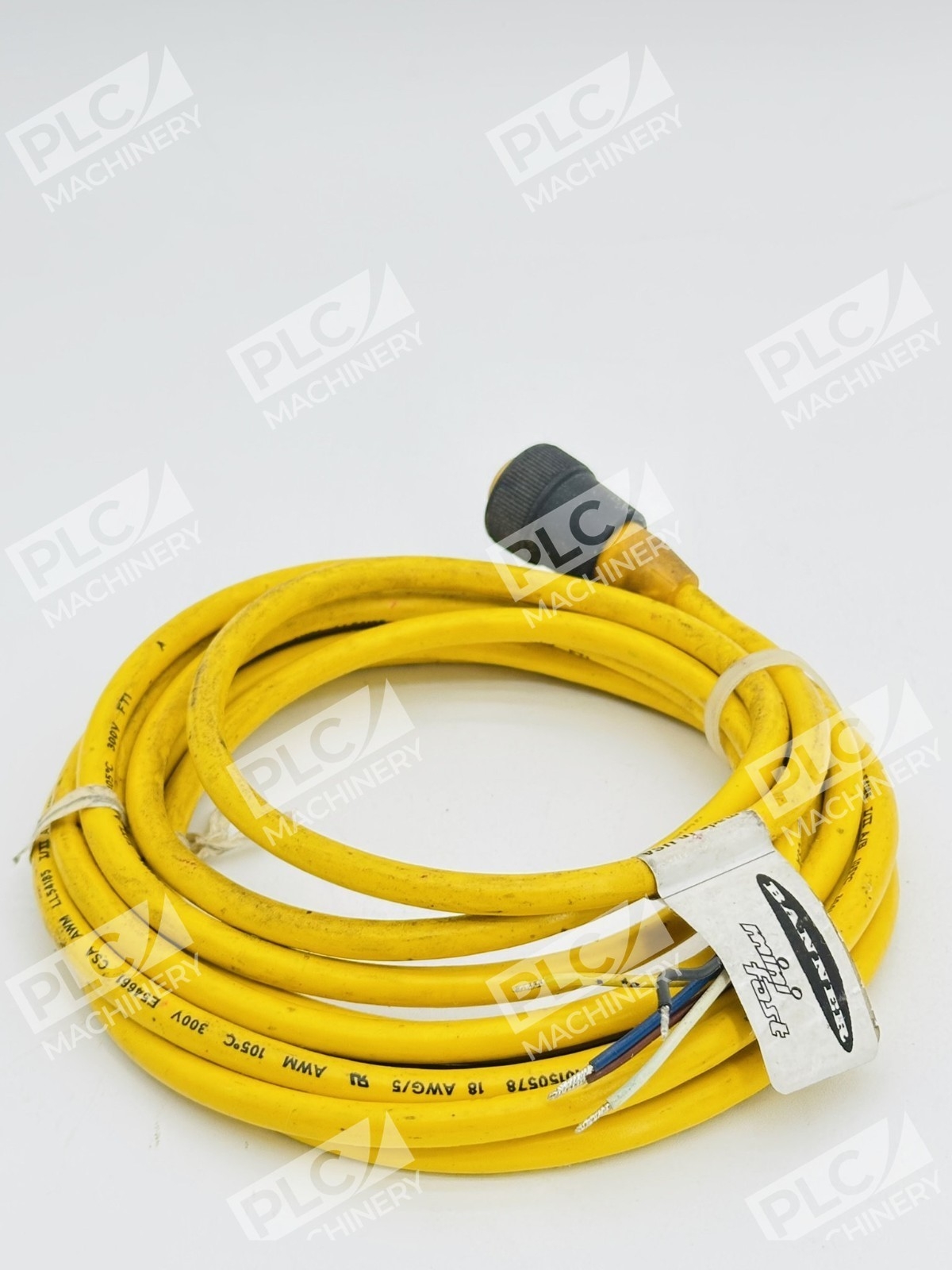

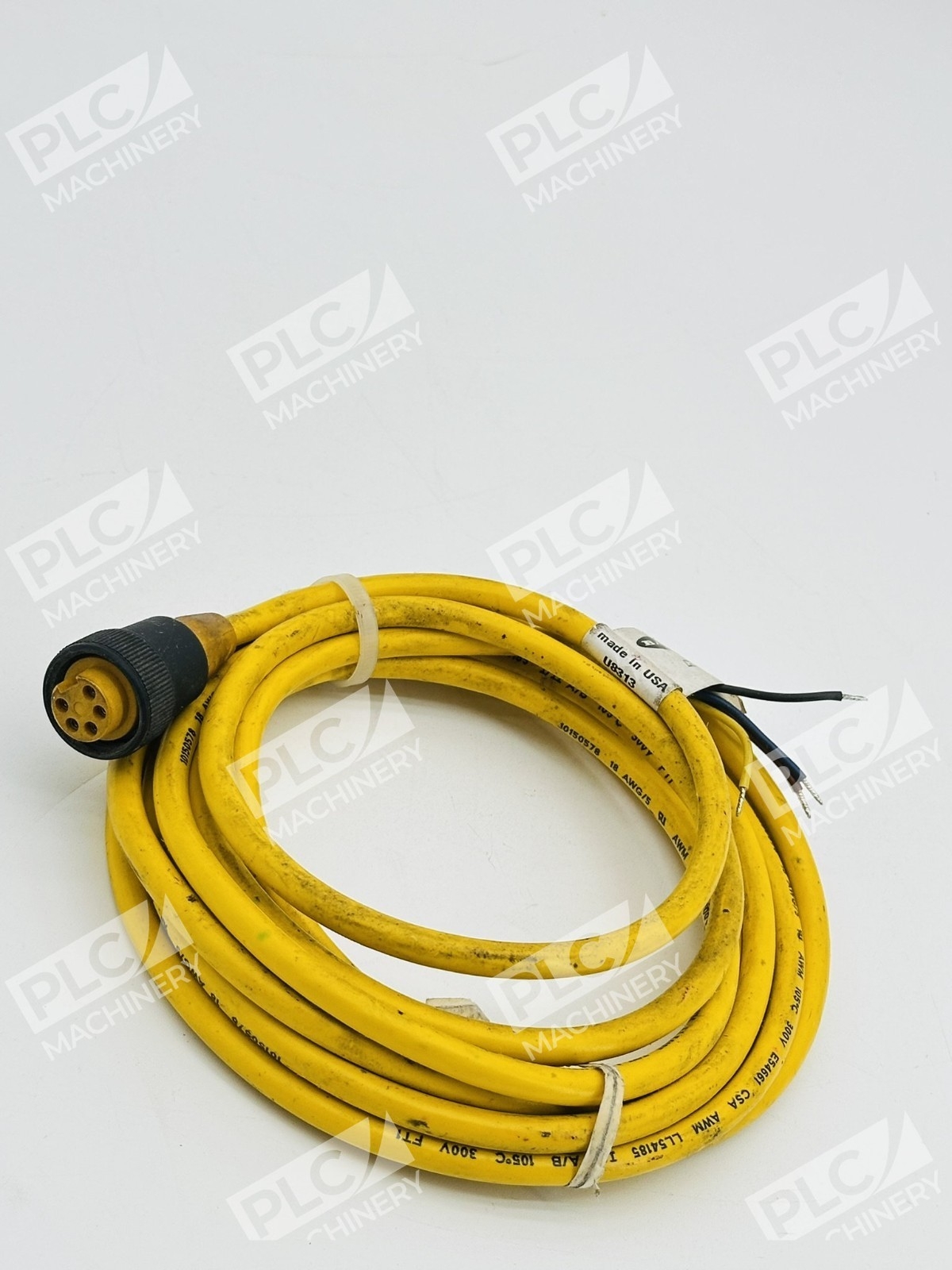

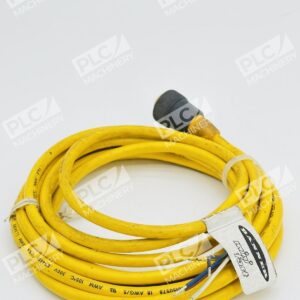

The Banner Engineering MBCC-512 is a mini-style quick disconnect sensor cable designed for rapid replacement and repositioning of sensors in industrial automation applications. This 5-pin female straight connector cordset minimizes equipment downtime by enabling quick disconnection without tools or special procedures. The cable features a durable PVC jacket with PUR (polyurethane) connector body, making it suitable for demanding industrial environments.
Key Features
- Mini-style 5-pin female straight connector with quick disconnect functionality
- 4-meter (12-foot) length for flexible installation reach
- Gold-plated contacts for reliable electrical connection and corrosion resistance
- Nylon coupling nut for secure, tool-free mating and separation
- PVC jacket with PUR connector body for durability in industrial settings
- Tool-free connection enables fast sensor replacement and repositioning
Technical Specifications
- Part Number: MBCC-512 (25496)
- Connector Type: 7/8″ Mini-style, 5-pin female straight
- Cable Length: 4 m (12 ft)
- Jacket Material: Black PVC with PUR connector body

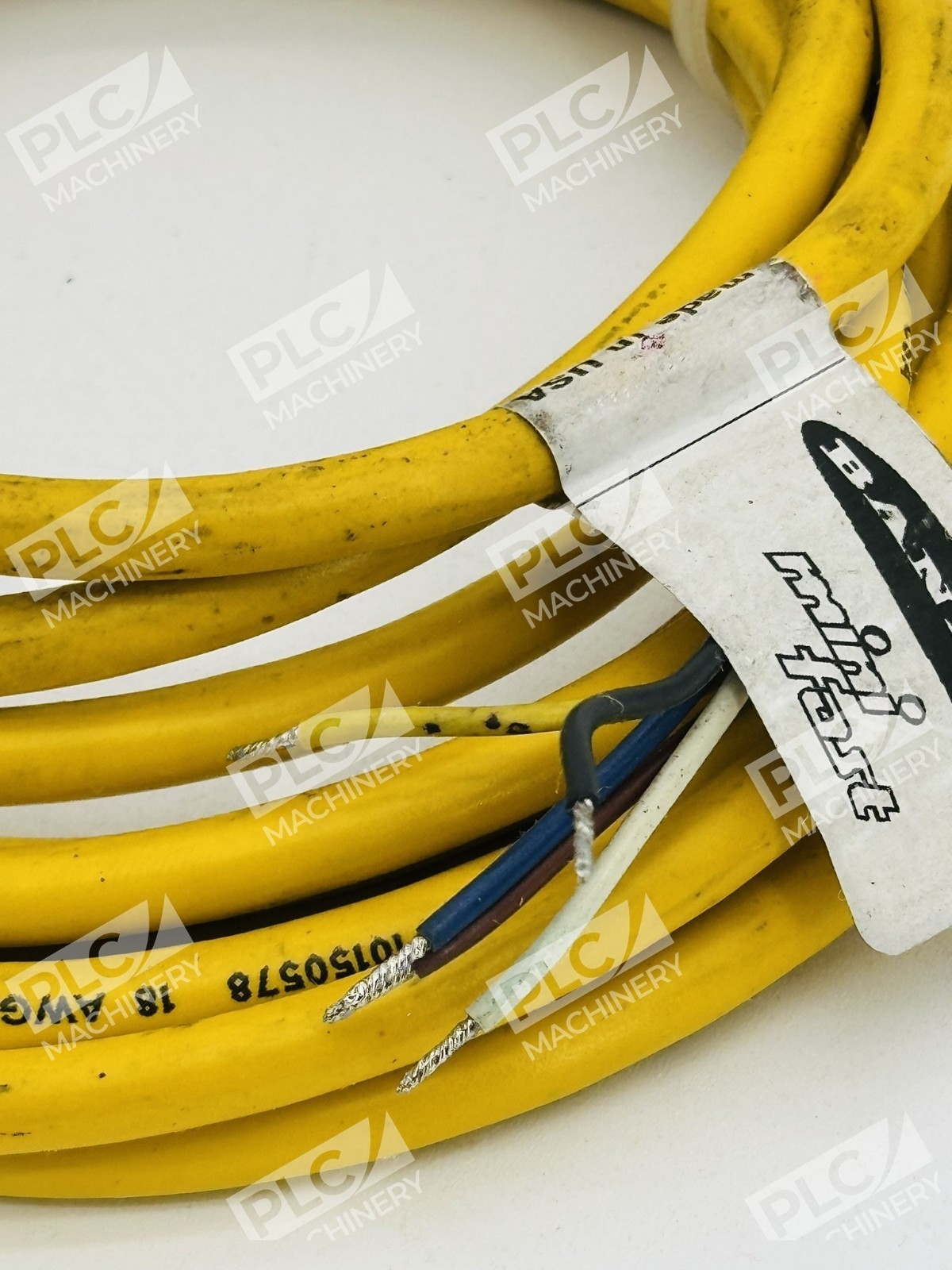

- Wire Gauge: 18 AWG high-flexibility stranded conductors
- Pin Configuration: Female pin-out
- Coupling Mechanism: Nylon coupling nut
- Contact Material: Gold-plated
- Rated Voltage: 300 VAC/VDC
- Weight: 0.45 lbs
Typical Applications
The MBCC-512 is compatible with Banner Engineering sensor families including Q45 laser retro sensors, OMNI-BEAM AC and DC power blocks, OTB and LTB relay modules with SPDT relays, Q45 5-wire AC sensors, and STB relay modules with electromagnetic relays. This cable is commonly used in packaging machinery, material handling systems, industrial safety installations, and factory automation where sensor modularity and quick replacement are essential for production efficiency.
Compatibility & Replacements
Compatible With
- Banner Engineering Q45 laser retro sensors
- Banner OMNI-BEAM AC power blocks
- Banner OMNI-BEAM DC with electromagnetic relay modules
- Banner OTB and LTB relay modules with SPDT relays
- Banner Q45 5-wire AC sensors
- Banner STB with electromagnetic relay modules
- Any 7/8″ mini-style 5-pin female connector sensor device
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MBCC-512 is the primary model in this series; consult Banner Engineering documentation for legacy model cross-references.
Works With
- Mini-style quick disconnect sensor connectors (7/8″ standard)
- Industrial sensors requiring 5-pin female straight connectors
- DC and AC powered sensor systems (rated 300 VAC/VDC)
- Tool-free sensor connection and disconnection workflows
