Overview

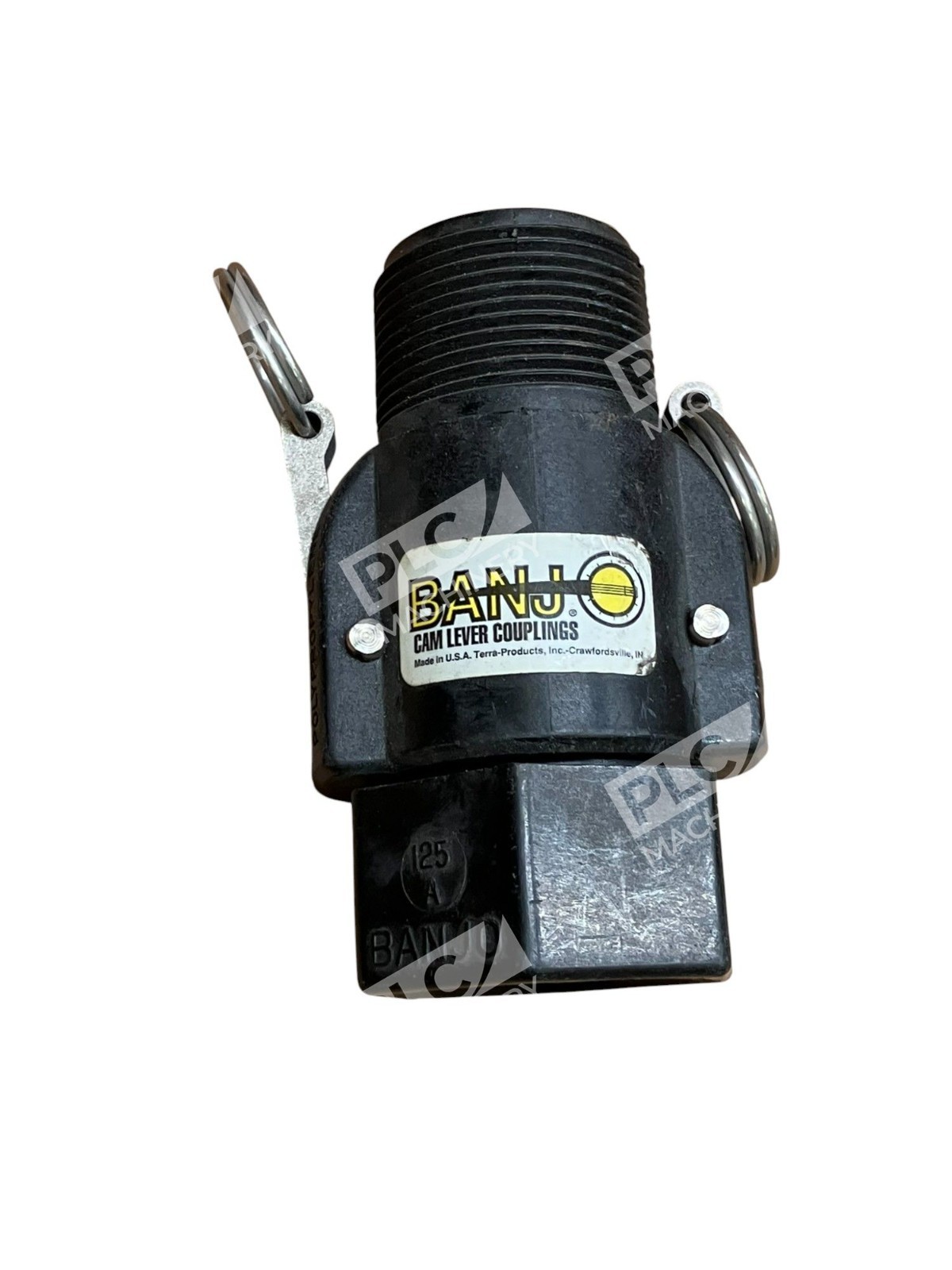

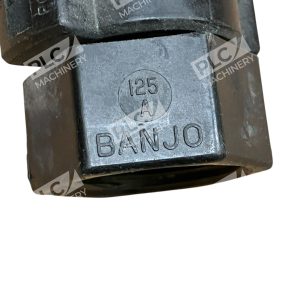

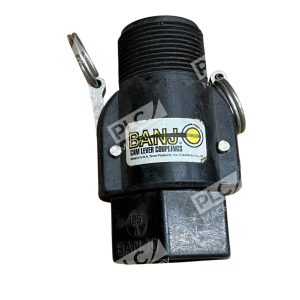

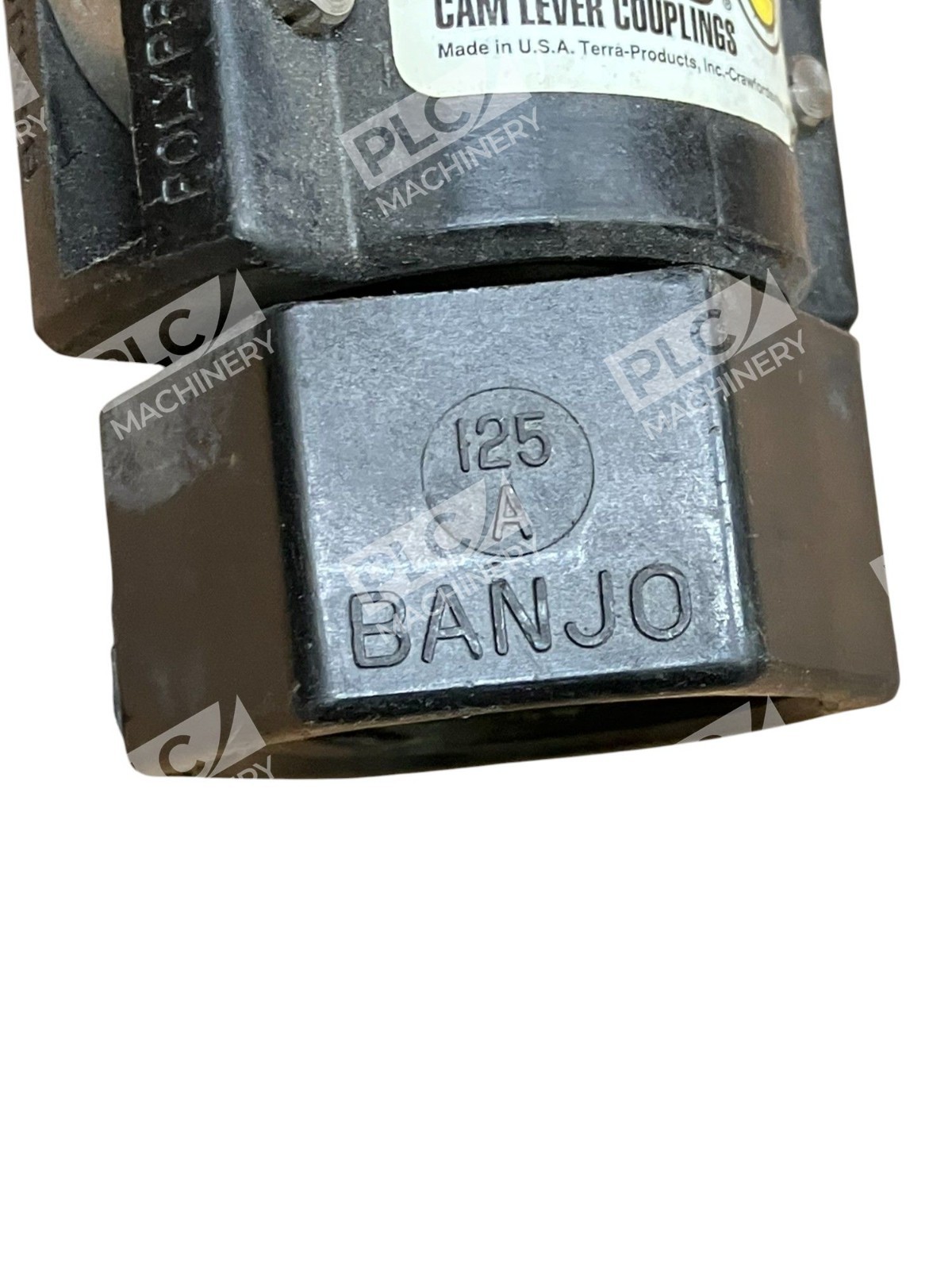

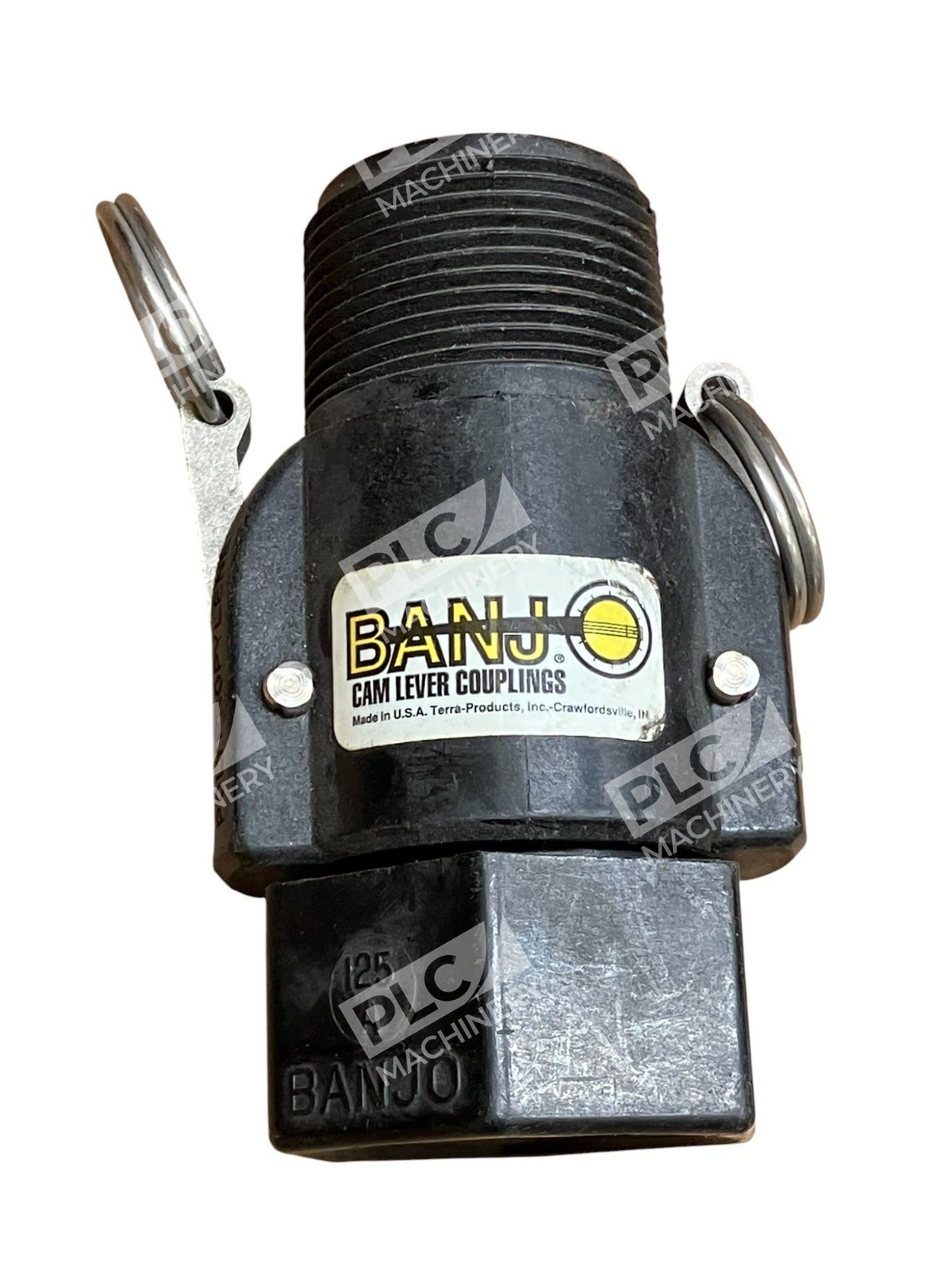

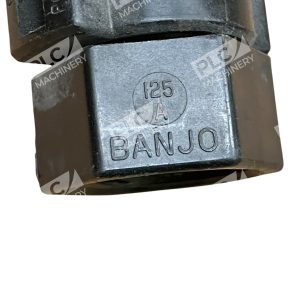

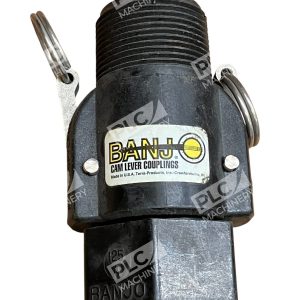

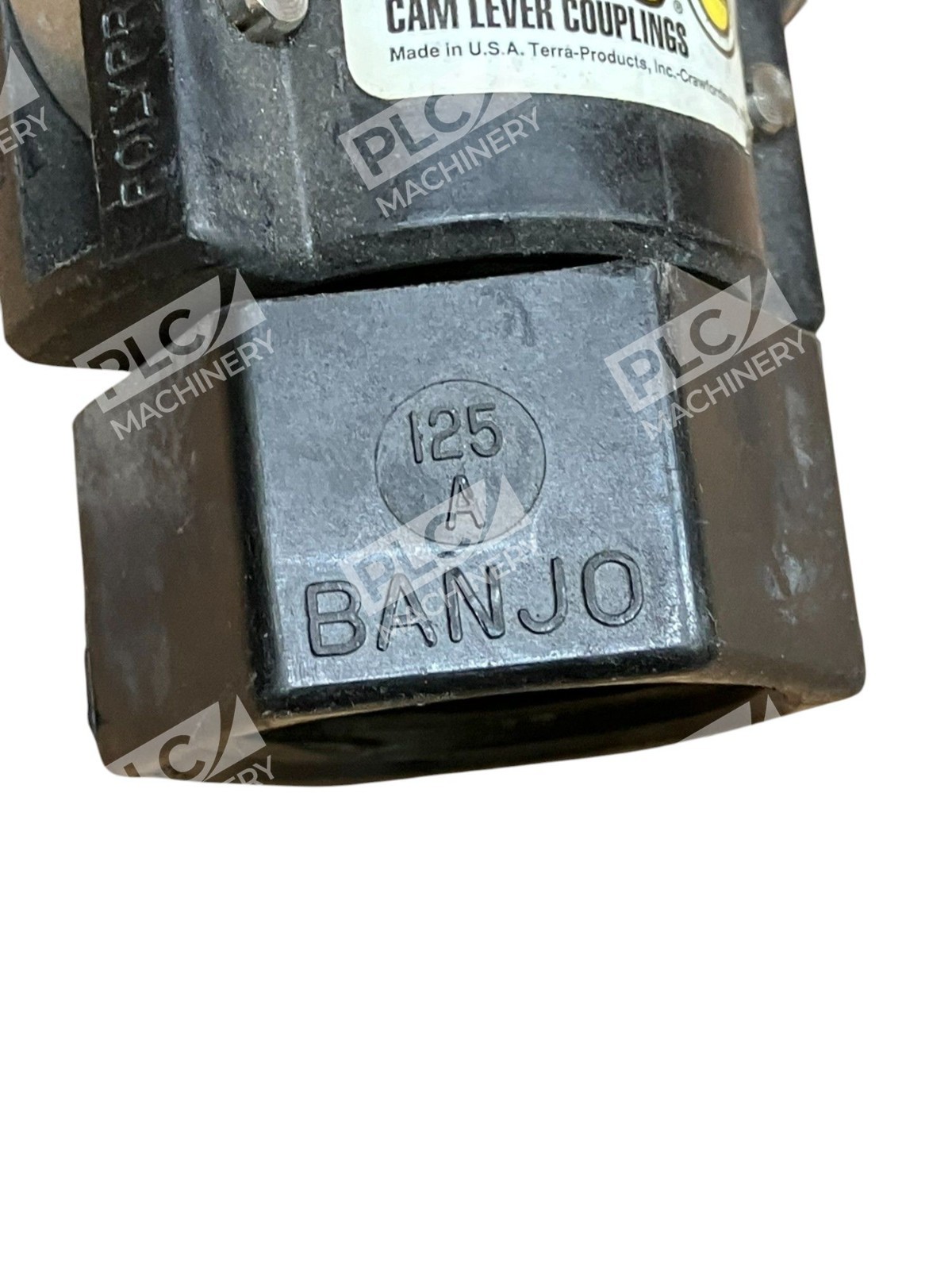

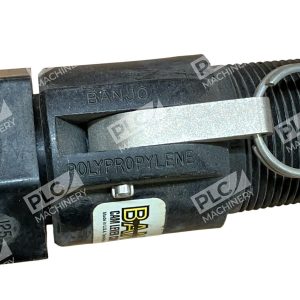

The Banjo 125A is a precision-molded polypropylene cam lever coupling designed for reliable fluid transfer in agricultural and industrial applications. This Type A coupling connects a 1″ male adapter to 1-1/4″ female NPT threads, providing secure, quick-disconnect capability rated to 300 psi. Glass-filled polypropylene construction ensures durability while maintaining chemical compatibility across a wide range of fluids.
Key Features
- Type A male adapter to female NPT thread configuration
- 300 psi maximum operating pressure rating
- Glass-filled polypropylene body for strength and durability
- Stainless steel rings, arms, and pins resist corrosion
- Smooth finger-ring lever design for easy operation
- Interchangeable with all standard cam lever coupler types
- EPDM gasket standard
Technical Specifications
- Coupling Size: 1″ (adapter end)
- Thread Size: 1-1/4″ NPT Female
- Connection Type: Male Adapter to Female NPT
- Coupling Type: Type A (Cam Lever)
- Body Material: Polypropylene (glass filled)
- Maximum Pressure: 300 psi @ 70°F
- Gasket Material: EPDM (standard)
- Hardware: Stainless steel rings, arms, pins
- Outside Diameter: 1-7/16″
- Overall Length: 2-7/16″
- Thread Spec: 1-1/4″ -11-1/2 NPT
Typical Applications
The Banjo 125A is widely used in:
- Agricultural irrigation and transfer systems
- Industrial fluid handling and circulation
- Pump discharge and suction lines
- Hydraulic and pneumatic systems
- Chemical and fertilizer transfer
- OEM equipment assembly
Compatibility & Replacements
Compatible With
- All standard cam lever coupling types (A, B, C, D series)
- 1″ NPT threaded ports and adapters
- 1″ hose barbs and fittings
- Agricultural and industrial pump housings
- PVC and polypropylene piping systems
Replaces / Drop-In Replacement For
The Banjo 125A directly replaces any equivalent 1″ x 1-1/4″ NPT Type A cam lever coupling from competing manufacturers using standard cam lever profiles. Verify thread pitch and gasket compatibility before ordering.
Works With
- All Type A male adapter cam lever couplings
- Standard 1-1/4″ NPT female threaded ports
- EPDM, Buna-N, and FKM (Viton) gasket options
- Banjo complete line of polypropylene couplings (75, 100, 150, 200, 300, 400 series)
- Agricultural equipment OEM systems
