Overview

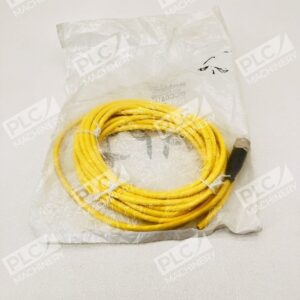

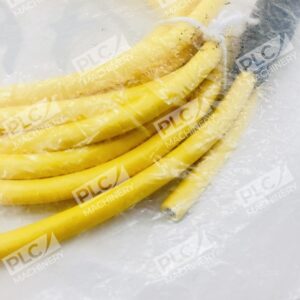

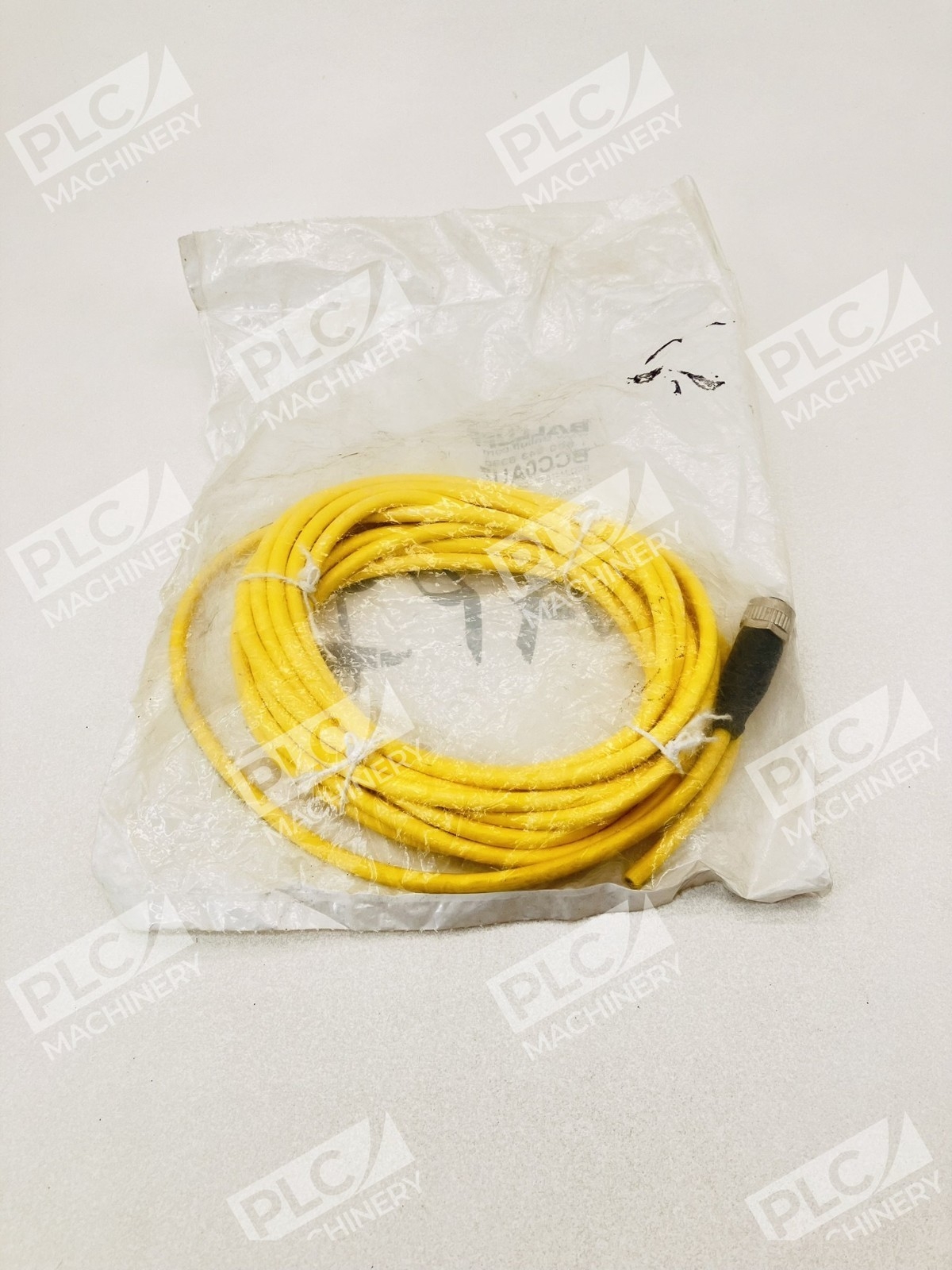

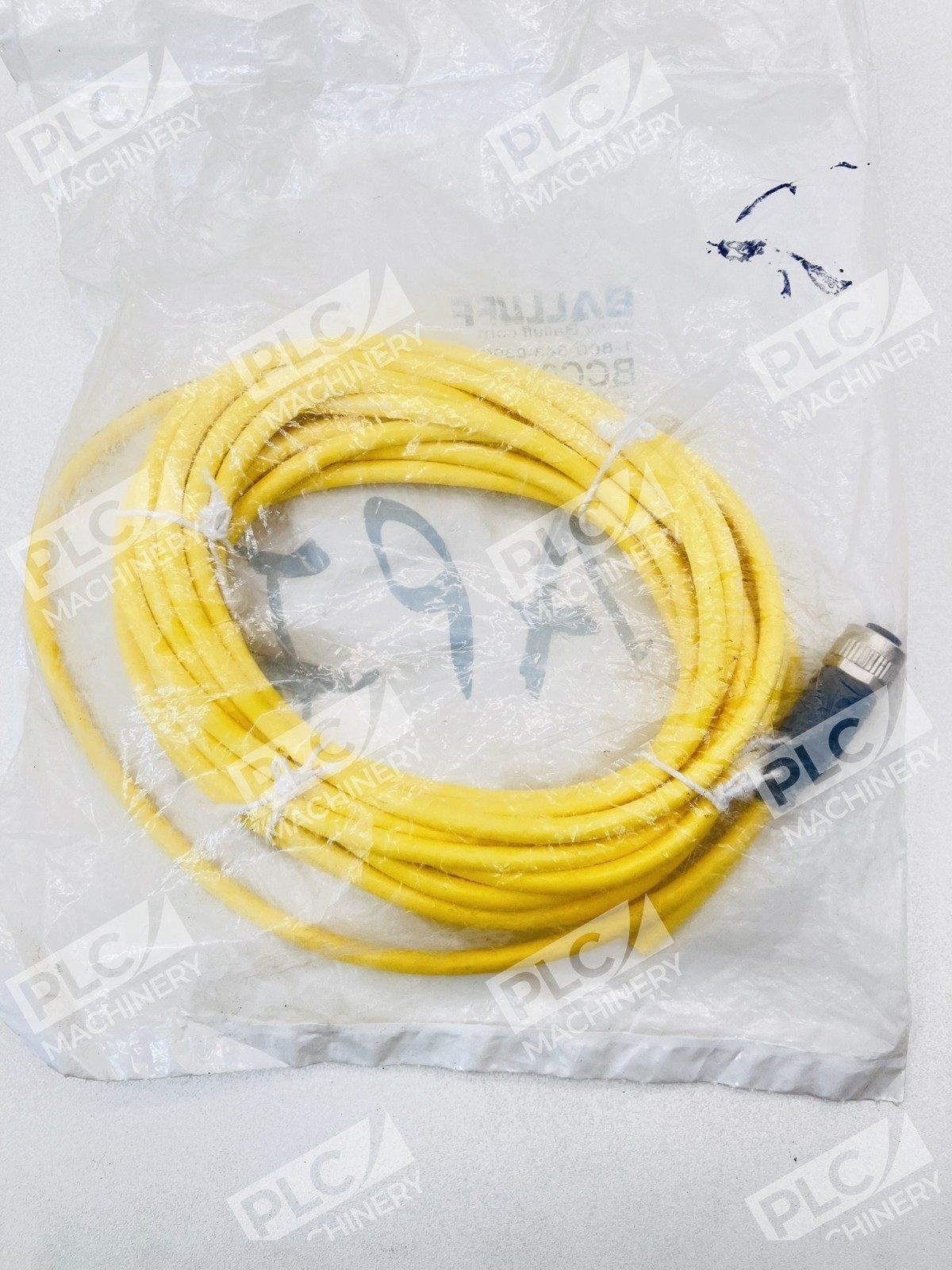

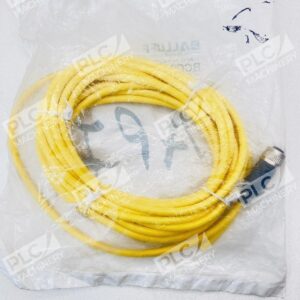

The Balluff BCC0AUZ M12 female straight cordset cable is a robust single-ended industrial connector designed for seamless integration into PLC systems and industrial automation networks. This female straight configuration delivers a plug-and-play connection solution for automation professionals seeking reliable, field-proven connectivity in harsh control environments.
Key Features

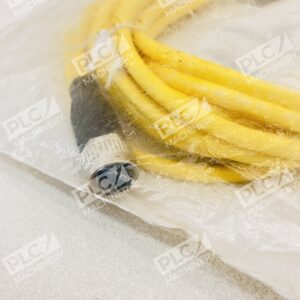

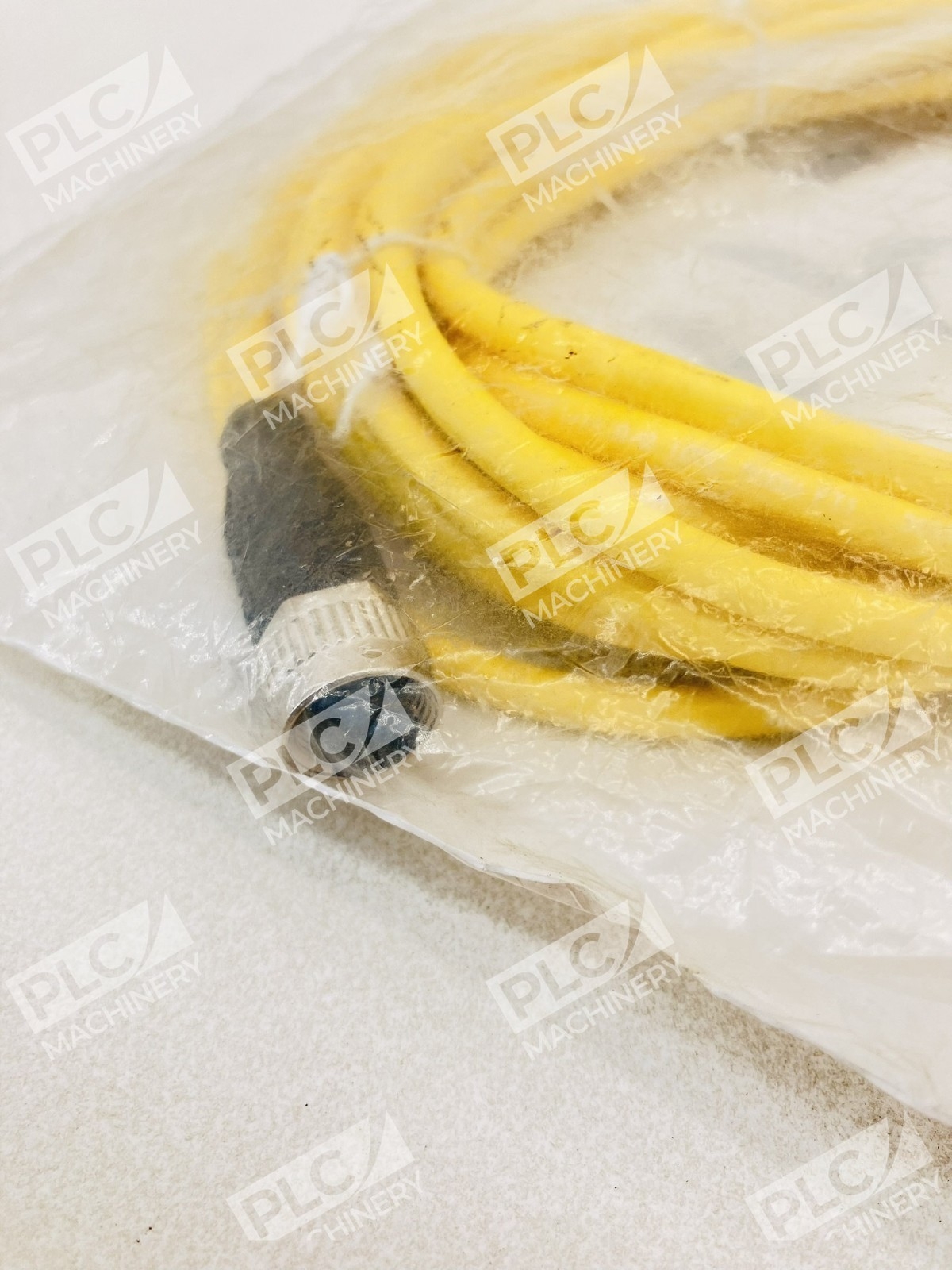

- M12 female straight connector—standard industrial interface for automation equipment
- Single-ended cordset pigtail design for direct device-to-cable integration
- Durable construction suitable for factory floor and cabinet installation
- Drag-chain compatible cable jacket for mobile and flex-routing applications
- PUR cable material for enhanced chemical and oil resistance
- CE-certified and cULus-approved for North American and European compliance
Technical Specifications
- Connector Type: M12 Female, Straight
- Cable Type: PUR (Polyurethane) or TPE Shielded
- Conductor Configuration: 3-wire or 4-wire available (standard DC wiring)

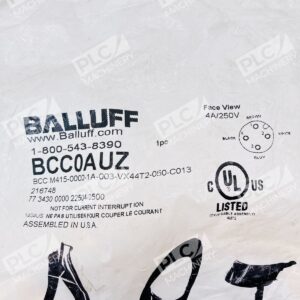

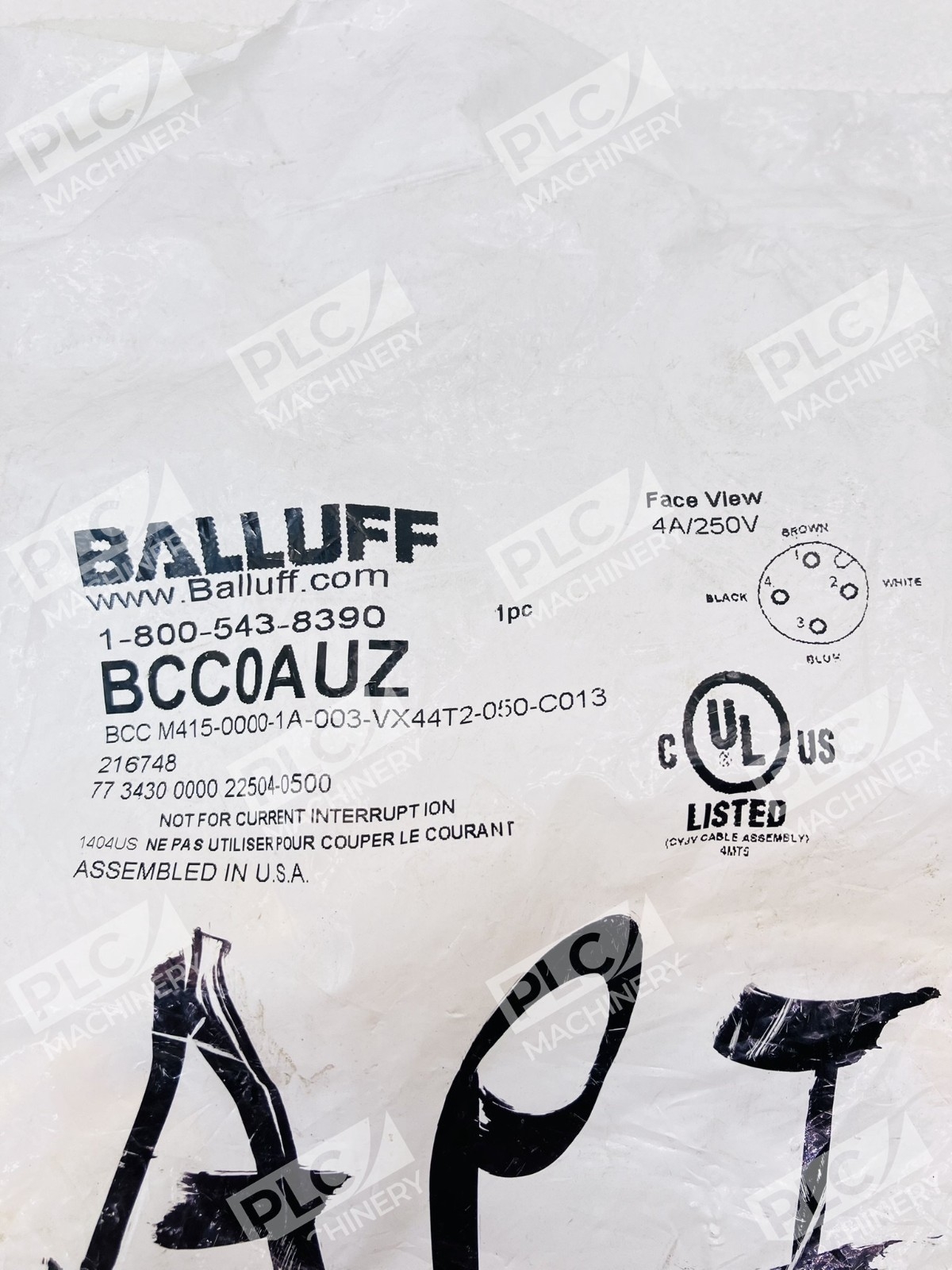

- Wire Code: BR (Brown), WH (White), BU (Blue), BK (Black)
- Drag Chain Compatible: Yes
- Operating Temperature: -20 to +60 °C typical
- IP Rating: IP67
- Certifications: CE, cULus, WEEE compliant
- Standard Cable Lengths: 0.6 m, 5 m, 10 m options
Typical Applications
The Balluff BCC0AUZ cordset cable is ideal for:
- Proximity sensor connections in machine control systems
- Industrial I/O module wiring and signal routing
- PLC cabinet interconnection and device interface
- Motion control and servo motor signal lines
- Factory automation networks requiring M12 standardization
- Panel-to-field device connections in Profibus and EtherNet/IP systems
Compatibility & Replacements
Compatible With
- Balluff proximity sensors and ultrasonic transducers with M12 female receptacles
- Allen-Bradley and Rockwell Automation I/O modules with M12 connectors
- Siemens SIMATIC controllers and distributed I/O with M12 interfaces
- Mitsubishi and Omron automation equipment featuring standard M12 socket connections
- Schneider Electric TeSys and Modular I/O platforms with M12 compatibility
- EtherNet/IP and Profibus control networks using M12 standardized connectors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm this unit directly replaces your specific control application requirement.
Works With
- Profibus PA and DP industrial networks
- EtherNet/IP automation protocols
- PROFINET real-time communication
- Studio 5000 (Allen-Bradley) control systems
- TIA Portal (Siemens) engineering software
- Standard IEC 61076-2-109 M12 connectors
