Overview

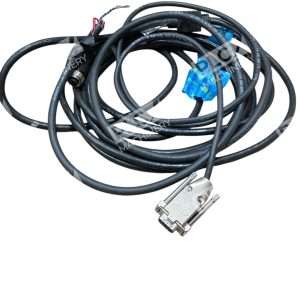

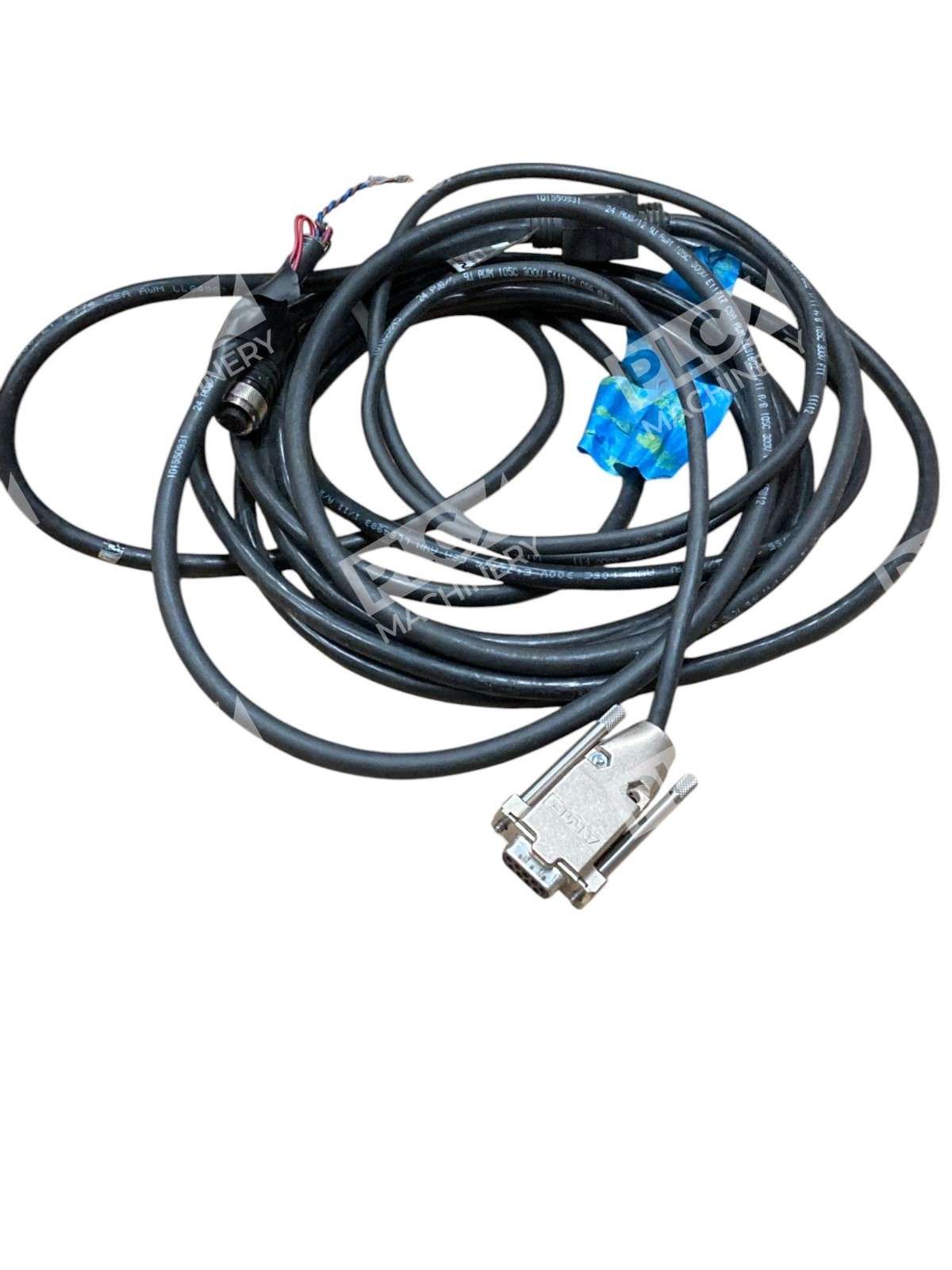

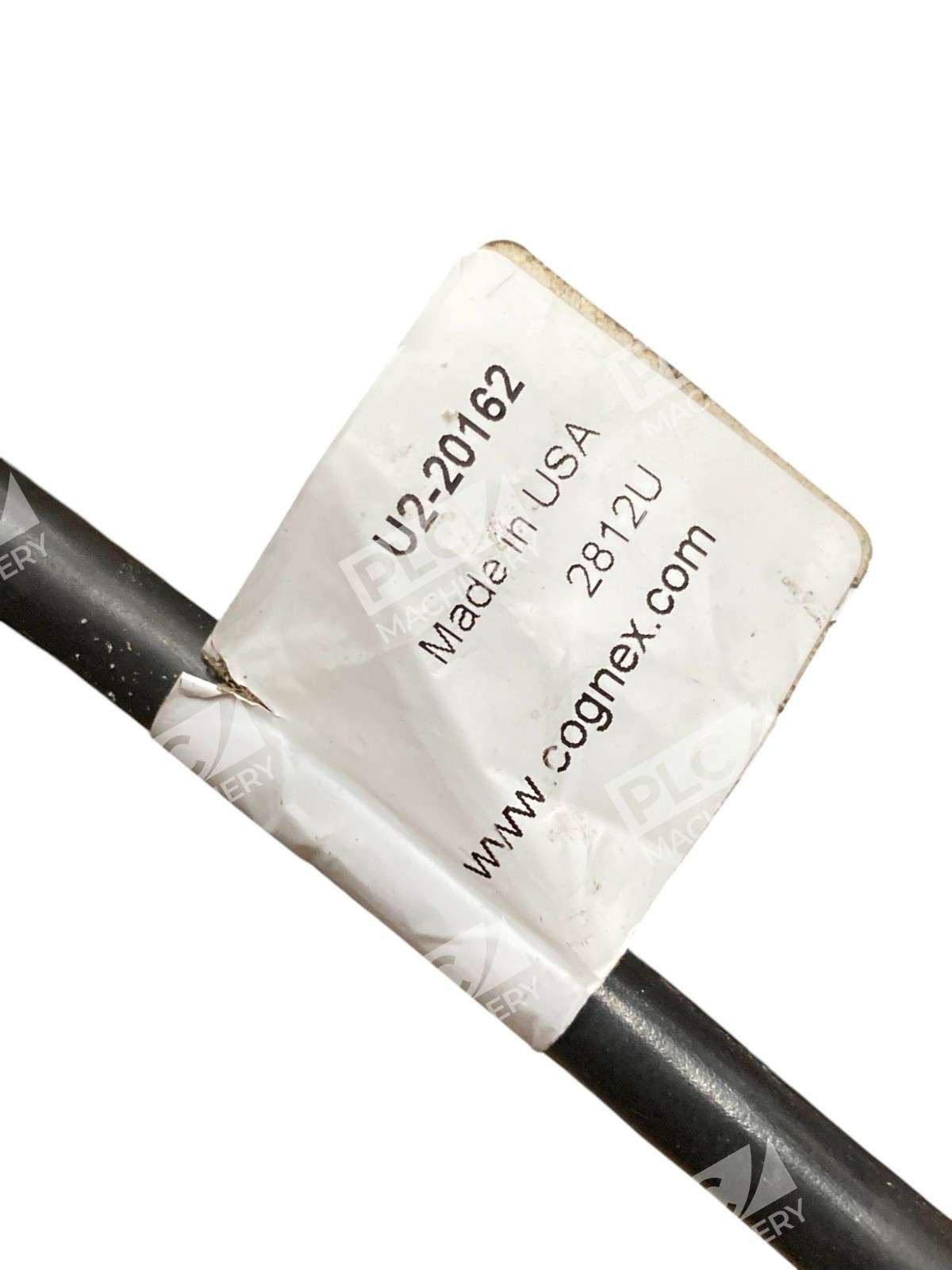

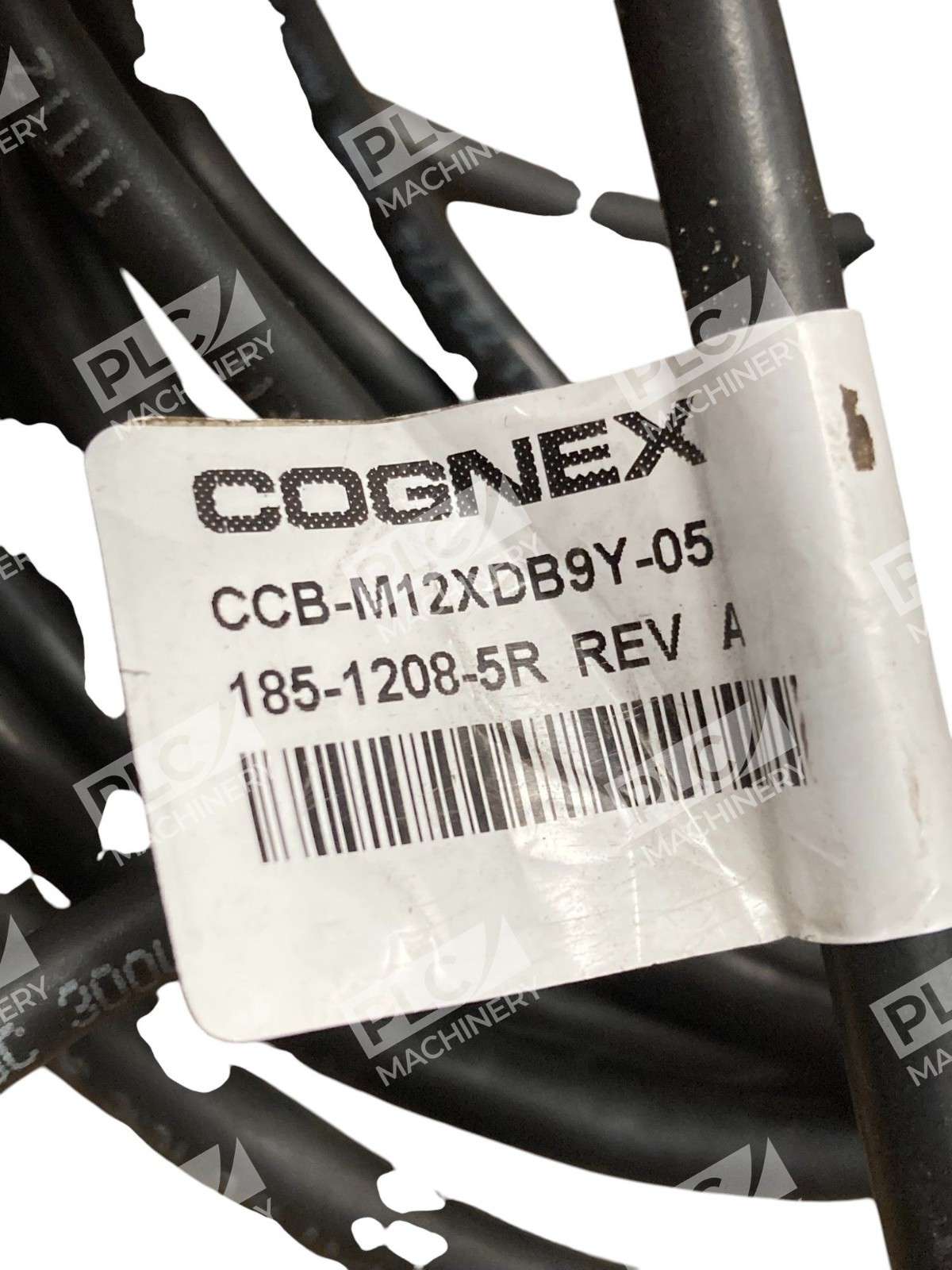

The Cognex CCB-M12XDB9Y-05 is a high-quality industrial connection cable designed specifically for Cognex DataMan 300 series machine vision systems. This 5-meter cable combines a 12-pin M12 connector on one end and a 9-pin DB9 female connector on the other, with bare flying leads for flexible installation. RS-232 serial communication support ensures reliable data transmission in demanding factory environments.
Key Features
- 5-meter cable length provides adequate reach for typical machine vision installations
- 12-pin M12 female connector interfaces with DataMan 300 vision systems

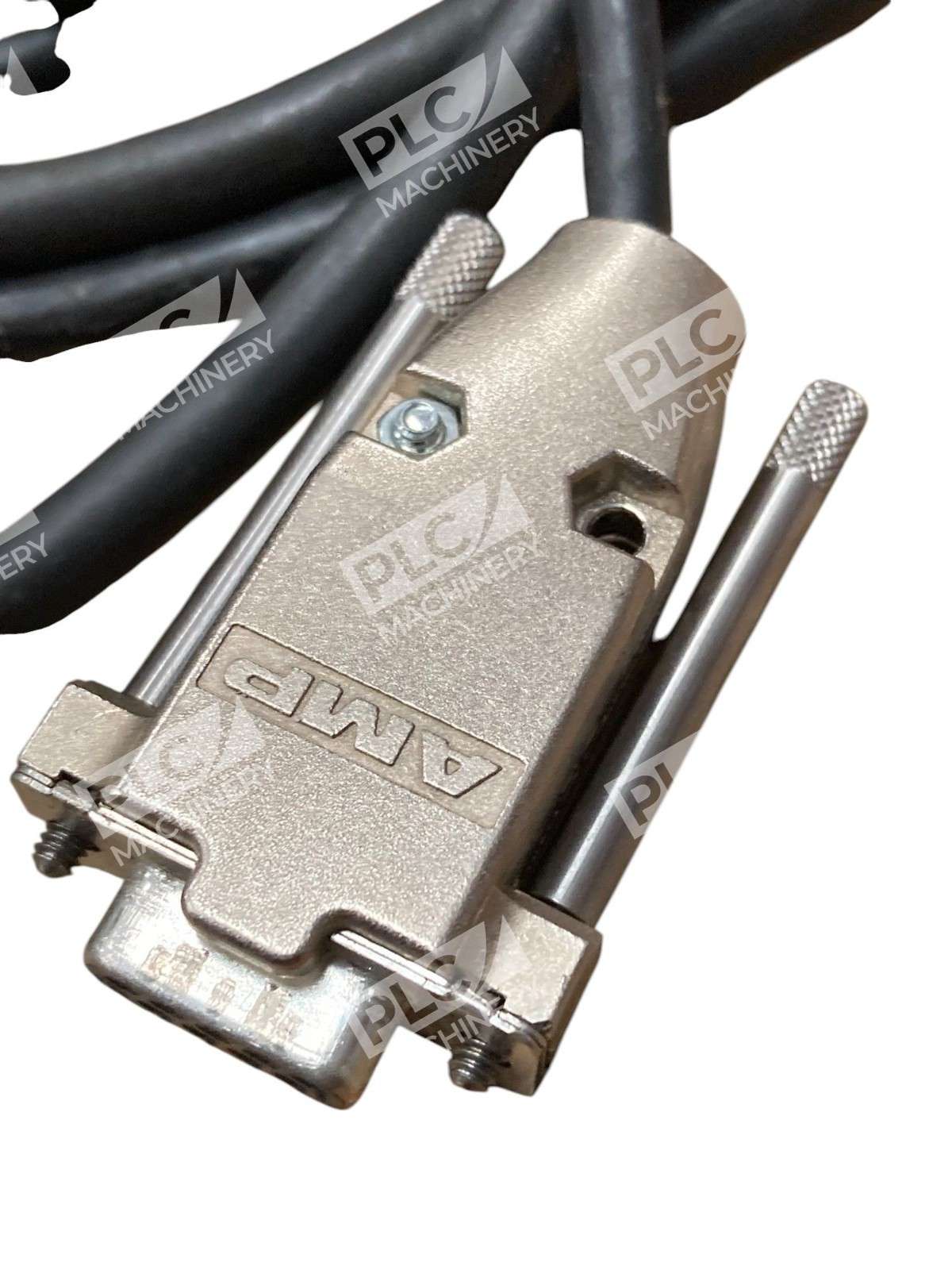

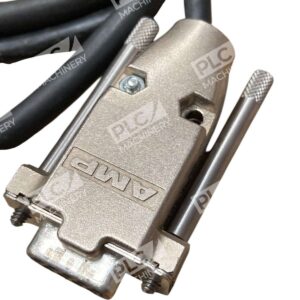

- 9-pin D-Sub (DB9) female connector for RS-232 serial communication to controllers and HMIs
- Bare flying leads enable custom terminations and flexible integration options
- PVC jacket rated for industrial environments with -40°F to 221°F temperature operating range
- Compact 1 lb weight simplifies handling and installation
Technical Specifications
- Voltage Rating: 60 VAC / 75 VDC maximum
- Current Capacity: 2 A continuous
- Cable Length: 5 meters (16.4 feet)
- M12 Connector: 12-pin female
- DB9 Connector: 9-pin female
- Wire Gauge: 12 × 24 AWG conductors
- Cable Material: PVC jacketed
- Color: Black
- Operating Temperature Range: -40°F to 221°F (-40°C to 105°C)
- Environmental Rating: NEMA 1, 3, 4, 6P; IEC IP67
- Weight: 1.0 lb (0.45 kg)
Typical Applications
This cable is commonly used in manufacturing and quality control environments where Cognex DataMan 300 barcode readers and vision systems are integrated with:
- Programmable Logic Controllers (PLCs) via RS-232 serial interface
- Human-Machine Interfaces (HMIs) and operator displays
- Industrial PCs and vision processing systems
- Production line verification, part detection, and label reading systems
- Automotive, pharmaceutical, food & beverage, and electronics manufacturing
Compatibility & Replacements
Compatible With
- Cognex DataMan 300 series barcode readers and machine vision systems
- Any controller or system supporting RS-232 serial communication
- HMIs with standard DB9 serial ports
- Industrial PCs with COM (serial) interfaces
Replaces / Drop-In Replacement For
This is an OEM Cognex part. Verify compatibility with your system integrator or Cognex support before ordering alternative cables. No direct part number substitutions are recommended without manufacturer approval.
Works With
- Cognex DataMan 300 series software and firmware
- RS-232 serial communication protocols
- Standard Modbus and proprietary vision system control protocols
- Windows and industrial operating systems supporting serial device drivers
