Overview

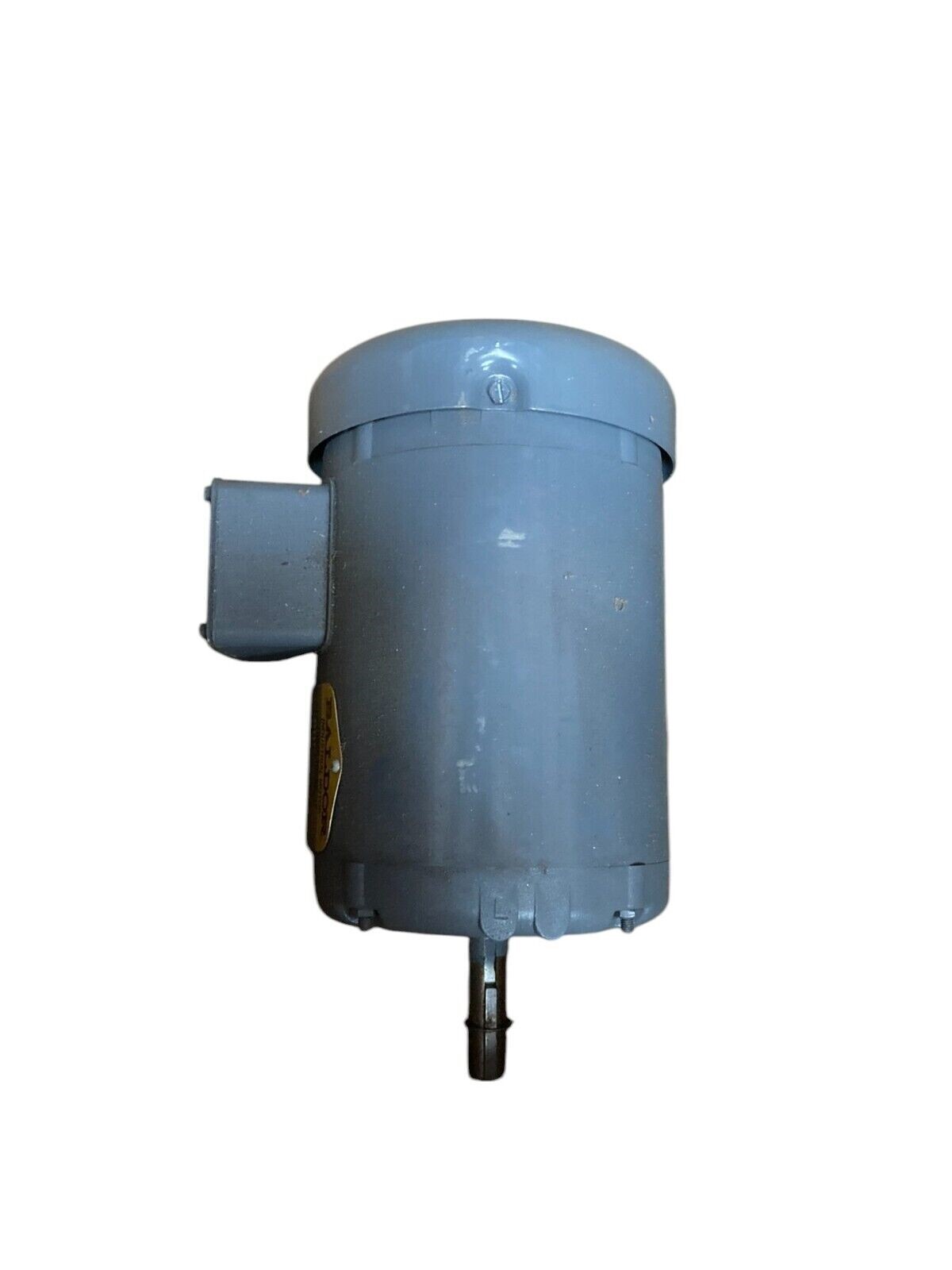

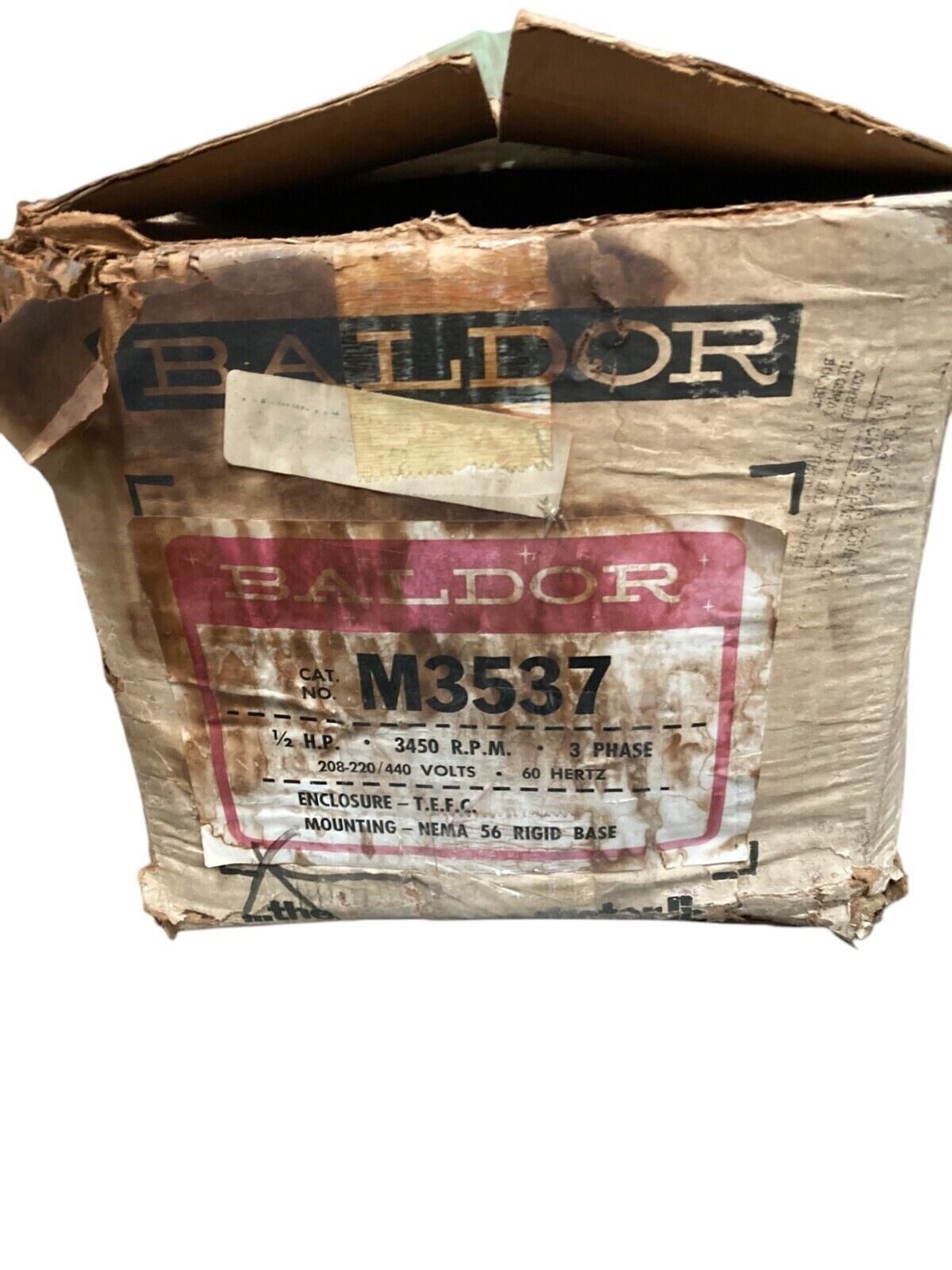

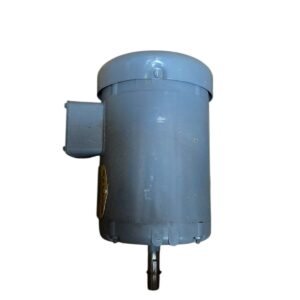

The Baldor M3537 is a 0.5 HP, three-phase, general-purpose industrial electric motor built for durability and reliable performance. With a NEMA 56 frame and Totally Enclosed Fan-Cooled (TEFC) enclosure, this motor delivers consistent output in demanding industrial environments. Manufactured by Baldor (now part of ABB), the M3537 provides the high starting torque and overload capability required for OEM equipment, retrofit applications, and continuous-duty industrial systems.
Key Features
- NEMA Design B motor with Class B insulation for reliable industrial duty
- Totally Enclosed Fan-Cooled (TEFC) enclosure protects against dust, moisture, and contaminants
- Ball bearing construction for extended service life
- Cast iron construction with steel frame for heavy-duty industrial use
- Foot-mounted (F1) rigid base mounting for stable installation
- 5/8-inch keyed output shaft for direct coupling to equipment
- 1.15 service factor provides overload protection capability
Technical Specifications
- Horsepower: 0.5 HP
- Phase: 3-phase
- Rated Speed: 3450 RPM
- Enclosure Type: TEFC (Totally Enclosed Fan-Cooled)
- Frame Size: NEMA 56
- Frame Material: Steel
- Shaft Diameter: 5/8 inch
- Mounting Type: Foot-mounted, rigid base (F1)
- Frequency: 60 Hz
- Insulation Class: Class B
- Bearing Type: Ball bearings
- Overall Length: 11.35 inches
- Motor Weight: Approximately 19 lbs
Typical Applications
The Baldor M3537 is engineered for general-purpose industrial applications including:
- Pumps and centrifugal units
- Fans and blowers
- Compressors
- Conveyors and material handling
- Machine tools and light-duty machinery
- HVAC systems
- Factory automation and production equipment
Compatibility & Replacements
Compatible With
- NEMA 56 flange and foot-mounted motor bases
- Direct-coupled and belt-driven equipment
- Standard three-phase power distribution systems (60 Hz)
- Variable frequency drives (VFD) per NEMA MG1 Part 31.4.4.2
- Motor control centers and soft starters
- Industrial automation and equipment OEMs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The M3537 with standard 208-230/460V rating is widely used across Baldor-Reliance general-purpose motor series. For 575V applications, the M3537-5 variant is the direct equivalent. Confirm voltage and RPM ratings match your original motor nameplate.
Works With
- Soft starters and reduced-voltage controllers
- Variable frequency drives (VFD inverters)
- Magnetic motor starters and contactors
- Motor protection relays and thermal overload devices
- Standard three-phase power wiring and disconnect switches
