Overview

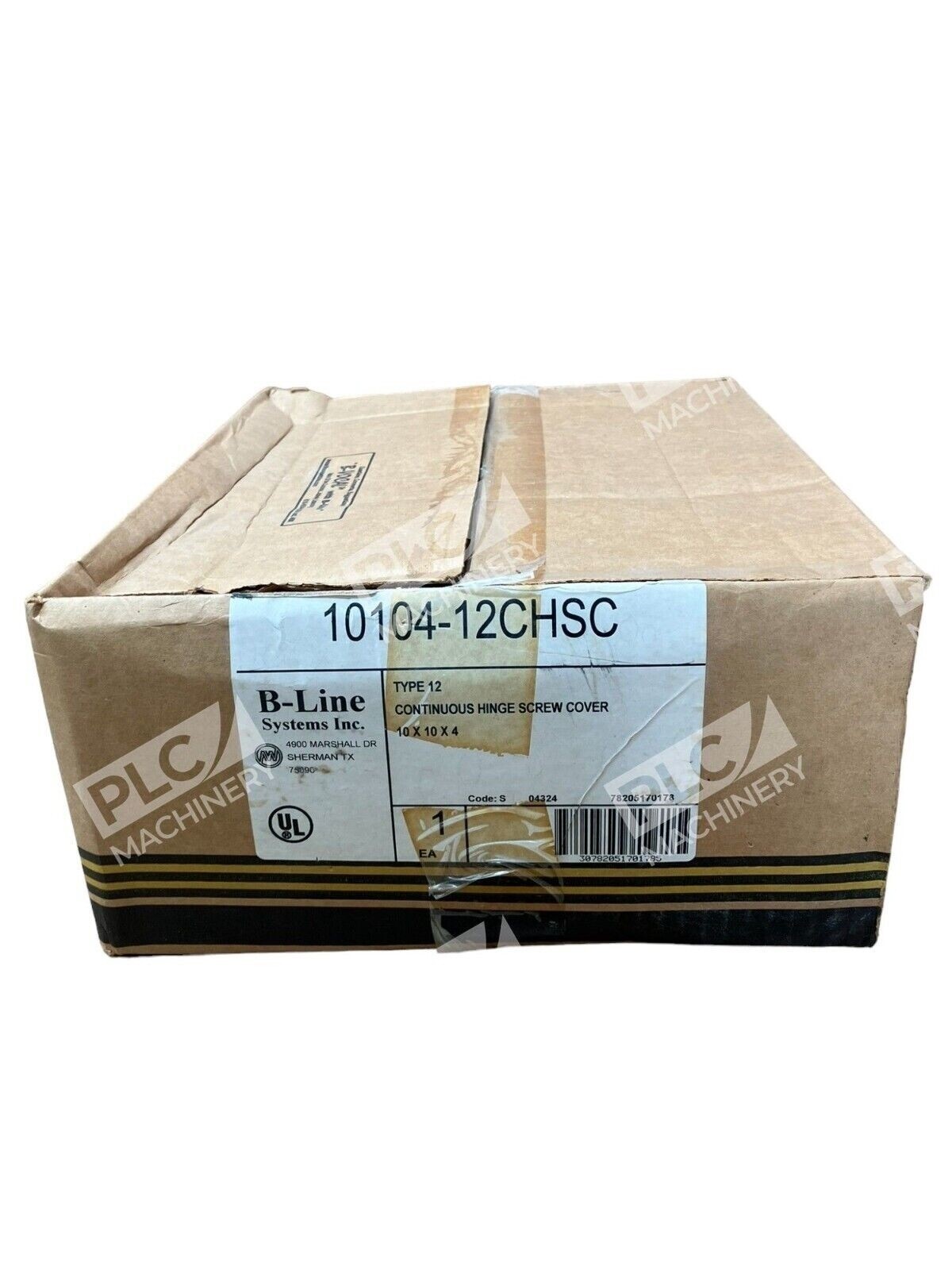

The Eaton B-Line 10104-12CHSC is a rugged NEMA 12 Type 12 JIC panel enclosure built for industrial electrical and control applications. This 10″ × 10″ × 4″ enclosure features a continuous hinge screw cover for secure, tool-free access and is constructed from carbon steel with an oil-resistant gasket to provide reliable protection in harsh manufacturing and processing environments.
Key Features
- NEMA 12 Type 12 JIC rated for indoor use in wet and corrosive environments
- Continuous hinge screw cover for quick, secure access without fasteners
- Carbon steel construction with oil-resistant gasket
- External mounting feet for wall-mount installation
- Small single-door design for compact panel layouts
- Dimensions: 10″ H × 10″ W × 4″ D
Technical Specifications
- Enclosure Type: Type 12 JIC Panel Enclosure
- NEMA Rating: NEMA 12
- Cover Style: Continuous Hinge with Screw Fasteners
- Material: Carbon Steel
- Gasket: Oil-Resistant
- Mounting: Wall Mount with External Feet
- Door Configuration: Small Single Door
- Height: 10 inches
- Width: 10 inches
- Depth: 4 inches
- Certifications: UL 508, CSA 22.2
- Finish: ANSI 61 Gray
Typical Applications
- Industrial control panels and machinery enclosures
- Processing plant electrical equipment protection
- Wet environments requiring moisture and oil protection
- Machine tool control and PLC housing
- Manufacturing facility electrical distribution
Compatibility & Replacements
Compatible With
- Standard DIN rail mounting systems
- IEC 60529 protection class applications
- UL 508 listed control systems
- Common industrial electrical components (contactors, overload relays, terminal blocks)
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or original equipment documentation before ordering, as enclosure replacements may require mounting and gasket verification
Works With
- Allen-Bradley control systems and PLCs
- Siemens SIMATIC controllers
- Mitsubishi industrial automation equipment
- Omron programmable controllers
- Any UL 508 certified electrical devices and components
