Overview

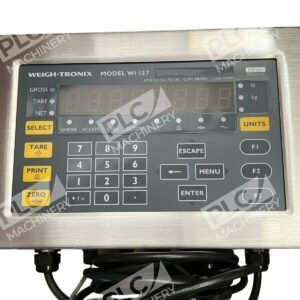

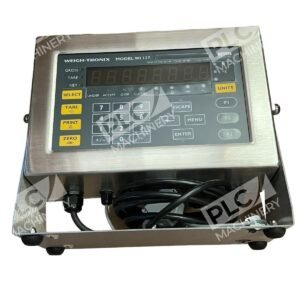

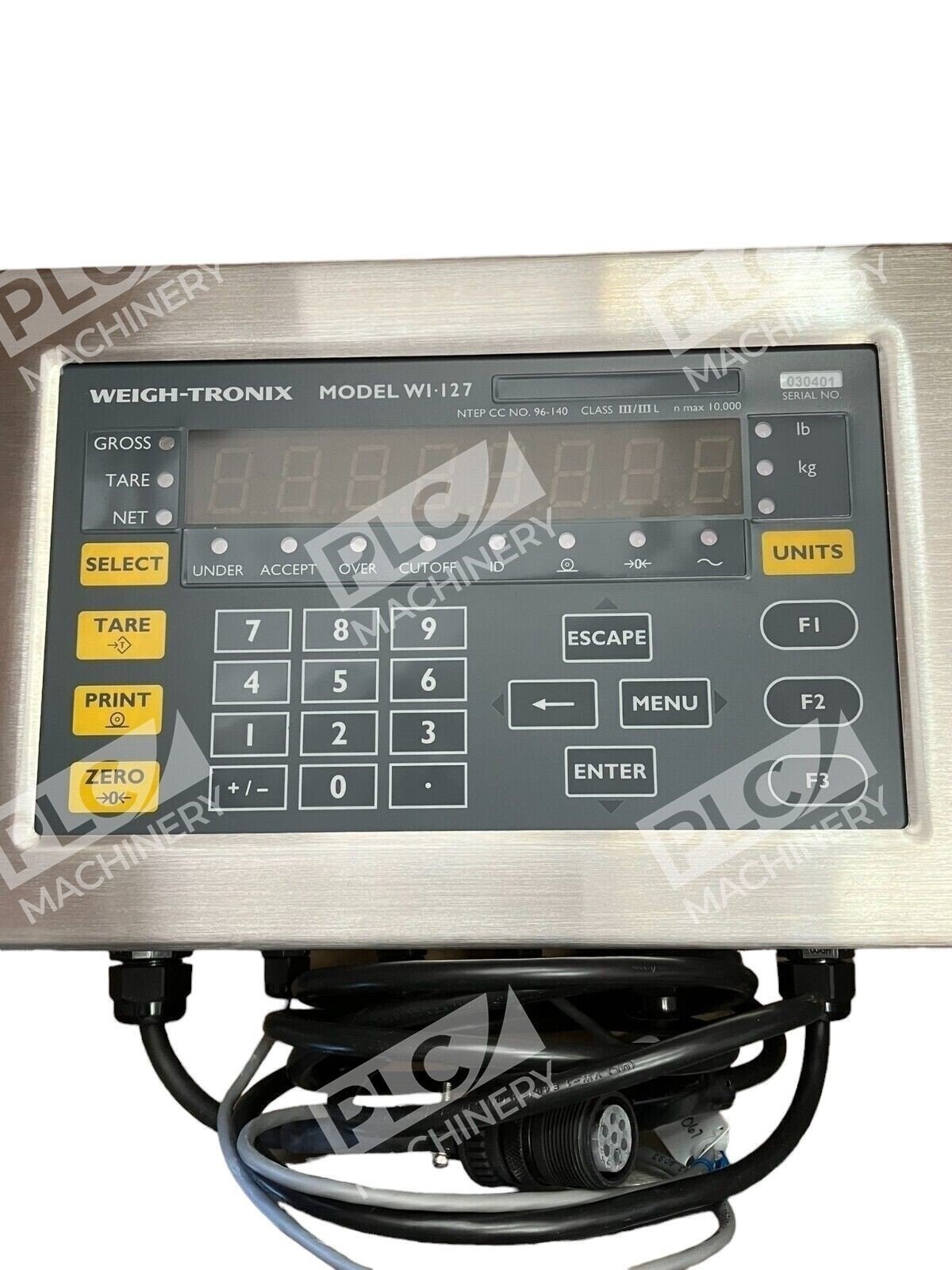

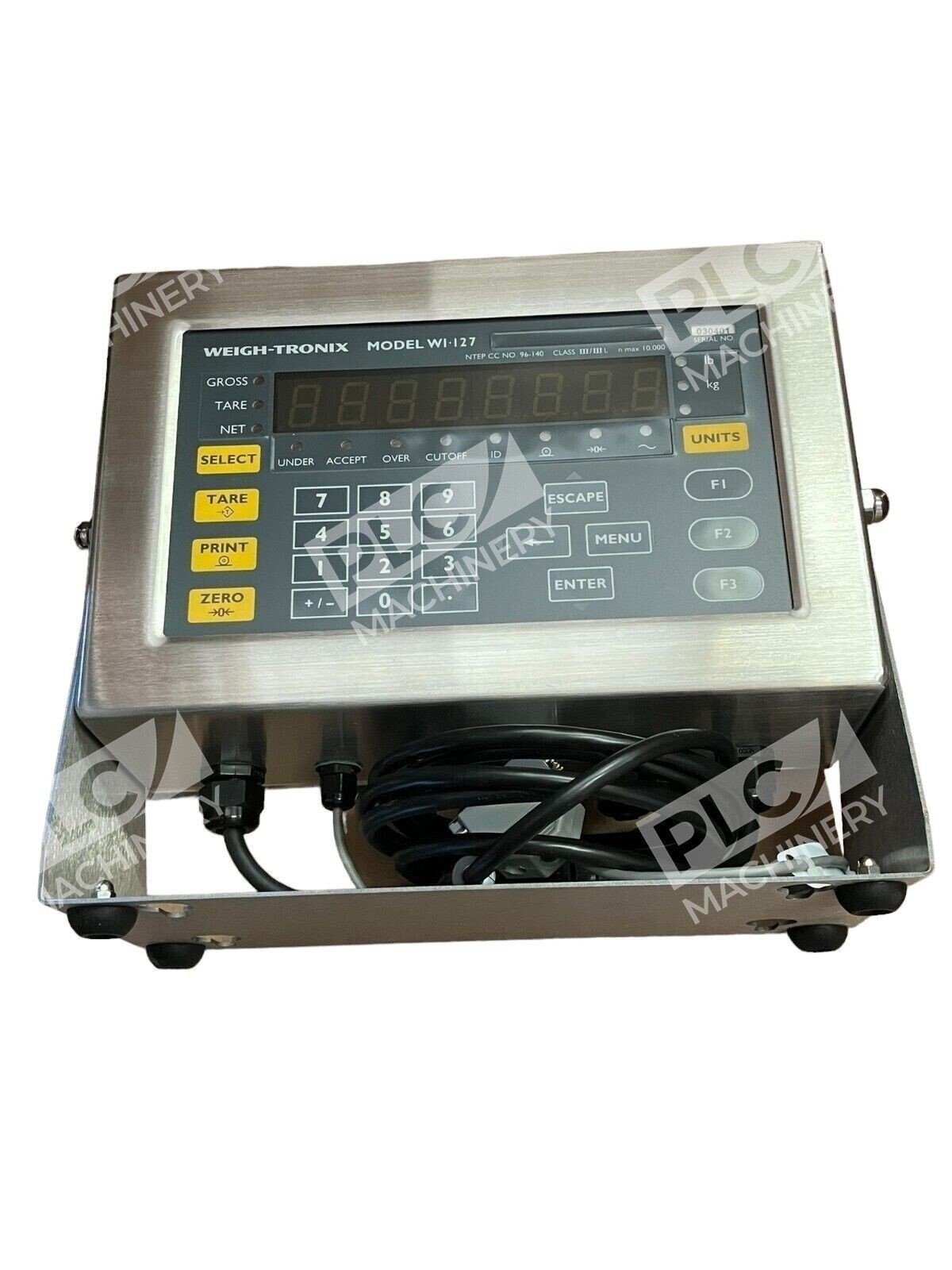

The Avery Weigh-Tronix WI-127 is a rugged digital weight indicator purpose-built for demanding industrial weighing applications. This control unit provides real-time weight data with high stability and accuracy, making it ideal for truck scales, floor scales, material batching systems, and conveyor weighing operations. The WI-127 combines a bright LED display with sophisticated signal conditioning and filtering to deliver reliable readings even in harsh, vibration-prone environments.
Key Features
- 8-digit LED display (0.8″ high) with seven-segment format for clear visibility from a distance
- Harmonizer filtering system — actively corrects for environmental noise and vibration commonly found on truck scales and in factories
- Multi-sensor support — accommodates up to twelve 350-ohm load cell sensors for flexible scale configurations
- Programmable controls — twenty front panel keys for metrological functions, numeric entry, and configuration
- Dual voltage operation — runs on 115/230 V AC, 50/60 Hz with low power consumption (0.25 A)
- Fourteen status annunciators — clearly identify unit of measure and display state
- High-speed analog conversion — 60 samples per second for dynamic weighing applications
- Multi-point calibration — supports up to five calibration points for precise standardization
Technical Specifications
Display:
Eight-digit LED display, seven-segment, 0.8 inches high
Fourteen status annunciators

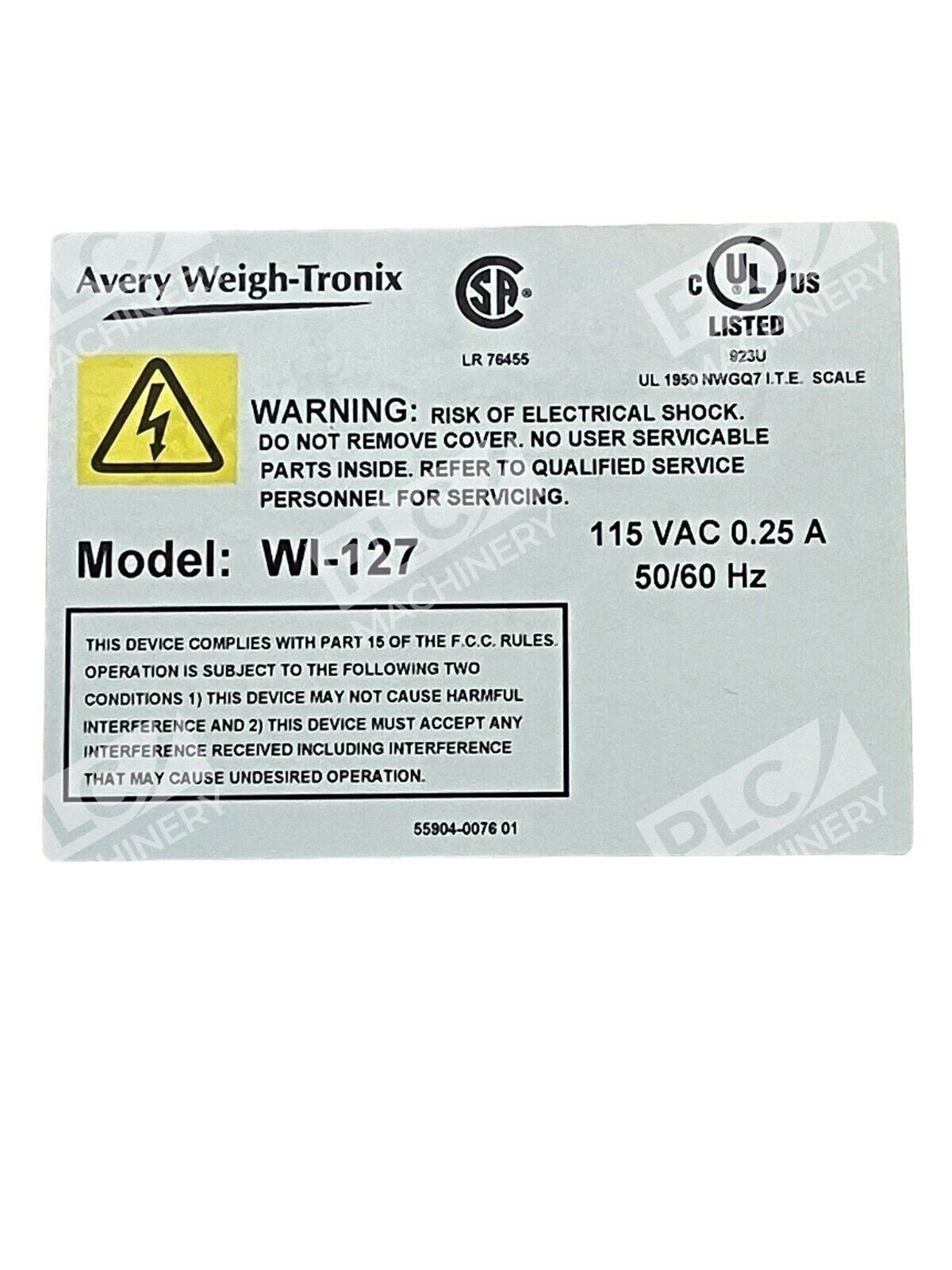

Electrical:

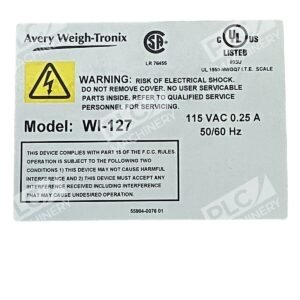

Input Voltage: 115/230 V AC (selectable)
Frequency: 50/60 Hz
Current Draw: 0.25 A
Sensor Inputs:
Number of Sensors Supported: Up to twelve (12)
Sensor Impedance: 350 ohm
Analog-to-Digital Conversion: 60 samples per second
Control Interface:
Front Panel Keys: Twenty (20) programmable keys
Calibration Points: Up to five (5)
Environmental:
Weight: 10 lbs
Filtering: Harmonizer programmable filtering
Manufacturer:
ITW Avery Weigh-Tronix (subsidiary of Illinois Tool Works)
Status: Discontinued by manufacturer
Typical Applications
- Truck Scale Readout — Primary display and control unit for dynamic truck weighing operations
- Floor Scale Indicator — Stationary scale display for material receiving, packaging, and shipping departments
- Batching and Blending — Real-time weight feedback for ingredient batching in food processing, chemicals, and aggregates
- In-Motion Conveyor Weighing — Measures product weight on moving conveyor systems with built-in vibration compensation
- Warehouse and Logistics — Central readout for shipping, postal services, and material handling operations
Compatibility & Replacements
Compatible With
- Standard 350-ohm load cell sensors (analog)
- Multiple-load-cell scale platforms (up to twelve sensors)
- Truck scales with standard sensor outputs
- Floor scales and platform scales
- Batching and checkweighing systems
- Conveyor weighing systems
Replaces / Drop-In Replacement For
The WI-127 is a discontinued product. For current scale indicator requirements, consult your integrator for modern replacements such as the Avery Weigh-Tronix WI-110 or comparable weight indicators. Verify compatibility with your existing scale load cell outputs before ordering.
Works With
- Analog 350-ohm strain gauge load cells
- Standard scale mounting hardware compatible with Avery Weigh-Tronix platforms
- Industrial scale bases and transducers with four-wire sensor outputs
- Harmonizer in-motion software (for conveyor weighing modes)
