Overview

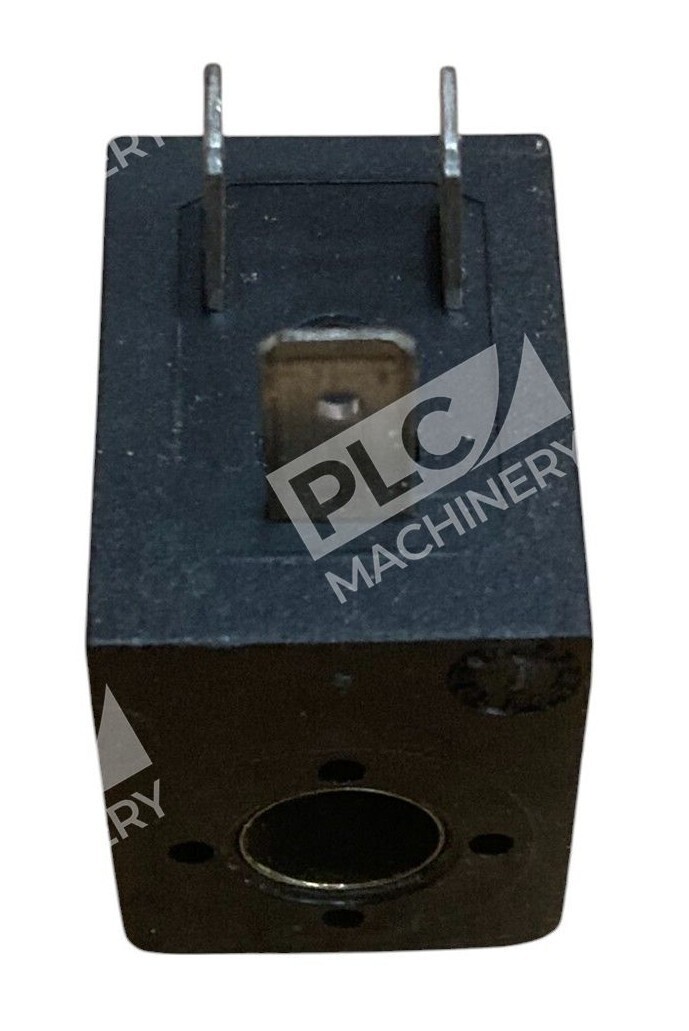

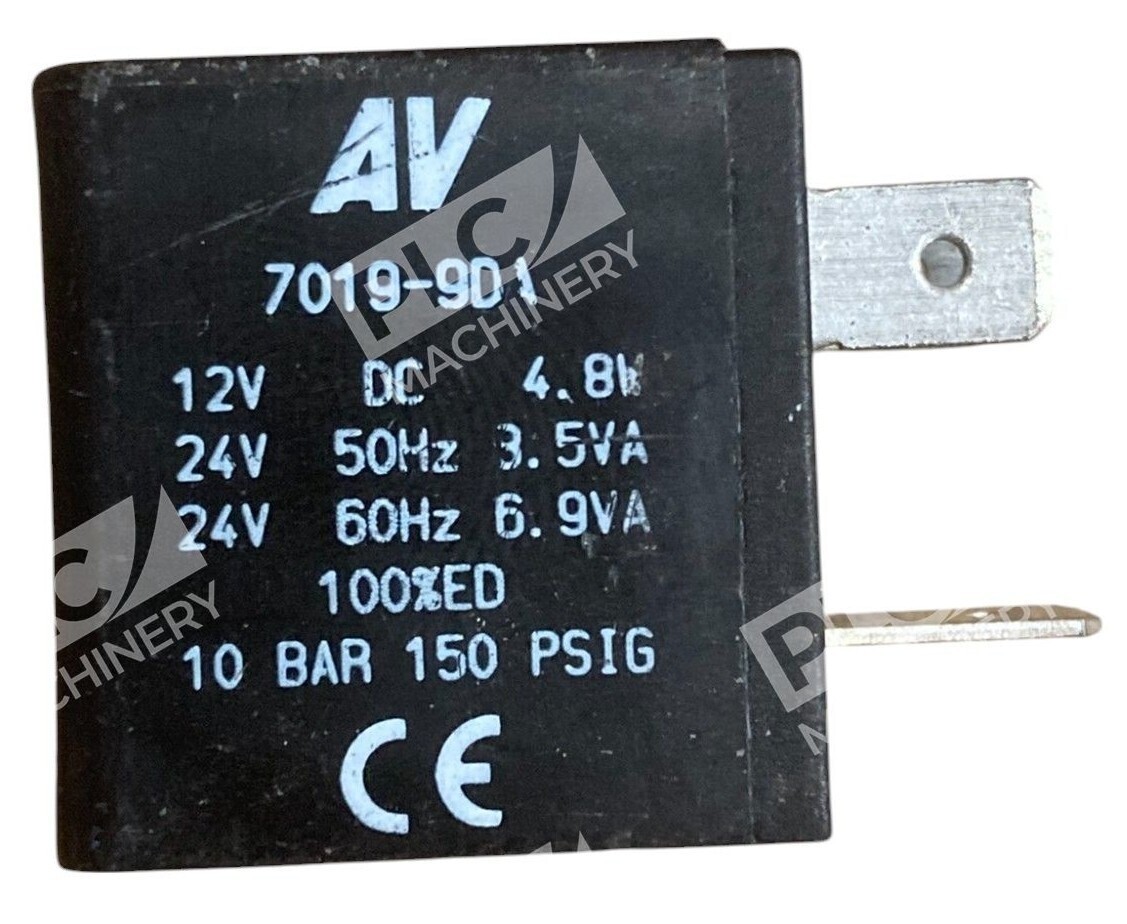

The Automatic Valve 7019-9DA is a precision solenoid coil engineered for reliable performance in industrial automation, marine, and fluid control applications. Operating at 12VDC (with optional 24V 50-60Hz capability), this coil delivers consistent actuation across hydraulic, pneumatic, and pump systems. The compact 60-gram design and proven track record make it a trusted choice for engineers managing critical valve control applications.
Key Features
- Dual voltage operation: 12VDC primary, 24V 50-60Hz alternative
- Compact form factor (60g weight) for space-constrained installations
- 10BAR (150PSIG) maximum working pressure rating
- Weather-proof design suitable for industrial environments
- DIN-standard coil configuration with reliable electromagnetic actuation
- Direct replacement for 7019 and 7144 series valves
Technical Specifications
- Primary Input Voltage: 12VDC
- Alternate Voltage: 24V AC 50-60Hz
- Power Consumption: 8.5VA (12VDC) / 6.9VA (24V AC)
- Maximum Pressure: 10BAR / 150PSIG
- Weight: 60 grams
- Lead Length: 18 inches
- Protection Rating: NEMA 4X (weather-proof)
- Coil Type: DIN connector
Typical Applications
- Commercial laundry and dry cleaning equipment valve actuation
- Industrial fluid control and switching systems
- Pneumatic and hydraulic valve solenoid replacement
- Marine and offshore equipment
- Pump and plumbing control circuits
- OEM equipment repair and maintenance
Compatibility & Replacements
Compatible With
- Automatic Valve 7019 series solenoid valves
- Automatic Valve 7144 series solenoid valves
- Valve series L05, L07, L21, L45
- 12VDC or 24V AC 50-60Hz control circuits
- Industrial automation and fluid control systems
Replaces / Drop-In Replacement For
- Original Automatic Valve 7019-9DA specification coil
- 7019-9DAG (functionally equivalent variant)
- Equivalent OEM solenoid coils for 7019/7144 series (verify connector type)
Works With
- 12VDC DC power supplies and control modules
- 24V AC 50-60Hz transformer-based systems
- Industrial PLC and relay-based valve control networks
- DIN-standard solenoid valve mounting systems
- Standard pneumatic and hydraulic manifolds
