Overview

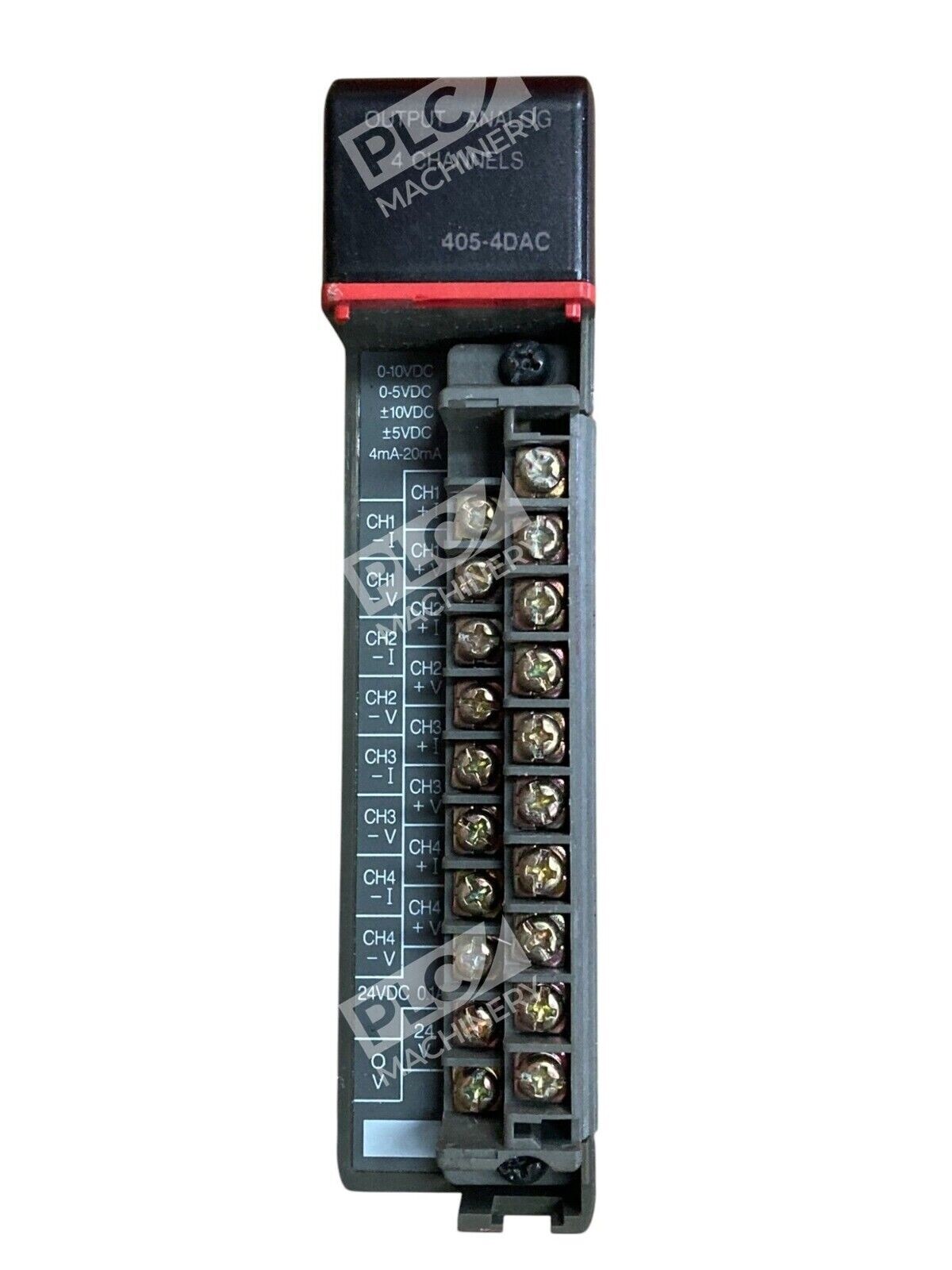

The Automation Direct 405-4DAC is a 4-channel analog output module for the DirectLogic 405 (DL405) modular PLC family. This module enables simultaneous control of multiple analog outputs, making it ideal for proportional valve control, motor speed regulation, and process variable manipulation in industrial automation systems. The 405-4DAC integrates directly into standard DL405 base units without additional configuration hardware.
Key Features
- 4 independent analog output channels for simultaneous multi-device control
- Individually configurable channels with field-selectable output ranges
- Compatible with all DirectLogic 405 PLC base units and CPU modules
- Removable terminal block for convenient field wiring
- Industrial-grade noise immunity and vibration resistance
- Compact form factor ensures easy installation in crowded control panels
Technical Specifications
- Channels: 4 analog outputs
- Output Range: 0–10V and 1–5V (field configurable)
- Resolution: 12-bit (1 to 4096 counts)
- Output Type: Single-ended
- Terminal Block: Removable for simplified wiring and module changes
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Noise Immunity: NEMA 1CS3-304 standard
- Vibration Resistance: MIL STD 810C 514.2/516.2
Typical Applications
- Process control and setpoint regulation
- Proportional valve and actuator control
- Variable frequency drive (VFD) signal control
- Analog sensor signal conditioning and output
- Multi-channel pressure and flow control systems
- Temperature control loops in industrial ovens and furnaces
Compatibility & Replacements
Compatible With
- DirectLogic 405 (DL405) PLC systems
- All DL405 base units and rack configurations
- DL405 CPU modules (D4-NPU, D4-NPU-405, D4-NPU-405E, and compatible variants)
- DirectLogic programming software and IDE
- NEMA 1CS3-304 compliant industrial control environments
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering to ensure seamless module substitution.
Works With
- DirectLogic 405 development and programming environments
- Standard industrial 24 VDC logic control systems
- Analog signal protocols (0–10V, 1–5V, 4–20 mA)
- Field-mounted sensors and proportional control devices
