Overview

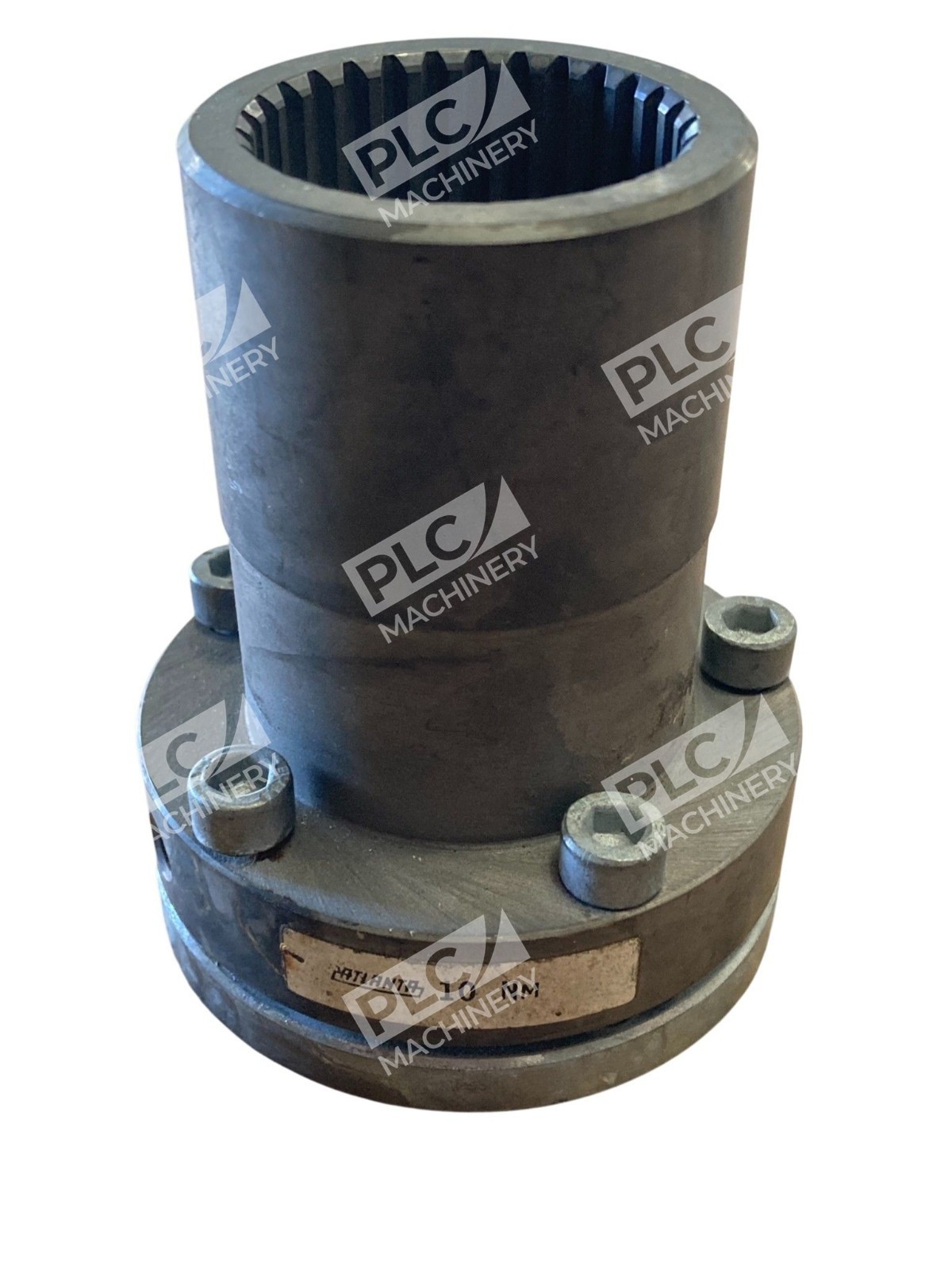

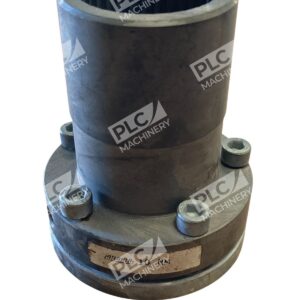

The Atlanta Special Clutch Assembly 10Nm Torque Limiter with spline connection is a mechanical safety device designed for power transmission applications requiring controlled torque management. This torque limiter clutch slip-engages when preset torque thresholds are exceeded, protecting downstream equipment and operators from damage caused by sudden overloads or jamming conditions.
Key Features
- Preset 10 Nm torque rating for reliable overload protection
- Spline shaft connection for secure, positive drive engagement
- Mechanical design provides rapid response to torque spikes without electronic delays
- Automatic reset capability when overload is eliminated
- No-slip operation during normal load conditions
Technical Specifications
The following specifications are typical for this torque limiter clutch assembly:

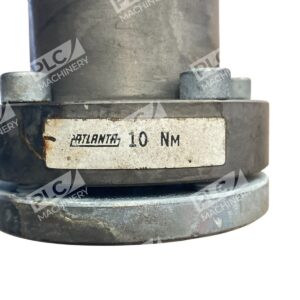

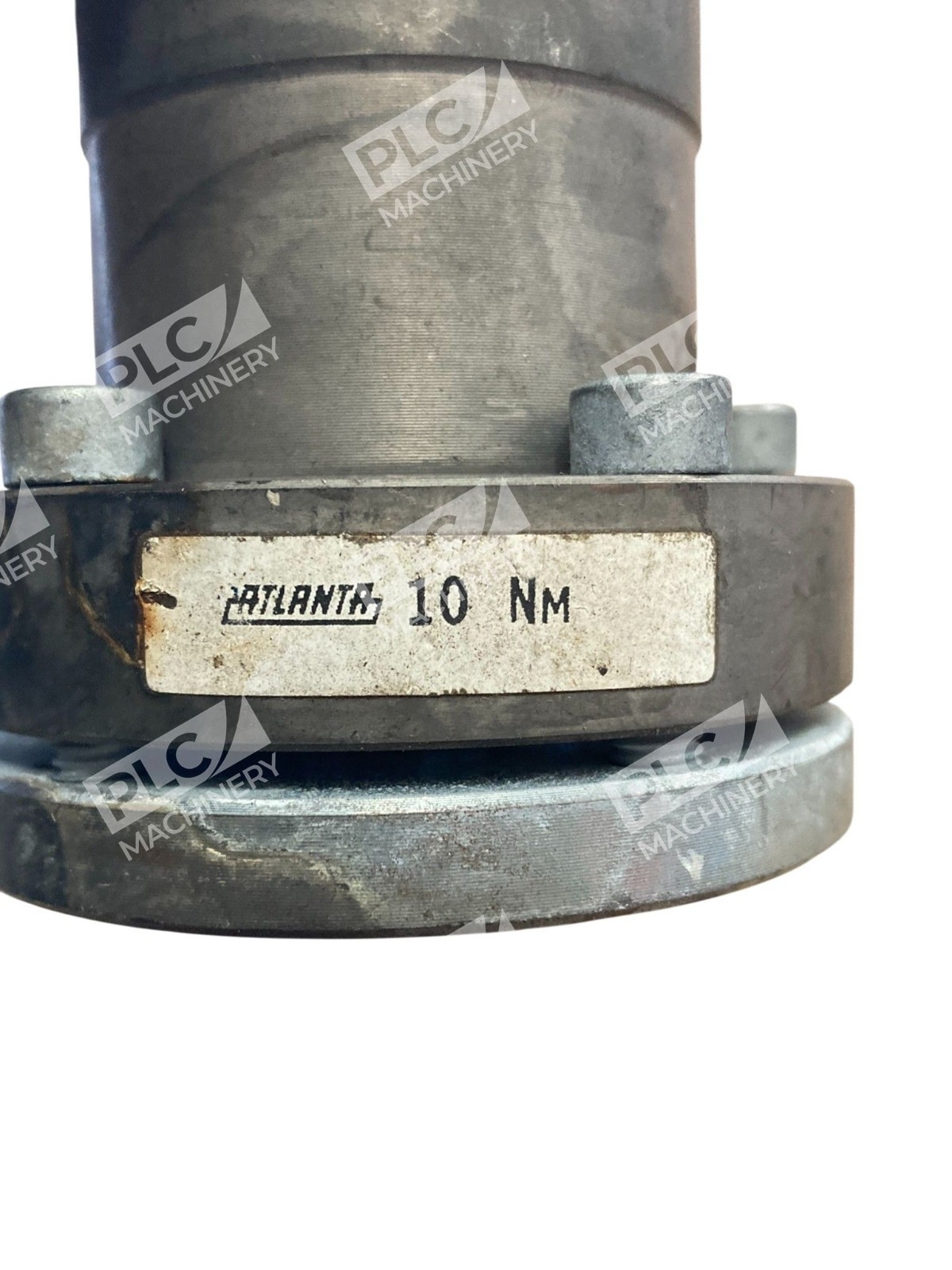

- Torque Rating: 10 Nm nominal

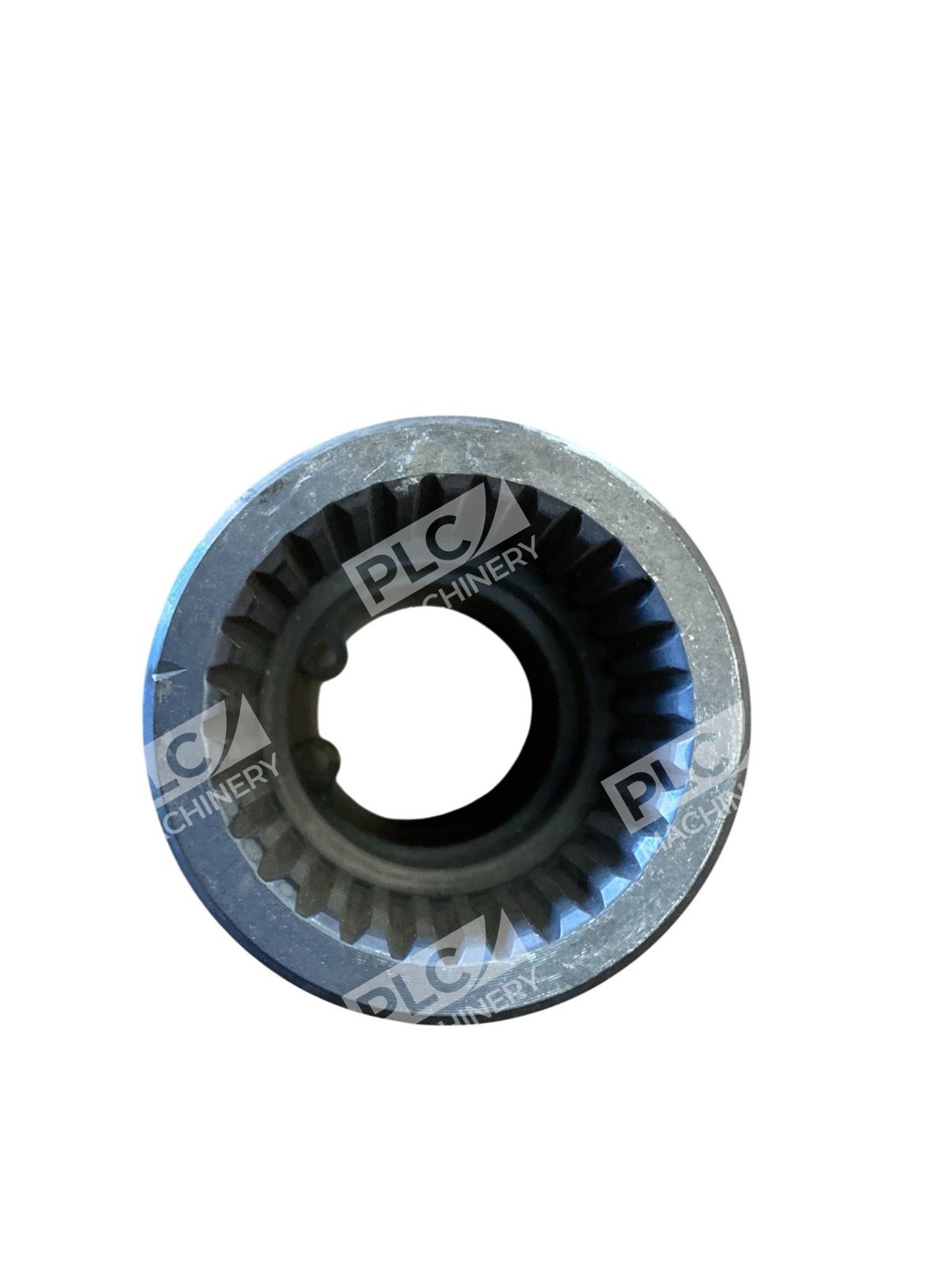

- Connection Type: Spline shaft
- Operation: Slip-engaging on overload
- Reset: Automatic
- Condition: Used, tested and functional
Typical Applications
Atlanta torque limiter clutches are commonly deployed in:
- Industrial machinery with conveyor belt drives
- Equipment requiring automatic overload cutout (presses, indexing machines)
- Packaging and processing machinery
- Power transmission systems in manufacturing environments
- Drive protection in pump, fan, and compressor applications
Compatibility & Replacements
Compatible With
- Direct-drive shaft systems with spline coupling interface
- Machinery requiring 10 Nm torque limitation
- Industrial automation and controls environments
- Standard mechanical power transmission setups
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. OEM replacement model numbers and cross-references should be confirmed with Atlanta Special or equipment documentation.
Works With
- Spline shaft and coupling systems
- Standard industrial motor drives
- Mechanical drive assemblies and gearboxes
- Torque monitoring and control systems
