Overview

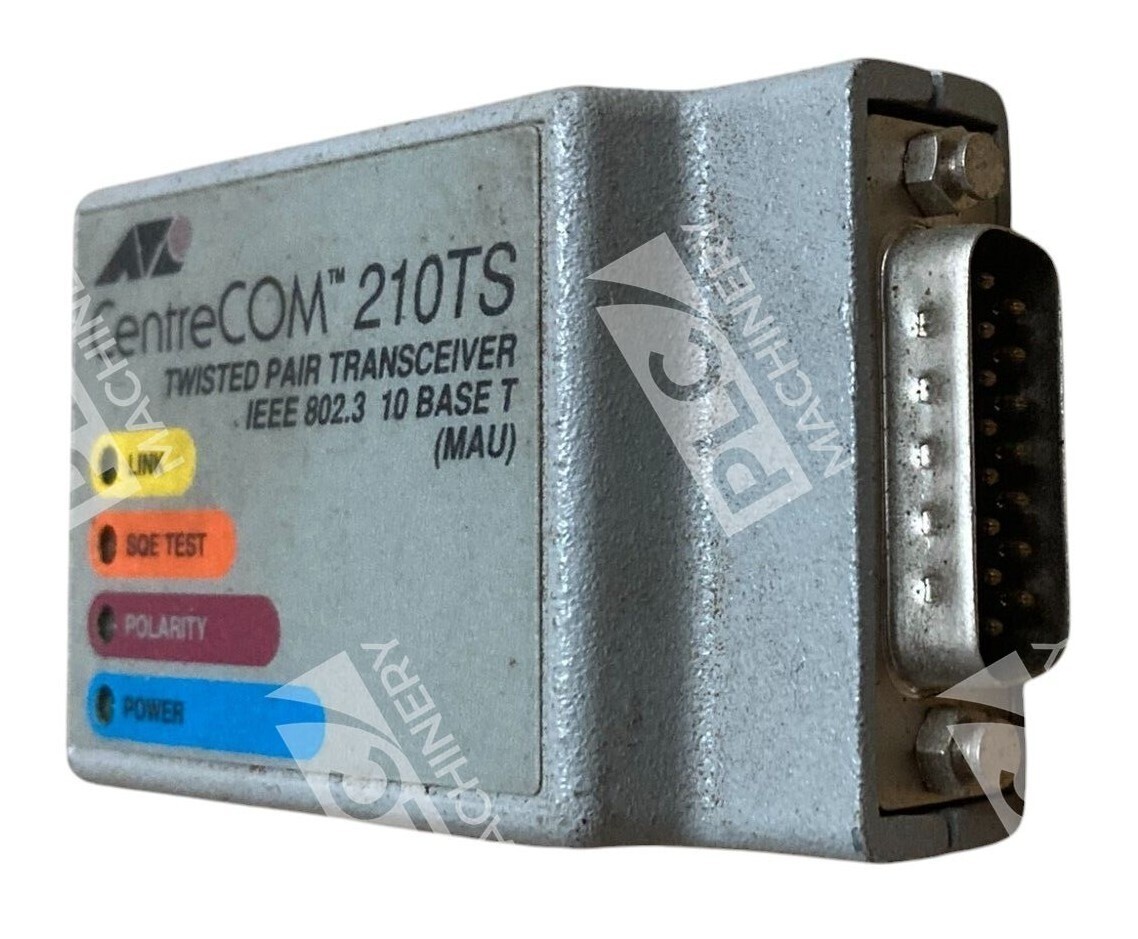

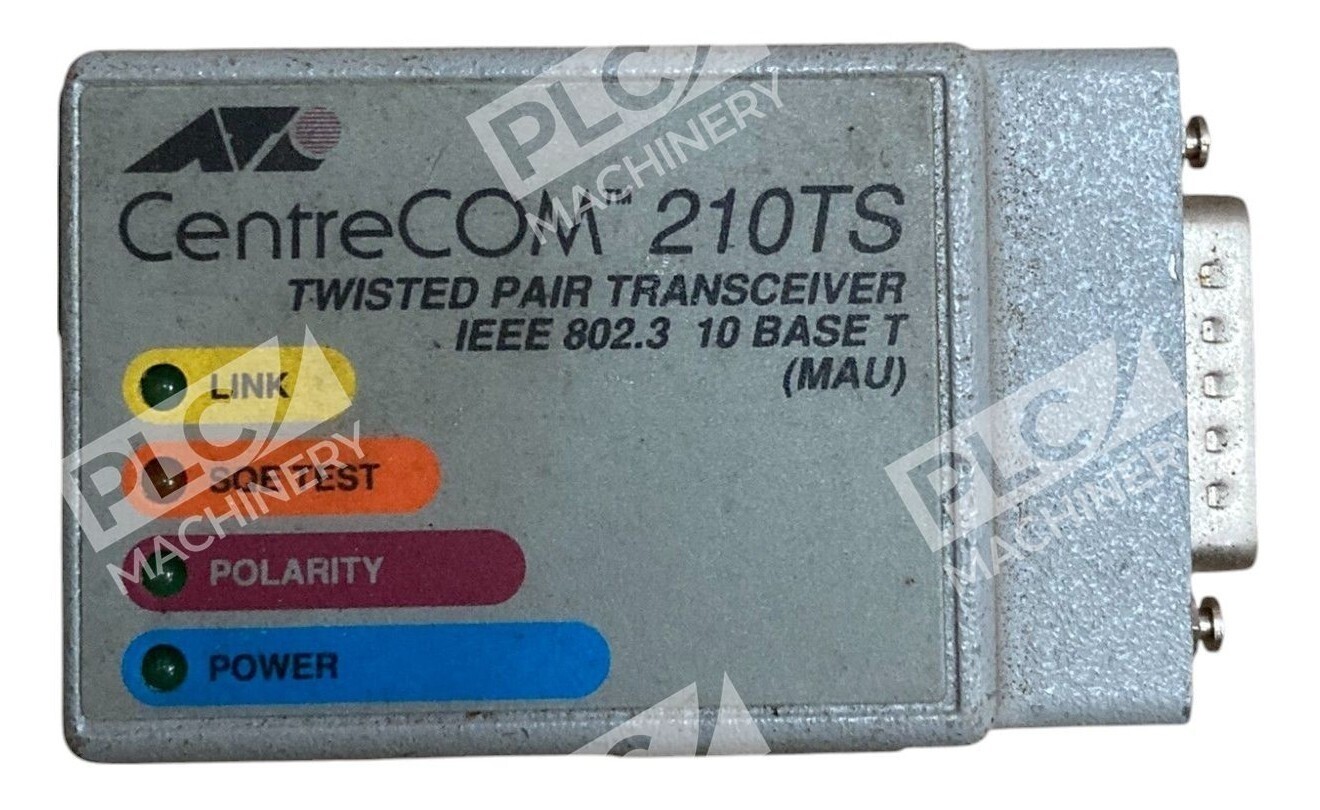

The Allied Telesis AT-210TS CentreCOM twisted pair transceiver is an IEEE 802.3–compliant Media Attachment Unit (MAU) designed for 10Base-T Ethernet networks. This compact transceiver connects directly to workstations and brings thin Ethernet or unshielded twisted pair (UTP) wiring directly to the workstation. Ideal for legacy industrial automation systems, PLC networking, and distributed I/O over Ethernet.
Key Features
- Compact size allows direct connection to workstations with thin Ethernet or UTP wiring
- Supports distances up to 100 meters using UTP, and up to 185 meters using coax
- Signal Quality Error (SQE)/Heartbeat test easily enabled or disabled via externally accessible switch
- Integral jabber lock-up prevention circuitry and loopback function
- Loopback feature allows Local Area Network (LAN) controllers to determine if a Media Attachment Unit (MAU) is connected and operational
Technical Specifications
IEEE 802.3 compliant 10Base-T (MAU) Ethernet compatible transceiver with the following electrical and physical characteristics:
Typical Applications
- Legacy industrial automation Ethernet networks operating at 10 Mbps
- PLC and DCS system networking in manufacturing and process control
- Distributed I/O and sensor networks requiring long-distance twisted pair connectivity
- Ethernet interface cards requiring external MAU functionality
- Network bridge and gateway applications in industrial settings
Compatibility & Replacements
Compatible With
- IEEE 802.3 10Base-T Ethernet networks
- Ethernet interface cards requiring external MAU connection
- Legacy Allen-Bradley, Siemens, and other industrial PLC systems with 10Base-T ports
- Twisted pair cabling (Category 3 and higher recommended)
Replaces / Drop-In Replacement For
- AT-210T (standard version)
- Other 10Base-T twisted pair transceivers with 15-pin DIX connector
- Verify compatibility with your system integrator before ordering
Works With
- Coaxial and unshielded twisted pair (UTP) network media
- Industrial Ethernet switches and hubs supporting 10Base-T
- Network interface cards with 15-pin MAU connectors
