Overview

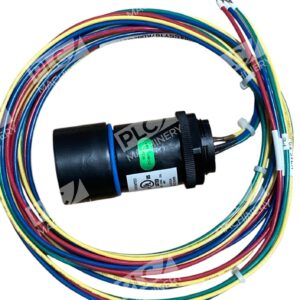

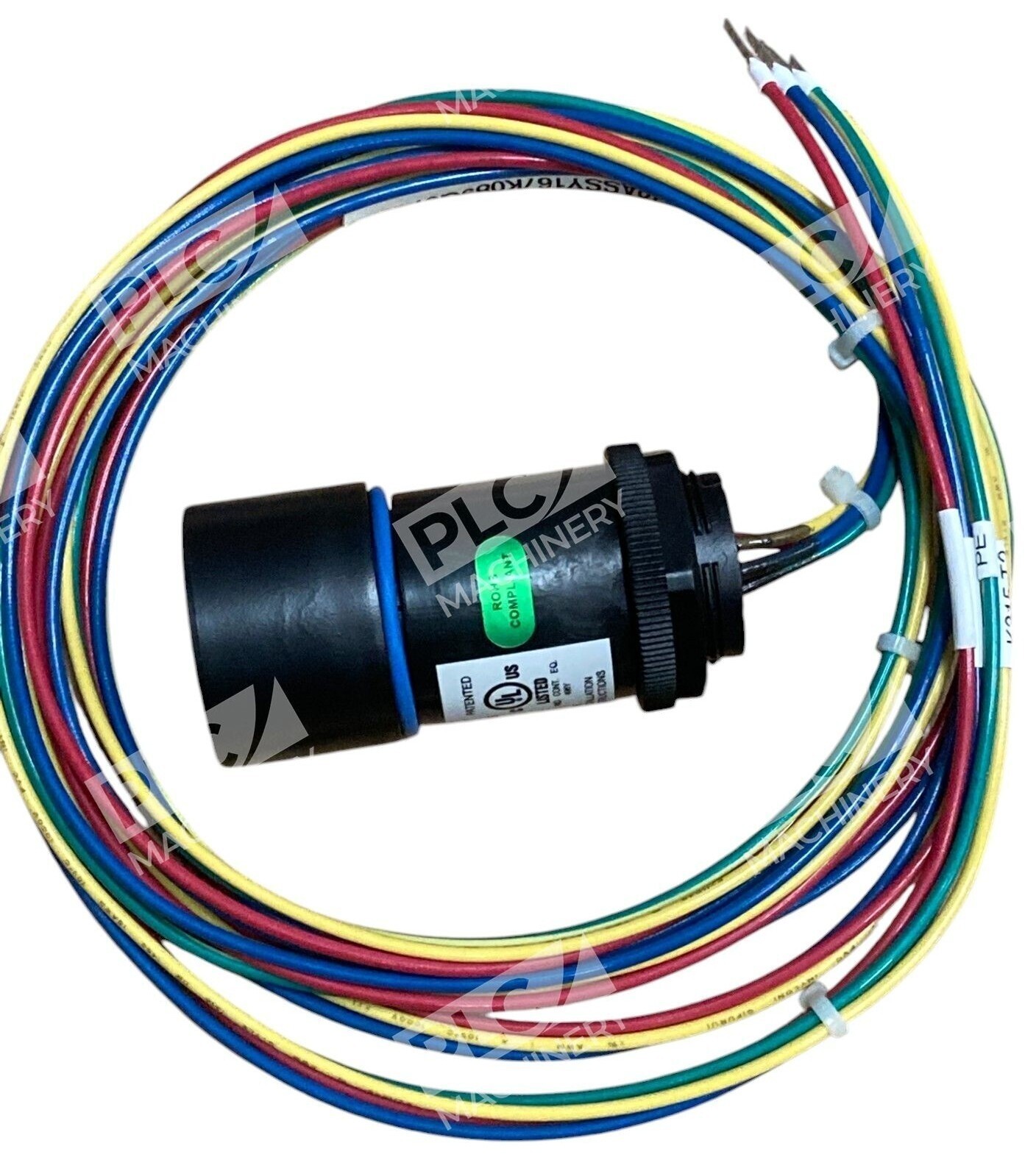

The ATC UPA-130-GOV is a Universal Power Alert designed for hardwired installation in electrical control panels. This voltage detector visually alerts to the presence of dangerous AC or DC potentials across monitored input lines (L1, L2, L3, and ground). By pre-verifying electrical isolation from outside the panel, the ATC UPA-130-GOV reduces the risk of electrical arc flash and enhances NFPA 70E and OSHA compliance during lockout/tagout (LOTO) procedures.
Key Features
- Eight LED detectors – Two amber LEDs assigned to each input line, designated + and -, for clear voltage identification
- AC and DC detection – Monitors both AC potentials (bipolar) and DC or stored energy conditions simultaneously
- Redundant circuitry – Self-powered by the voltage being monitored, ensuring continuous operation without batteries
- 30mm panel knockout – Easy installation through standard panel cutouts; no conduit adapters required
- UL and cUL Listed – Meets UL File Number E55826 for electrical safety compliance
- NFPA 70E compliant – Supports arc flash hazard reduction and electrical safety program requirements
Technical Specifications
- Voltage Detection Range (AC): 40–750 VAC
- Voltage Detection Range (DC): 30–1000 VDC
- AC Frequency: 50/60 Hz
- Power Supply: Self-powered (no external power or batteries required)
- LED Indicators: 8 amber LEDs (2 per monitored line)

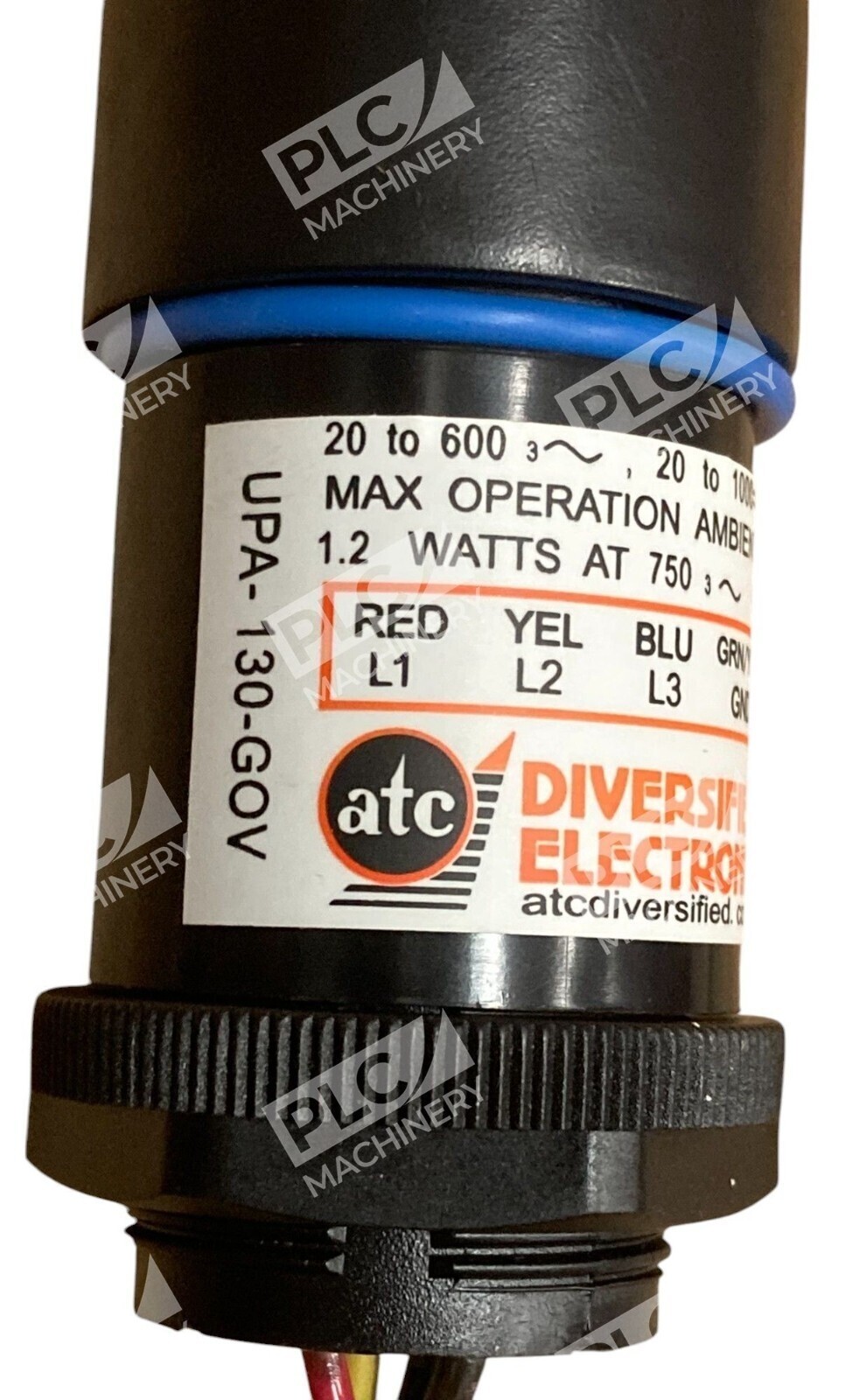

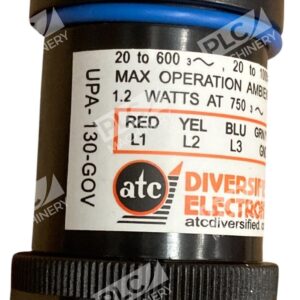

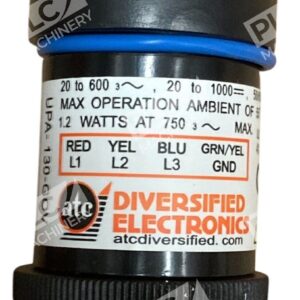

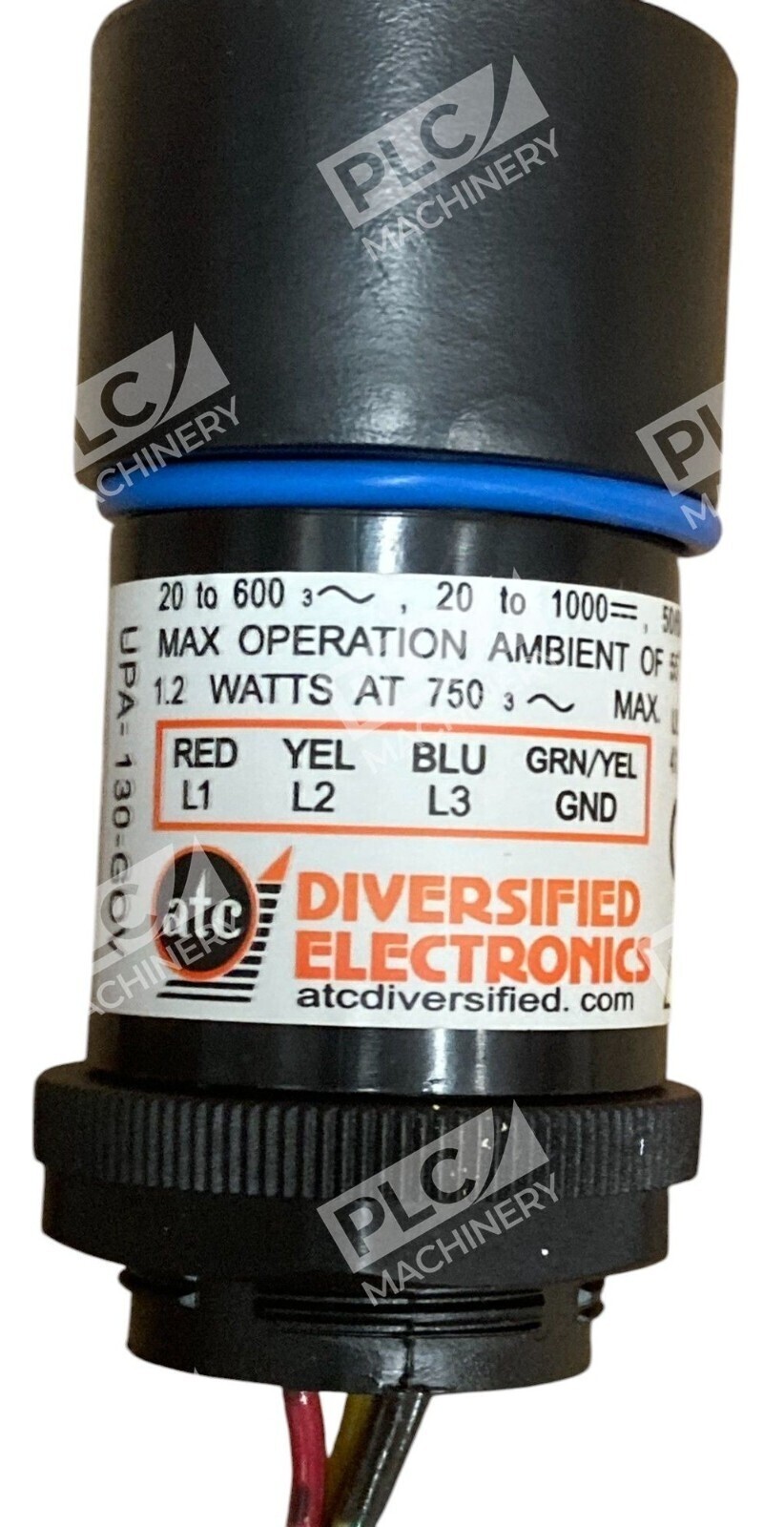

- Input Lines Monitored: L1, L2, L3, Ground (4 lines)
- Panel Knockout Size: 30 mm

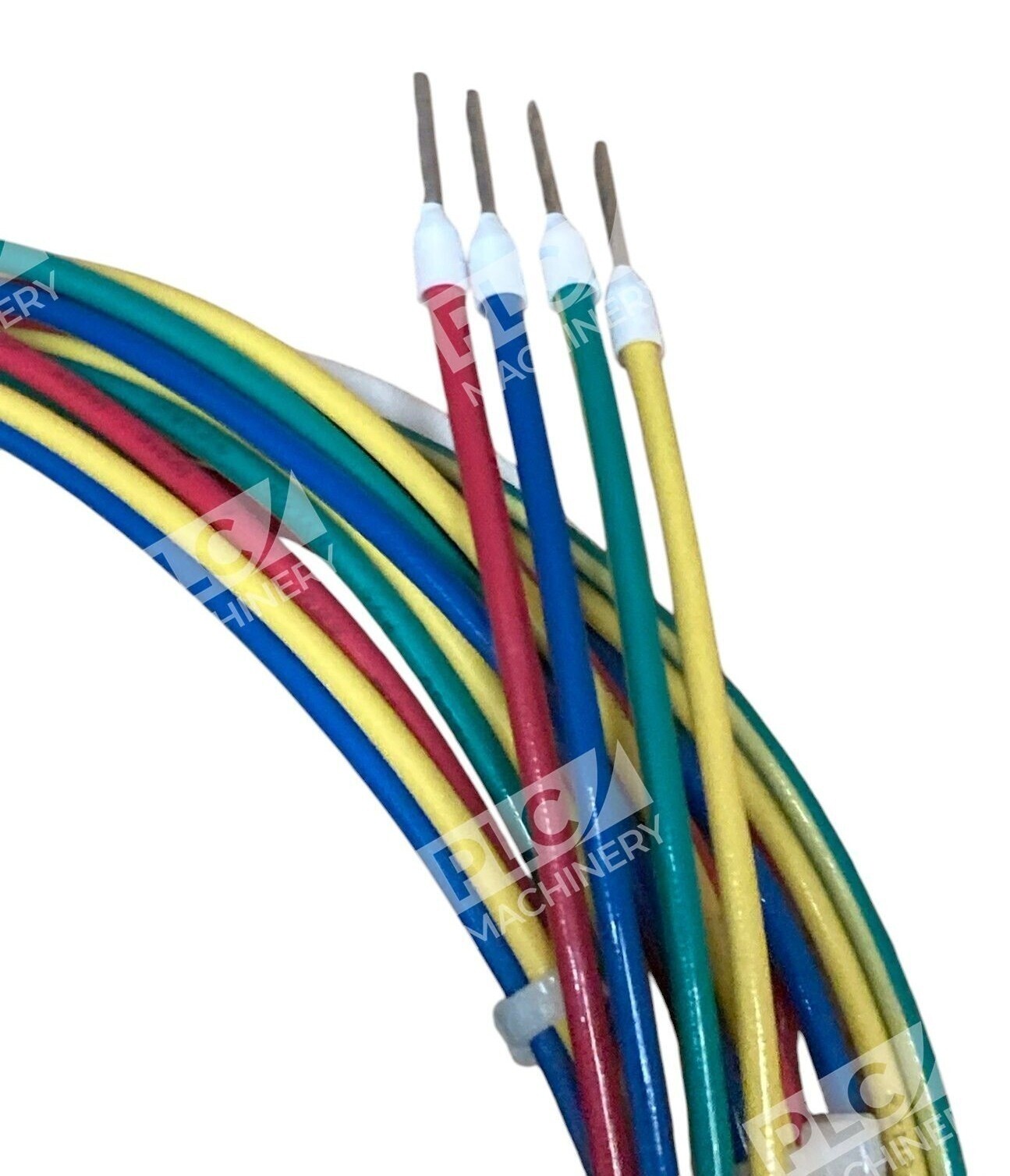

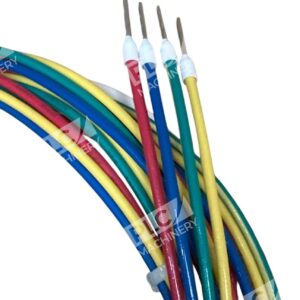

- Termination: 6 feet of four 18 AWG leads
- Enclosure Rating: NEMA 4X totally encapsulated

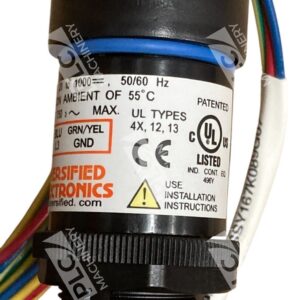

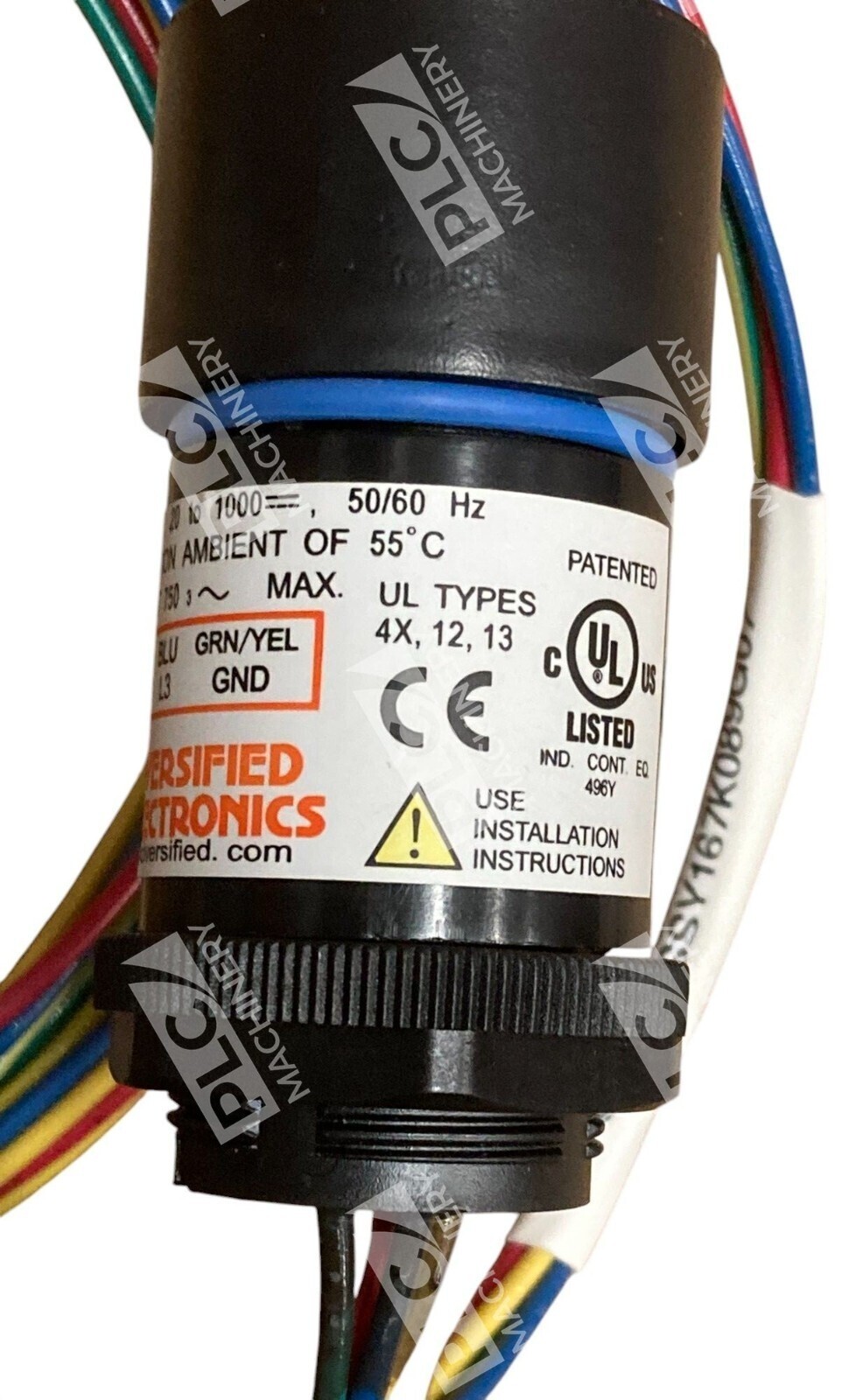

- Certifications: UL Listed, cUL Listed (CSA)
- Weight: Approximately 2–3 lbs
Typical Applications
- Motor control centers and distribution panels requiring voltage verification
- Industrial maintenance and electrical troubleshooting
- Equipment service and lockout/tagout (LOTO) operations
- Arc flash hazard mitigation and NFPA 70E compliance
- Three-phase and single-phase control panel installations
- Facilities requiring visual confirmation of electrical isolation before service
Compatibility & Replacements
Compatible With
- Three-phase electrical panels (L1, L2, L3 configurations)
- Single-phase and dual-phase panels
- Motor control centers and disconnect switches
- Industrial control systems and equipment enclosures
- NFPA 70E electrical safety programs
Replaces / Drop-In Replacement For
- Standard UPA-130 (non-GOV variant) – identical functionality in government-specification housing
- Direct retrofit for existing UPA-130-series installations
Works With
- Standard hardwired electrical panel connections (no software or communication protocol required)
- Lockout/tagout (LOTO) procedures and electrical safety protocols
- Industry-standard circuit breakers and disconnect switches
- Portable voltage testers and multimeters (as secondary verification)
