Overview
The Ashcroft 15W1005PH 01L is a 1-1/2″ pressure gauge designed for commercial and industrial applications requiring accurate fluid pressure measurement. This gauge features a steel case with brass/bronze wetted parts, a 0-30 PSI range, and 1/8 NPT back connection for easy panel or manifold mounting. The 1005 series combines proven reliability with a compact, aesthetic design suitable for process control, equipment monitoring, and OEM applications.
Key Features
- 1-1/2″ dial size for clear, readable pressure indication
- 0-30 PSI range suitable for low-pressure applications
- 1/8 NPT back connection for standard industrial mounting
- Steel case with brass/bronze internals resist corrosion
- Commercial-grade construction for long operational life
- Compact dimensions for space-constrained installations
Technical Specifications
- Dial Size: 1-1/2 inches
- Pressure Range: 0-30 PSI
- Connection Type: 1/8 NPT (back mount)
- Case Material: Steel
- Wetted Parts: Brass/Bronze
- Dimensions: 2.5 x 1.75 x 1.25 inches
- Weight: 1.1 pounds per unit
- Series: Ashcroft 1005

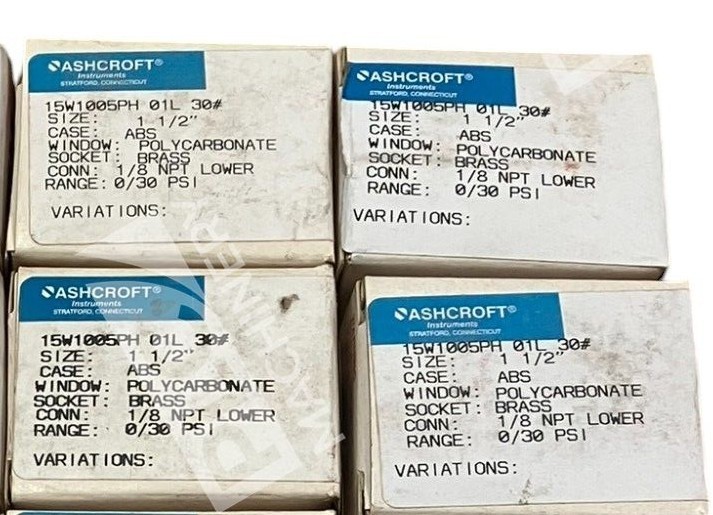

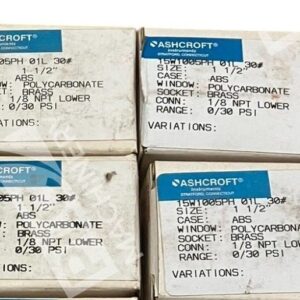

- Configuration: Lot of 4 units
Typical Applications
- Hydraulic and pneumatic system monitoring
- Process control and machinery pressure indication
- Water supply and gas line pressure measurement
- OEM equipment integration
- Industrial fluid transfer and storage tank monitoring
Compatibility & Replacements
Compatible With
- Standard 1/8 NPT panel cutouts and manifold connections
- Low-pressure industrial systems and equipment
- Glycerin-filled and dry gauge applications
- General industrial control and monitoring systems
Replaces / Drop-In Replacement For
- Other Ashcroft 1005 series gauges with matching specifications
- Universal 1-1/2″ commercial pressure gauges in 0-30 PSI range
- Verify specific model compatibility with your system integrator before ordering
Works With
- Standard 1/8 NPT threaded connections (back mount)
- Industrial control cabinets and equipment panels
- Hydraulic, pneumatic, and fluid delivery systems
- Process monitoring and instrumentation networks
