Overview

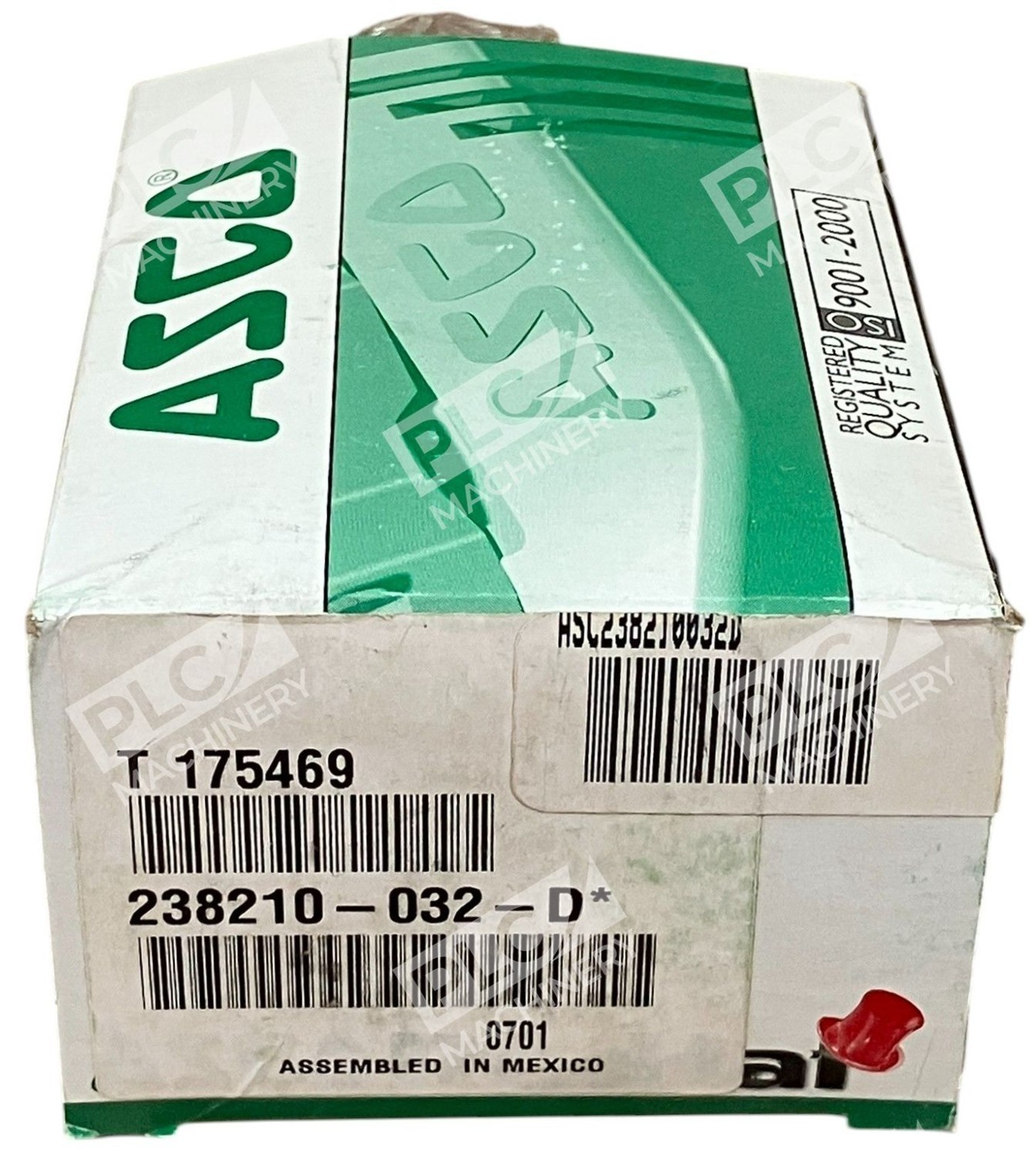

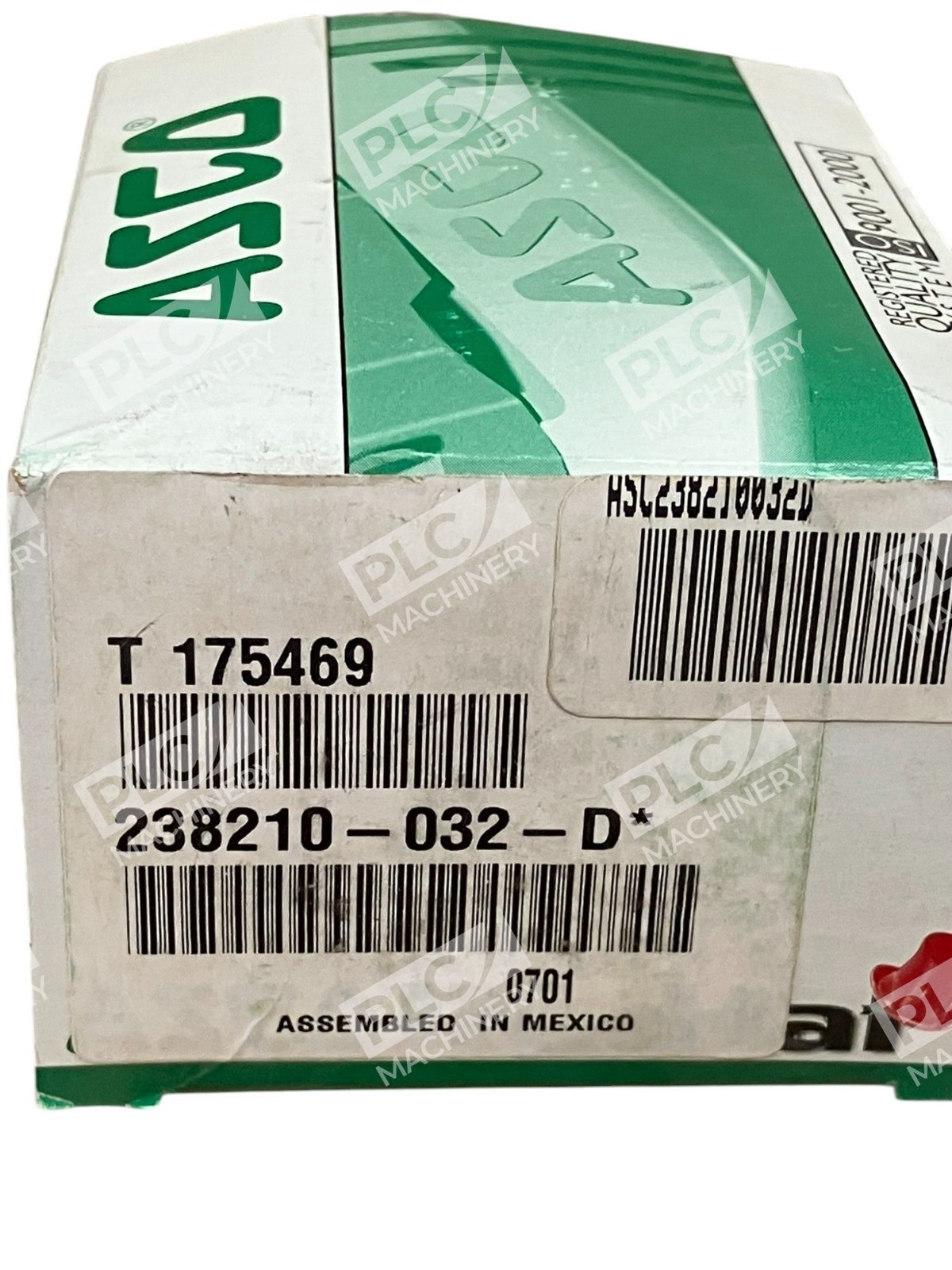

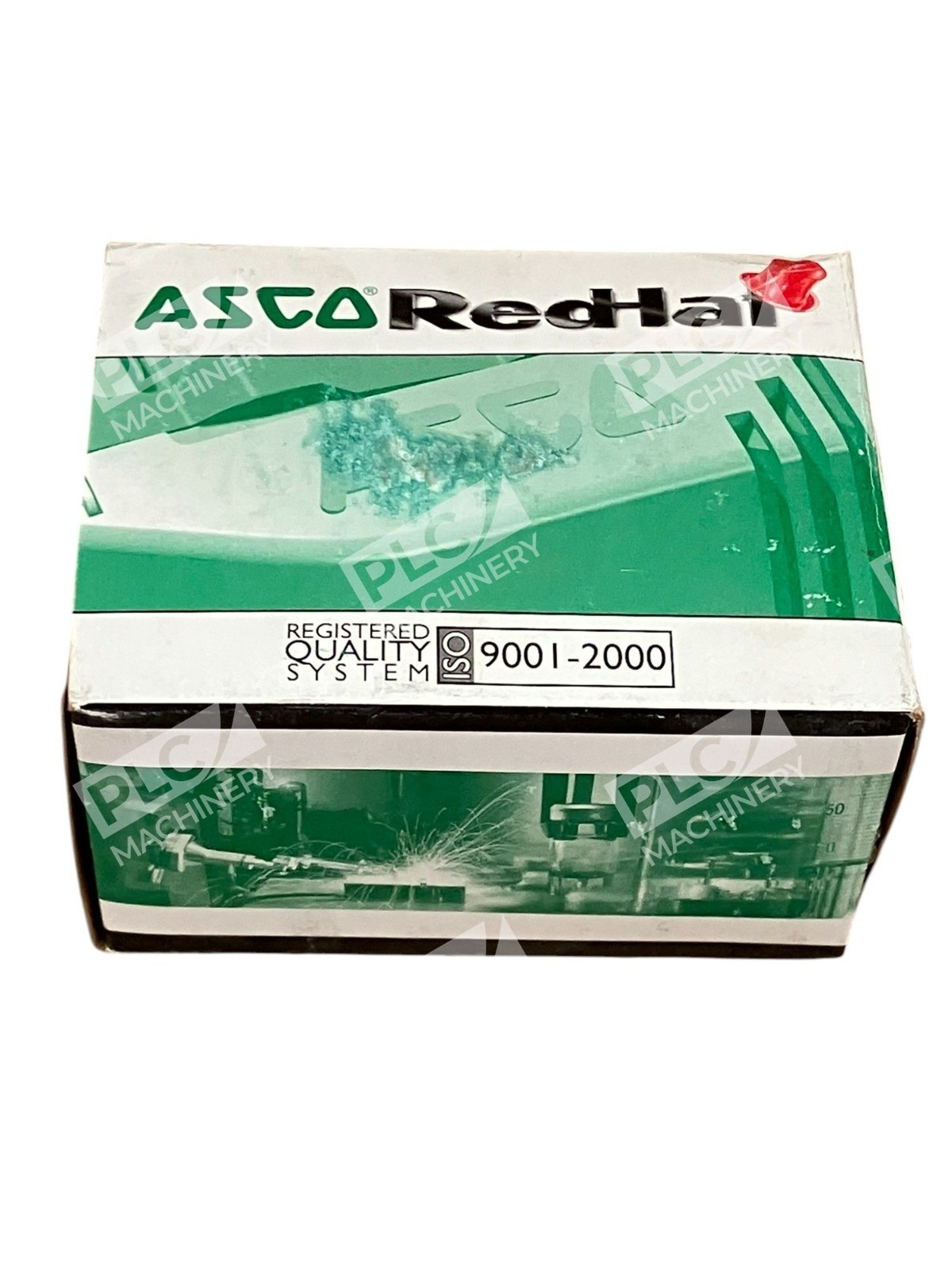

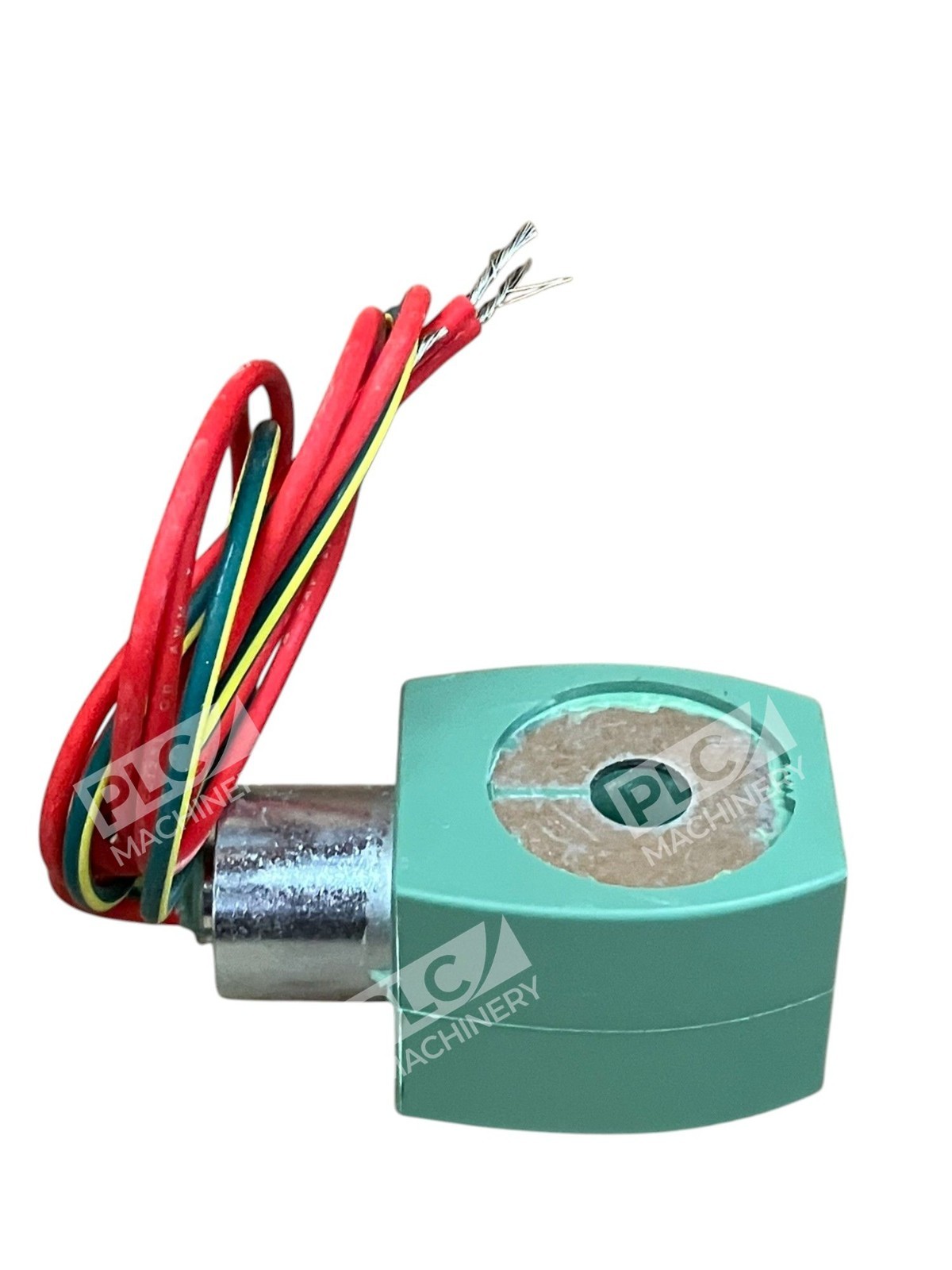

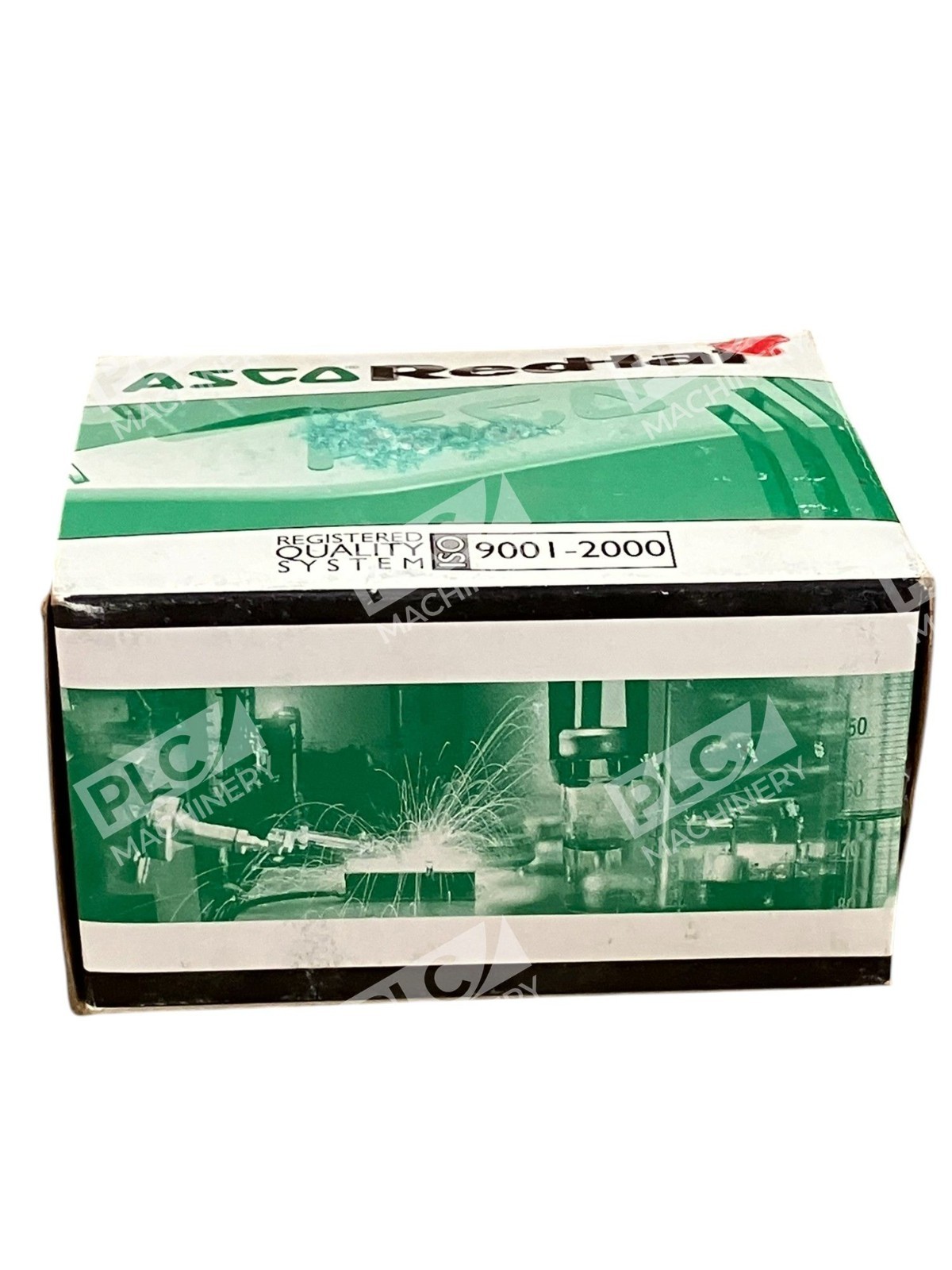

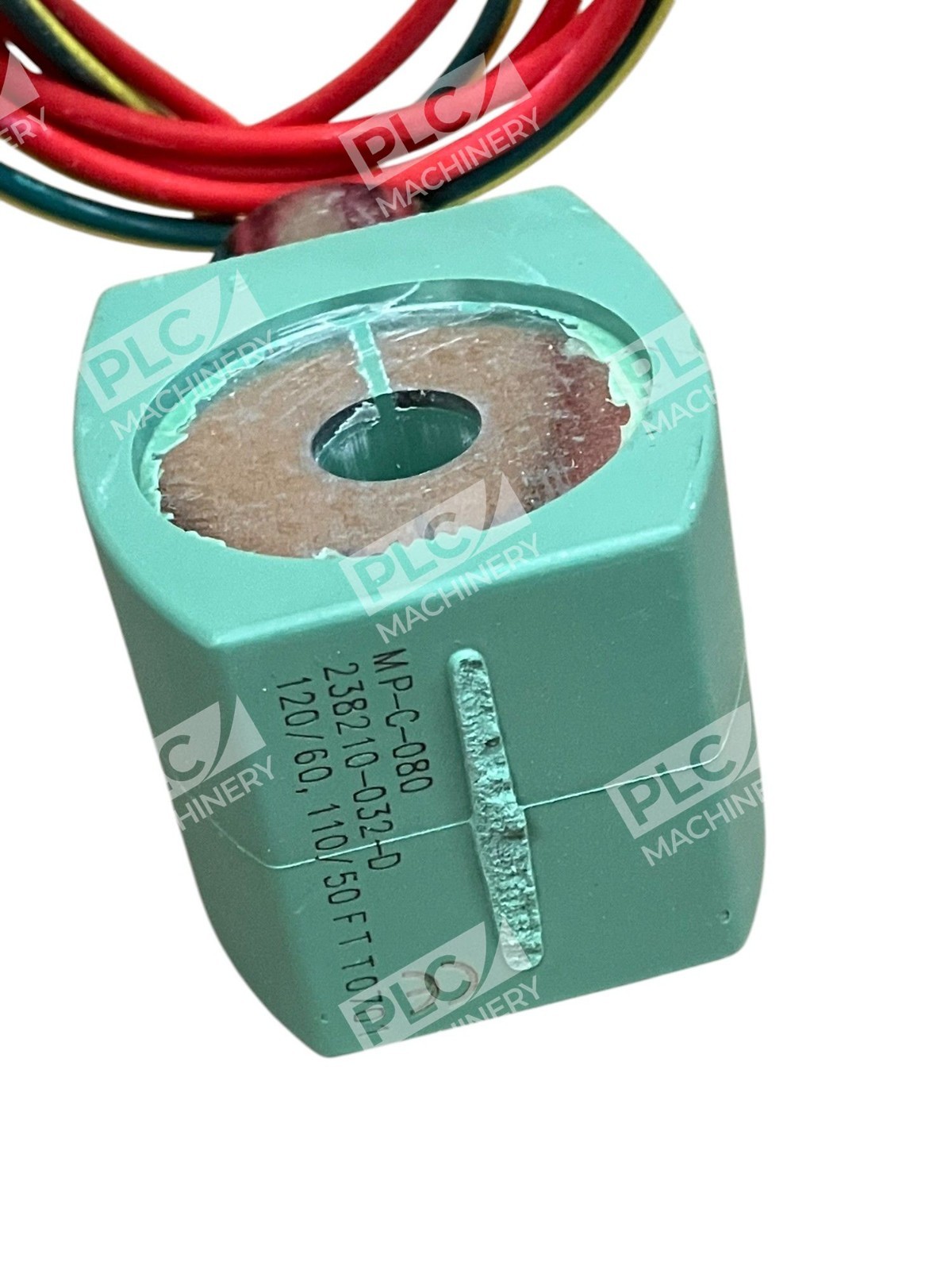

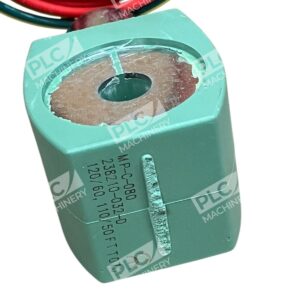

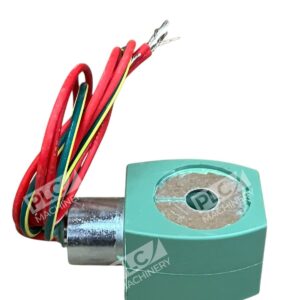

The ASCO 238210-032-D solenoid valve coil is a direct-replacement component designed for ASCO RedHat II series solenoid valves. This coil provides reliable electromagnetic actuation for 2-way normally closed valve bodies in pneumatic, hydraulic, and general fluid control systems across industrial automation, HVAC, irrigation, and OEM equipment applications.
Key Features
- Dual-Voltage Operation: Rated for both 120V/60Hz and 110V/50Hz, enabling use across North American and international installations.
- Watertight Enclosure: NEMA 4 / IP 66 rated construction protects against dust, moisture, and corrosion in washdown and outdoor environments.
- Class F Insulation: Enhanced thermal and electrical durability for extended service life in high-demand applications.
- Low Power Consumption: 6.1W at 60Hz and 8.1W at 50Hz reduces electrical load and operating costs.

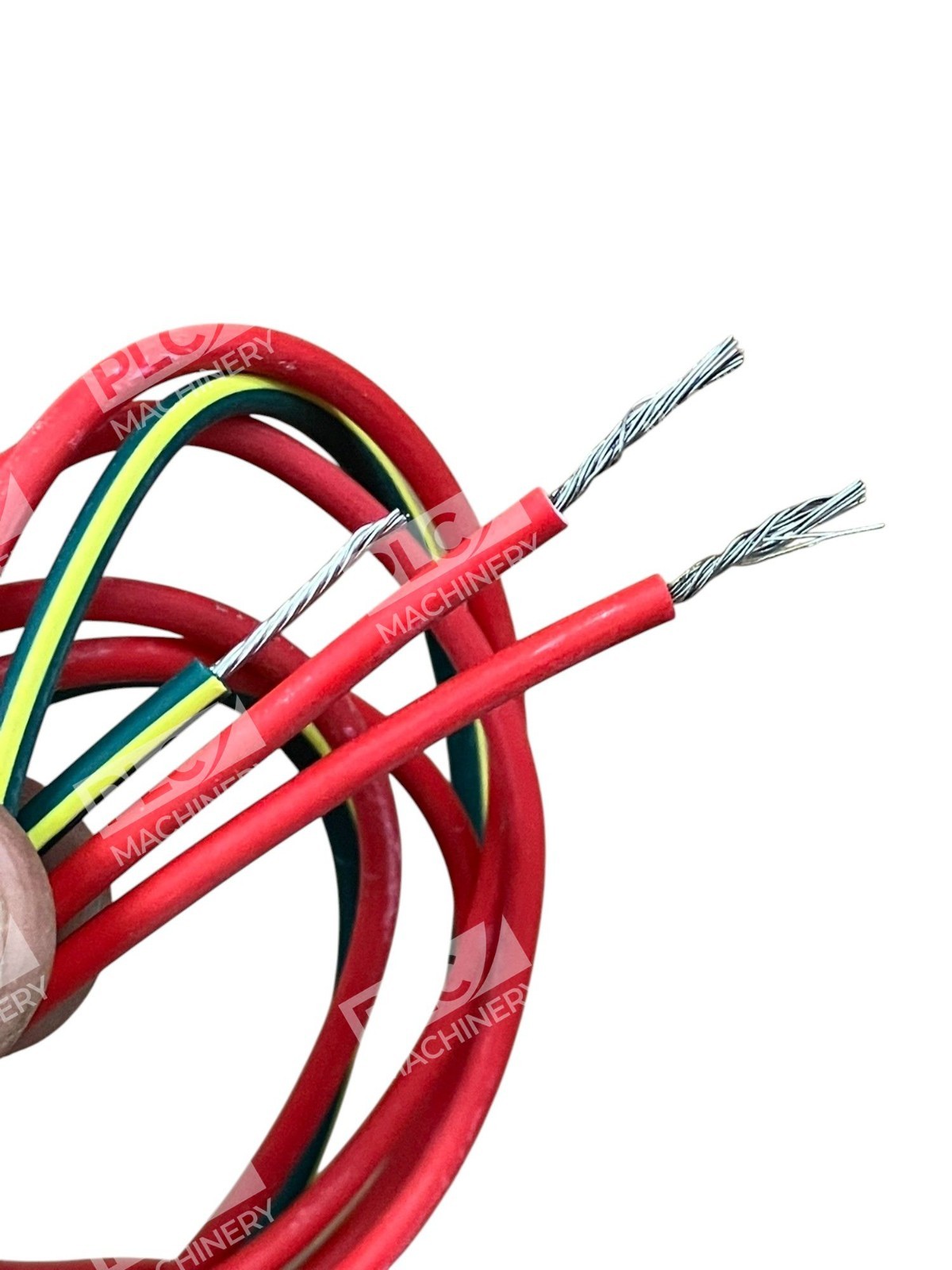

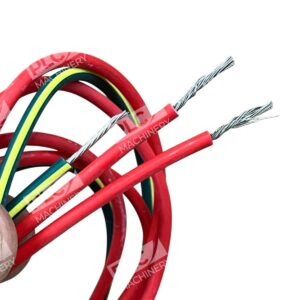

- 18-Inch Lead Wires: Factory pre-installed leads simplify installation and reduce field wiring time.
Technical Specifications
| Coil Voltage | 120V/60Hz, 110V/50Hz AC |
| Power Consumption (60Hz) | 6.1W (inrush), 8.1W (holding) |
| Power Consumption (50Hz) | As rated for 50 Hz systems |
| Inrush VA | 30 VA |
| Holding VA | 16 VA |
| Enclosure Rating | NEMA 1, 2, 3, 3S, 4, 4X; IP 66 |
| Insulation Class | F |
| Coil Enclosure Type | Watertight No Junction Box |
| Electrical Connection | 18″ Lead Wires |
| Valve Compatibility | ASCO RedHat II Series (8210 and 8316 models) |
| Operating Temperature Range | 32°F to 125°F (0°C to 52°C) |
| Frequency | 50/60 Hz |

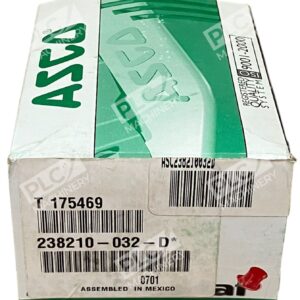

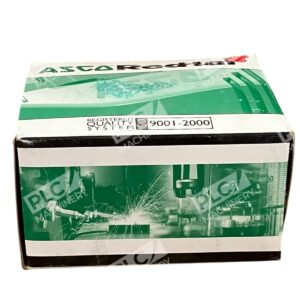

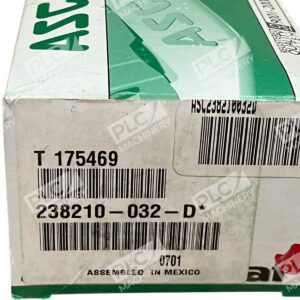

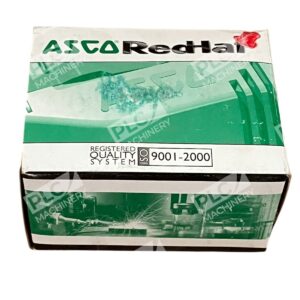

| Condition | New in Box |
Typical Applications
- Industrial pneumatic and hydraulic control systems
- Fluid flow regulation in compressors, pumps, and air dryers
- HVAC heating and cooling valve automation
- Irrigation and water supply control systems
- OEM equipment integrated solenoid valve assemblies
- Washing equipment and high-pressure cleaning systems
- Process automation in manufacturing and food processing
Compatibility & Replacements
Compatible With
- ASCO RedHat II solenoid valve series
- ASCO 8210 General Service solenoid valves (8210G001 through 8210G101)
- ASCO 8316 series valves with 120/60 and 110/50 ratings
- 2-way normally closed valve bodies
- Industrial fluid control systems rated for dual voltage operation
Replaces / Drop-In Replacement For
- Original ASCO 238210-032-D coil assemblies
- Worn or failed coils in ASCO RedHat II valve bodies rated RHM6
- Legacy ASCO solenoid valve installations requiring 6.1W/8.1W coils
Works With
- 120V/60Hz North American power systems
- 110V/50Hz international power systems
- Standard industrial electrical distribution panels
- ASCO control valve manifold assemblies
- PLC and industrial automation control circuits
- Manual isolation valves and pressure regulators integrated with solenoid systems
