Overview

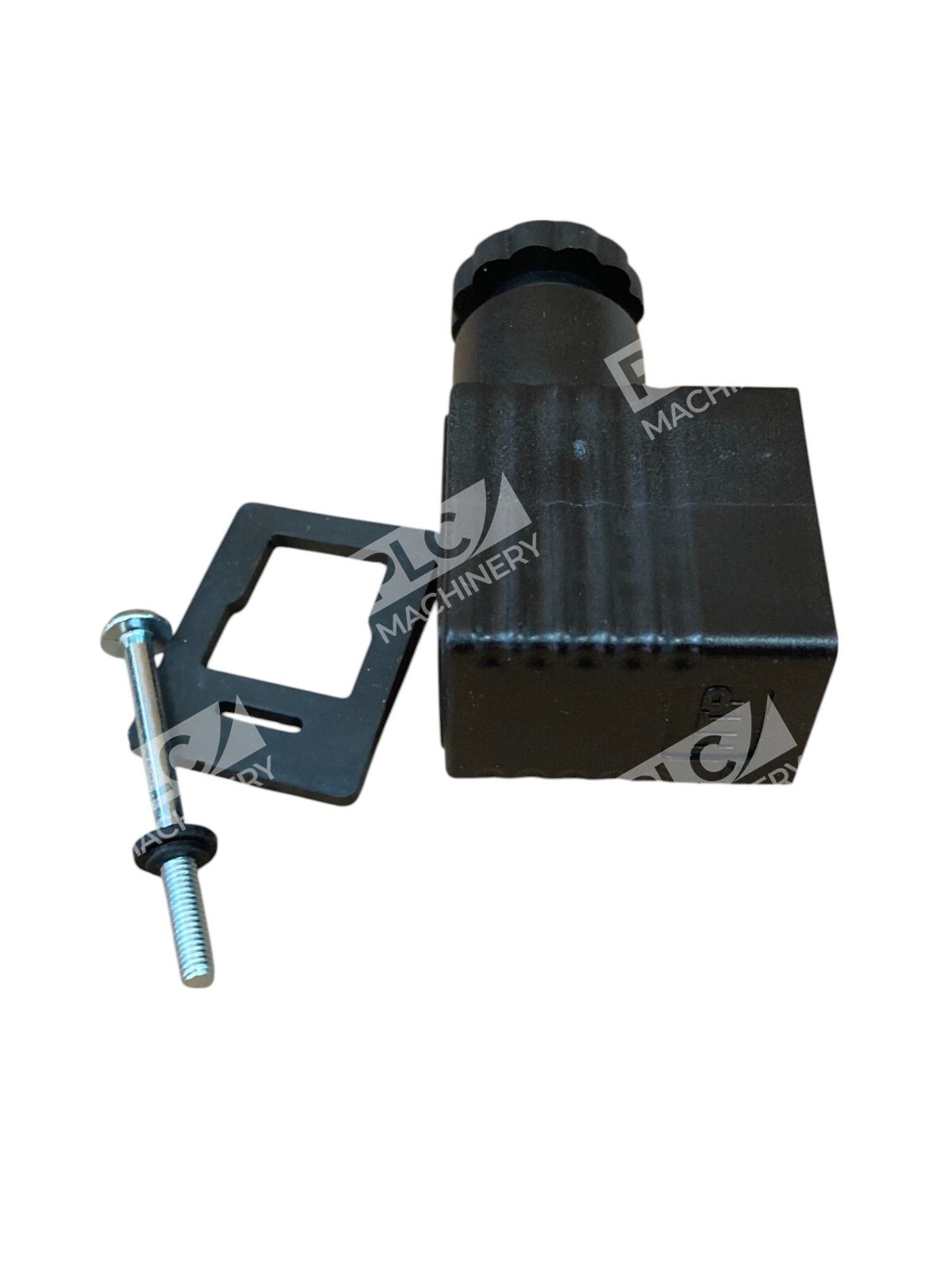

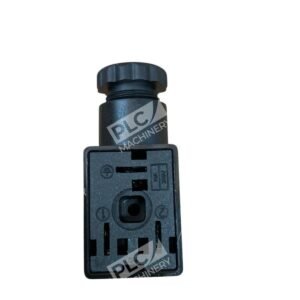

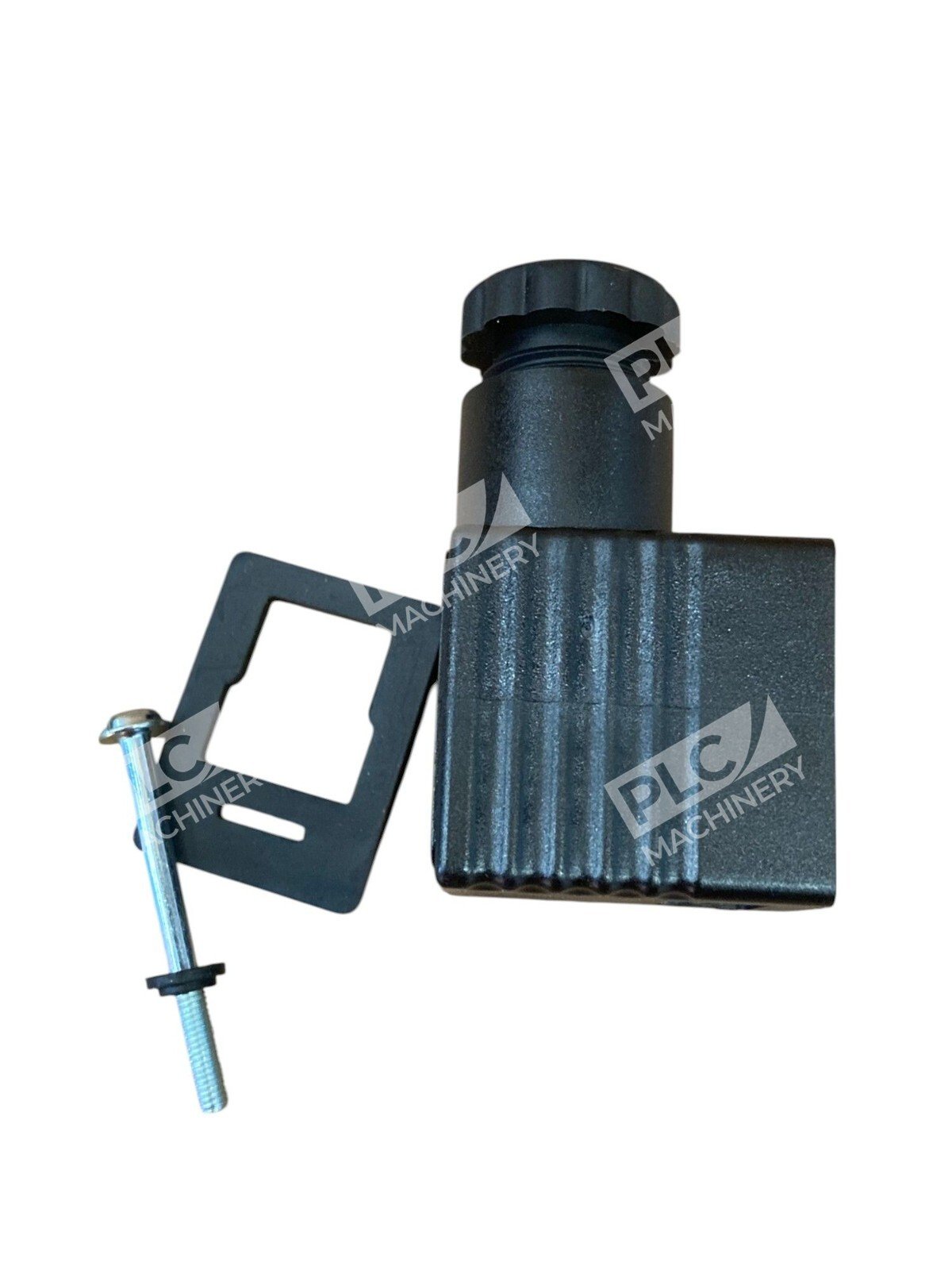

The ASCO 226061-001 DIN plug connector is a Size 11, Form B electrical connector rated for 120V AC and 24V DC applications. Designed as a replacement component for ASCO solenoid valves, this connector kit comes with 10 units per box, including mounting hardware (attaching screw and gasket) for each connector. The ASCO 226061-001 is an OEM-quality part engineered for fluid control systems and industrial valve assemblies.
Key Features
- Size 11 mm DIN connector, Form B electrical interface
- Dual voltage rated: 120V AC / 24V DC

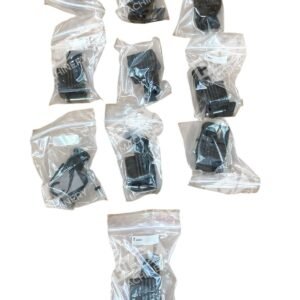

- Box of 10 connectors with mounting hardware included
- OEM replacement part for ASCO solenoid valve systems

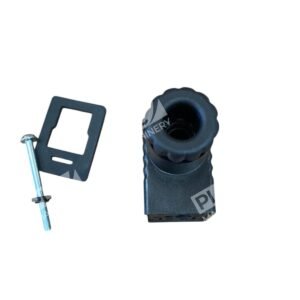

- Includes attaching screw and gasket per connector
- New in box condition, factory sealed
Technical Specifications

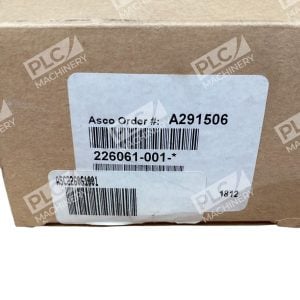

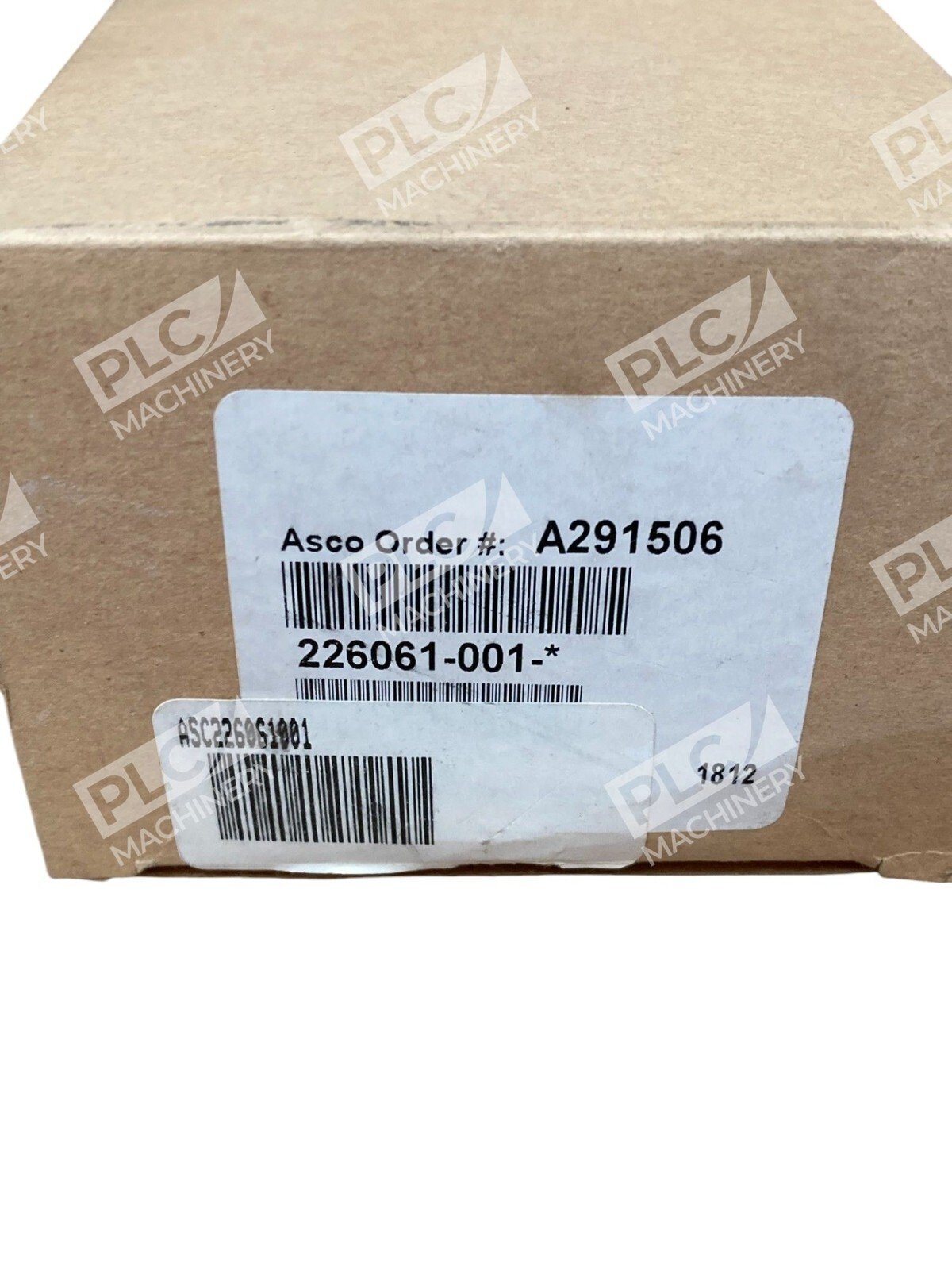

- Part Number: 226061-001-*
- Manufacturer: ASCO (Emerson)

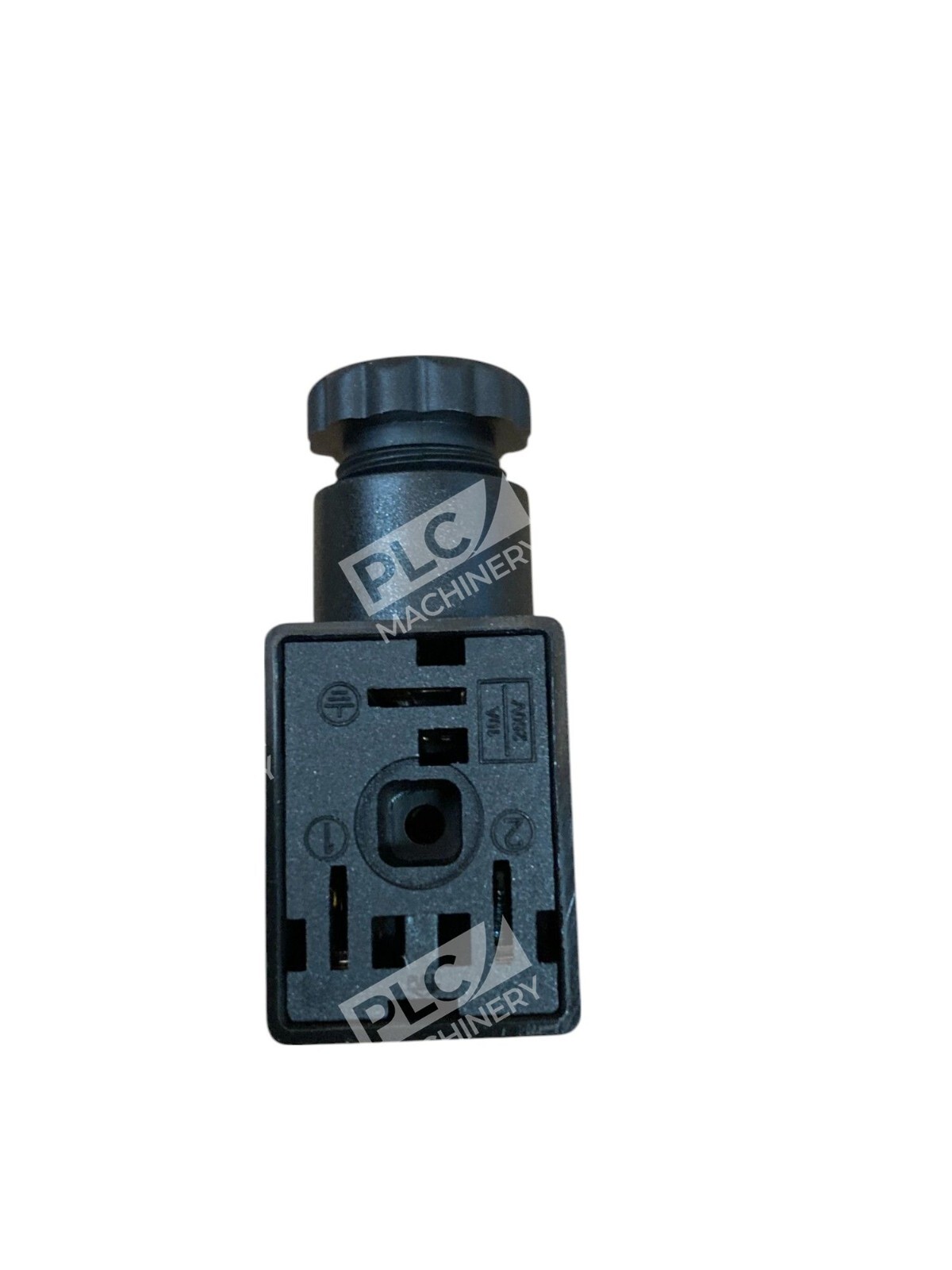

- Connector Type: DIN Plug, Size 11 mm
- Electrical Form: Form B
- Voltage Rating: 120V AC / 24V DC
- Connector Configuration: Spade plug / DIN connector kit

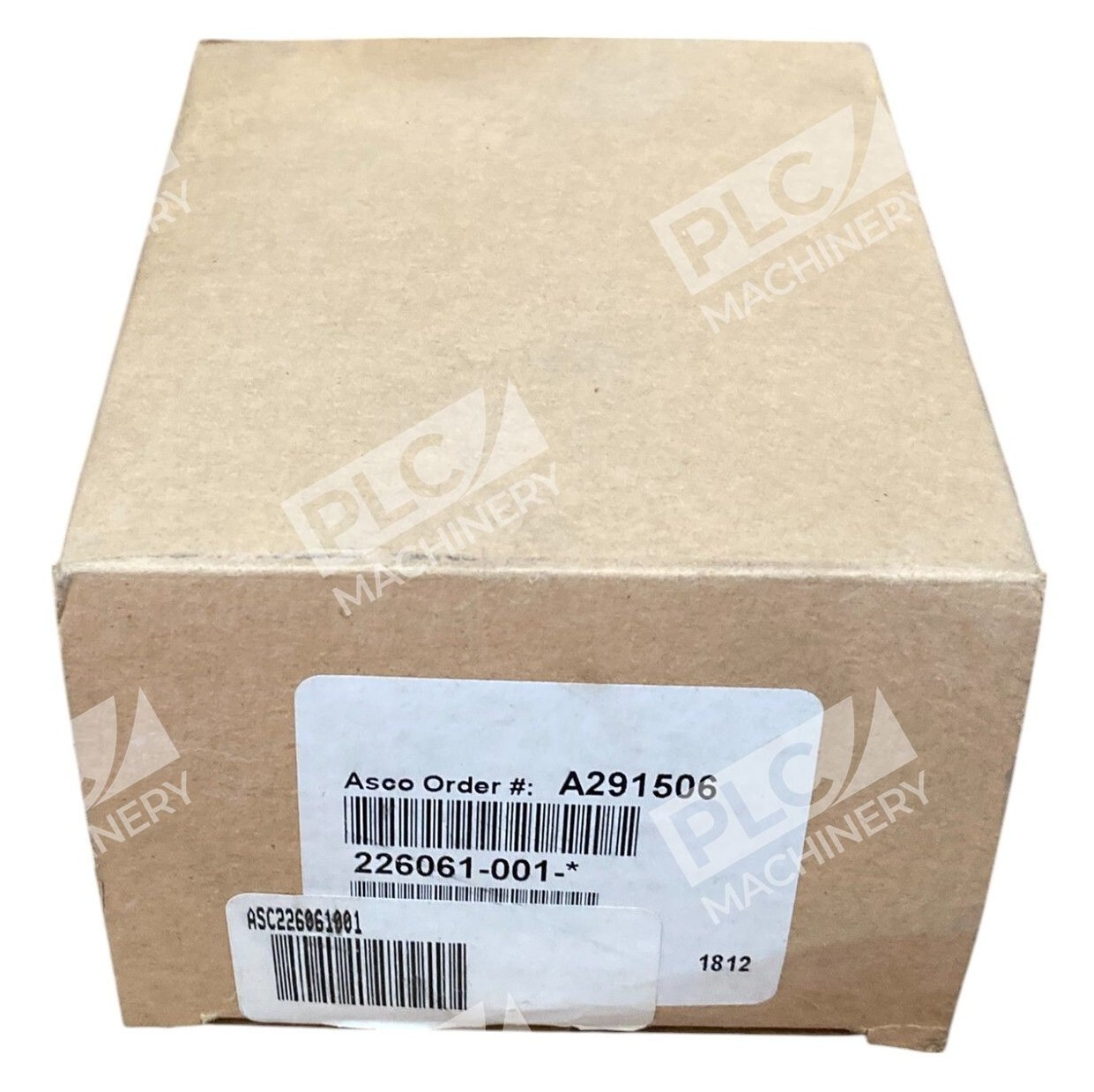

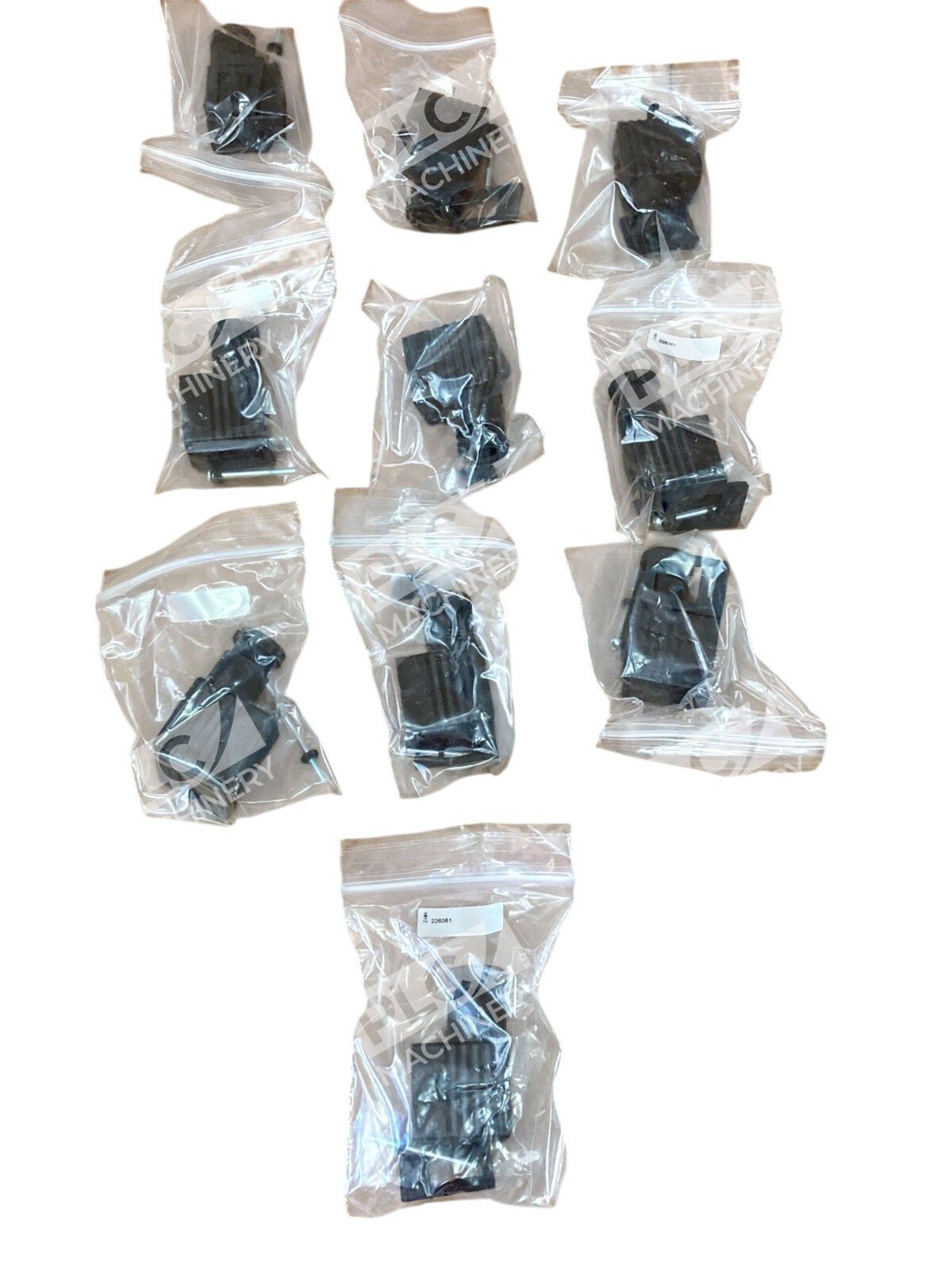

- Quantity per Box: 10 units

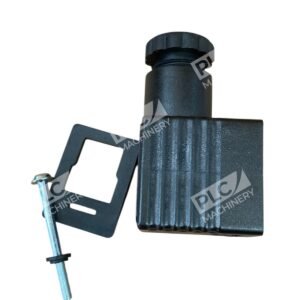

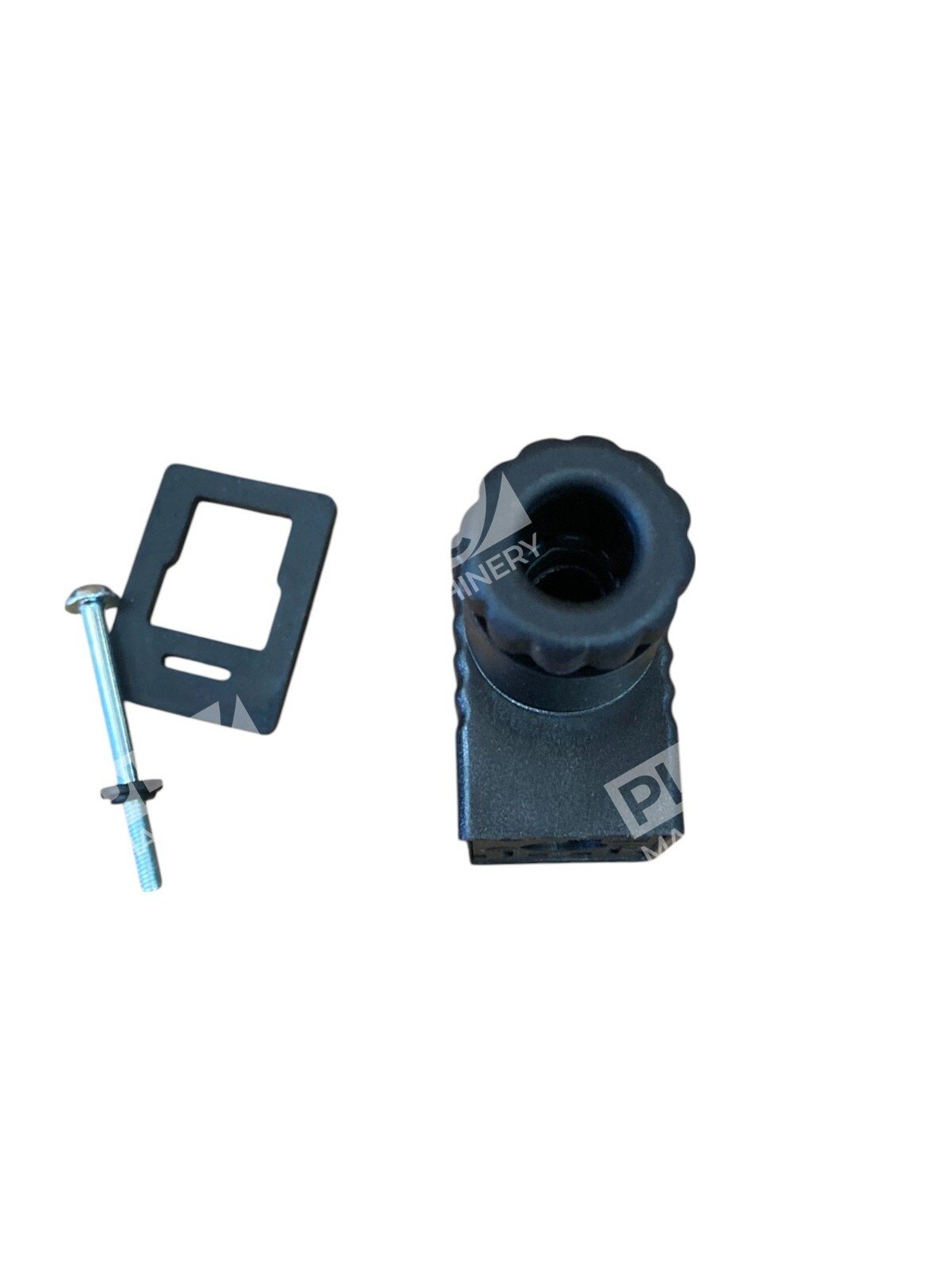

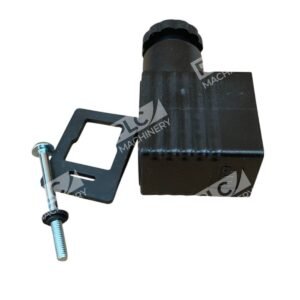

- Hardware Included: Attaching screw and gasket per connector

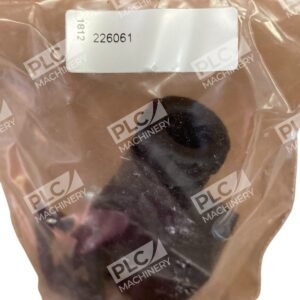

- Condition: New in Box
- Industry Standard: IEC/DIN electrical connector standard
Typical Applications
- Replacement connectors for ASCO S-Series solenoid valves
- Compatible with ASCO 8256 Series solenoid valve assemblies
- Fluid control and pneumatic system valve coils
- Industrial automation valve replacement projects
- Water treatment and fluid handling equipment
- OEM equipment manufacturer solenoid valve upgrades
Compatibility & Replacements
Compatible With
- ASCO S-Series solenoid valves
- ASCO 8256 Series solenoid valve systems
- Flow control devices using DIN Size 11 connectors
- 120V AC and 24V DC control circuits
- Standard IEC/DIN electrical connector systems
Replaces / Drop-In Replacement For
- OEM ASCO solenoid valve connectors (S-Series)
- OEM ASCO solenoid valve connectors (8256 Series)
- Worn, damaged, or failed DIN Size 11 Form B connectors in ASCO valve assemblies
Works With
- DIN connector sockets rated for Size 11 Form B plugs
- ASCO valve solenoid coil assemblies
- Industrial control panels using 120V AC or 24V DC solenoid power
- Fluid and pneumatic automation systems
