Overview

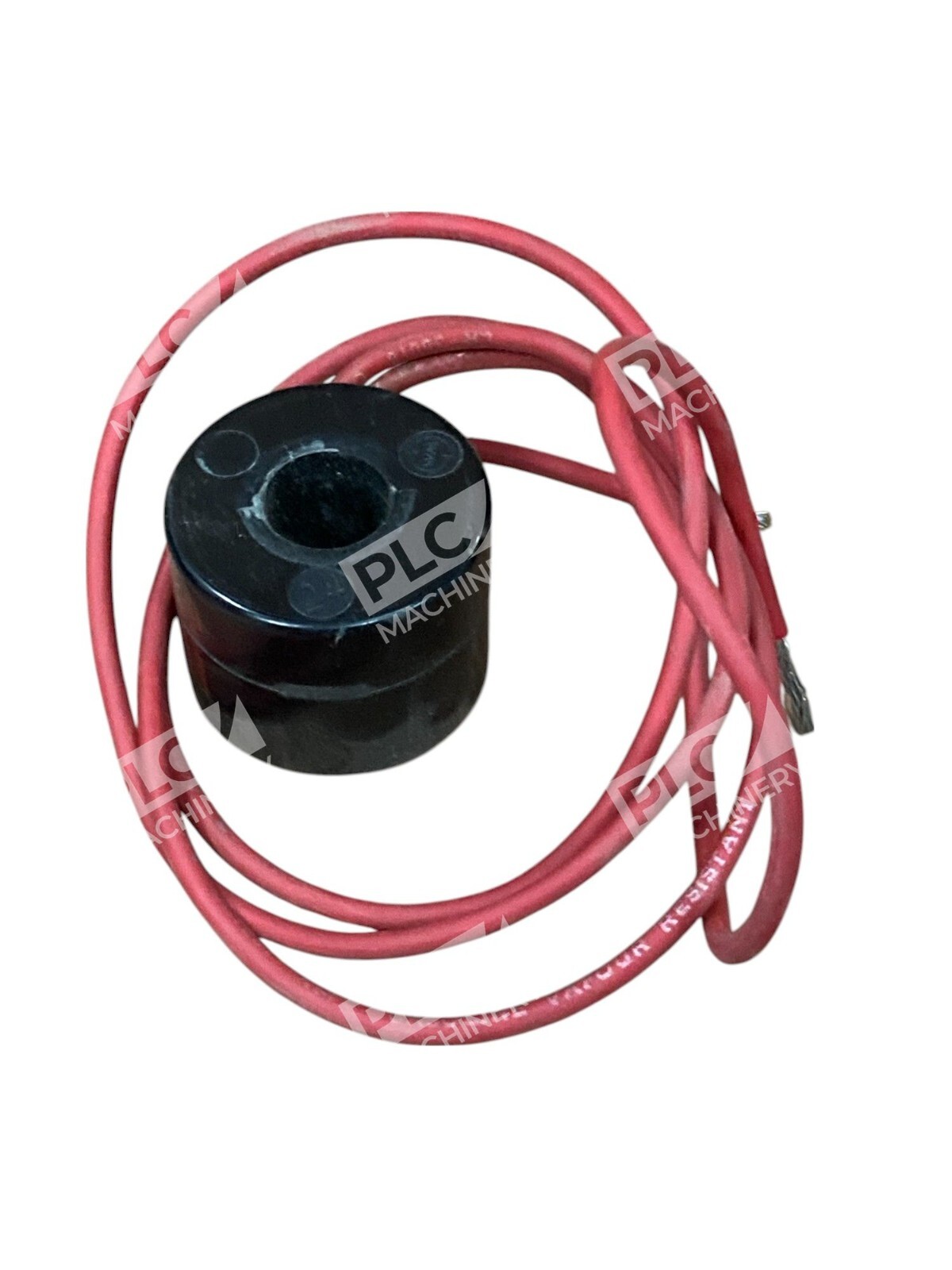

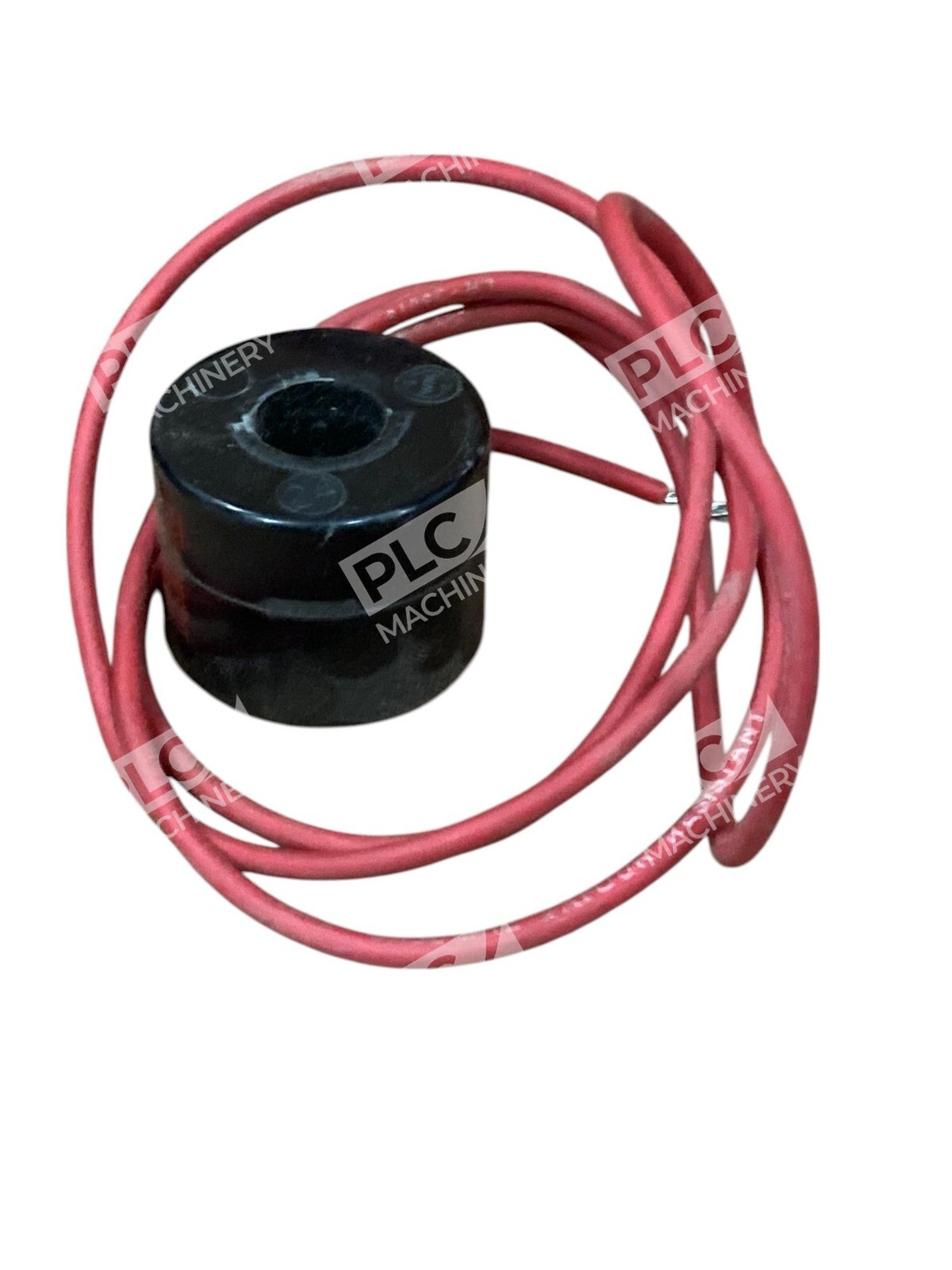

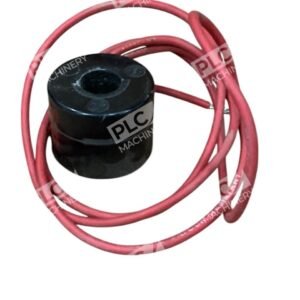

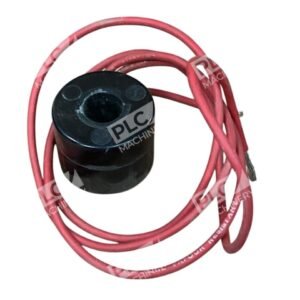

The ASCO 99-216-5 is a solenoid valve coil designed for ASCO Red Hat series valves. This replacement coil operates at 120VAC/60Hz and is engineered for reliable control of fluid flow in industrial automation, pneumatic control, and process control systems. As a critical component in solenoid-operated directional control and spool valves, this coil meets established industrial thermal endurance specifications and provides consistent electromagnetic actuation.
Key Features
- 120VAC/60Hz rated operation for North American industrial systems
- Designed for ASCO Red Hat series solenoid valves
- Class F insulation for robust thermal performance in continuous-duty applications
- Direct replacement coil for maintenance and spare parts inventory
- Meets IEC 216 thermal endurance standards
- Encapsulated construction for reliability and corrosion resistance
Technical Specifications
The ASCO 99-216-5 meets the following specifications:

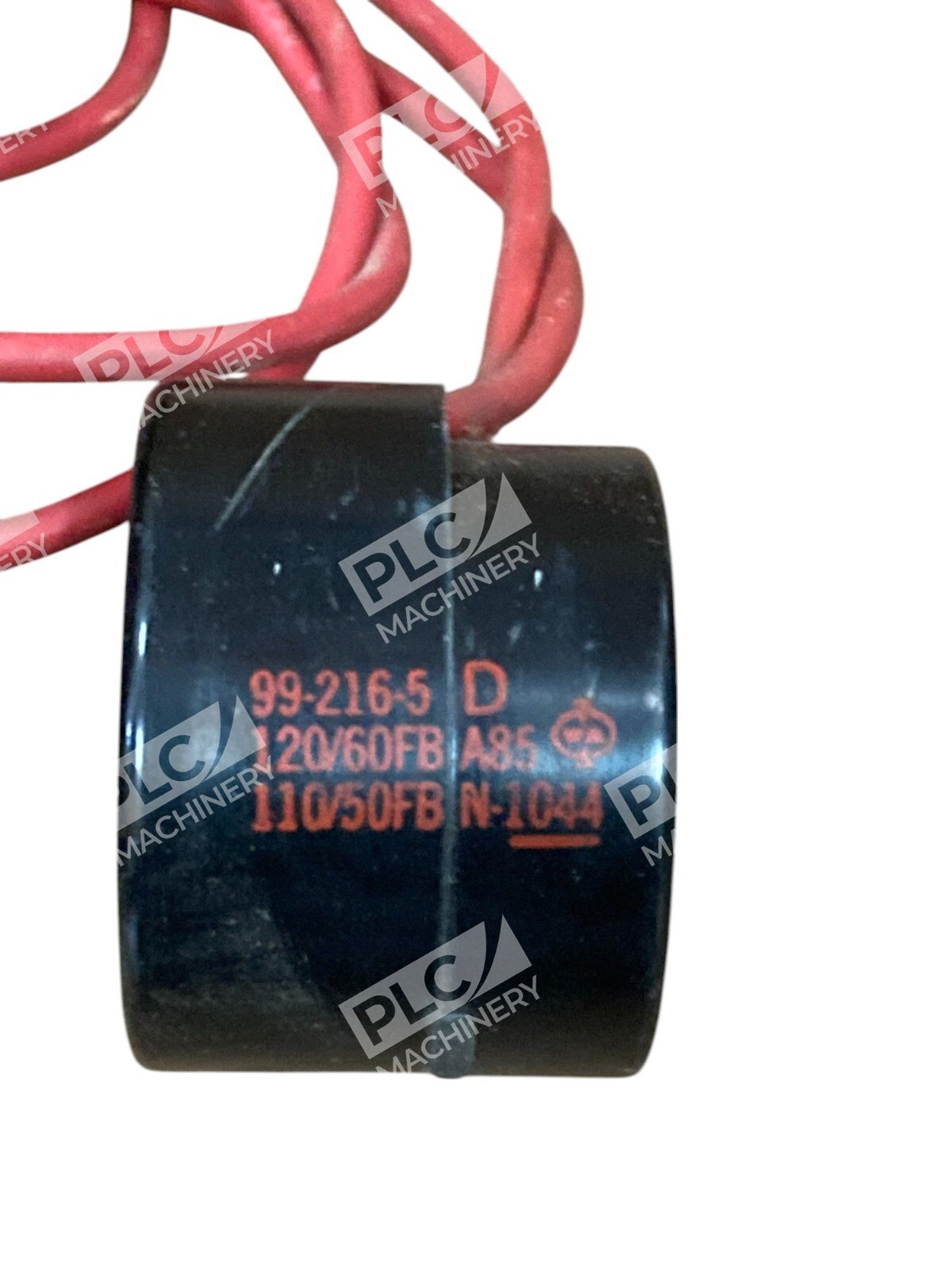

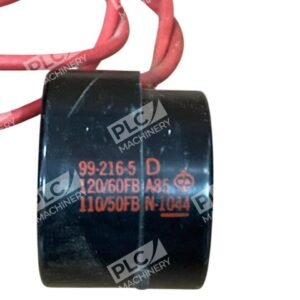

- Voltage Rating: 120VAC, 60Hz
- Insulation Class: F (155°C)
- Thermal Compliance: IEC 216
- Application: ASCO Red Hat series solenoid valves
- Construction: Fully encapsulated coil assembly
- Certification: UL listed
Typical Applications
- Pneumatic directional control valve actuation
- Hydraulic and fluid flow control systems
- Industrial pump and compressor control
- Automated machinery and production line equipment
- HVAC and air handling unit control
- Water treatment and industrial fluid distribution
Compatibility & Replacements
Compatible With
- ASCO Red Hat series solenoid valves
- ASCO pneumatic and hydraulic directional control valves
- Standard 120VAC/60Hz electrical systems
- Industrial automation control circuits
Replaces / Drop-In Replacement For
- ASCO 99-216 series coils for Red Hat valve platforms
- Functionally equivalent to related ASCO coil assemblies in same voltage class
- Verify exact valve model compatibility before ordering
Works With
- ASCO solenoid directional control valve subplates and manifolds
- Industrial relay and contactor circuits
- PLC and automated control system outputs
- Standard 120VAC industrial power supplies
