Overview

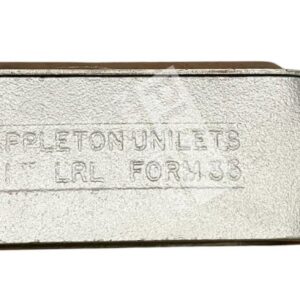

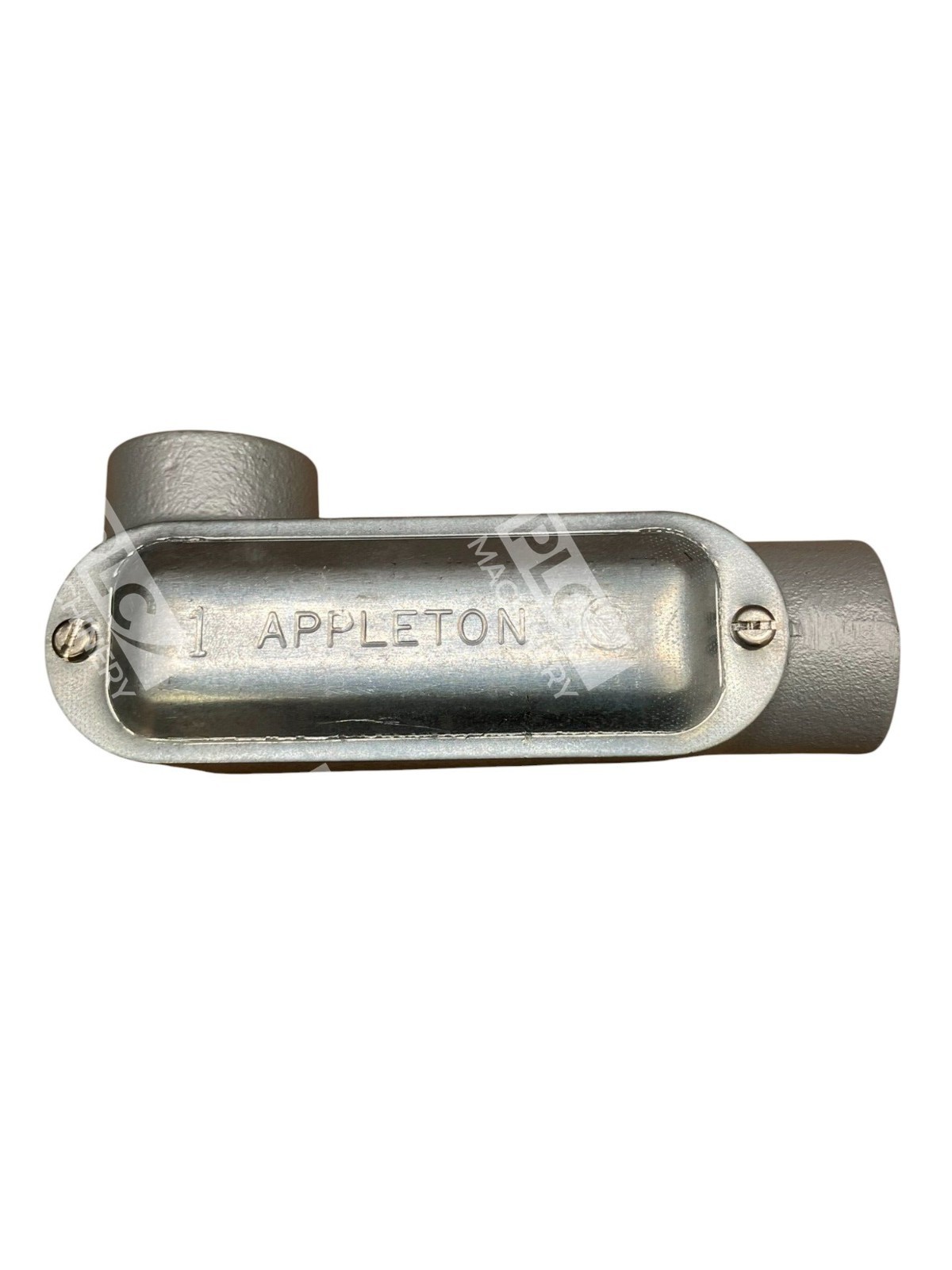

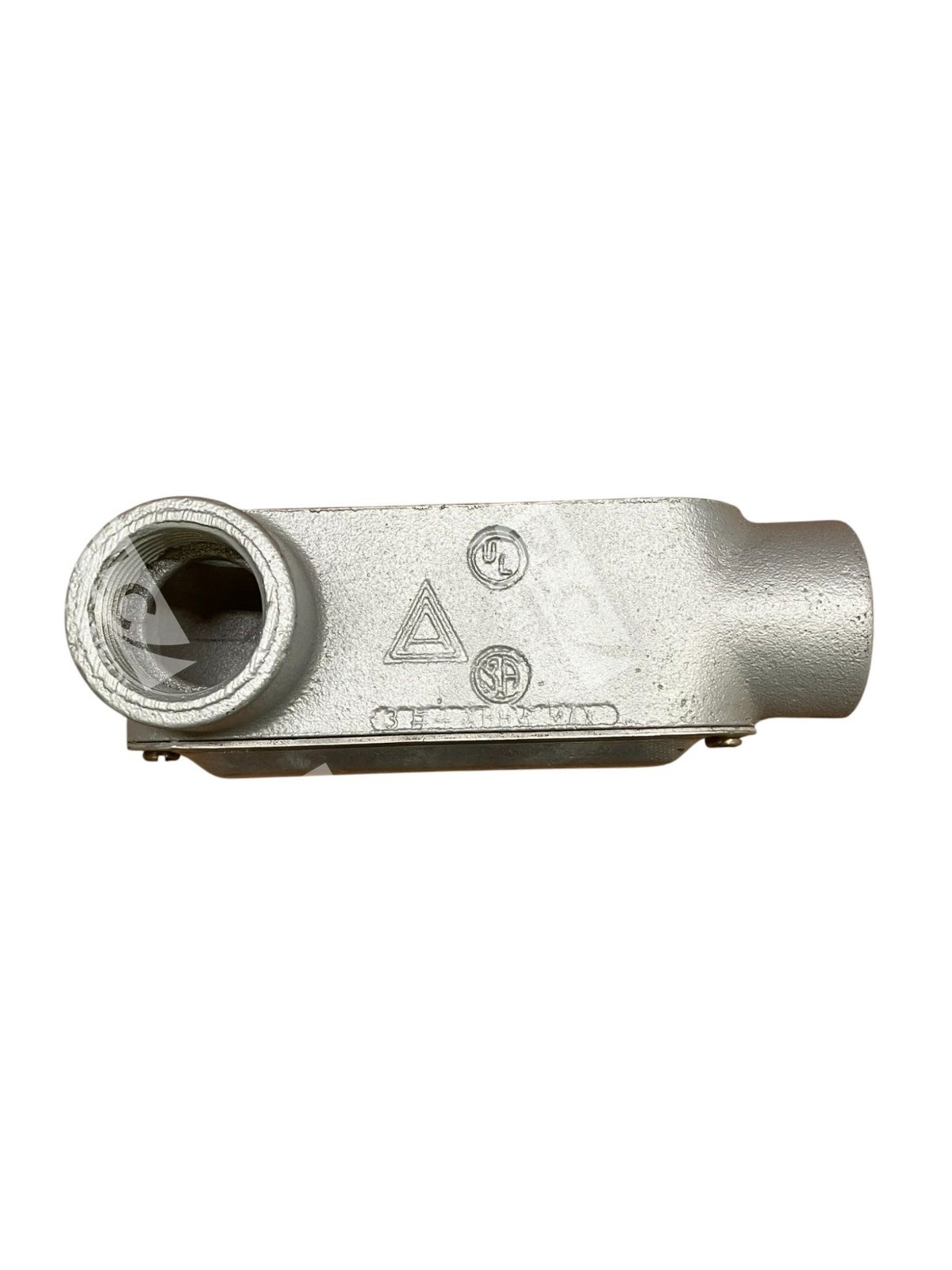

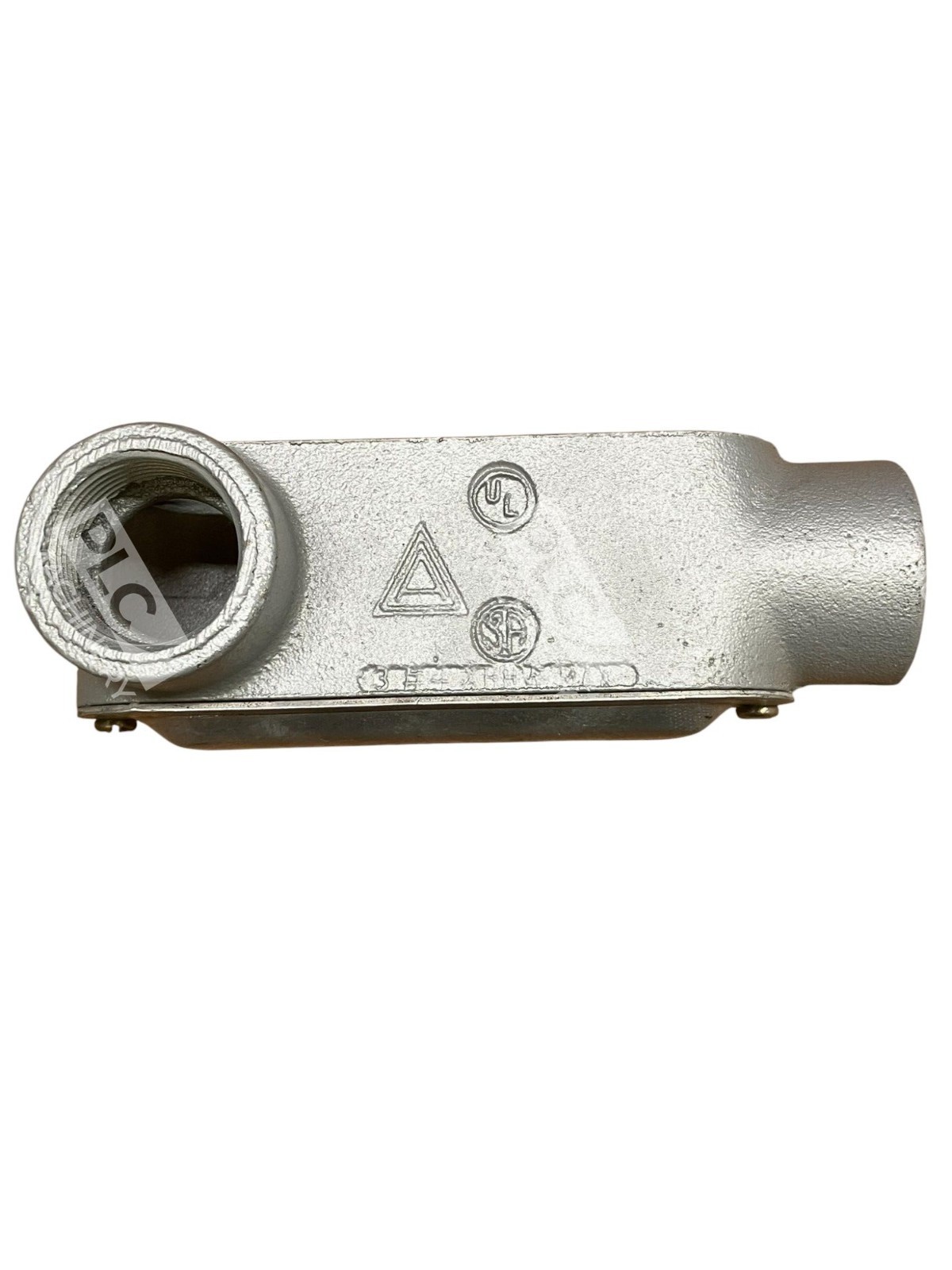

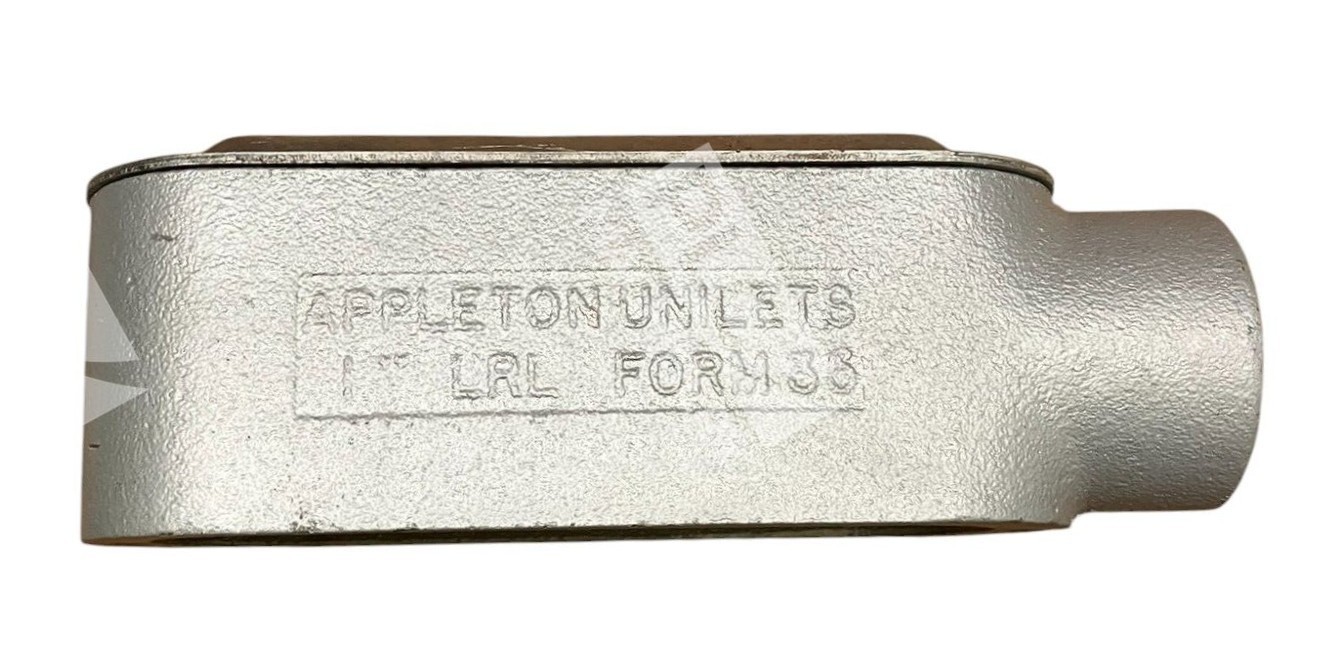

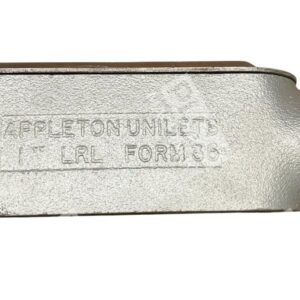

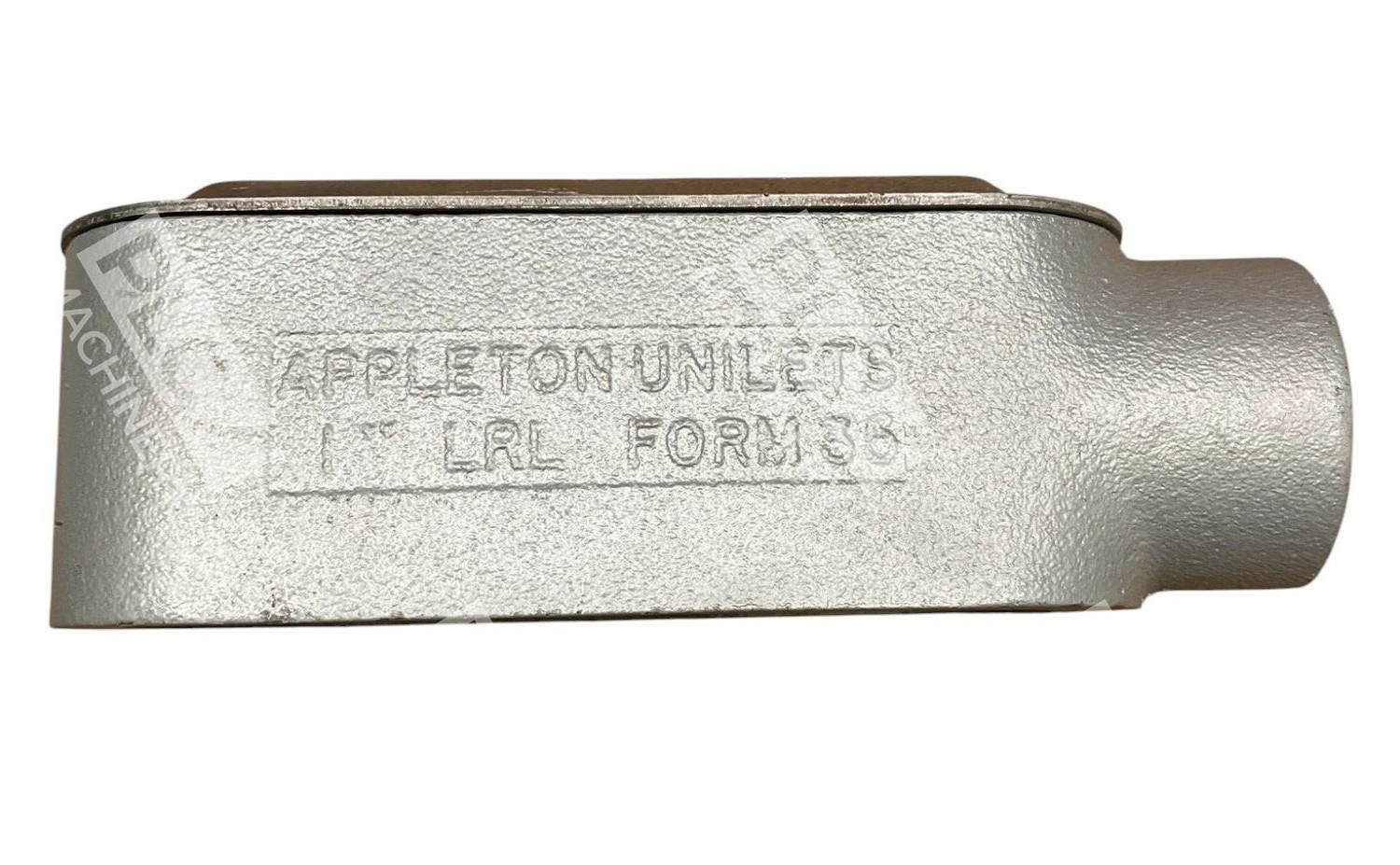

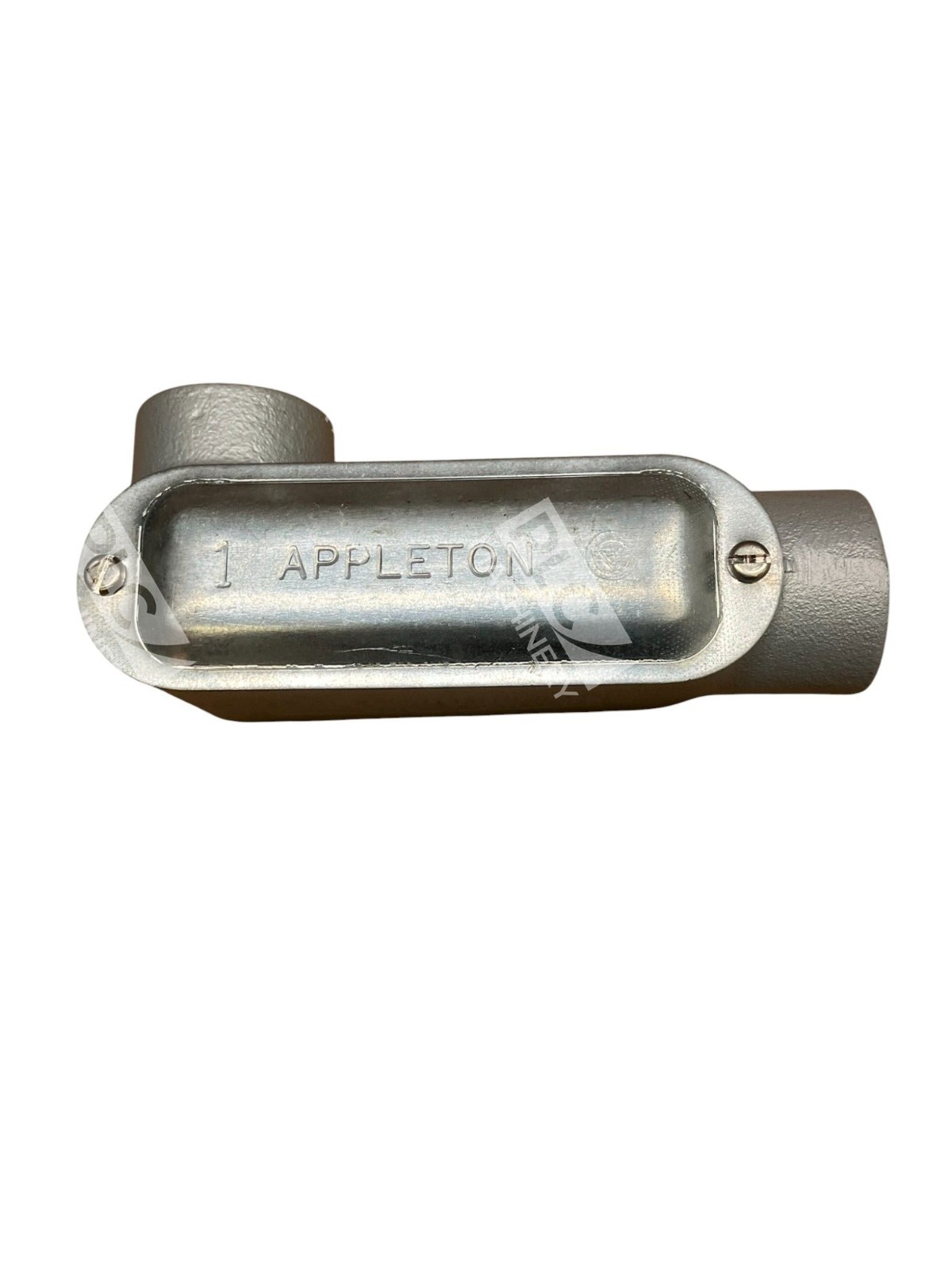

The Appleton 1″ LRL FORM36 is a malleable iron Unilet conduit outlet body engineered for use with rigid metal conduit and IMC (Intermediate Metal Conduit). LRL Unilets have double opening and are furnished with one steel cover, assembled. This body provides reliable cable pulling, splicing, and access points in commercial and industrial electrical systems.
Key Features
- Form 35 malleable iron Unilets offer high tensile strength and ductility, with high corrosion-resistance, high impact and shock resistance — Form 36 continues this quality tradition
- Roomy interiors with more wiring space and smooth, rounded integral bushings in hubs protect conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Double-opening design allows two conduit connections with one integral steel cover included
- Compatible with rigid steel, rigid aluminum, and IMC conduit installations
Technical Specifications
The 1″ form factor is the most common residential and light commercial size. Designed for use with Rigid Steel, Rigid Aluminum, IMC, and EMT Conduit. Threads are tapered and accurately tapped for secure fitting and grounding.
Typical Applications
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
Compatibility & Replacements
Compatible With
- Rigid Steel Conduit (Schedule 40, 80)
- Rigid Aluminum Conduit
- IMC (Intermediate Metal Conduit)
- EMT (Electrical Metallic Tubing)
- Standard 1″ threaded fittings and covers
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Standard Form 36 1″ LRL bodies from other manufacturers may have dimensional or threading differences.
Works With
- NEC-compliant electrical systems
- Standard conduit connectors and couplings
- Appleton covers and gaskets (interchangeable)
- General-purpose industrial and commercial wiring installations
