Overview

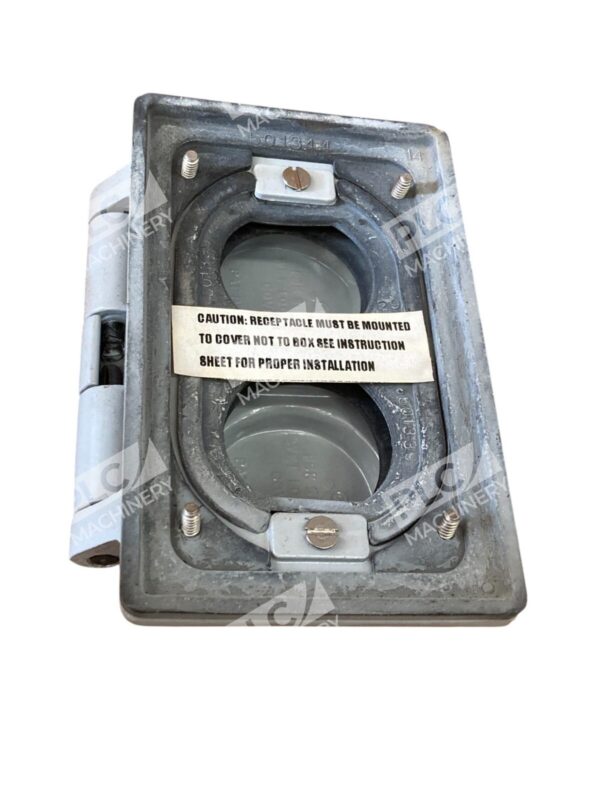

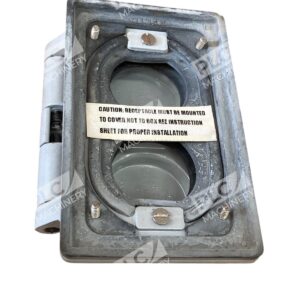

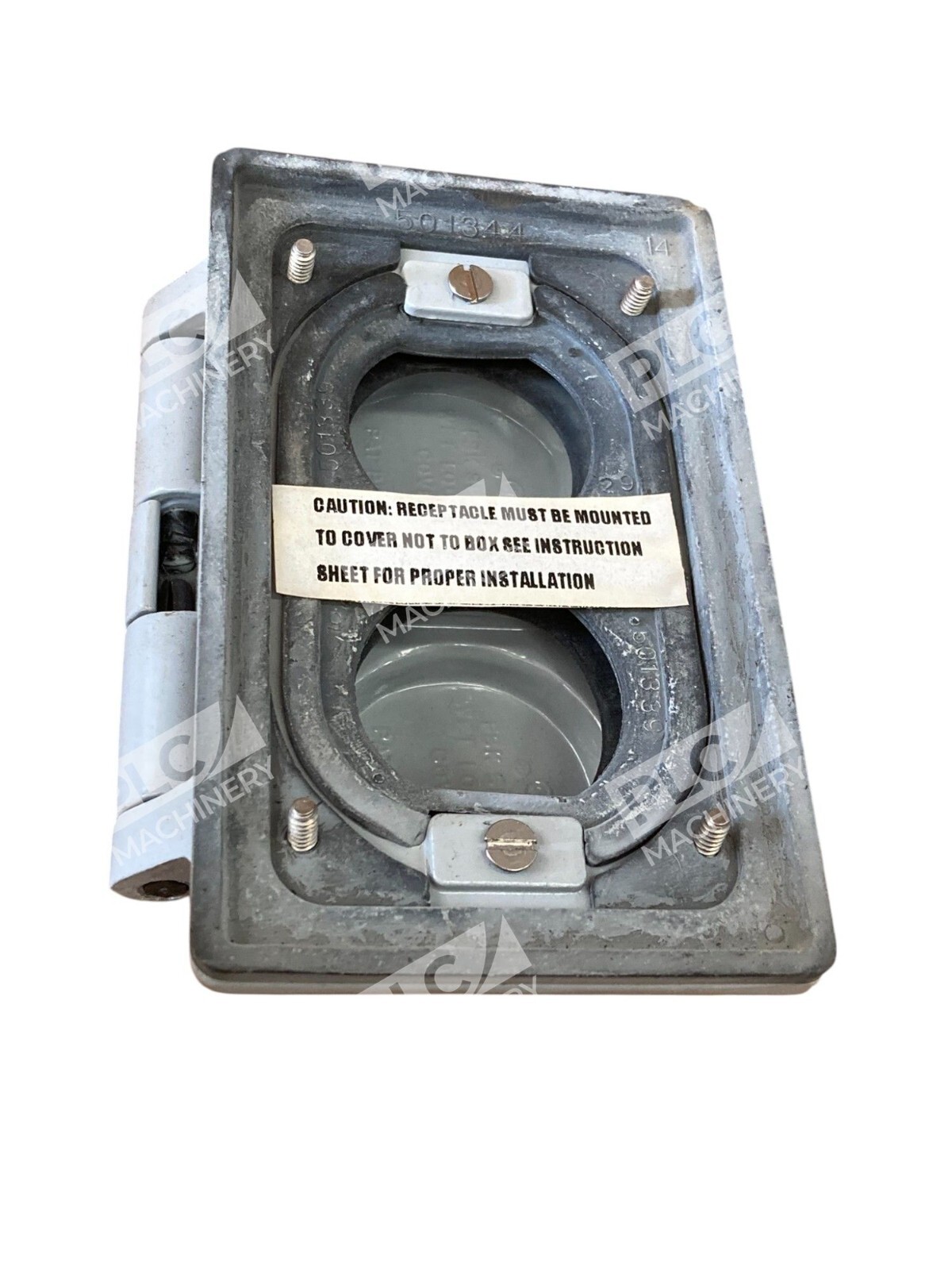

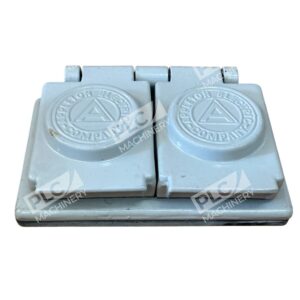

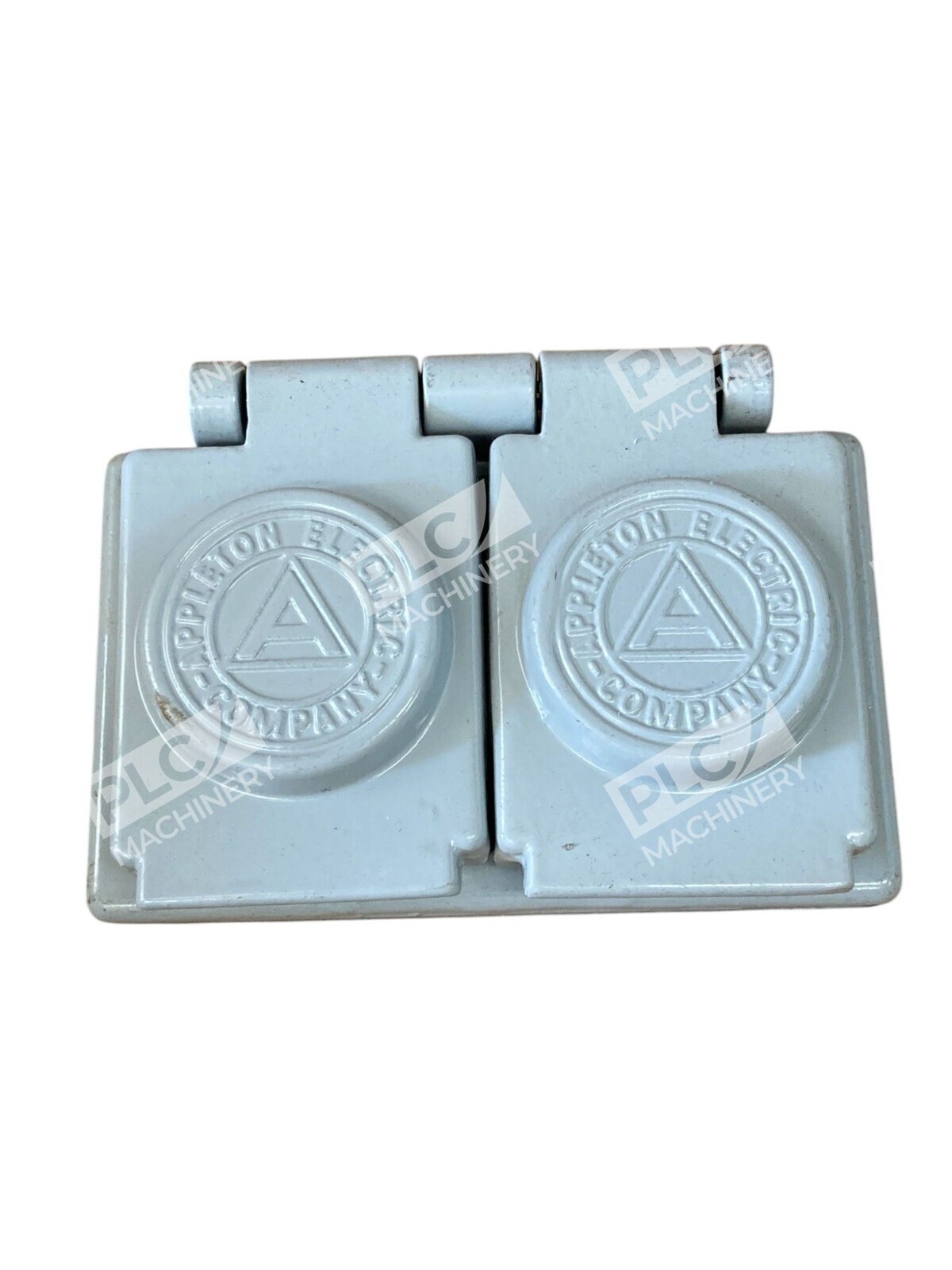

The Appleton FSK-WRD wet location receptacle cover is a die-cast copper-free aluminum device box cover designed to protect duplex receptacles in damp and wet environments. This 1-gang cover features automatic gasketed protection that maintains a weatherproof seal whether the receptacle is in use or idle, making it essential for outdoor, industrial, and high-moisture applications.
Key Features

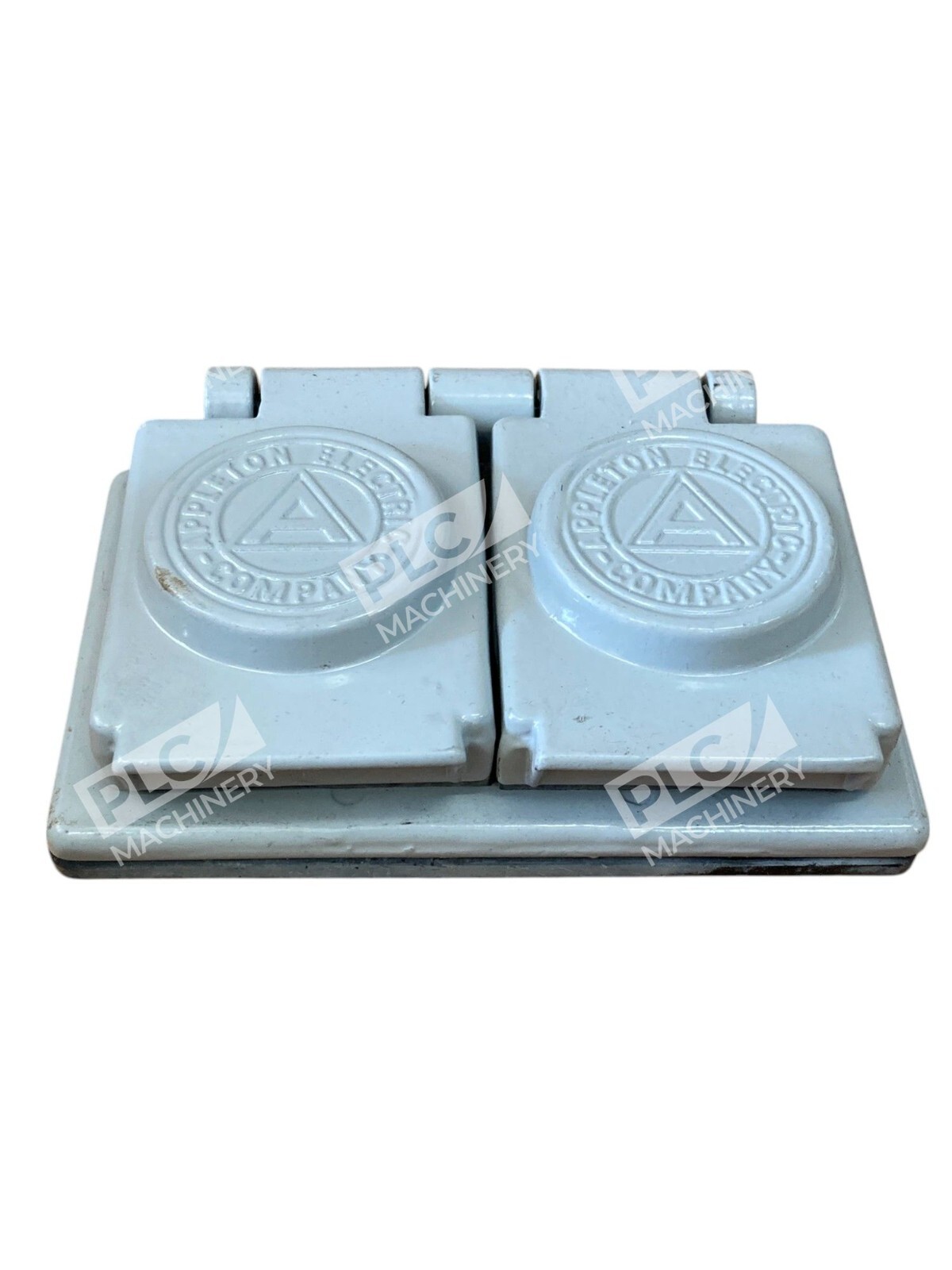

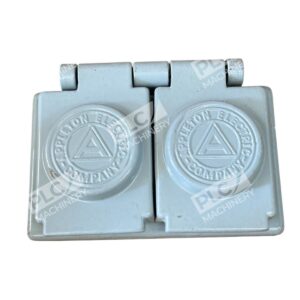

- Gasketed Spring Door Design: Automatically closes when not in use; heavy-duty gasket seals around plugs during operation
- Duplex Configuration: Accommodates two outlets or one outlet and one toggle switch
- Copper-Free Aluminum Construction: Durable, corrosion-resistant material with epoxy powder coating in gray
- Compliance: Meets NEC 406.8(B) and CEC standards for wet location protection
- Full-Range Opening: Cover opens completely for easy plug insertion and access to mounting screws
- Captivated Screws: Large-head stainless steel fasteners prevent loss and simplify installation
Technical Specifications
| Part Number | FSK-WRD |
| Manufacturer | Appleton Electric |
| Type | Duplex Receptacle Cover |
| Material | Die-Cast Copper-Free Aluminum (≤4/10 of 1% Cu) |
| Outlets | 2 (Duplex) |
| Device Opening Size | 1-3/8 IN |
| Length | 4.56 IN (4-9/16 IN) |
| Width | 3.16 IN (2-13/16 IN) |
| Depth | 1-5/32 IN |
| Mounting Type | Box Mount (Horizontal) |
| Finishes | Gray Epoxy Powder Coat |
| Plug Compatibility | Non-Locking Blade Plugs (3-wire and 2-wire) |
| UPC | 781381458344 |
Typical Applications
- Outdoor industrial facilities and manufacturing plants
- Marine and coastal environments
- Car washes and water treatment facilities
- Agricultural and horticultural sites
- Wet basement or below-grade locations
- Loading dock and outdoor equipment charging stations
Compatibility & Replacements
Compatible With
- Appleton FS and FD series device boxes
- Standard 2-gang electrical boxes
- NEMA-configured duplex receptacles
- Non-locking and locking blade plug systems
- Industrial wet location wiring systems
Replaces / Drop-In Replacement For
- Appleton FSK-WRD (same part, original equipment)
- Generic wet location duplex covers with equivalent NEMA ratings
Works With
- FS and FD series Appleton device boxes
- Standard U.S. duplex receptacles (15A/20A, 125V)
- GFCI and standard receptacles
- Toggle switches (1 outlet + 1 switch configurations)
- NEC Article 406.8(B) compliant installations
