Overview

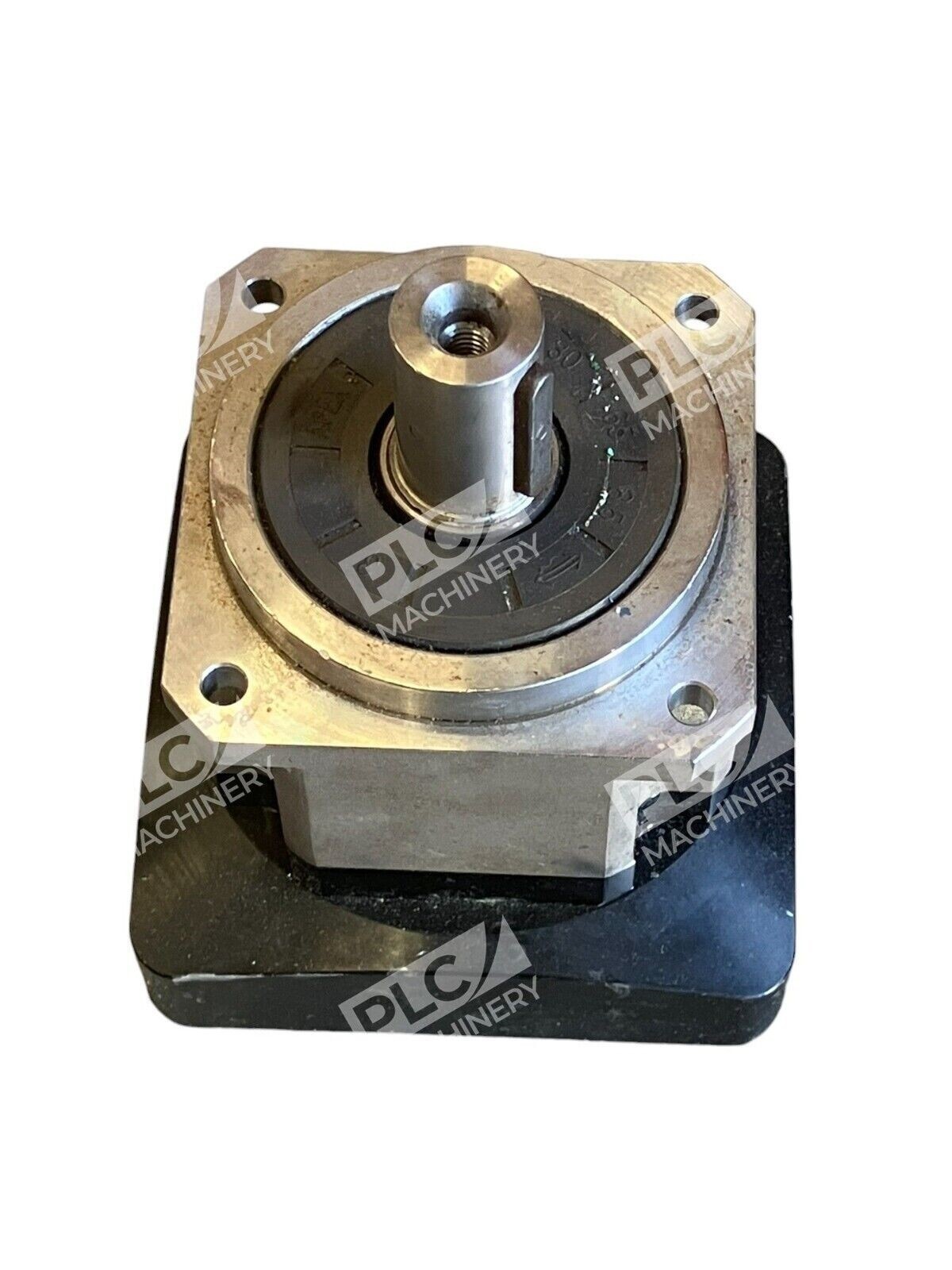

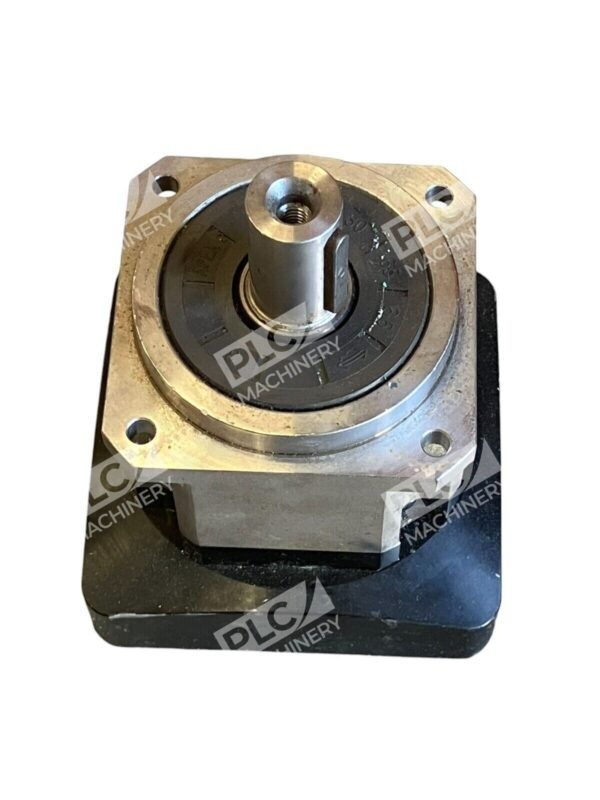

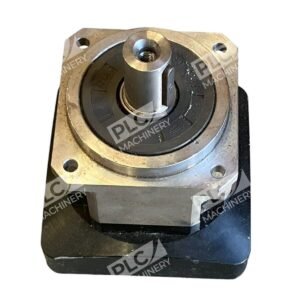

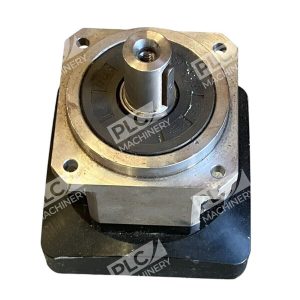

The Apex Dynamics AB090-S2-P2 is a compact, high-precision planetary gearbox designed for servo motor applications. This 3:1 reduction unit combines low backlash with robust mechanical durability, making it ideal for robotics, automation machinery, and precision motion control systems. The AB090-S2-P2 delivers efficient torque multiplication and speed reduction in a 90mm flange package.
Key Features
- 90mm flange size compatible with servo motors up to 400W
- Planetary reduction design with low backlash and high repeatability
- IP65 protection rating suitable for industrial environments
- Stainless steel construction for corrosion resistance
- Low noise operation at 60 dB
- Smooth output shaft with key for secure coupling
Technical Specifications
This AB090-S2-P2 servo reducer offers reliable performance across demanding motion control tasks. Key performance metrics include high efficiency, extended mechanical life, and consistent backlash control.
Typical Applications
- Robotic arm actuators and joint drives
- Precision indexing equipment and turntables
- Automated manufacturing machinery
- Medical device actuation systems
- Industrial automation and motion control
- Packaging and material handling equipment
Compatibility & Replacements
Compatible With
- 200W to 400W servo motors with 14mm input shafts
- NEMA flange-mount servo applications
- Rockwell Automation and Siemens servo systems
- Mitsubishi, Omron, and similar industrial servo drives
Replaces / Drop-In Replacement For
- Other AB090 3:1 configurations with same flange interface
- Equivalent Neugart, Maxon, and Harmonic Drive planetary reducers in 3:1 ratio (verify flange compatibility before ordering)
Works With
- Studio 5000 servo motion control programs
- TIA Portal and STEP7 servo axis configuration
- EtherNet/IP and PROFINET servo networks
- Industrial servo amplifiers and drives supporting position/velocity feedback
