Overview

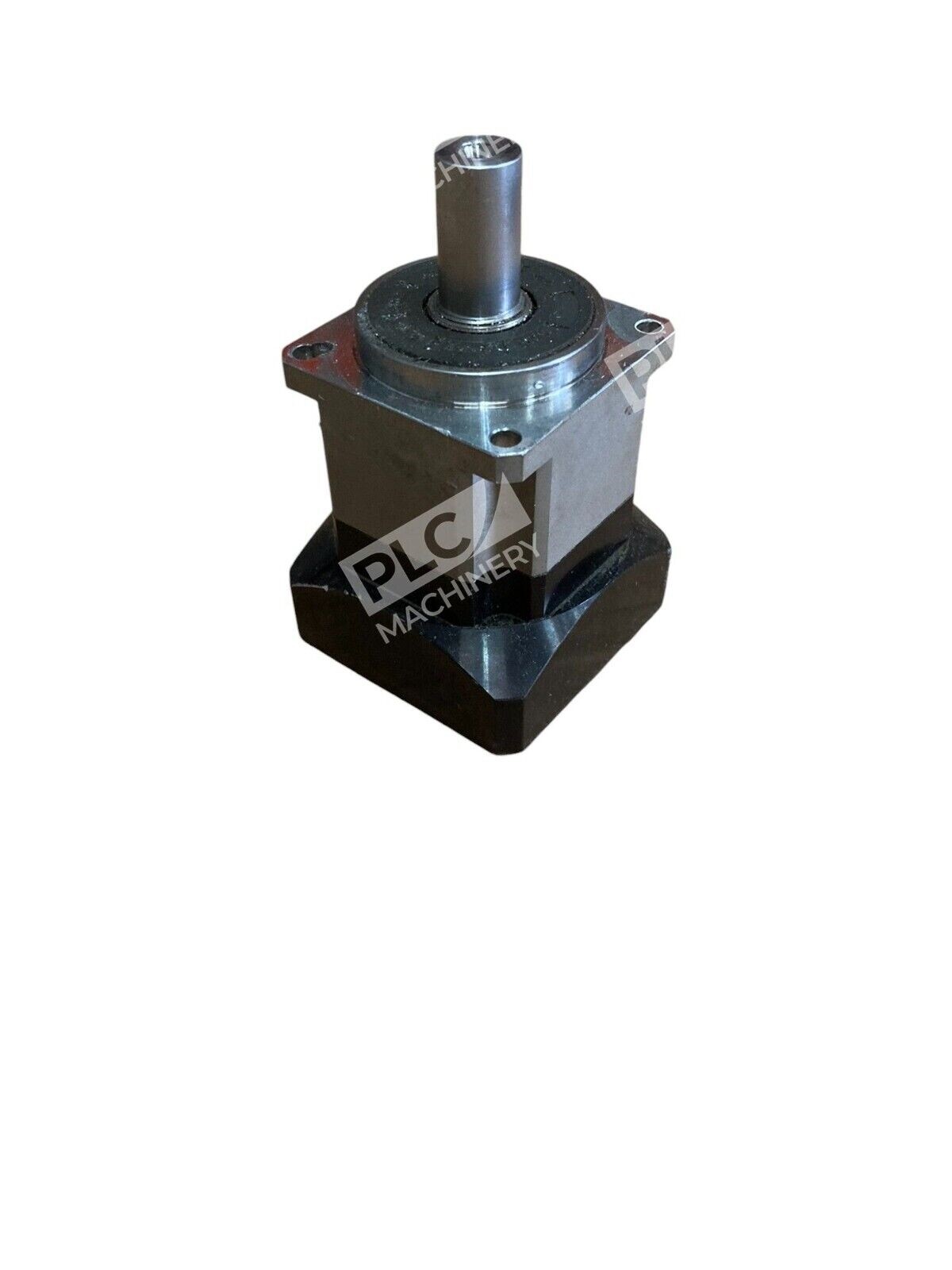

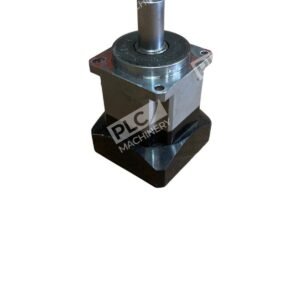

The Apex Dynamics AB060-S1-P2 is a high-precision planetary gearbox engineered for demanding servo applications in industrial automation and motion control. Part of the AB Series, this 10:1 reduction unit features advanced helical gearing technology and straddle-mounted precision bearings for superior load capacity and repeatability. The smooth output shaft configuration and standard backlash characteristics make it ideal for positioning, packaging, robotics, and precision assembly systems.
Key Features
- 10:1 gear reduction ratio with single-stage design
- 60mm frame size (AB060) for compact installation
- High precision helical gearing with low backlash performance
- Smooth output shaft configuration for direct coupling
- Straddle-mounted high precision ball bearings for radial and axial load handling
- IP65 rated stainless steel housing for harsh environment durability
- Designed for servo motor integration and high-speed applications
Technical Specifications
- Frame Size: 60mm
- Gear Ratio: 10:1 (single-stage)
- Output Torque Range: 14–40 Nm (typical for AB060 series)
- Maximum Input Speed: 10,000 rpm
- Output Shaft: Smooth bore design
- Housing Material: Stainless Steel
- Enclosure Rating: IP65
- Operating Temperature: −10°C to +90°C
- Backlash: ≤1 arcmin (standard)
- Lubrication: Synthetic oil
- Mechanical Durability: 15,000 operating hours
Typical Applications
The AB060-S1-P2 is widely used in:
- Robotic arm joint actuation and multi-axis motion control
- Automated packaging and labeling machinery
- Precision assembly and test stand operations
- CNC machine tool spindle drives and positioning axes
- Conveyor and material handling systems with high-precision positioning
- Medical device and pharmaceutical automation equipment
Compatibility & Replacements
Compatible With
- Servo motors with ISO 9409-1-50-4-M6 flange mounting (standard)
- Motors with 4mm, 6mm, 8mm, and 10mm bore shafts
- Industrial servo drives (Siemens, Beckhoff, Omron, Yaskawa compatible)
- Allen-Bradley and Rockwell Automation motion control systems
- EtherCAT and PROFINET networked servo systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or equipment manufacturer before ordering to ensure shaft bore and flange specifications match your application.
Works With
- Studio 5000 and FactoryTalk motion control software
- TIA Portal v16+ servo configuration tools
- Beckhoff TwinCAT NC motion control
- Flexible shaft coupling standards (DIN 6885, ISO 14 spline)
- Load feedback systems (encoder-compatible output shafts)
