Overview

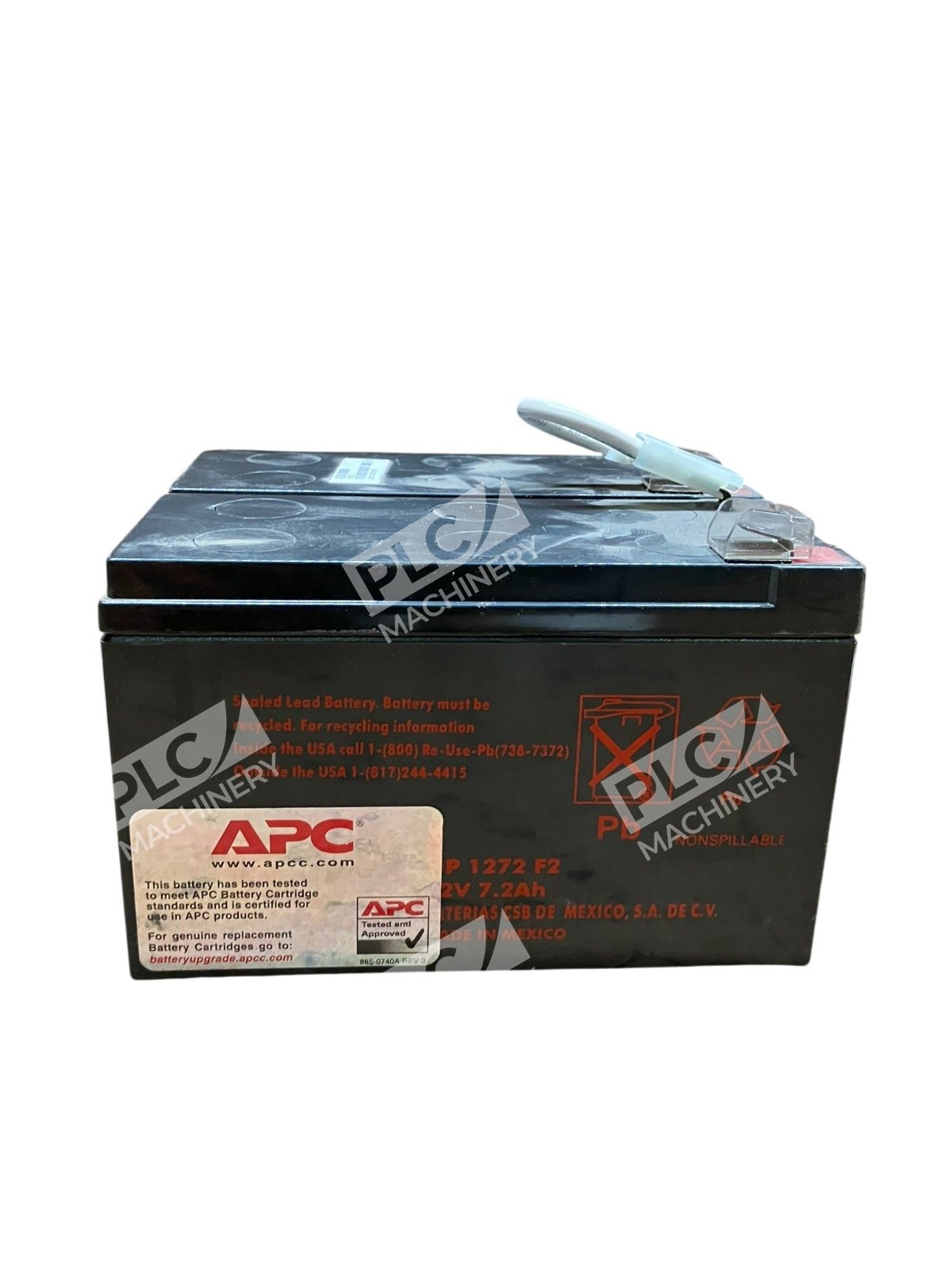

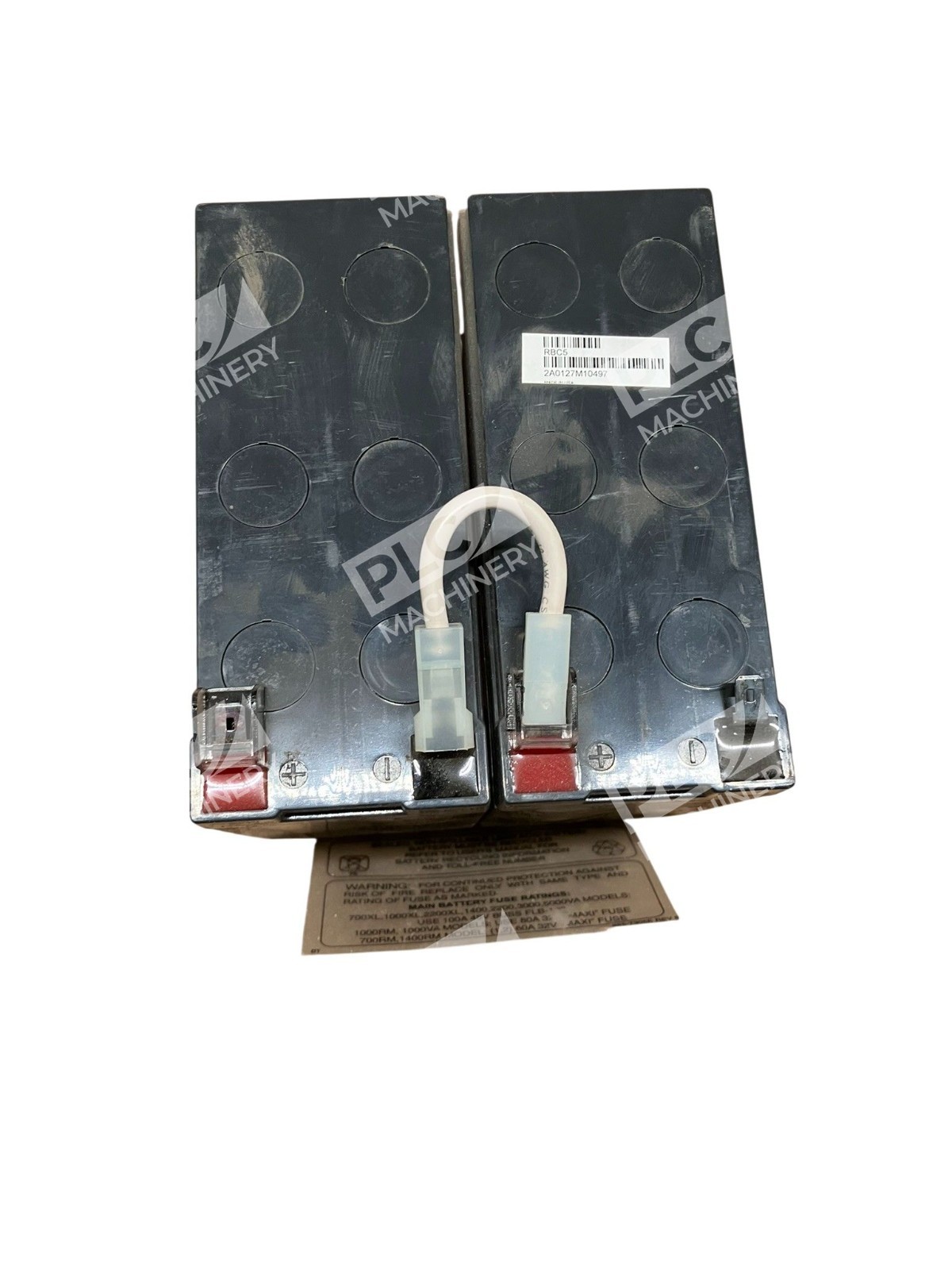

The CSB GP1272F2 is a 12-volt 7.2Ah sealed lead acid (SLA) battery cartridge designed for uninterrupted power supply (UPS) systems, backup power, and emergency lighting applications. This general-purpose rechargeable battery features F2 faston terminals and is maintenance-free, leak-proof, and capable of both standby and cyclic discharge duty.
Key Features
- 12V nominal voltage — standard power supply for UPS and battery backup systems
- 7.2Ah capacity — sufficient runtime for typical UPS cartridge applications

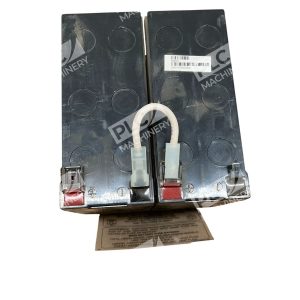

- F2 terminal connectors — .250″ faston tabs for quick replacement without soldering
- Sealed lead acid (SLA) chemistry — maintenance-free, leak-proof, and spill-safe
- Versatile duty cycles — up to 5 years in standby service or 260+ cycles at 100% discharge
- Wide application range — UPS systems, backup power, alarms, medical equipment, and mobility devices
Technical Specifications
- Nominal Voltage: 12V
- Capacity: 7.2Ah (7200 mAh)
- Chemistry: Sealed Lead Acid (SLA)
- Energy Rating: 86 Whr
- Terminal Type: F2 Faston (.250″)
- Cell Configuration: 6 cells
- Length: 150mm (5.94″)
- Width: 65mm (2.56″)
- Height: 100mm (3.94″)
- Weight: 2.49 kg (5.5 lbs)
- Warranty: 1 year (new units)
Typical Applications
The CSB GP1272F2 is widely used in:
- APC Smart-UPS and Back-UPS battery replacement cartridges
- Uninterrupted Power Supply (UPS) backup systems
- Emergency lighting and exit sign battery packs
- Security alarm and fire panel backup
- Medical equipment and mobility devices
- Computer systems and network equipment protection
- Telecommunication backup systems
Compatibility & Replacements
Compatible With
- APC UPS systems (Smart-UPS RM series, Back-UPS Pro series)
- Backup power and emergency lighting fixtures
- Medical and mobility device power systems
- Alarm and fire suppression control panels
- Computer and network equipment with 12V SLA battery backup
Replaces / Drop-In Replacement For
- CSB GP1272 (earlier non-F2 variant)
- CSB GP1270F2
- APC APCRBC cartridge systems
- OEM cross-references: NP7-12, LCR12V72P, NLA12V7A, UPVW1236P1
Works With
- APC UPS management software and monitoring systems
- Modular battery cartridge systems
- Standard 12V DC power protection applications
- Faston terminal connectors (.250″ standard)
