Overview

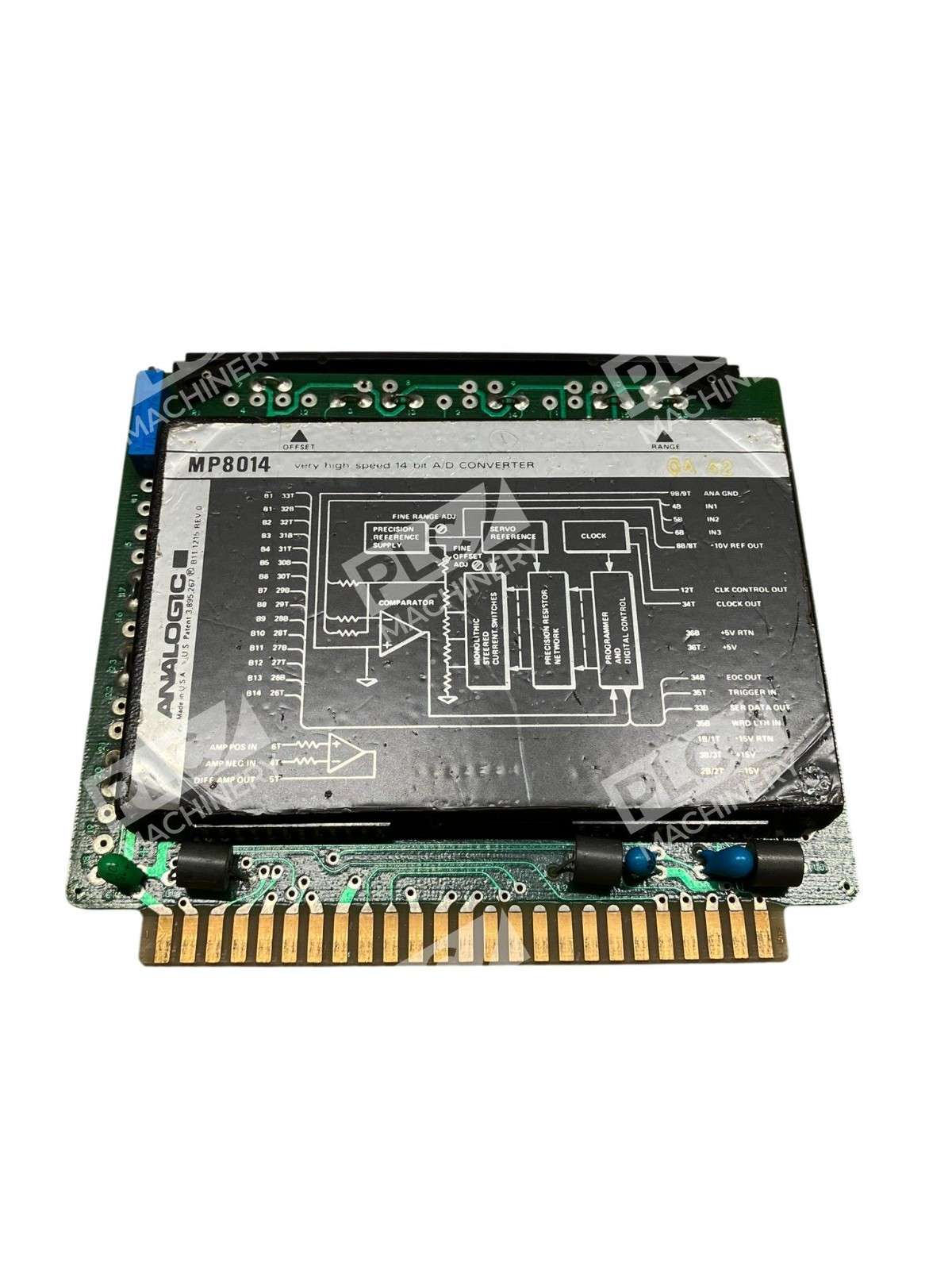

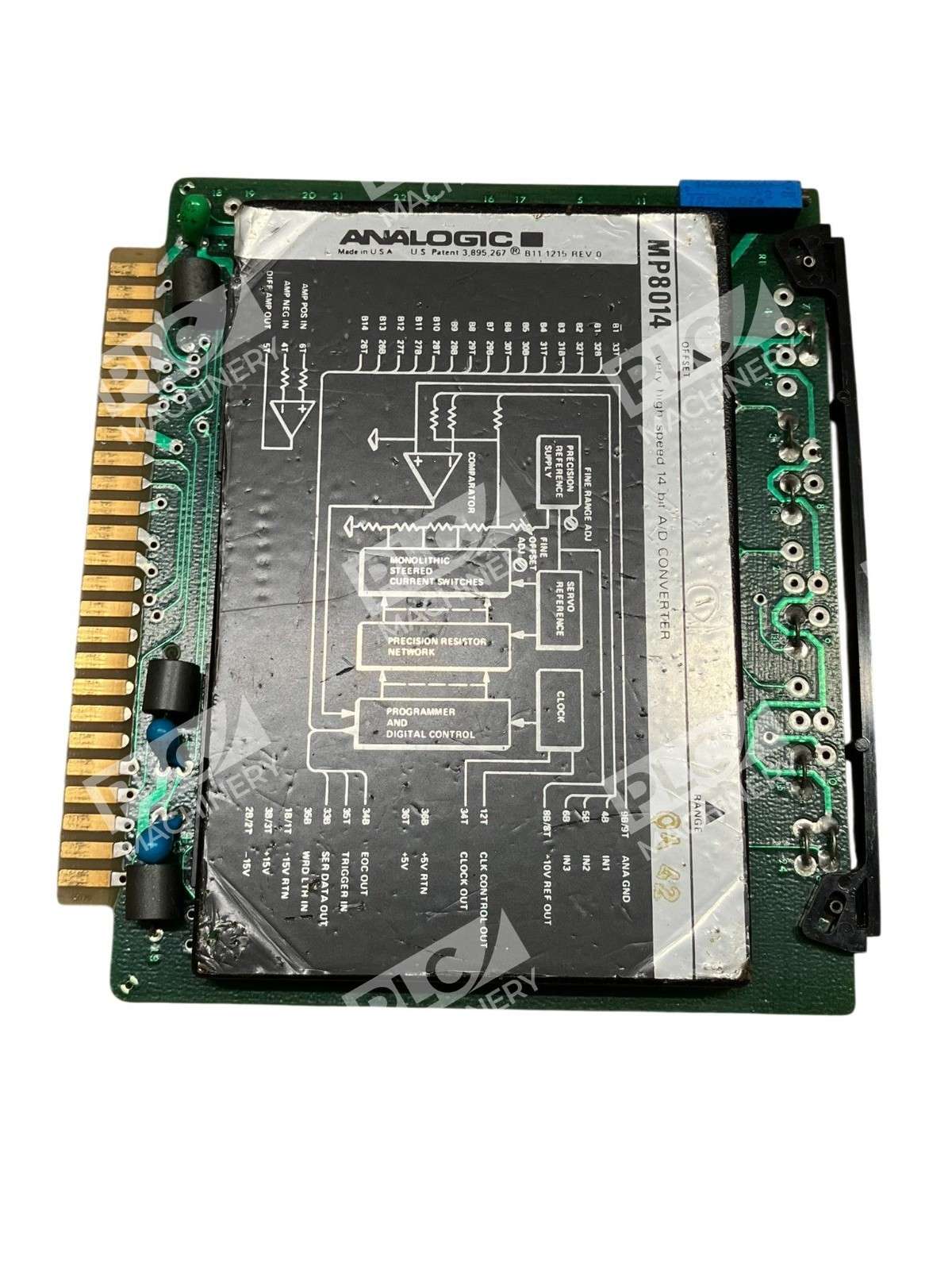

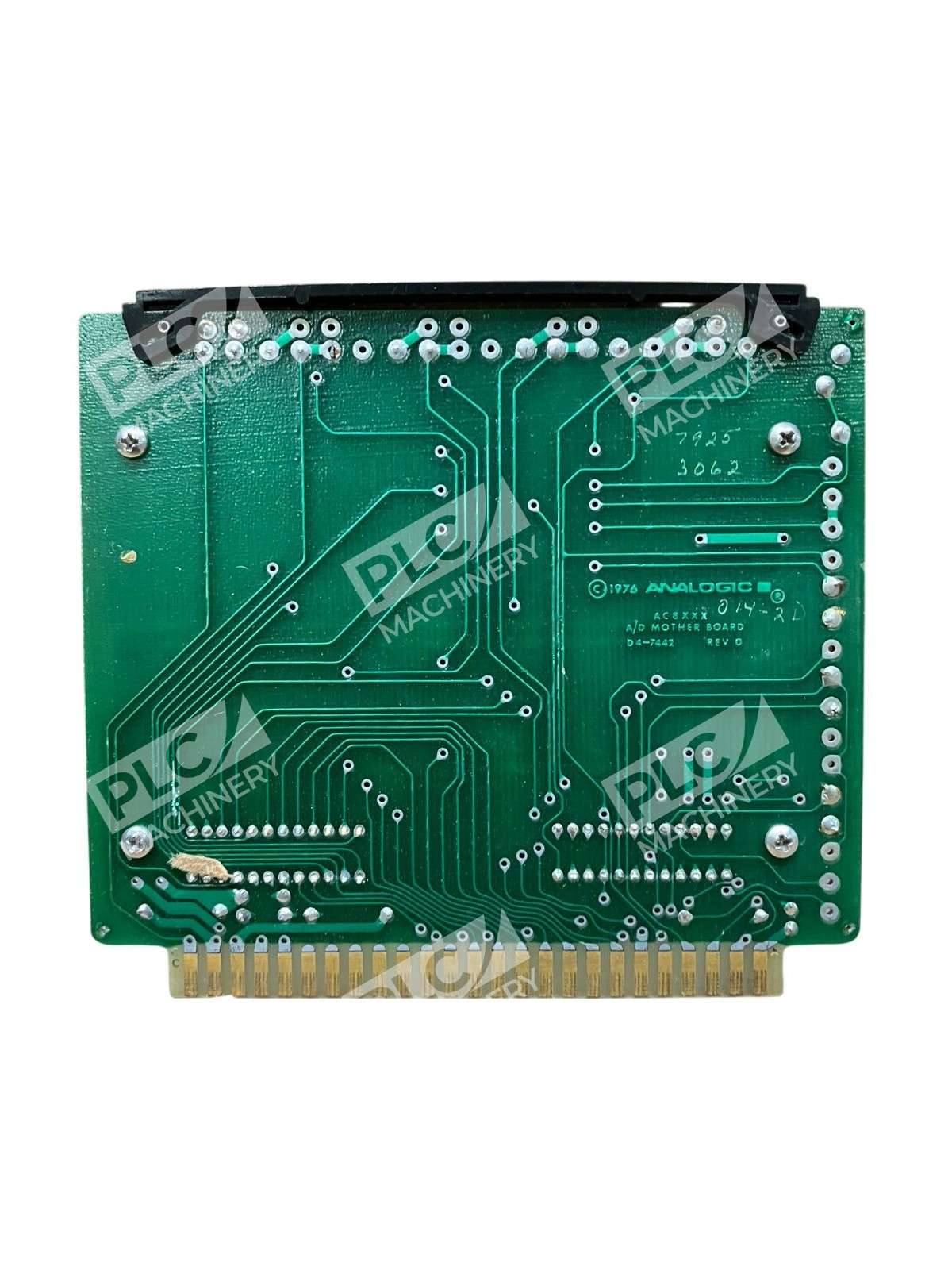

The Analogic MP8014 High-Speed 14-Bit A/D Converter Board D4-7442 Rev O is a specialized data acquisition module engineered for industrial automation and instrumentation applications. This converter board provides 14-bit resolution for precise analog-to-digital conversion, enabling accurate signal processing in PLC-based control systems, process monitoring, and data logging environments. The board is manufactured in the United States and designed for integration into legacy and modern automation infrastructure.
Key Features
- 14-bit analog-to-digital resolution for high-precision signal digitization
- High-speed conversion performance suited for dynamic process monitoring
- Industrial-grade design for reliable long-term operation in manufacturing environments
- Compact board form factor for integration into enclosures and control cabinets
- Established component in legacy and retrofit automation applications
Technical Specifications
- Resolution: 14-bit
- Converter Type: Analog-to-Digital (A/D)
- Board Designation: D4-7442 Rev O
- Manufacturer: Analogic Corporation
- Application Category: Data Acquisition / Signal Processing
Typical Applications
The Analogic MP8014 converter board is commonly deployed in:
- PLC-based process control and monitoring systems
- Industrial data acquisition and signal digitization
- Sensor interface and transducer signal conditioning
- Legacy automation equipment retrofits and upgrades
- Manufacturing test and measurement systems
Compatibility & Replacements
Compatible With
- Industrial PLCs and programmable logic controllers
- Data acquisition systems requiring 14-bit resolution
- Process control and monitoring equipment
- Legacy and modern industrial control architectures
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering, as converter board form factors and interfaces vary. Consult original equipment documentation for exact replacement compatibility.
Works With
- Industrial PLC platforms (legacy and current-generation)
- Multi-channel data acquisition systems
- Analog signal processing and conditioning equipment
- Automation software and data logging applications
