Overview

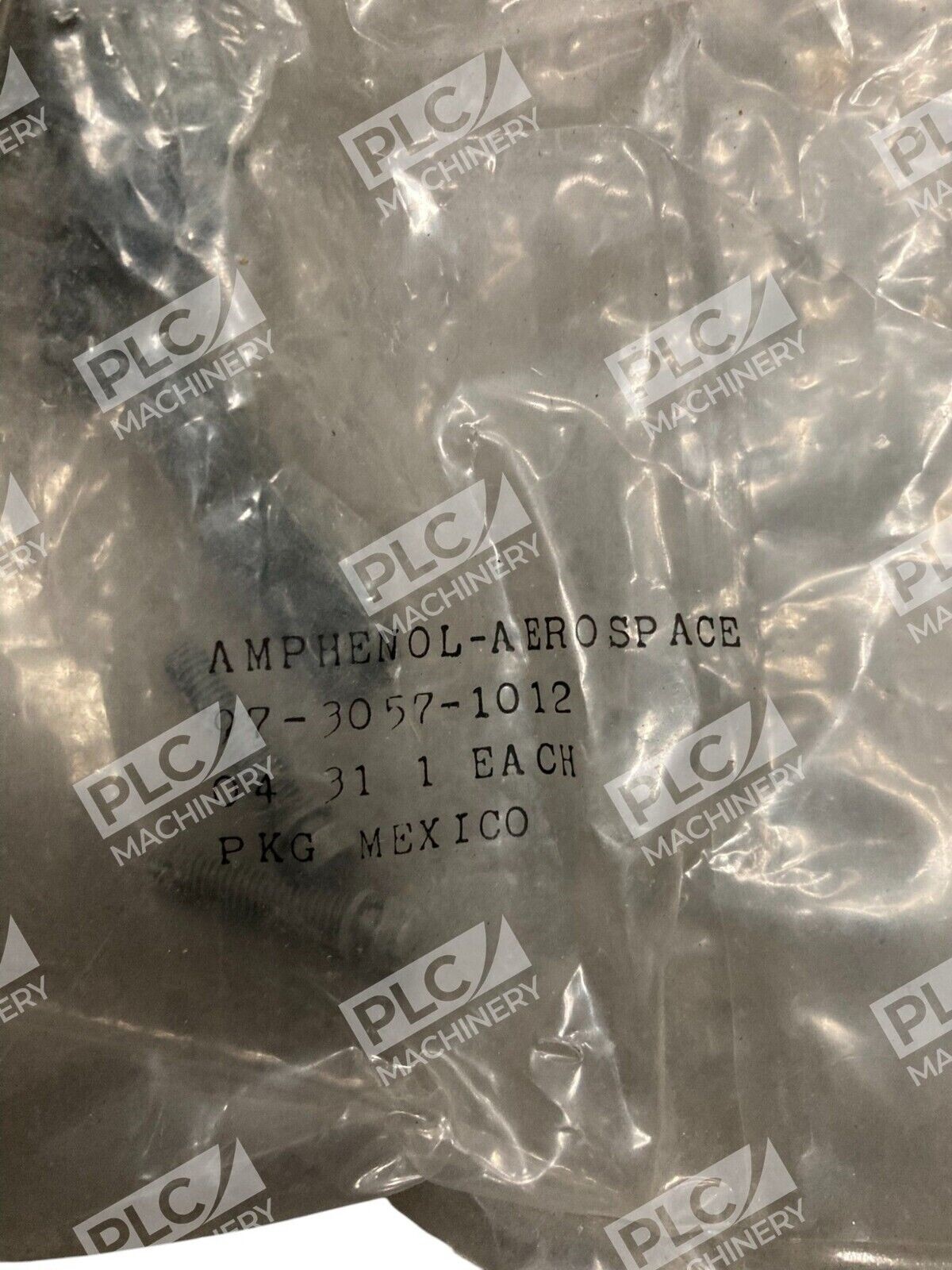

The Amphenol 97-3057-1012 is a MIL-spec circular connector cable clamp designed for use with standard cylindrical connectors featuring 20/22-size shells. This strain relief clamp meets MS3057A specifications and is widely used in factory automation, robotics, machine tooling, and aerospace applications requiring secure, reliable cable strain relief.
Key Features
- MS3057A Compliance – Meets MIL-DTL-5015 (SAE-AS50151) military connector standards for proven durability and compatibility.
- Floating Clamping Halves – Both halves float independently for maximum strain relief and protection against cable damage.
- Zinc Alloy Construction – Die-cast zinc alloy shell with black zinc plating provides corrosion resistance and mechanical strength.
- Versatile Cable Support – Suitable for jacketed cable, unjacketed cable, and wires protected by tubing.
- Standard 20/22 Shell Size – Compatible with all standard cylindrical connectors using size 20 and 22 shells.
- 19.05 mm Cable Diameter – Accommodates 0.75-inch (19.05 mm) cable and wire bundles.
Technical Specifications
- Clamping diameter: 19.05 mm (0.75 inches)
- Length: Approximately 23.55 mm (0.93 inches)
- Shell material: Aluminum alloy (high-grade)
- Plating: Black zinc alloy
- Type: MS3057A strain relief clamp
- Shell size compatibility: 20 / 22
- Series: 97 Circular Connectors
- Standard: MIL-DTL-5015 (SAE-AS50151)
- IP Rating: IP67 (when properly installed)
Typical Applications
The Amphenol 97-3057-1012 is used in demanding industrial and aerospace environments including:
- Factory automation and process control systems
- Robotics and machine tooling equipment
- Welding equipment and power distribution panels
- Medical device interconnections
- Aerospace and defense cable harnesses
- Military and commercial connector assemblies
Compatibility & Replacements
Compatible With
- Amphenol 97 Series circular connectors (all shell styles)
- MS3057A standard cylindrical connectors
- MIL-DTL-5015 compliant connector systems
- Size 20 and 22 shell configurations
- Factory automation control systems
- Industrial robotics and machine control applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 97-3057-1012 is a standard MS3057A clamp and may be compatible with other MIL-5015 size 20/22 clamps—consult technical documentation or contact Amphenol Industrial for exact cross-references.
Works With
- Amphenol 97 Series connector assemblies and backshells
- MIL-DTL-5015 circular connector ecosystems
- Strain relief and cable protection systems
- Field termination and assembly processes
- Connector assembly automation equipment
