Overview

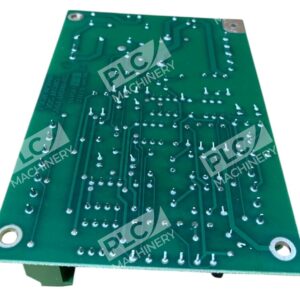

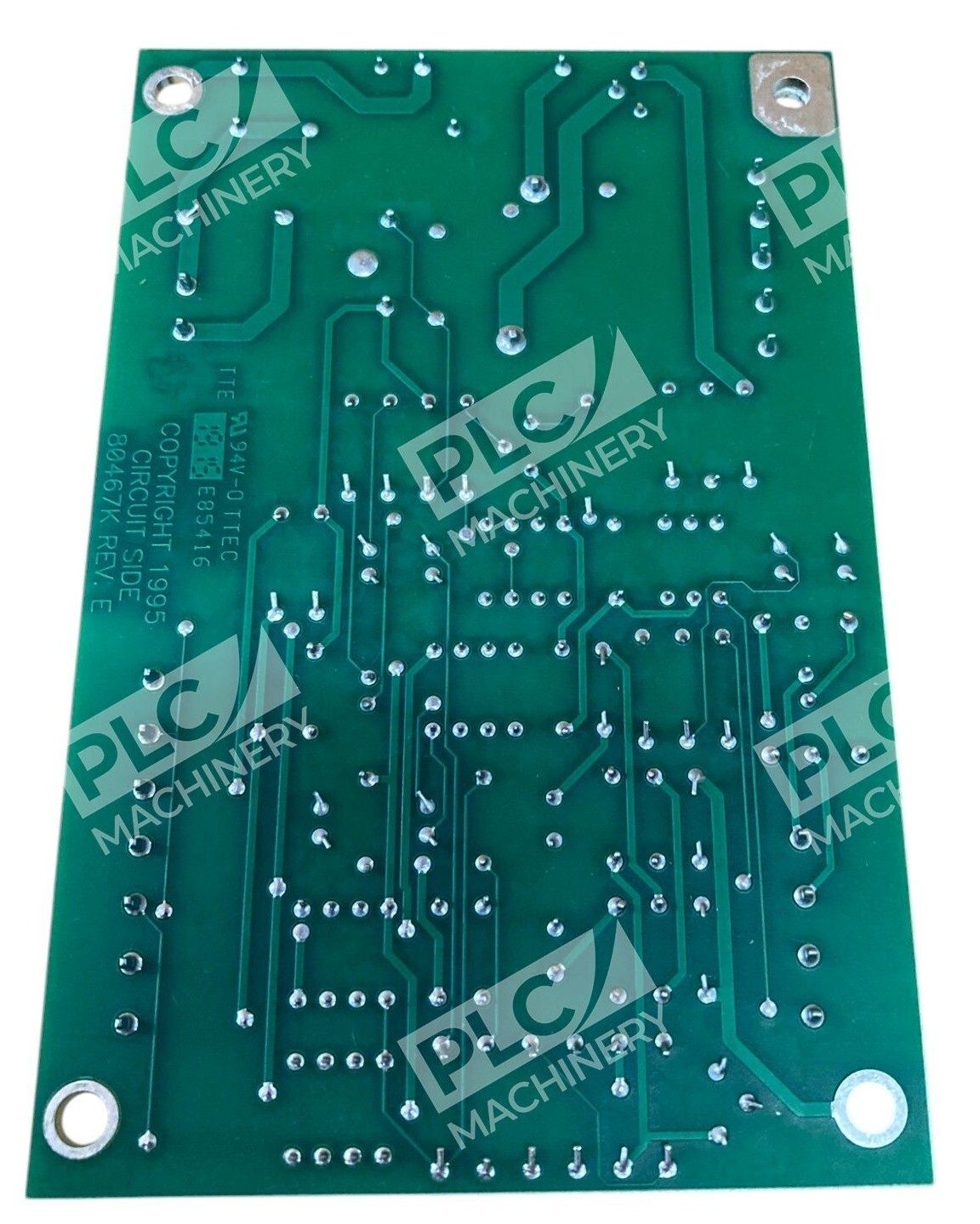

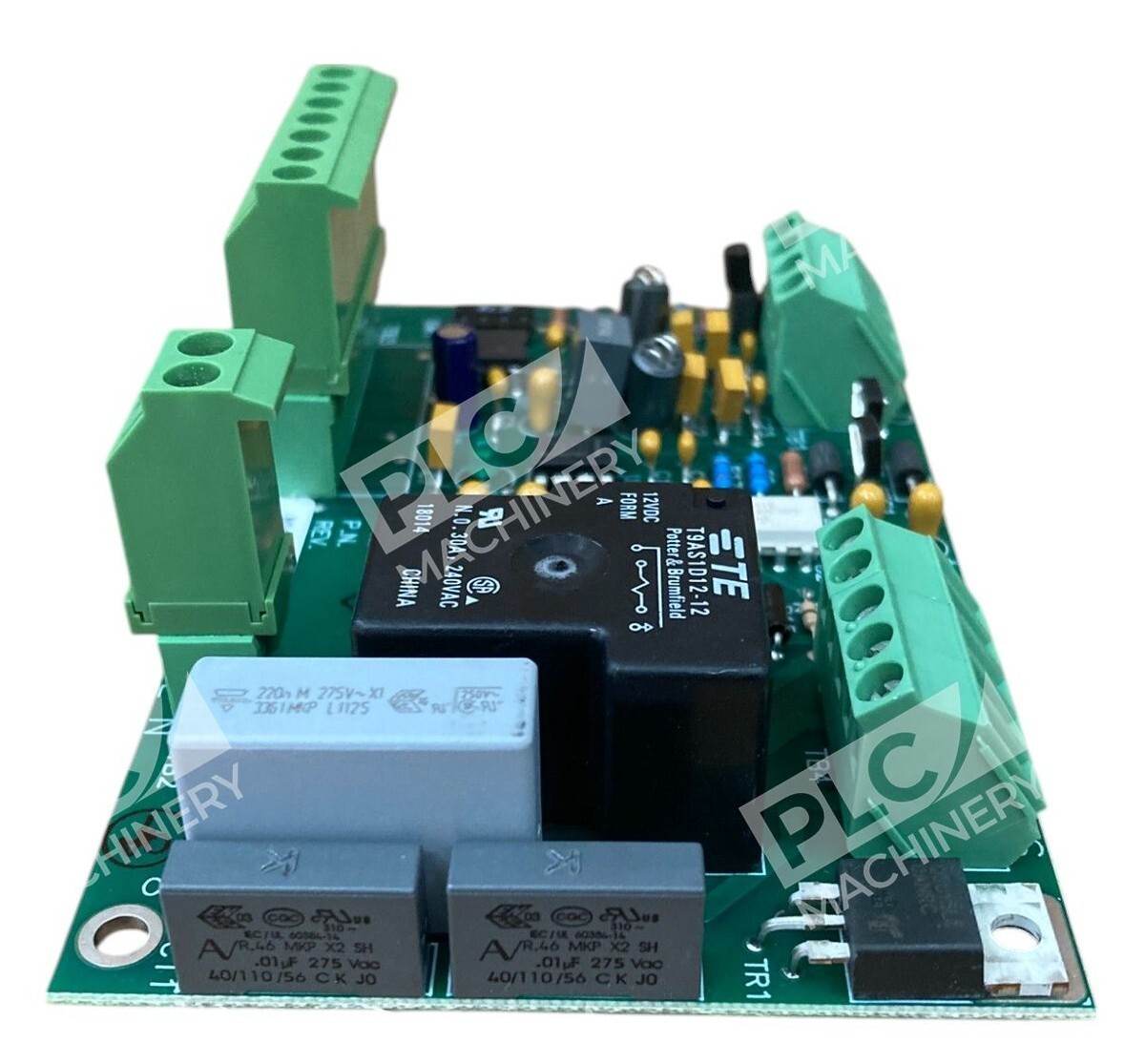

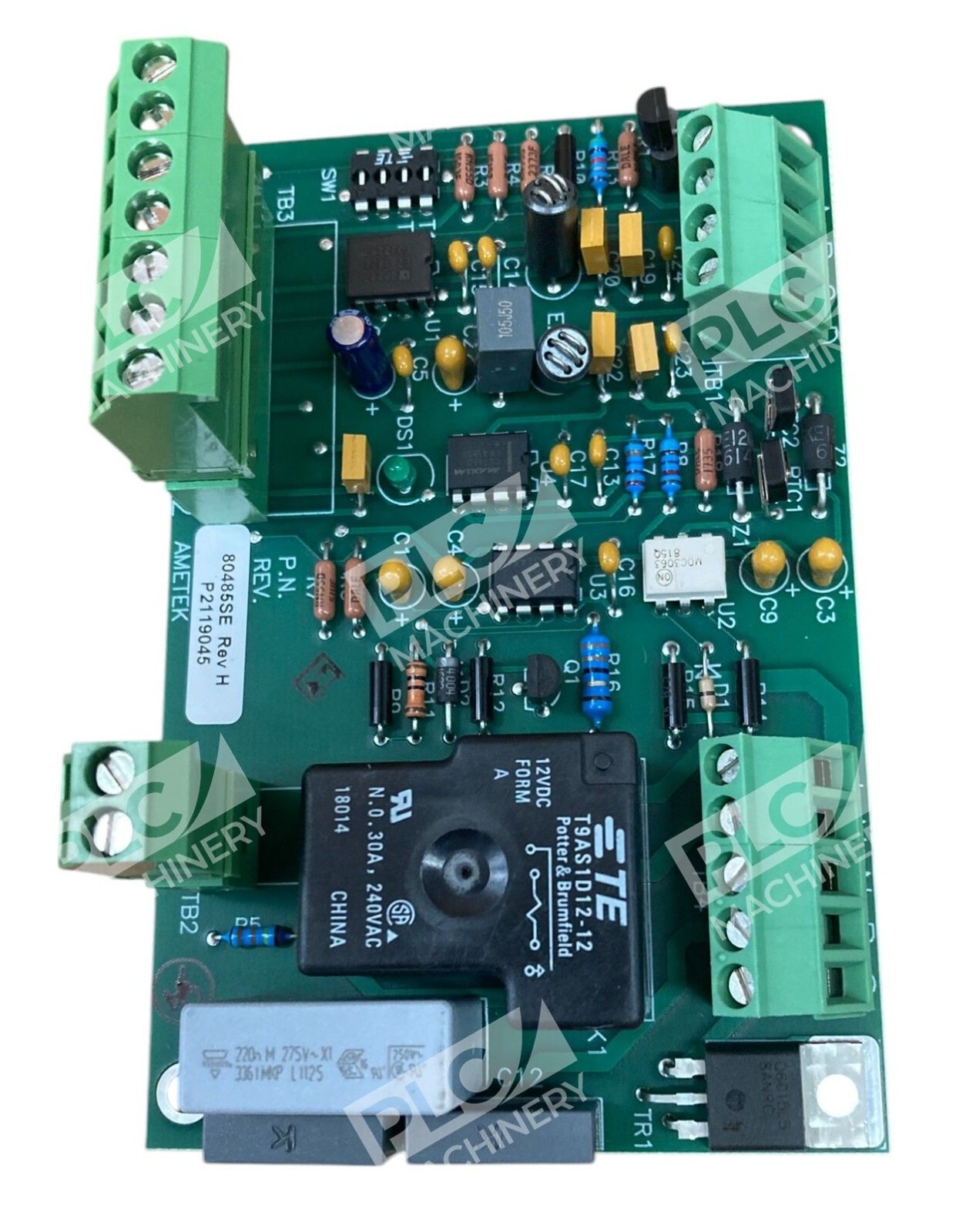

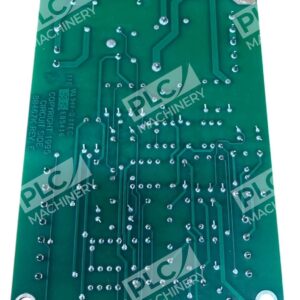

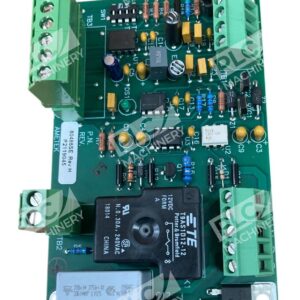

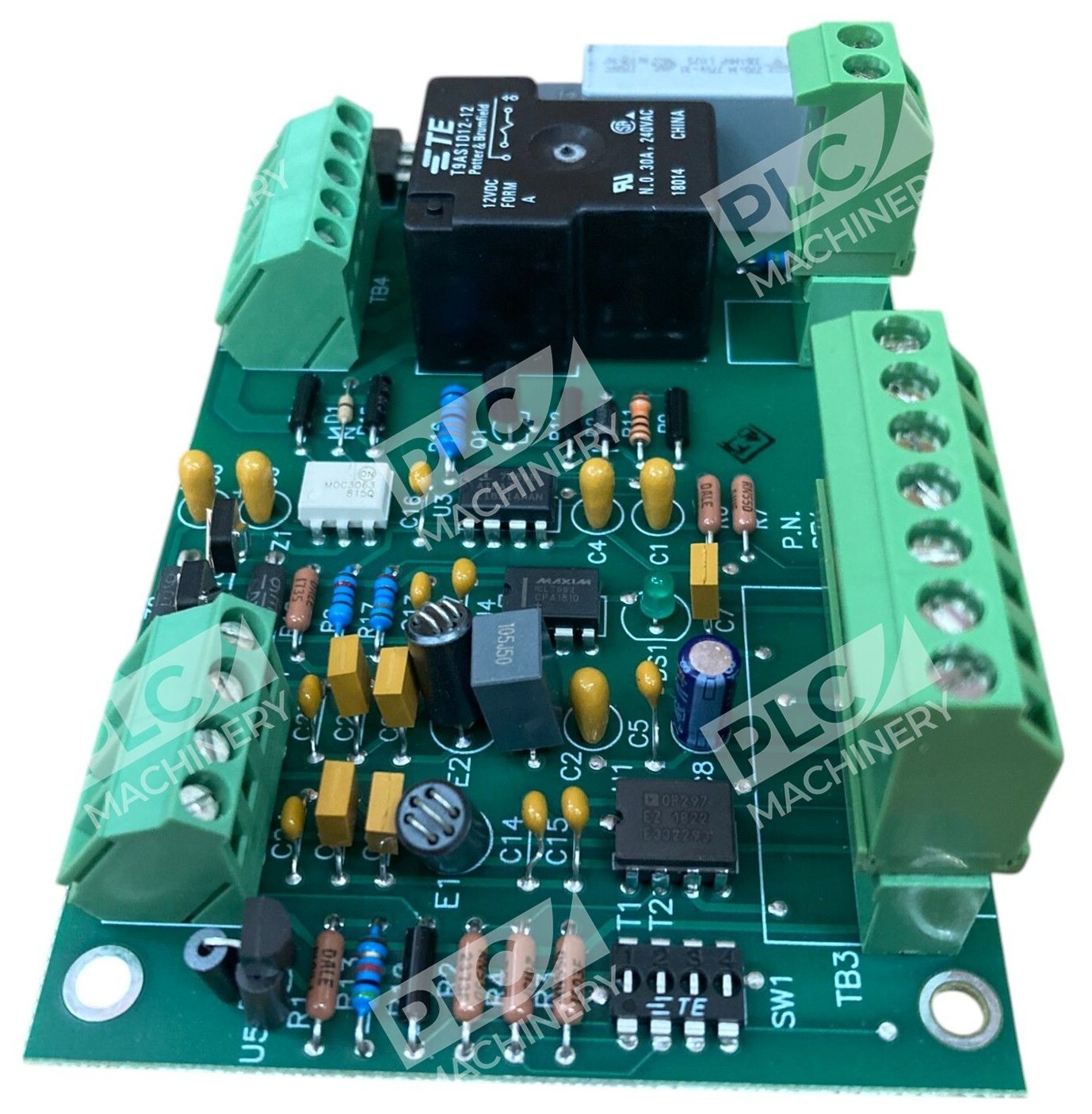

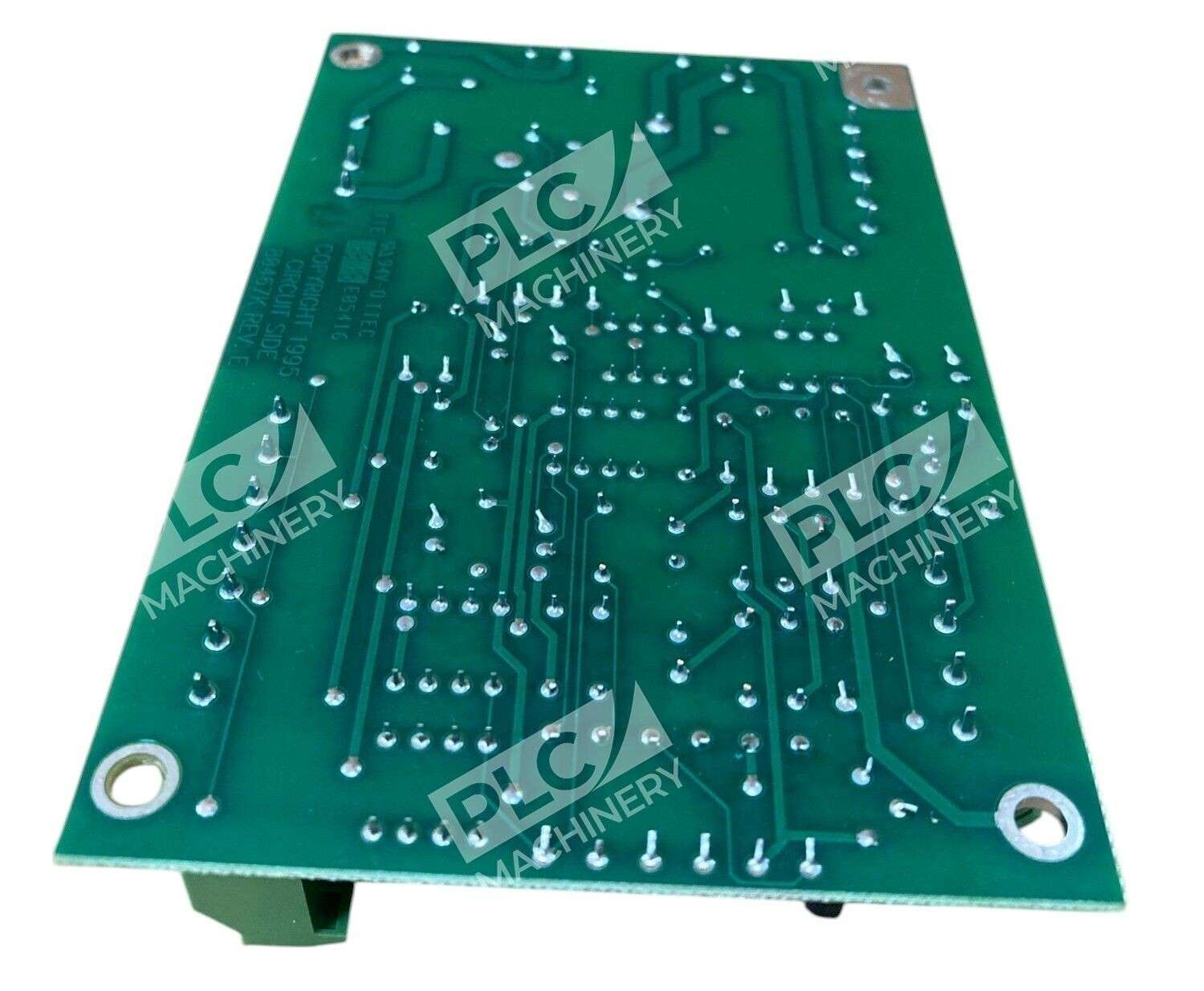

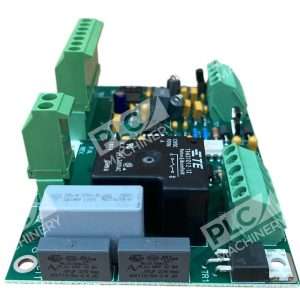

The Ametek 80485SE oxygen sensor board Rev H is a critical printed circuit board assembly used in oxygen analyzer instrumentation. This unit features the P2119045 80467K component revision E, designed to interface with electrochemical oxygen sensing elements. The board provides the necessary signal conditioning and measurement circuitry for precise oxygen concentration analysis in industrial gas monitoring applications.
Key Features
- PC board assembly for oxygen analyzer sensor module
- Revision H configuration with integrated electronics
- Compatible with Ametek oxygen analyzer systems
- Electrochemical sensor interface circuitry
- Industrial-grade construction for reliable performance
Technical Specifications
Specifications for this oxygen sensor board include the following parameters:
- Manufacturer: Ametek
- Part Number: 80485SE
- Revision Level: Rev H (with P2119045 80467K Rev E)
- Product Type: PC Board Assembly – Oxygen Analyzer Sensor
- Application: Oxygen concentration measurement and monitoring
- Mounting: PCB assembly integration
Typical Applications
This oxygen sensor board is commonly deployed in:
- Industrial oxygen analyzers for combustion gas monitoring
- Laboratory instrumentation for oxygen detection
- Process control systems requiring oxygen measurement
- Gas mixing and blending applications
- Environmental and emissions monitoring equipment
Compatibility & Replacements
Compatible With
- Ametek oxygen analyzer instrument systems
- Electrochemical oxygen sensing modules
- Industrial gas analysis equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or Ametek technical support before ordering. Related board assemblies in the Ametek sensor product line include 80471SE and earlier revision levels (Rev G and earlier), though direct interchangeability should be confirmed with documentation or technical support.
Works With
- Ametek MOCON oxygen analyzer platforms
- Industrial gas measurement systems
- Oxygen sensor modules with electrochemical cells
