Overview

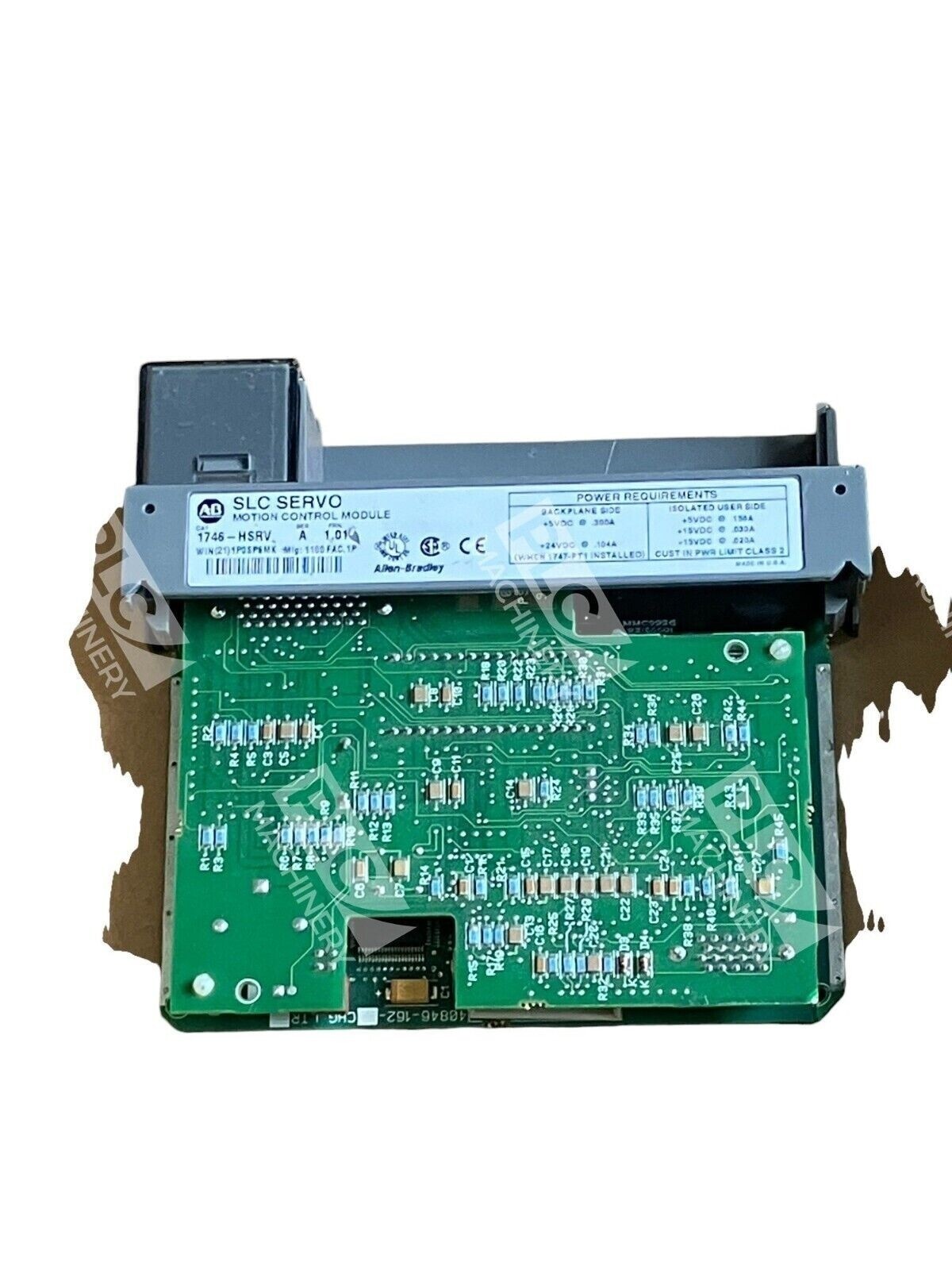

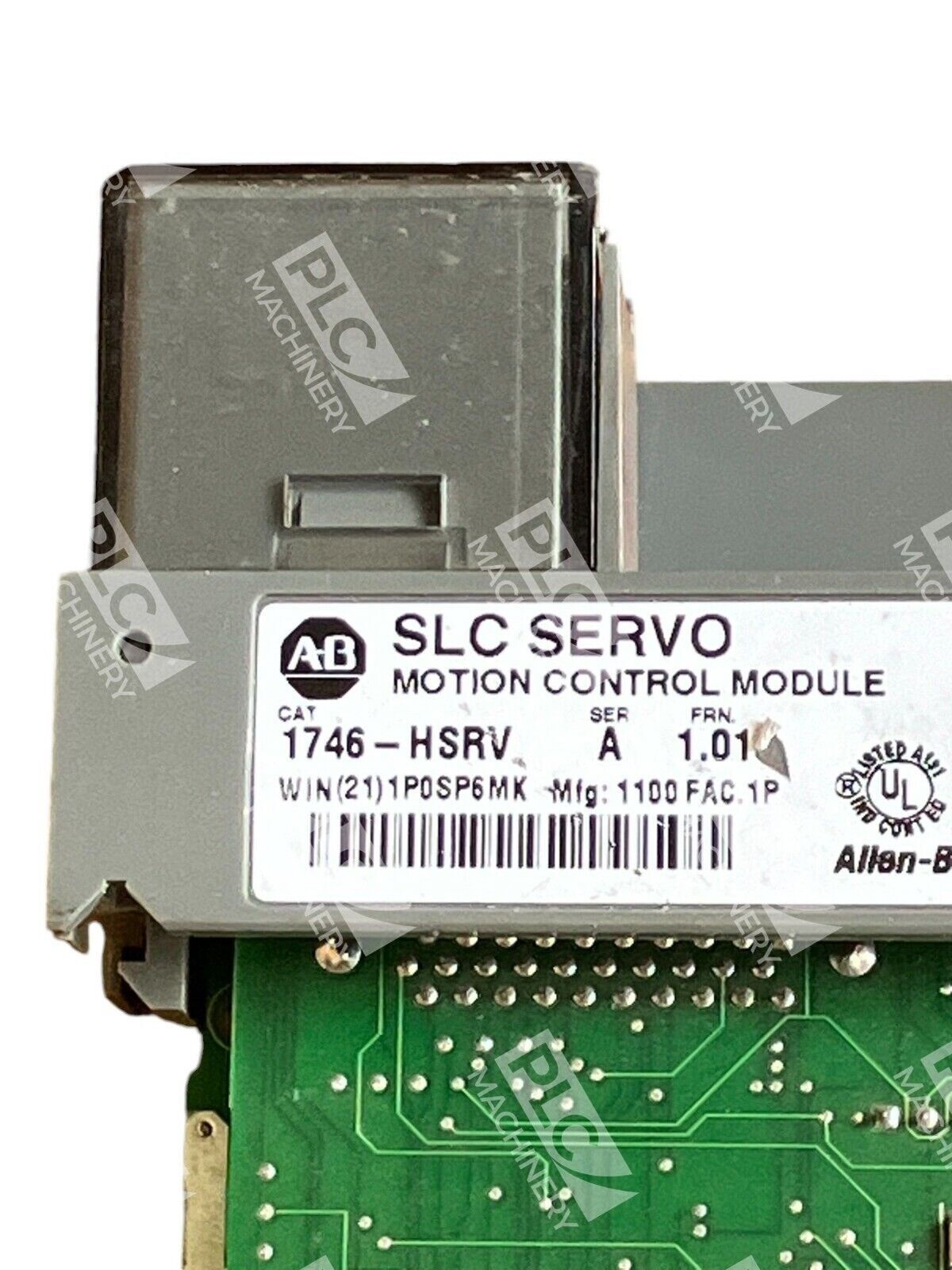

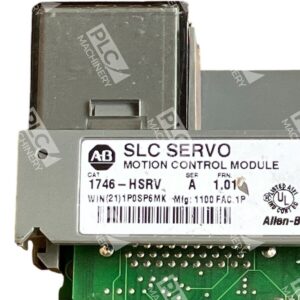

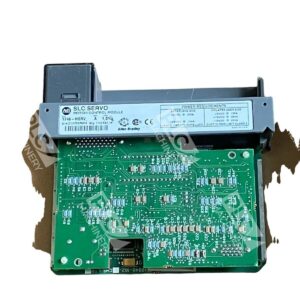

The Allen-Bradley 1746-HSRV is a single-slot servo motion control module designed for SLC 500 automation systems. This closed-loop servo controller integrates directly into SLC 500 racks and provides precise single-axis positioning and velocity control for industrial motion applications. Compatible with RSLogix 500, AI500, and APS software, it enables fast block execution independent of PLC scan time—critical for time-sensitive servo operations.
Key Features
- 300 kHz maximum encoder feedback frequency for fast, precise tracking and control
- 3 general-purpose local fast inputs and 1 fast output (24 VDC)
- 32-bit absolute positioning register supporting absolute, incremental, speed, and homing moves
- Analog velocity command interface with programmable limits up to ±10V DC
- Block execution independent of SLC processor scan time for deterministic motion timing
- Dual encoder voltage compatibility: directly interfaces +5V or +15V encoders
- Up to 12 modules per single SLC 500 rack for multi-axis servo control
- Emergency stop and homing operation support built-in
Technical Specifications
- Module Type: Class 3 Motion Control (Positioning)
- Input Voltage: Backplane +5V (300 mA), +15V, +24V supply required
- Inputs: 3 general-purpose fast inputs (24 VDC)
- Outputs: 1 general-purpose fast output (24 VDC)
- Encoder Feedback: 300 kHz maximum input frequency (0° quadrature error)
- Velocity Command: ±10V DC analog interface (user-programmable limits)
- Positioning Range: 32-bit absolute (±2,147,483,647 counts)
- Module Update Time: 2 ms fast I/O response
- Data Words: 12 input words, 12 output words (Class 3 configuration)
- Mounting: Single I/O slot in SLC 500 chassis
- Compatible Processors: SLC 5/03 (FRN 5.0 and above), SLC 5/04, SLC 5/05
- Software: RSLogix 500, AI500, APS 5.0 or higher
- Accessories: 1746-HT termination panel, 1746-HC cable
Typical Applications
- Precision positioning systems in packaging and labeling machinery
- Web tension and registration control in printing and converting equipment
- Material handling and conveyor speed synchronization
- Robotics and automated assembly indexing
- CNC and spindle speed regulation
- Multi-axis synchronized motion on legacy SLC 500 systems
Compatibility & Replacements
The 1746-HSRV is purpose-built for SLC 500 systems and provides drop-in compatibility with SLC 5/03 (FRN 5.0+), SLC 5/04, and SLC 5/05 processors. Installation is recommended in Slot 0 or the lowest-numbered I/O slot for optimal performance. Programming is done via RSLogix 500 or equivalent IEC-compliant tools. If upgrading to CompactLogix or ControlLogix platforms, servo functions are handled by dedicated motion control modules such as the FLEX I/O or CompactLogix equivalents. For direct replacement, no substitute module exists within the SLC 500 family; however, OEM and surplus availability from industrial distributors is common for legacy maintenance applications.
