Overview

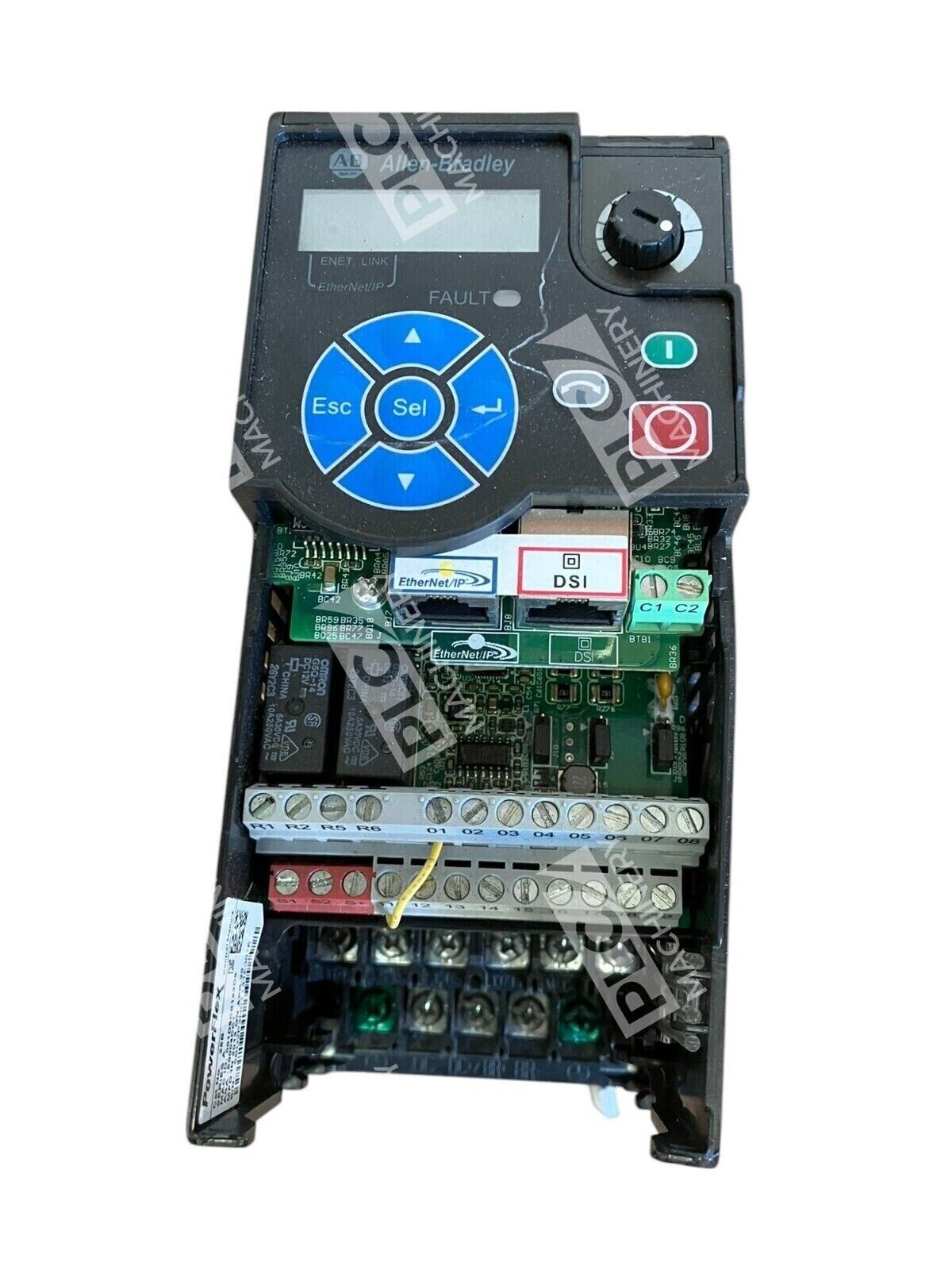

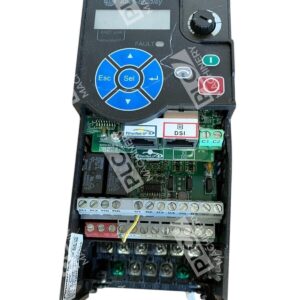

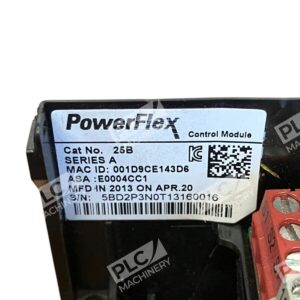

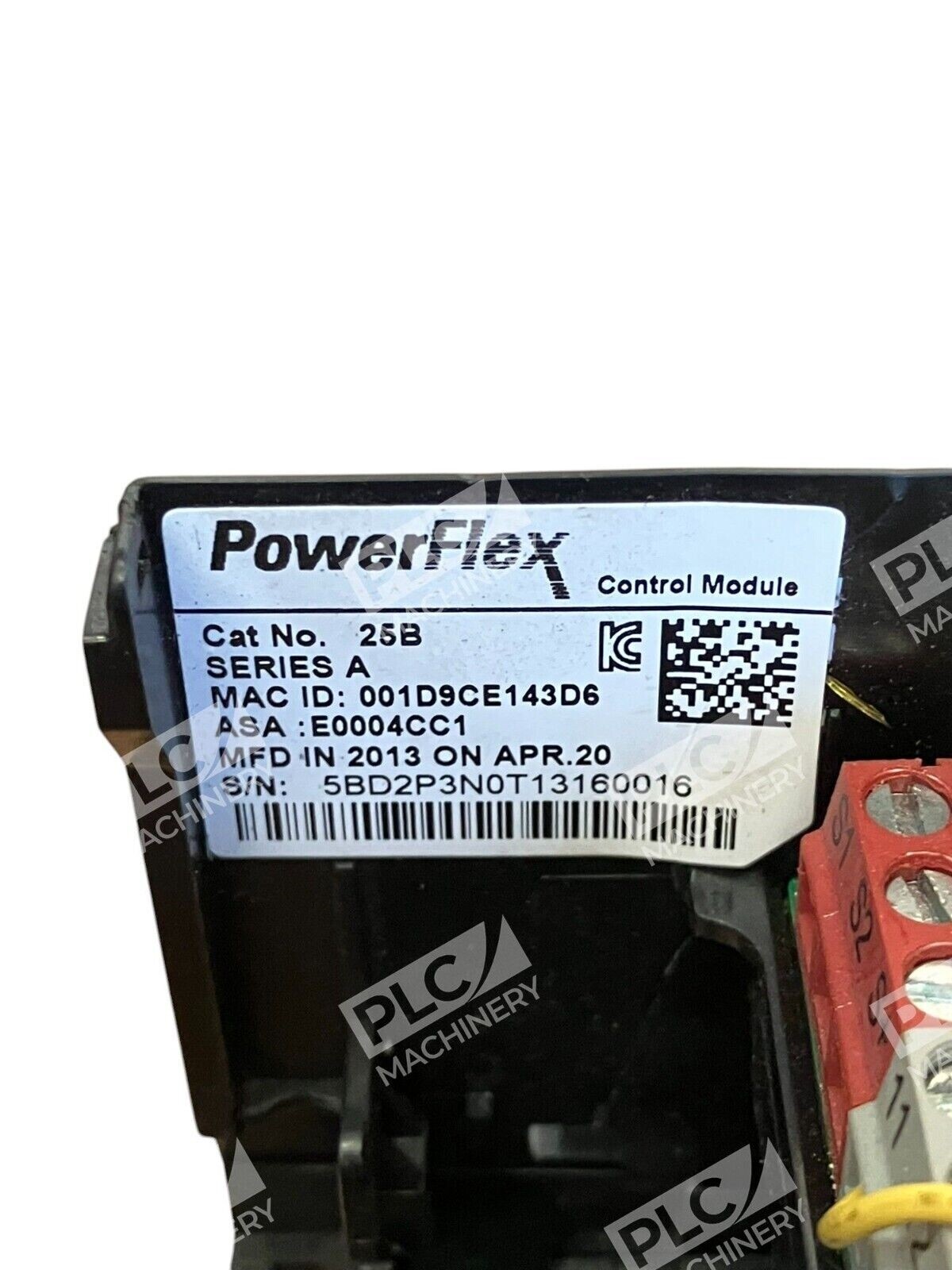

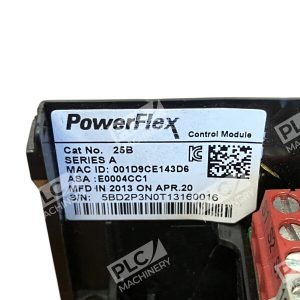

The Allen-Bradley 25B-D4P0N104 is a PowerFlex 525 AC drive engineered for precision motor control in industrial automation. This 1.5 kW (2 HP) variable frequency drive operates at 480 VAC, 3-phase input and delivers 4.0 A output, supporting both normal and heavy-duty motor applications. Equipped with embedded EtherNet/IP connectivity and integrated safety functions, this drive integrates seamlessly into modern control systems while maintaining compatibility with legacy installations.
Key Features
- Embedded EtherNet/IP & Safety: Native industrial Ethernet communication with integrated Safe Torque Off (SIL2/Cat 3) for safety-critical operations.
- Advanced Vector Control: Per-Hz sensorless vector and closed-loop vector control for permanent magnet motors, ensuring smooth low-speed torque delivery.
- Multi-Protocol Support: Compatible with DeviceNet, MODBUS, PROFIBUS, and other bus systems for flexible system architecture.
- IP20 NEMA Open Enclosure: Panel-mount design suitable for industrial control cabinets; no filter required for standard applications.
- Brake IGBT Equipped: Built-in brake IGBT module for enhanced regenerative braking and energy recovery capabilities.

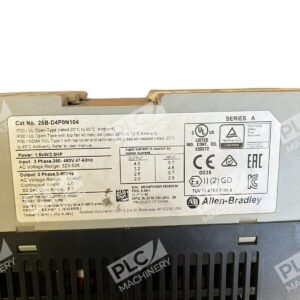

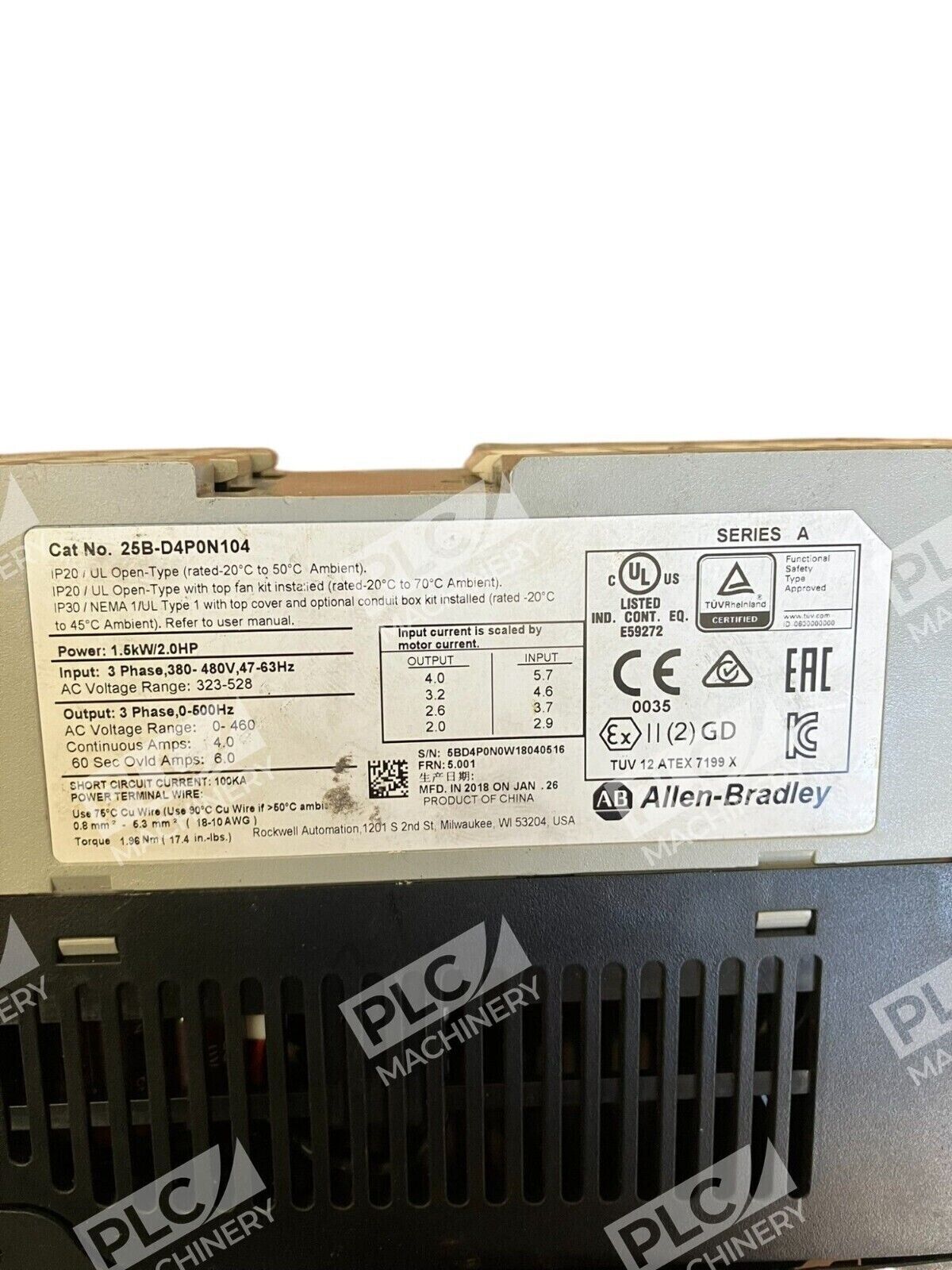

Technical Specifications
The drive delivers robust performance across standard industrial duty cycles:
- Power Rating (Normal Duty): 1.5 kW (2 HP)
- Power Rating (Heavy Duty): 1.5 kW (2 HP)
- Input Voltage: 380–480 VAC, 3-phase
- Output Current: 4.0 A (nominal)
- Frequency Range: 50–60 Hz (input); 0–500 Hz (output, configurable)
- Control Methods: V/Hz, Sensorless Vector, Closed-Loop Vector (with encoder feedback)
- Communications: EtherNet/IP (built-in), DeviceNet, MODBUS, PROFIBUS (optional modules)
- Safety Functions: Safe Torque Off (SIL 2, Cat. 3 per IEC 61508)
- Enclosure Rating: IP20 NEMA 1 (Open Type)
- Mounting: Panel mount with fixed terminal block connections
- Frame Size: Frame A
Typical Applications
This drive is ideal for variable-speed motor control across diverse industrial sectors:
- Centrifugal pump and fan speed modulation (HVAC, water treatment, process cooling)
- Conveyor and material handling systems requiring dynamic load adaptation
- Machine tool spindle drives with smooth acceleration and deceleration
- Compressor capacity control and energy optimization
- Food processing and packaging lines requiring precision speed control
- Safety-critical applications leveraging integrated Safe Torque Off
Compatibility & Replacements
The 25B-D4P0N104 is part of the PowerFlex 525 family and directly replaces other 1.5 kW PowerFlex 525 AC drives with equivalent ratings. For system integration, refer to Rockwell Automation documentation for firmware compatibility with Studio 5000 and related control platforms. When upgrading or replacing this drive, verify input voltage (480 VAC vs. 380 VAC variants), output current capacity (4.0 A), and communication module configuration to ensure seamless retrofit into existing control cabinets. Used units should be tested for fault history and firmware revision before deployment.
