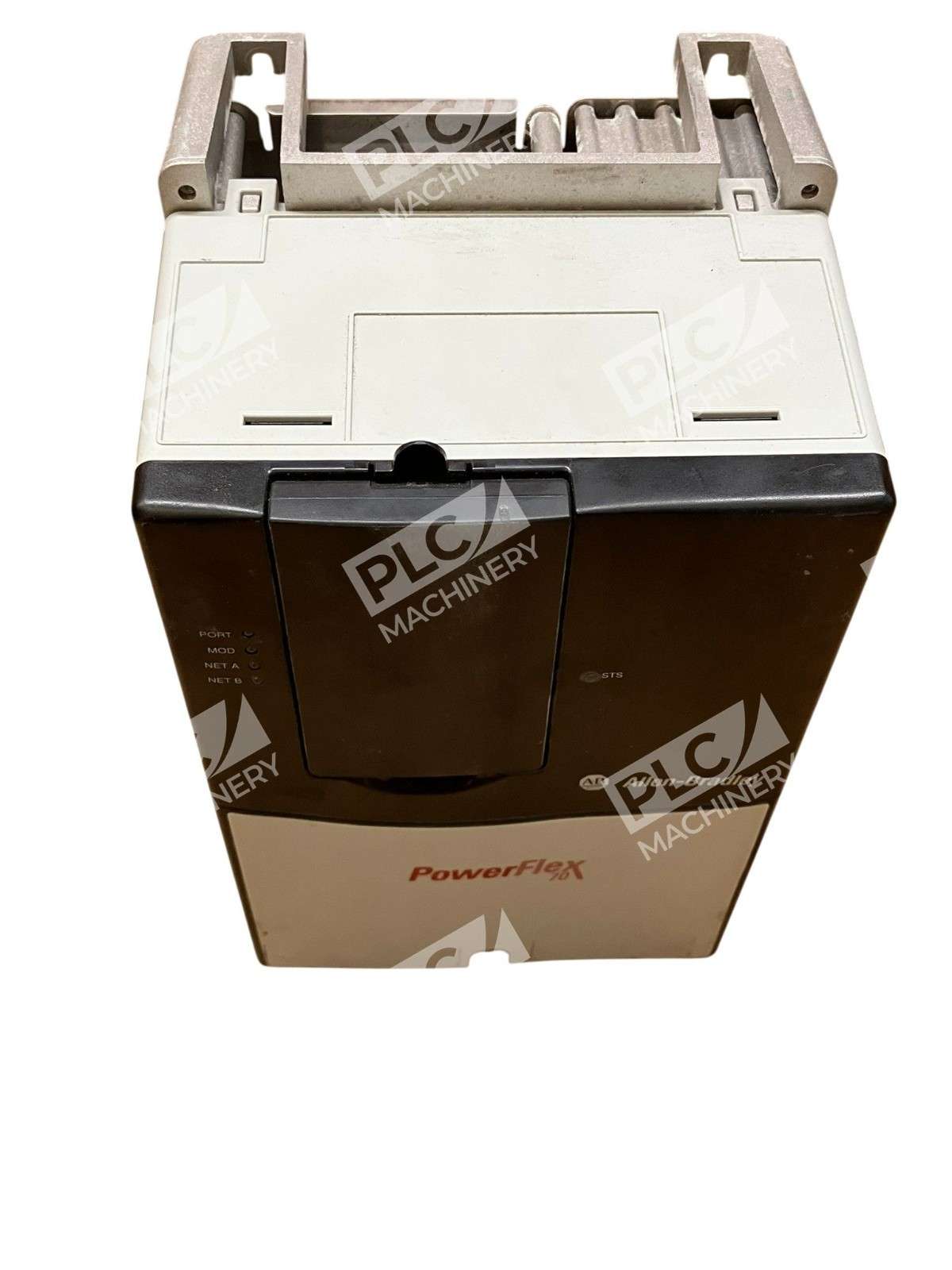

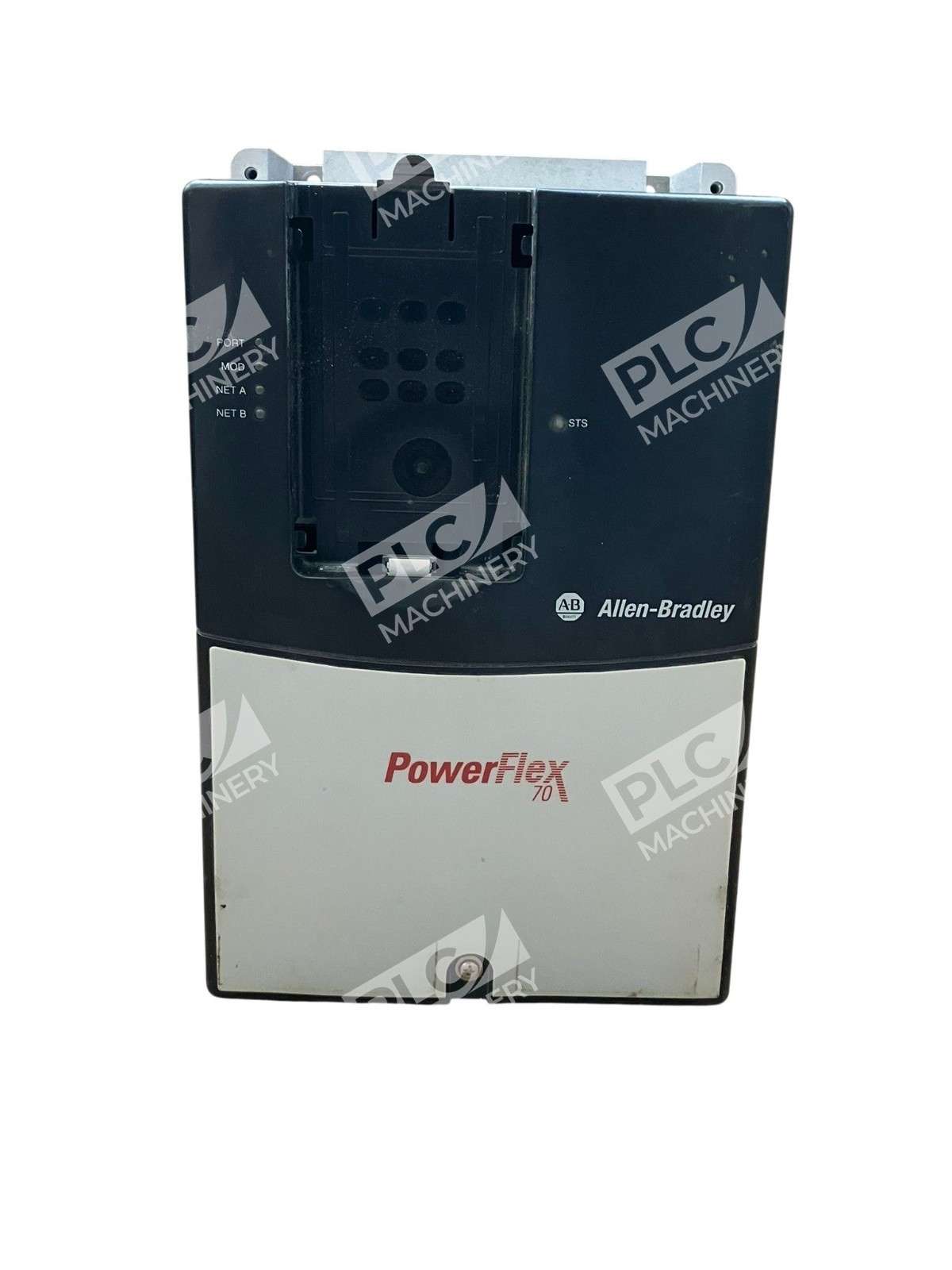

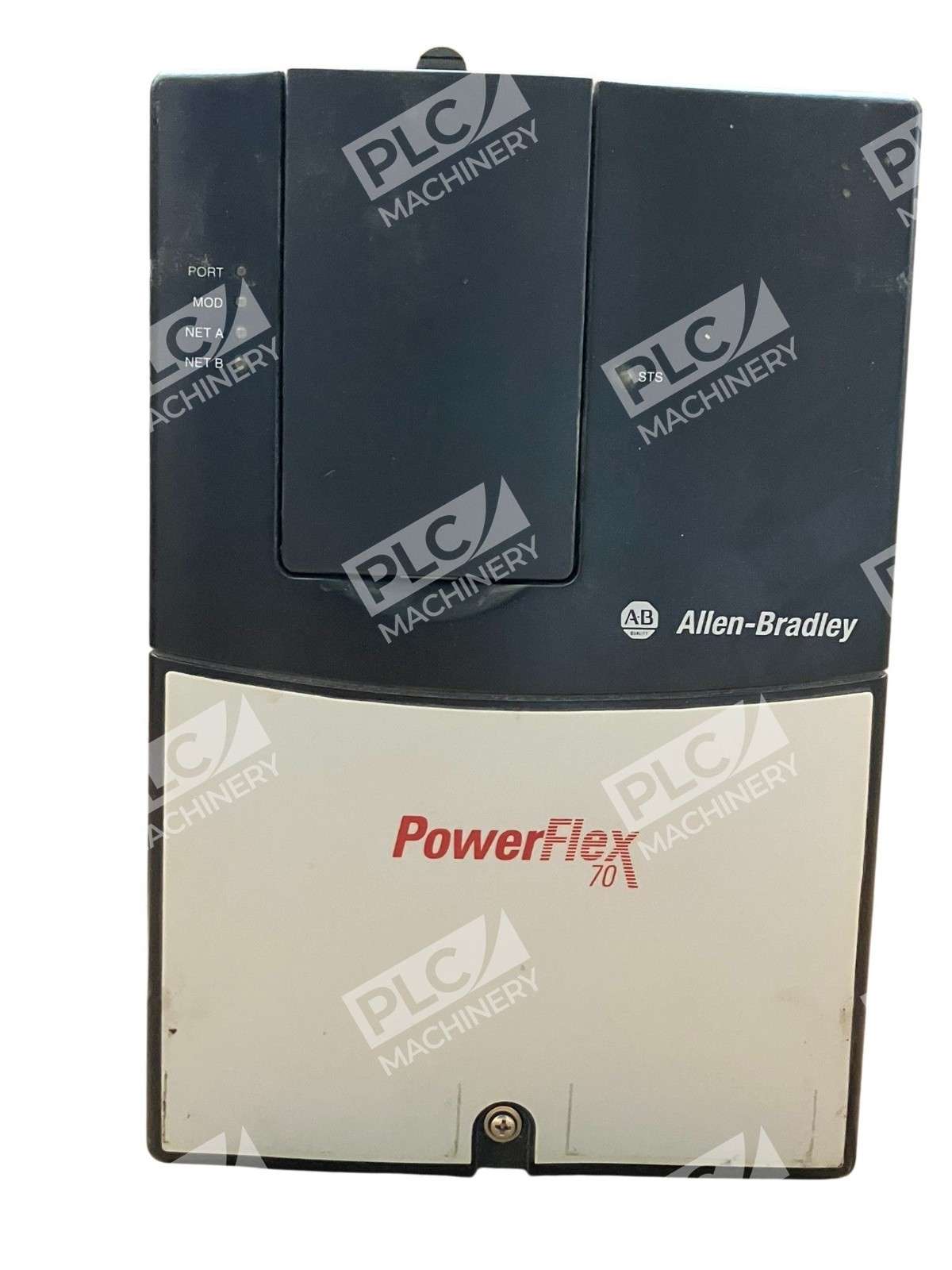

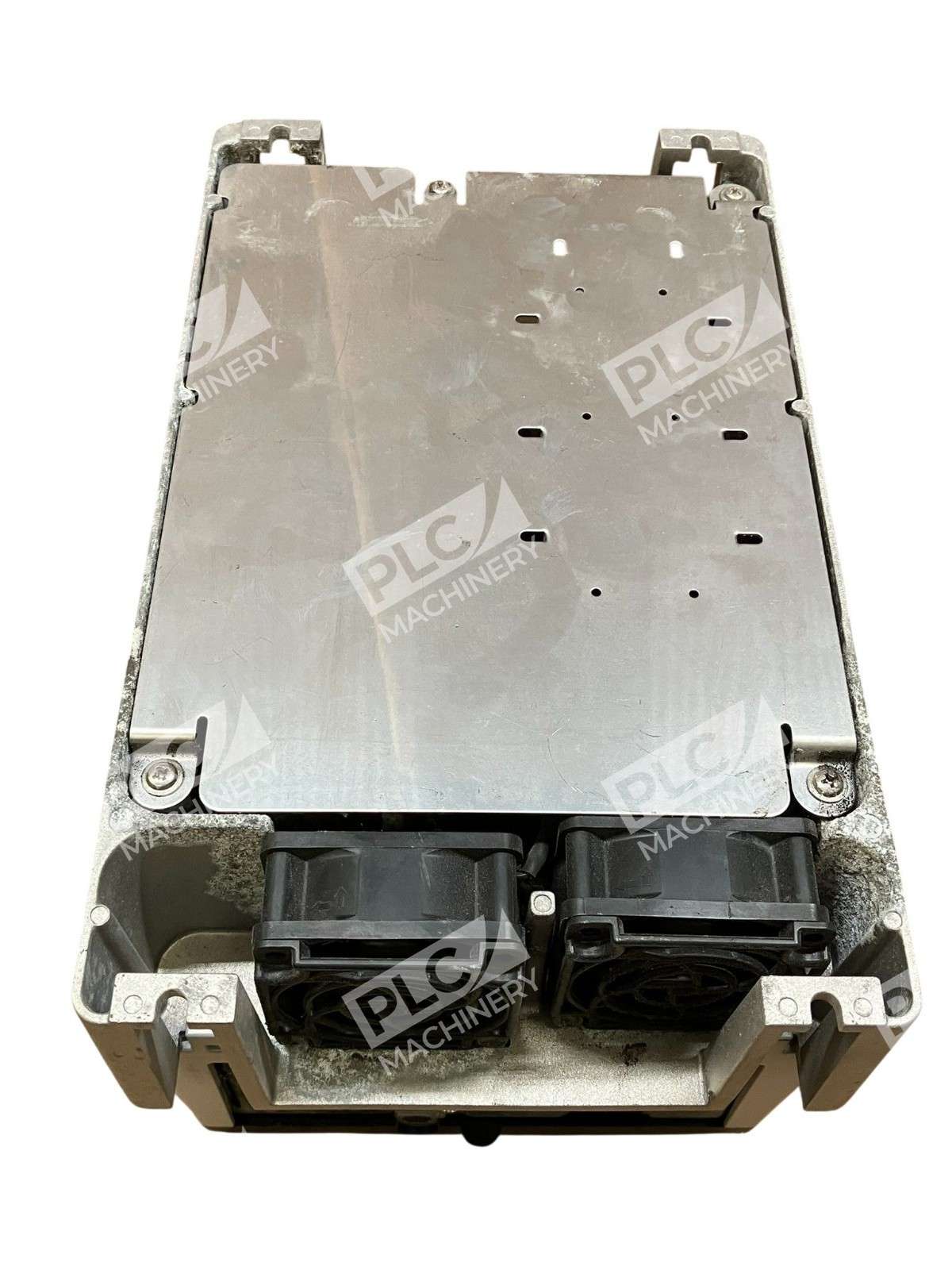

Overview
The Allen-Bradley PowerFlex 70 20AE011A0AYNNNCO is a compact 600V AC drive designed for reliable speed, torque, and braking control in industrial automation. As part of the PowerFlex 70 series, this microprocessor-controlled VFD delivers flexible programming options and integrated protection features that minimize unplanned downtime while optimizing motor performance across a wide range of applications.
Key Features
- Vector Control with FORCE Technology: Provides outstanding torque regulation and speed control with or without encoder feedback, enabling smooth operation across variable-load applications.
- Sensorless Vector Control: Develops high torque over a wide speed range and adapts automatically to individual motor characteristics without requiring external feedback devices.
- IGBT Braking System: Integrated transistor-based dynamic braking reduces external component requirements and improves reliability.
- Fast Current Limiting & Bus Voltage Regulation: Prevents nuisance trips during motor acceleration and deceleration, supporting maximum application throughput.
- Inertia Ride-Through: Maintains smooth operation during brief power interruptions (up to 15 milliseconds) by leveraging stored rotational energy from high-inertia loads.
- EtherNet/IP Communication: Integrated networking capability supports seamless integration with supervisory control systems and PLC platforms.
Technical Specifications

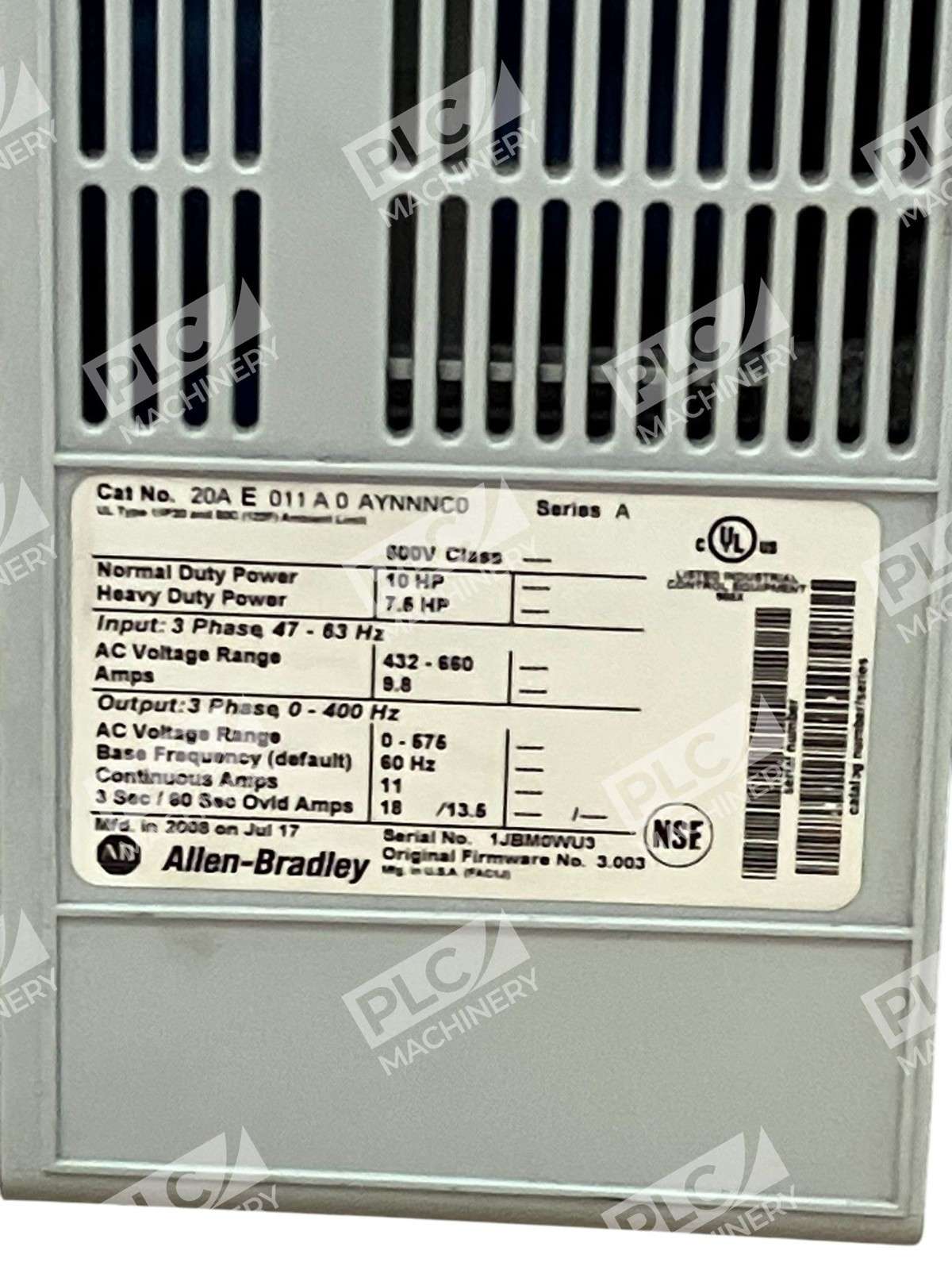

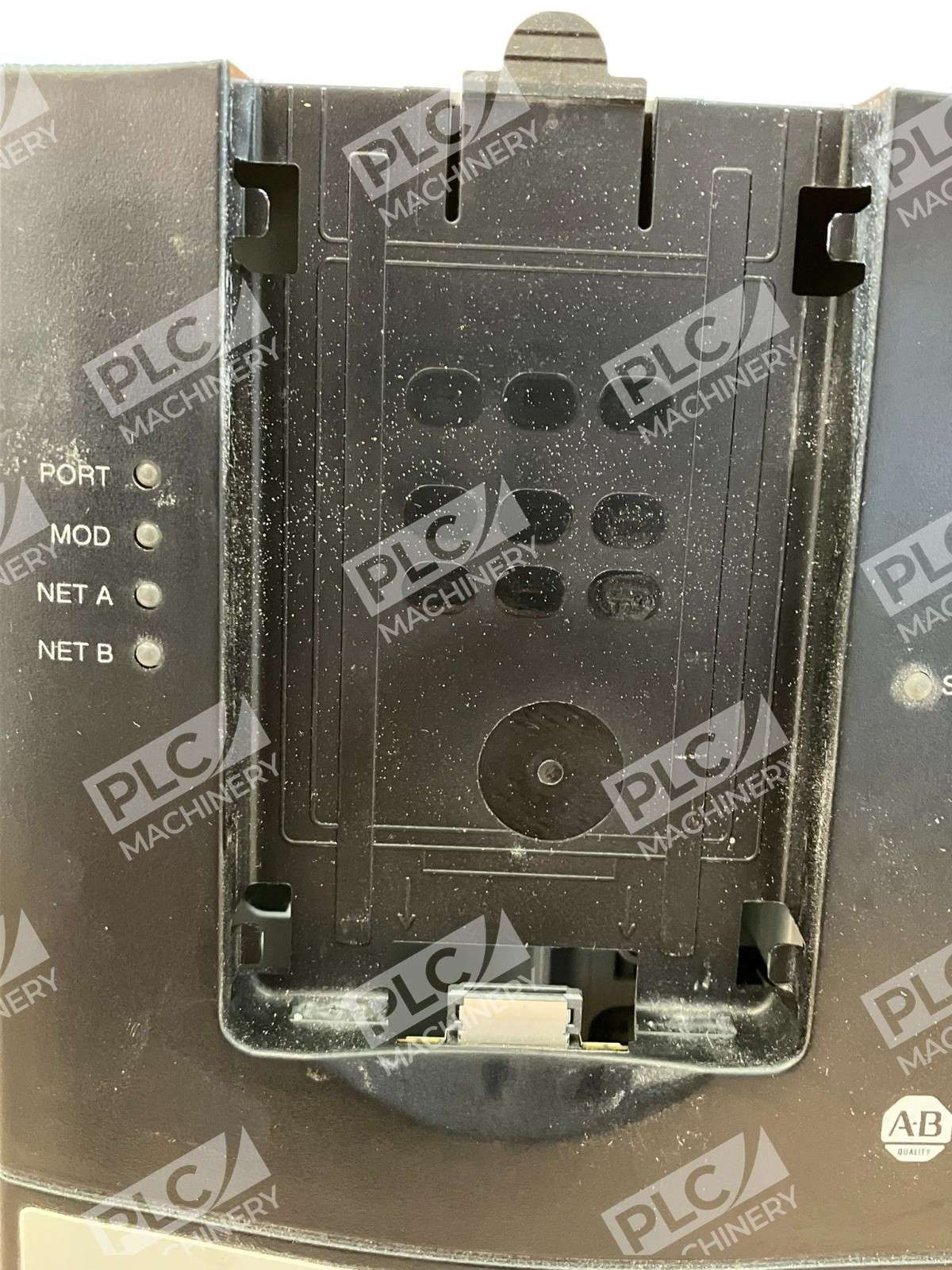

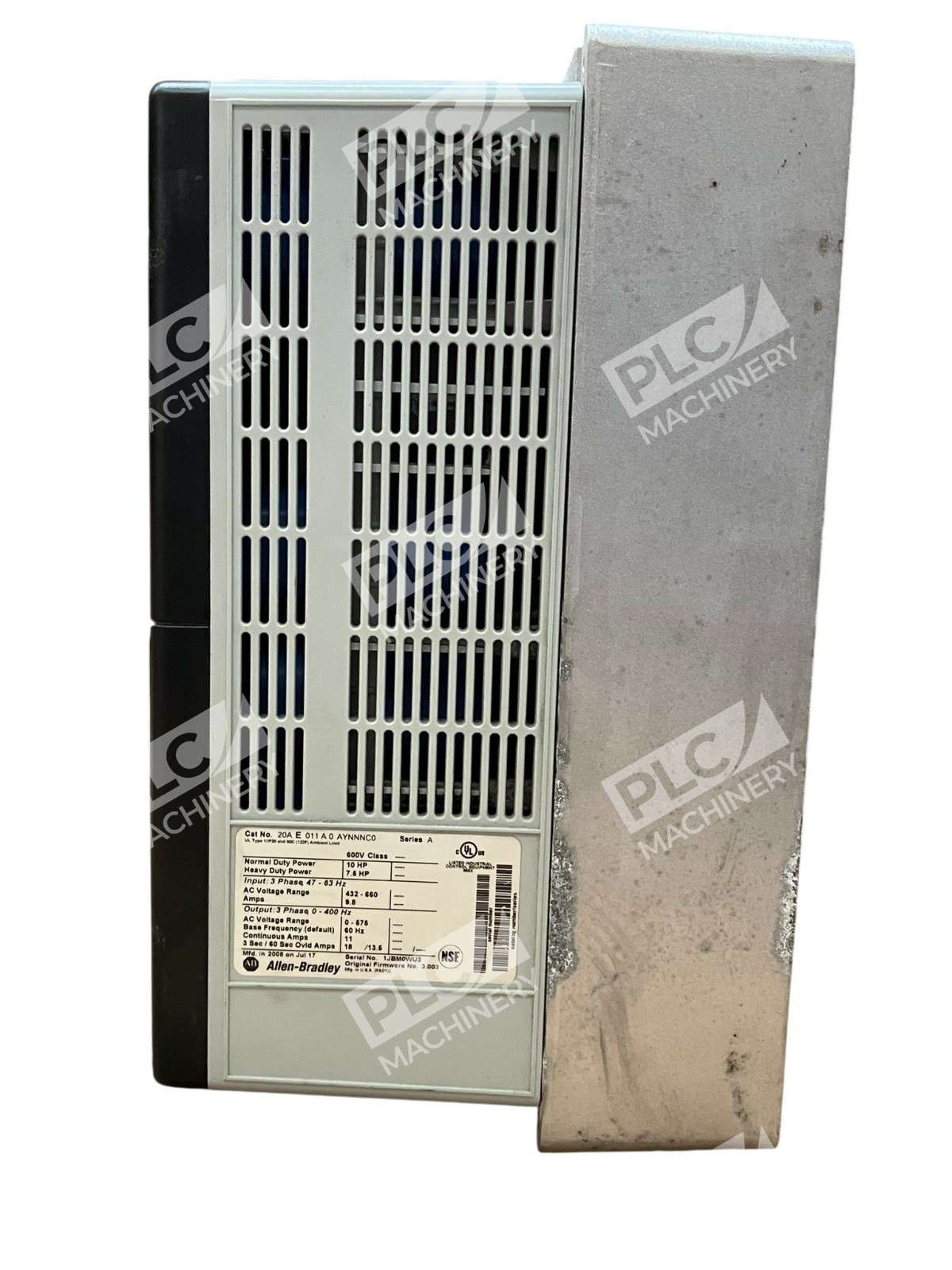

The 20AE011A0AYNNNCO operates on 500–600V AC 3-phase input with 11A continuous output current and delivers 10 horsepower (normal duty) or 7.5 horsepower (heavy-duty) output. Class 10 electronic motor overload protection provides 110% capacity for 60 seconds and 150% for 3 seconds under normal duty, extending to 150% for 60 seconds and 200% for 3 seconds under heavy-duty operation. The drive employs sinusoidal PWM control at 4 kHz modulation frequency with 0 to 400 Hz configurable output range. Operating efficiency reaches 97.5% with 0.98 displacement power factor. Standard features include a blank cover (no HIM), internal N-filter, dual analog inputs, single analog output, PTC input, two relay outputs, six digital outputs, and NEMA Type 1 IP20 panel-mount enclosure rated for 0–50°C ambient operation.
Typical Applications
The PowerFlex 70 frame-C VFD suits centrifugal fan control, positive displacement pump regulation, conveyor systems, and general industrial motor applications requiring smooth acceleration, variable-load torque control, and compact panel integration. Its rated overload capability and regenerative braking support both constant-torque and variable-torque loads. Enhanced vector control makes it suitable for applications demanding precision speed holding and rapid torque response.
Compatibility & Replacements
The 20AE011A0AYNNNCO integrates seamlessly with PowerFlex HIM (human interface modules) for local parameter adjustment and displays. Optional communication modules enable ControlNet, DeviceNet, and EtherNet/IP connectivity. Compatible with Rockwell Automation DriveTools and DriveExplorer software for programming, commissioning, and remote monitoring. For 400V 3-phase applications, equivalent 400V models in the PowerFlex 70 series are available. Confirm voltage, amperage, and frame-size requirements before ordering replacement units.
