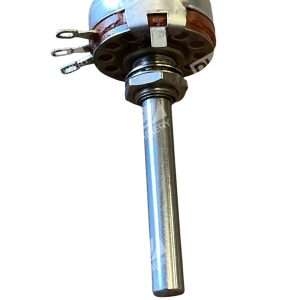

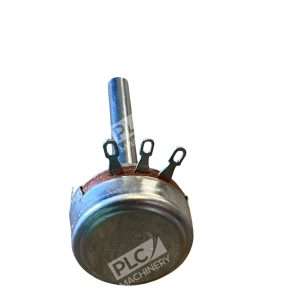

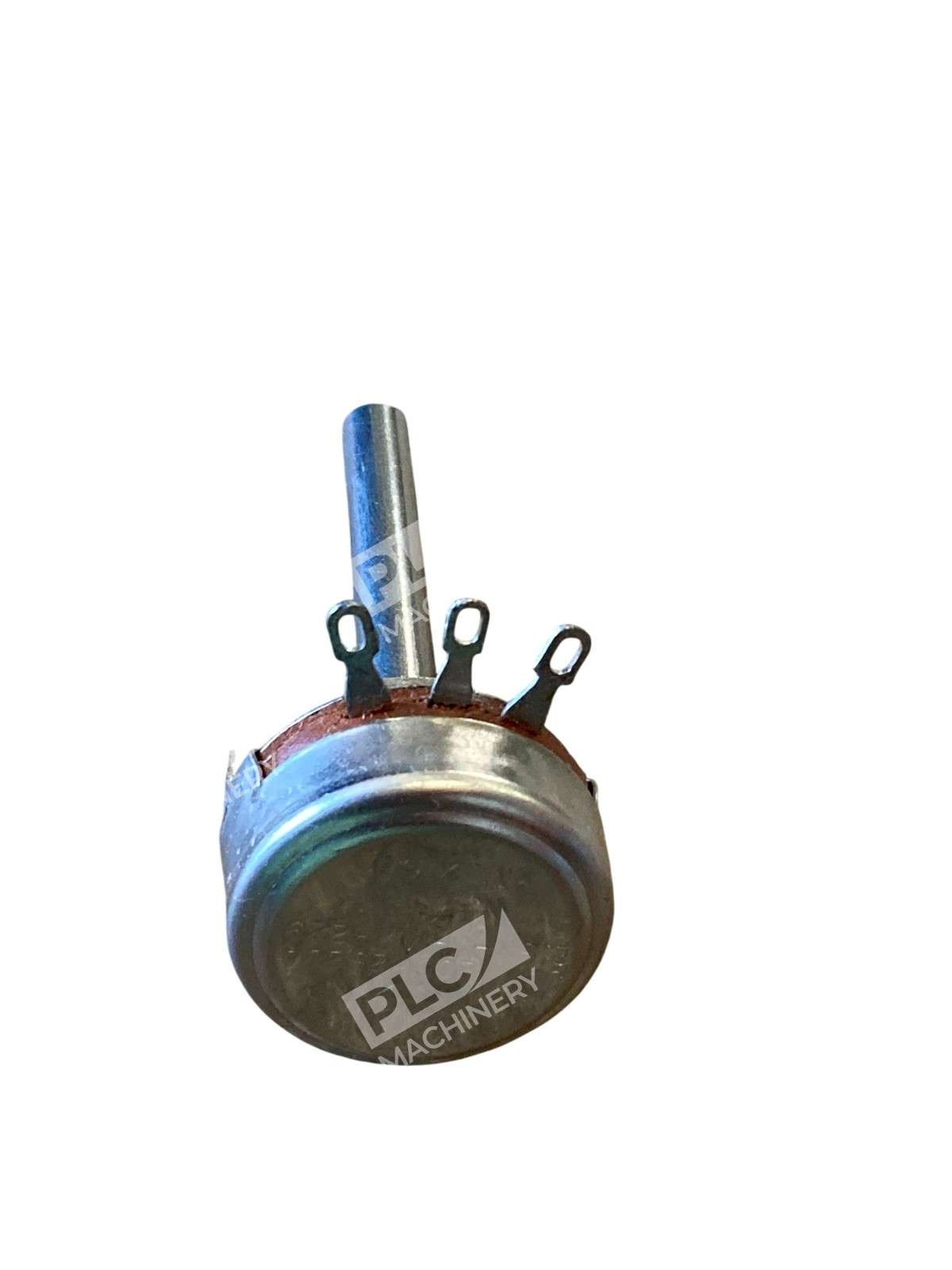

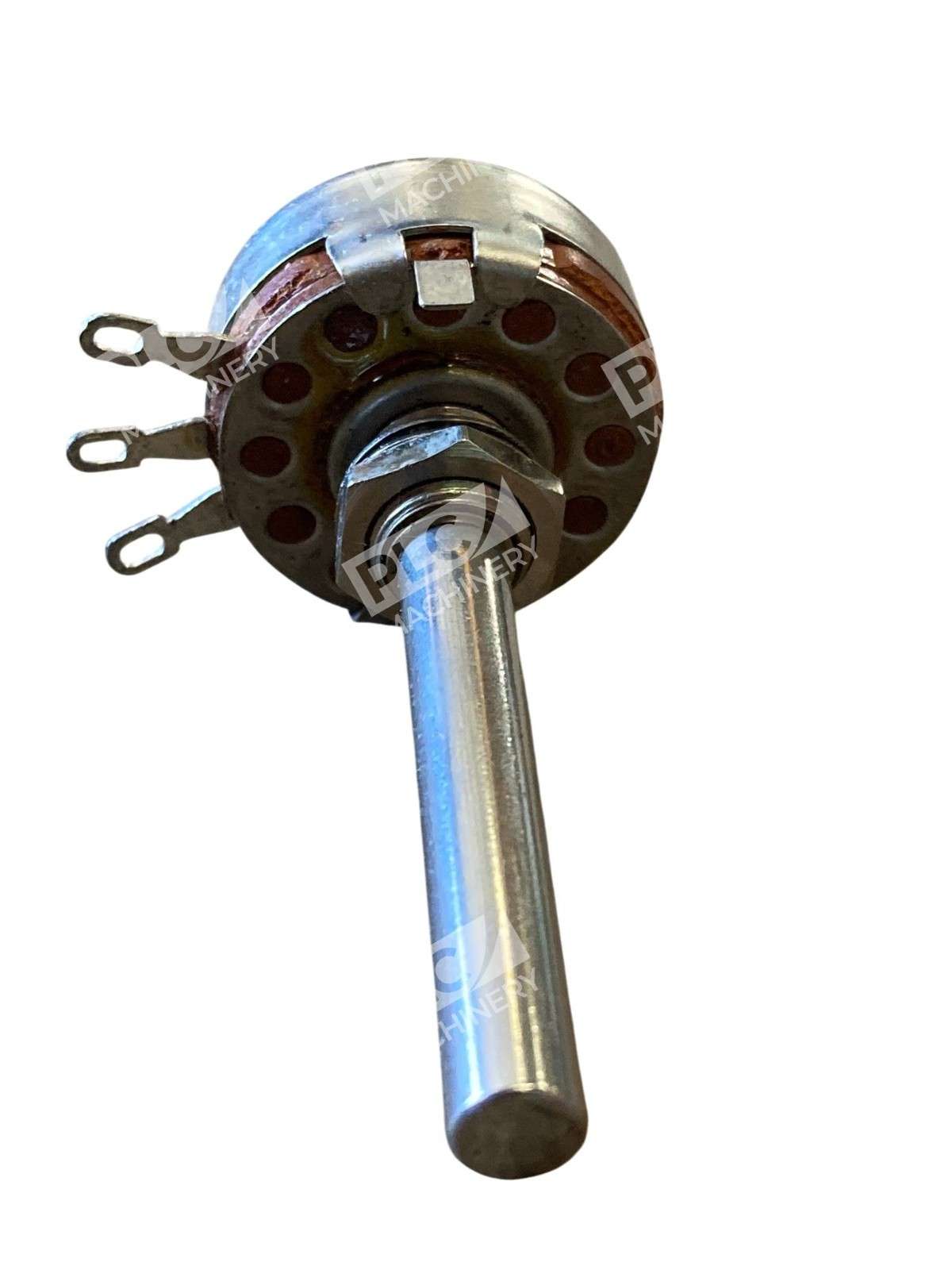

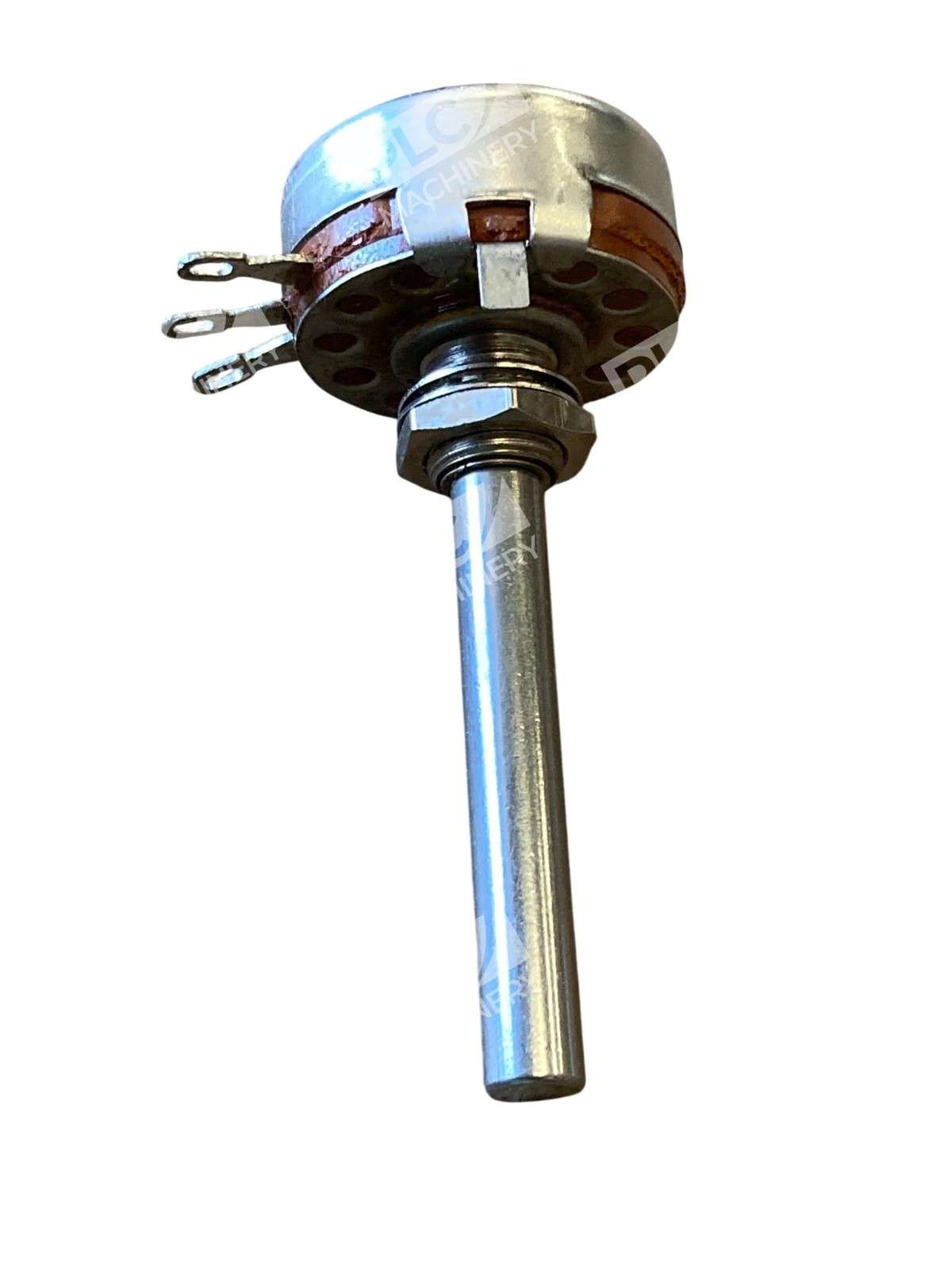

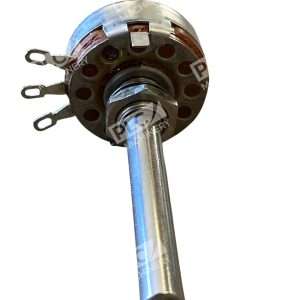

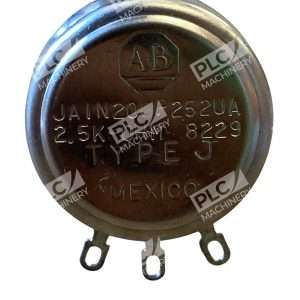

Allen-Bradley JA1N200P252UA Potentiometer
The Allen-Bradley JA1N200P252UA is a high-quality rotary potentiometer designed for precise resistance control in various electronic applications. This component is part of Allen-Bradley’s esteemed Type J series, known for its durability and reliable performance.
Key Features
- Resistance Value: 2.5 kΩ
- Power Rating: 2 Watts
- Resistance Tolerance: ±10%
- Taper: Linear
- Operating Temperature Range: -55°C to +120°C
- Mounting Type: Panel Bushing Mount
- Shaft Dimensions: 1/4″ diameter x 1-1/2″ length
- Termination Style: Solder
Design and Construction
Constructed with a carbon composition element, the JA1N200P252UA ensures smooth and consistent performance. Its linear taper provides uniform resistance change, making it suitable for applications requiring precise adjustments. The potentiometer features a single-turn operation and a round shaft style, facilitating easy integration into various electronic systems.
Applications
This potentiometer is ideal for use in industrial controls, audio equipment, and other electronic devices where reliable variable resistance is essential. Its robust design and wide operating temperature range make it suitable for demanding environments.
Additional Information
The JA1N200P252UA potentiometer comes with a nut and washer for secure mounting. Its compact size, with a diameter of 1.1 inches and a length of 1.2 inches, allows for easy installation in space-constrained applications.
For engineers and designers seeking a dependable and precise potentiometer, the Allen-Bradley JA1N200P252UA offers a combination of quality construction and reliable performance, making it a valuable component in various electronic circuits.
