Allen Bradley Ethernet/IP 10/100 Mb/s Communications Bridge 1756-ENBT /A

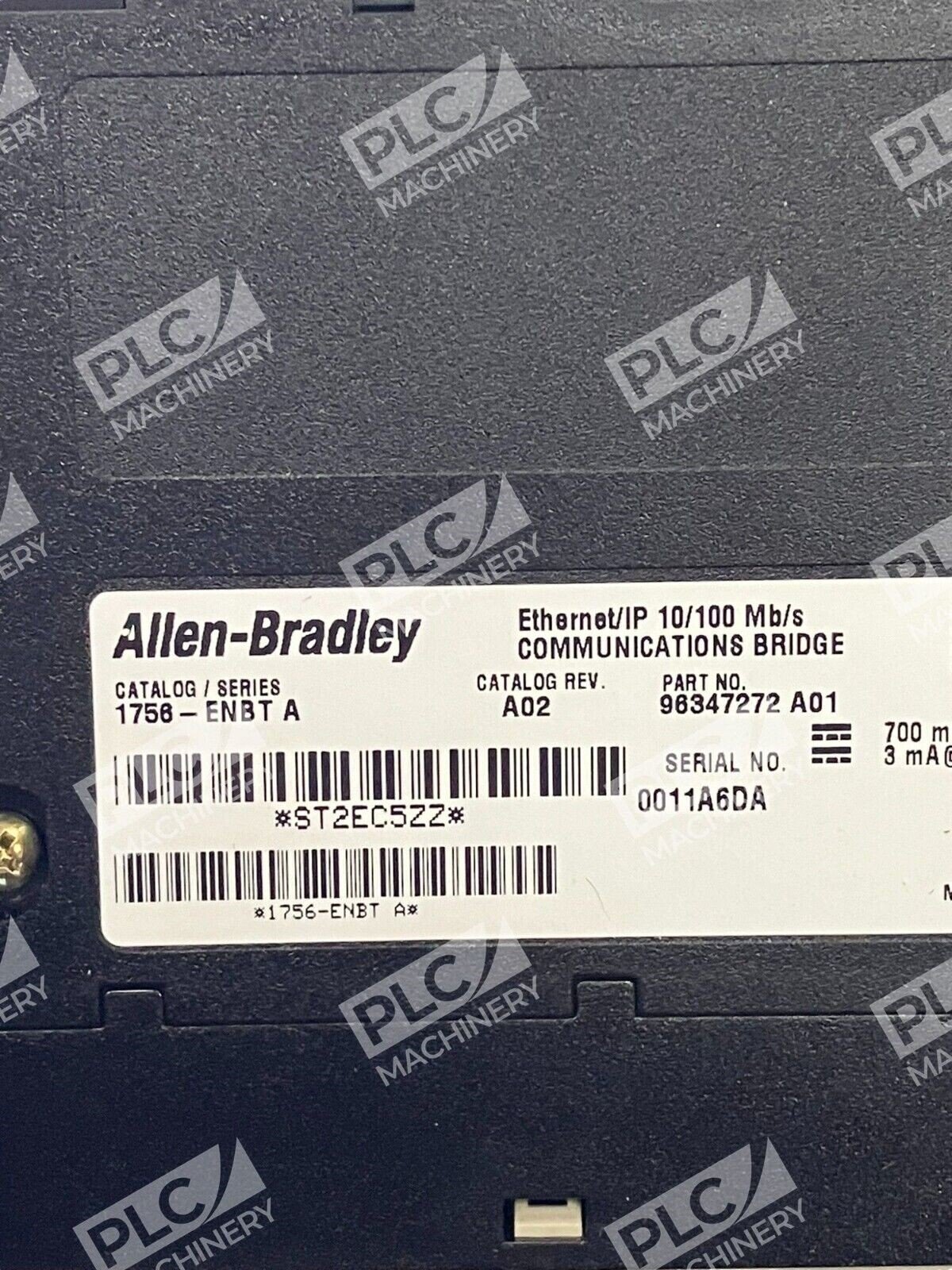

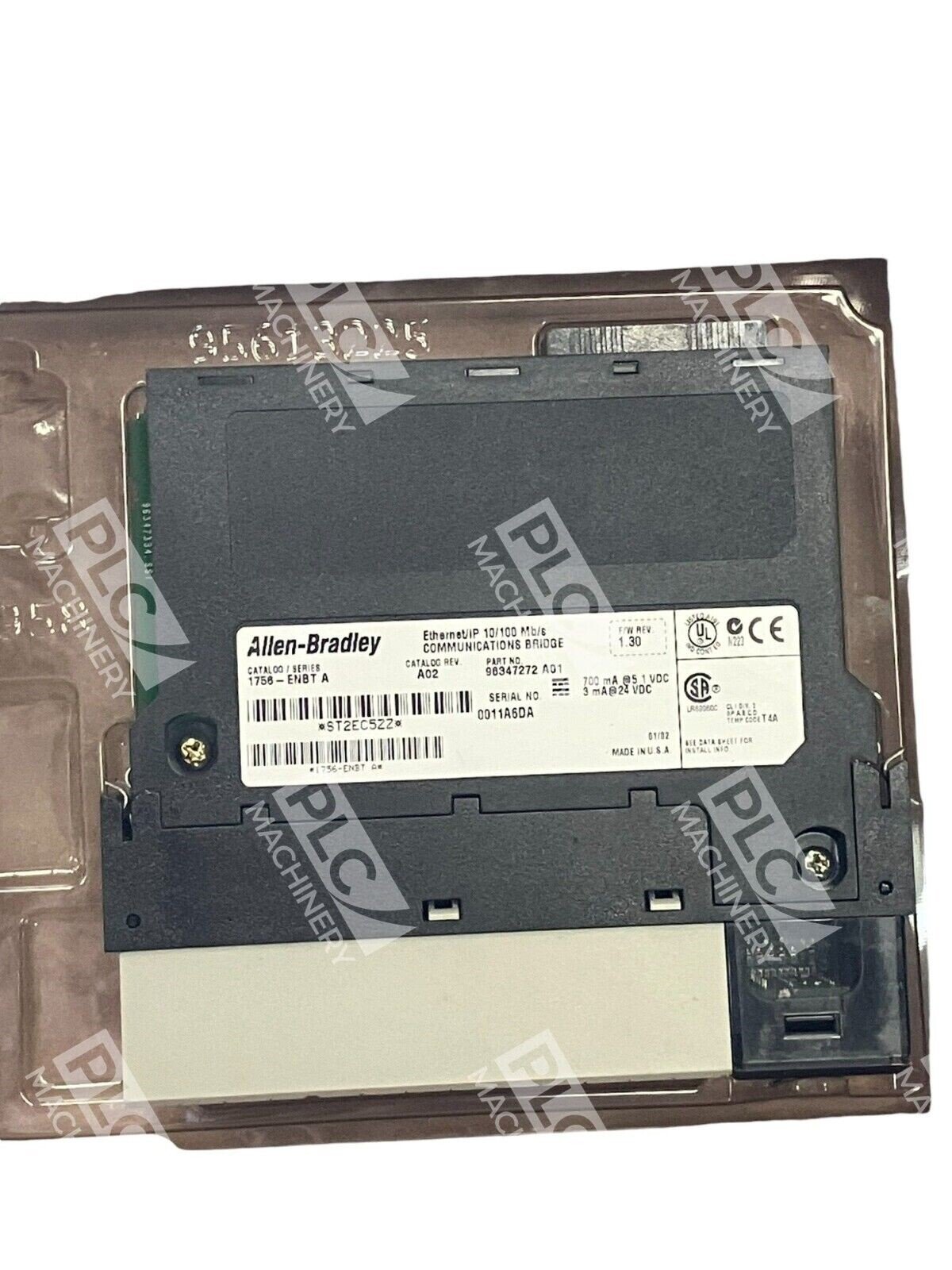

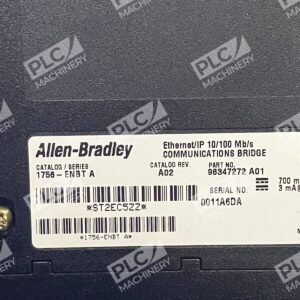

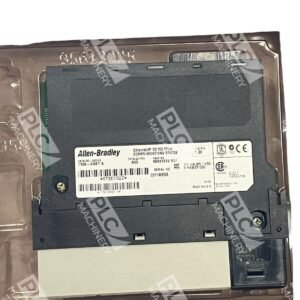

Allen-Bradley 1756-ENBT/A Ethernet/IP Communication Bridge Module

The Allen-Bradley 1756-ENBT/A is an Ethernet/IP communication bridge module designed for seamless integration within ControlLogix systems. It facilitates high-speed data exchange between controllers and Ethernet-enabled devices, enhancing system performance and connectivity.

Key Features

• Communication Protocol: EtherNet/IP
• Communication Rate: 10/100 Mbps with auto-negotiation
• Ethernet Port: Single RJ45 Category 5
• Maximum Connections: Supports up to 64 TCP/IP and 128 Common Industrial Protocol (CIP) connections
• Power Dissipation: 3.7 W
• Thermal Dissipation: 12.6 BTU/hr
• Current Draw: 700 mA at 5.1V DC; 3 mA at 24V DC
• Isolation Voltage: 30V (continuous), basic insulation type
• Enclosure Type: Open-style (no enclosure)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Shock Resistance: Operating: 30 g; Non-operating: 50 g
• Vibration Resistance: 2 g at 10–500 Hz
• Certifications: UL, CE, CSA, C-Tick, FM, KC (KCC)
• Programming Software Compatibility: RSLogix 5000 and Studio 5000 Logix Designer
• Mounting: Chassis-based installation in any slot of a ControlLogix chassis

Additional Information

The 1756-ENBT/A module is equipped with diagnostic indicators that simplify troubleshooting by providing clear status information. It is backward-compatible, allowing for the replacement of 1756-ENET modules without the need to modify existing programs. The module can function as a bridge to a ControlLogix processor when installed in a local chassis or as a Remote I/O Adapter in a remote chassis, enabling remote control and data collection. Additionally, it is web-enabled, allowing users to access module, connection, and network information remotely via a standard web browser.

For optimal performance, ensure the use of 802.3 compliant shielded or unshielded twisted pair Ethernet cables. The module’s open-style enclosure requires installation in a suitable environment to maintain specified operating conditions.
