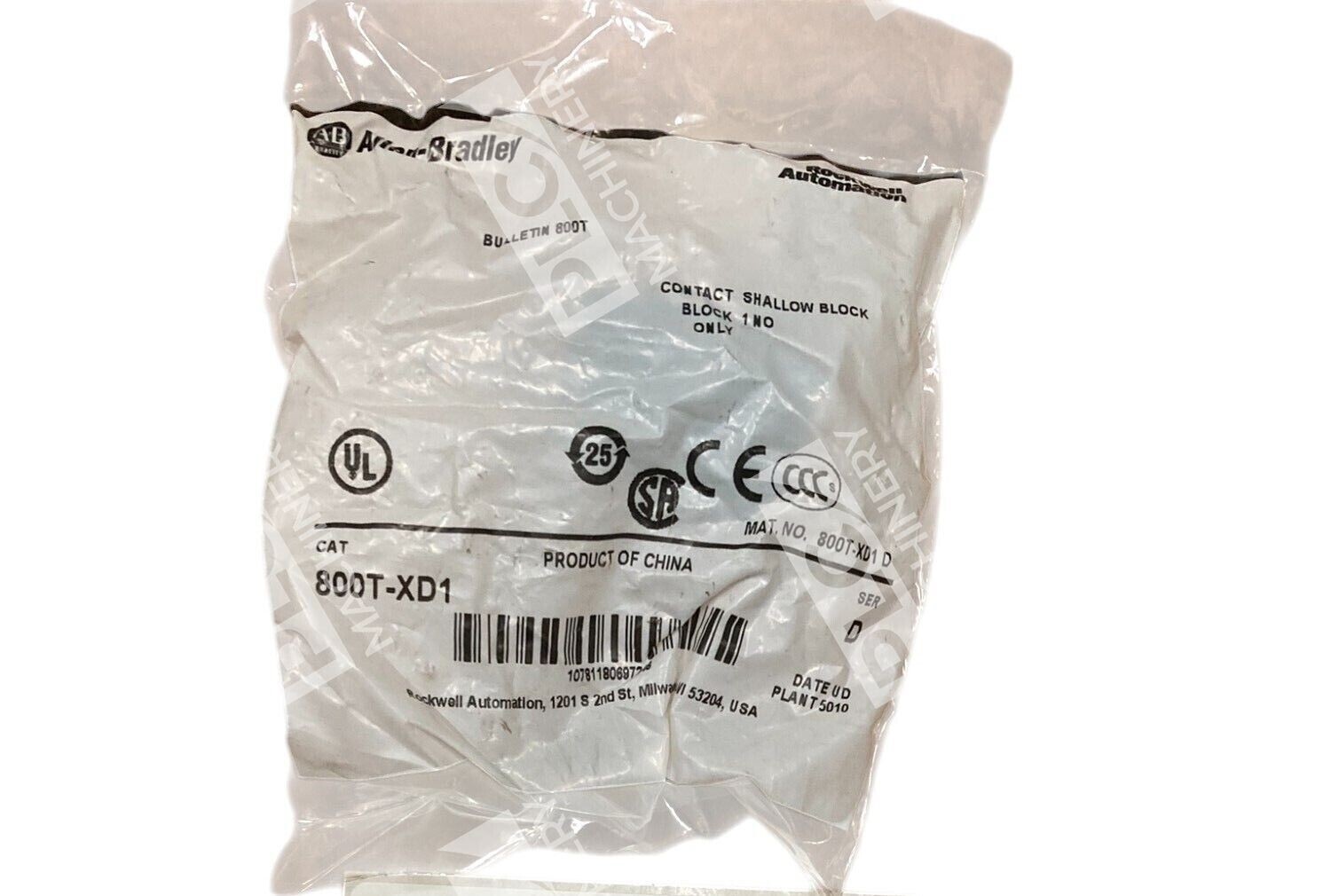

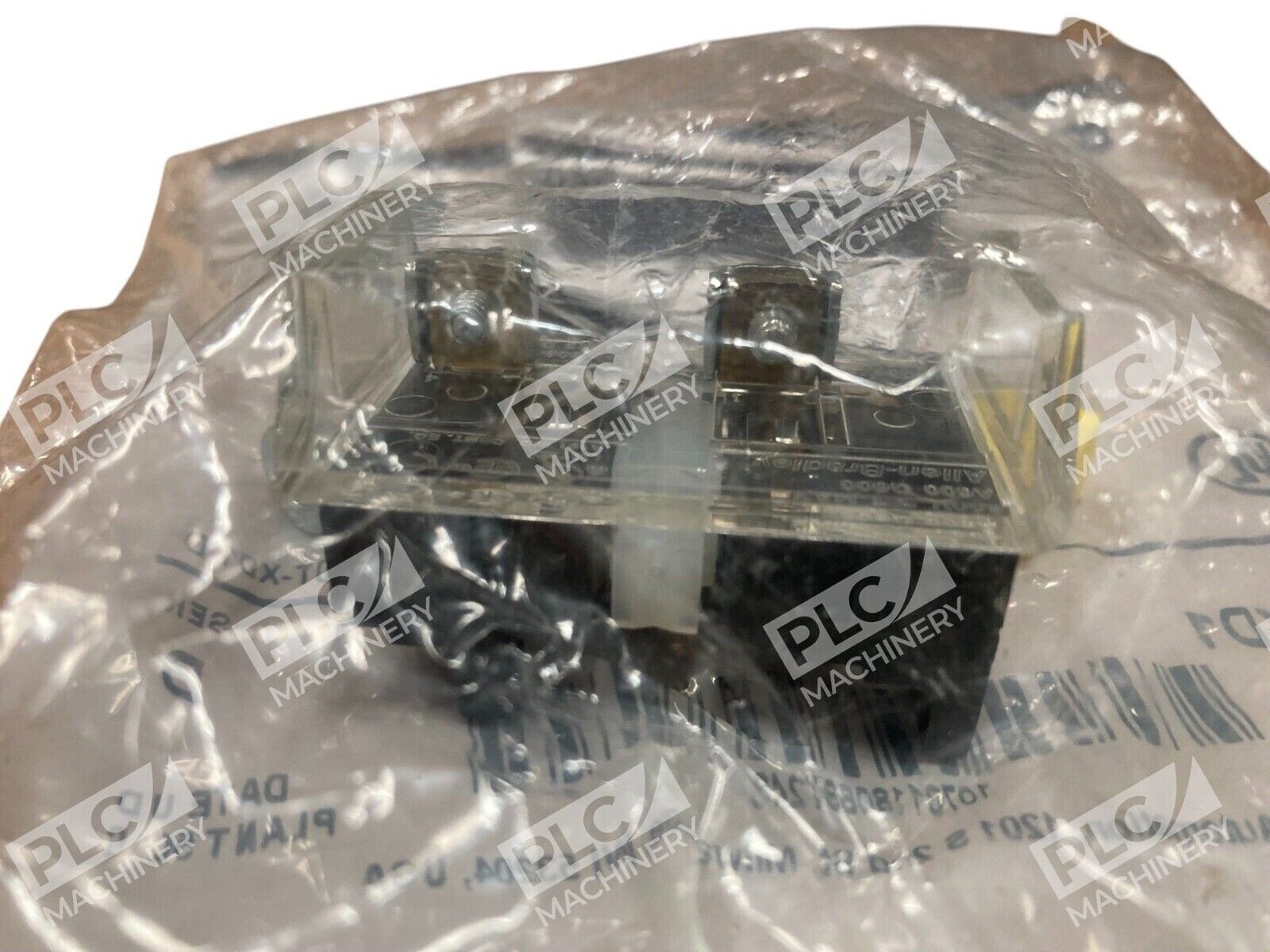

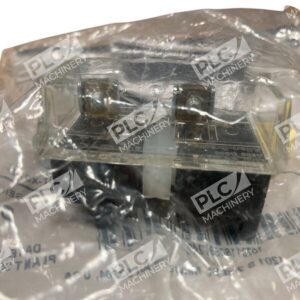

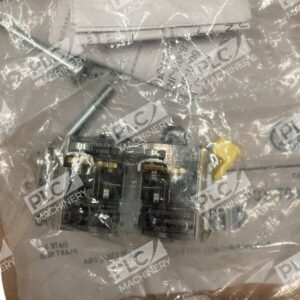

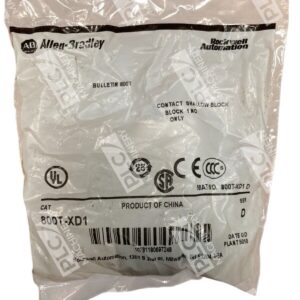

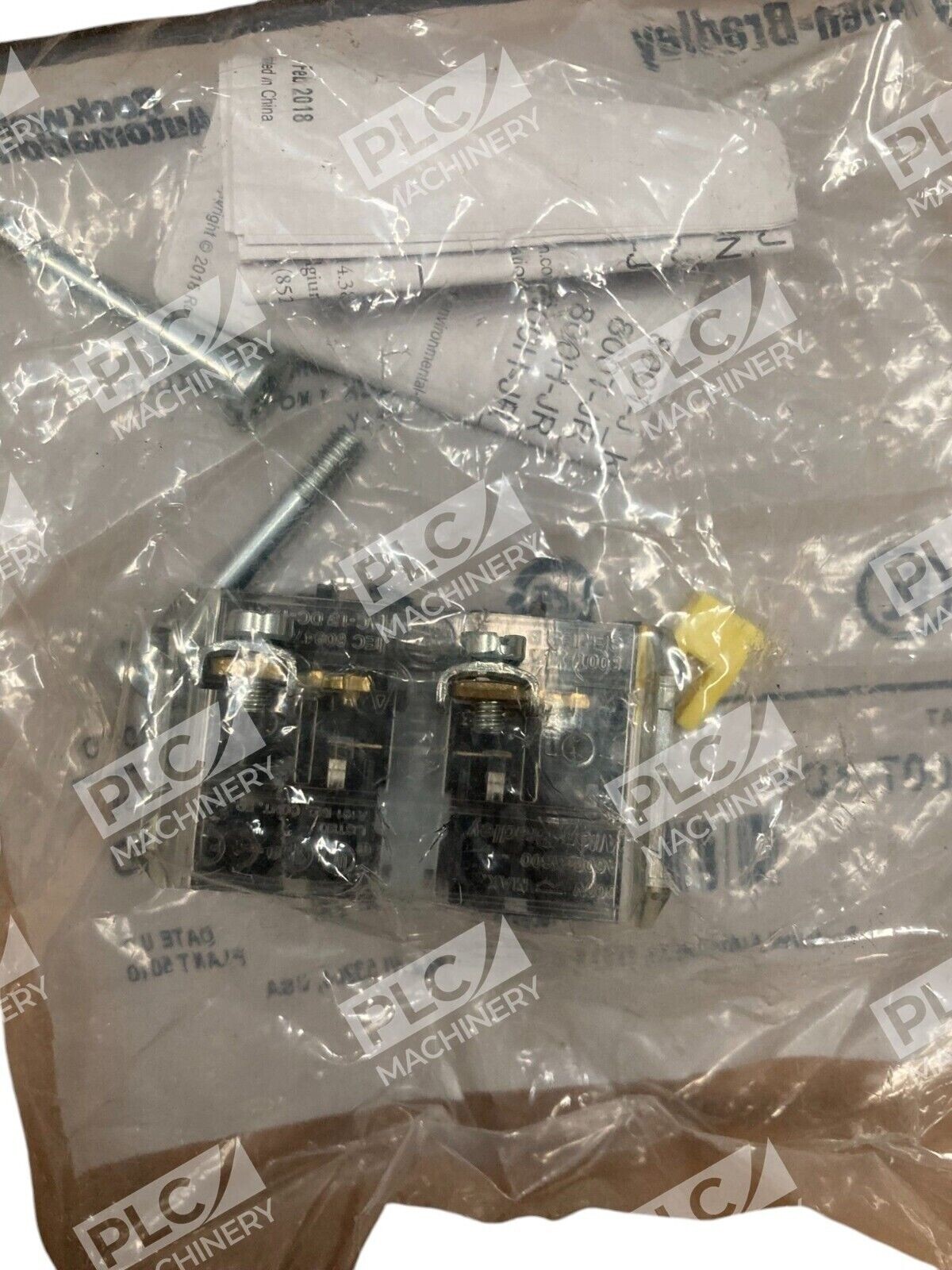

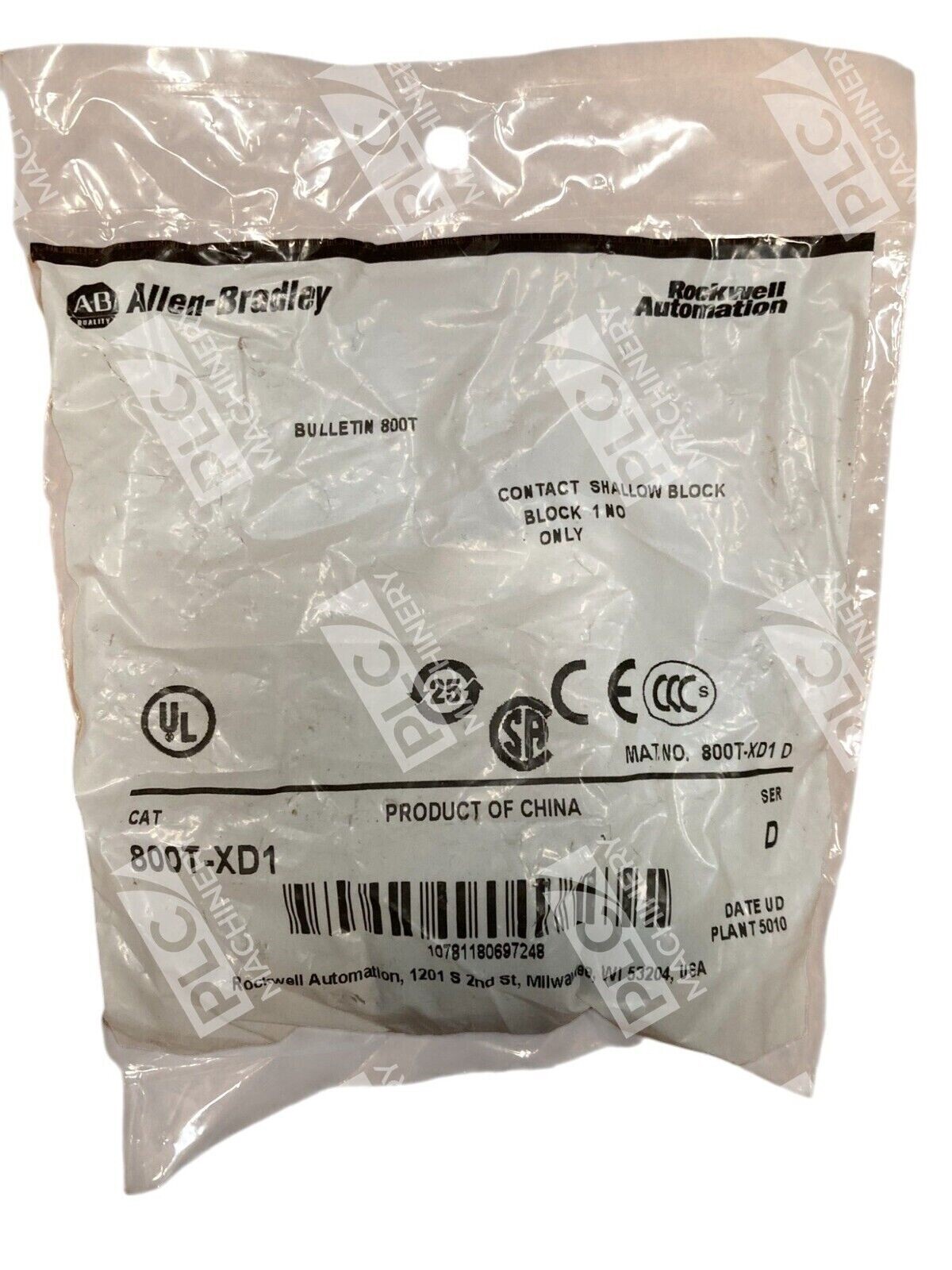

Allen-Bradley 800T-XD1 /D Shallow Contact Block
The Allen-Bradley 800T-XD1 /D is a shallow contact block designed for use with 30mm push button devices. This component features a single normally open (1 NO) contact configuration, making it suitable for various industrial control applications.
Key Features
- Contact Configuration: 1 Normally Open (1 NO)
- Voltage Rating: Up to 600V AC/DC
- Mounting Type: Base mount with screw attachment
- Material: Non-metallic construction
- Compatibility: Designed for 30mm push button devices
- Certifications: UL Listed, CSA Certified, CE Marked
Specifications
- Thermal Current Rating: 10 A
- Utilization Category (AC): A600, AC-15
- Utilization Category (DC): Q600, DC-13
- Electrical Design Life: 1,000,000 cycles at maximum load
- Operating Temperature Range: -25°C to +50°C
- Shock Resistance: 25 G (contact fragility), 100 G (no damage)
- Vibration Resistance: 10 G maximum
Applications
The 800T-XD1 /D contact block is ideal for integration into industrial control systems requiring reliable and durable push button interfaces. Its shallow design allows for installation in space-constrained environments without compromising performance.
For detailed technical information and installation guidelines, please refer to the product’s technical documentation.
