Overview

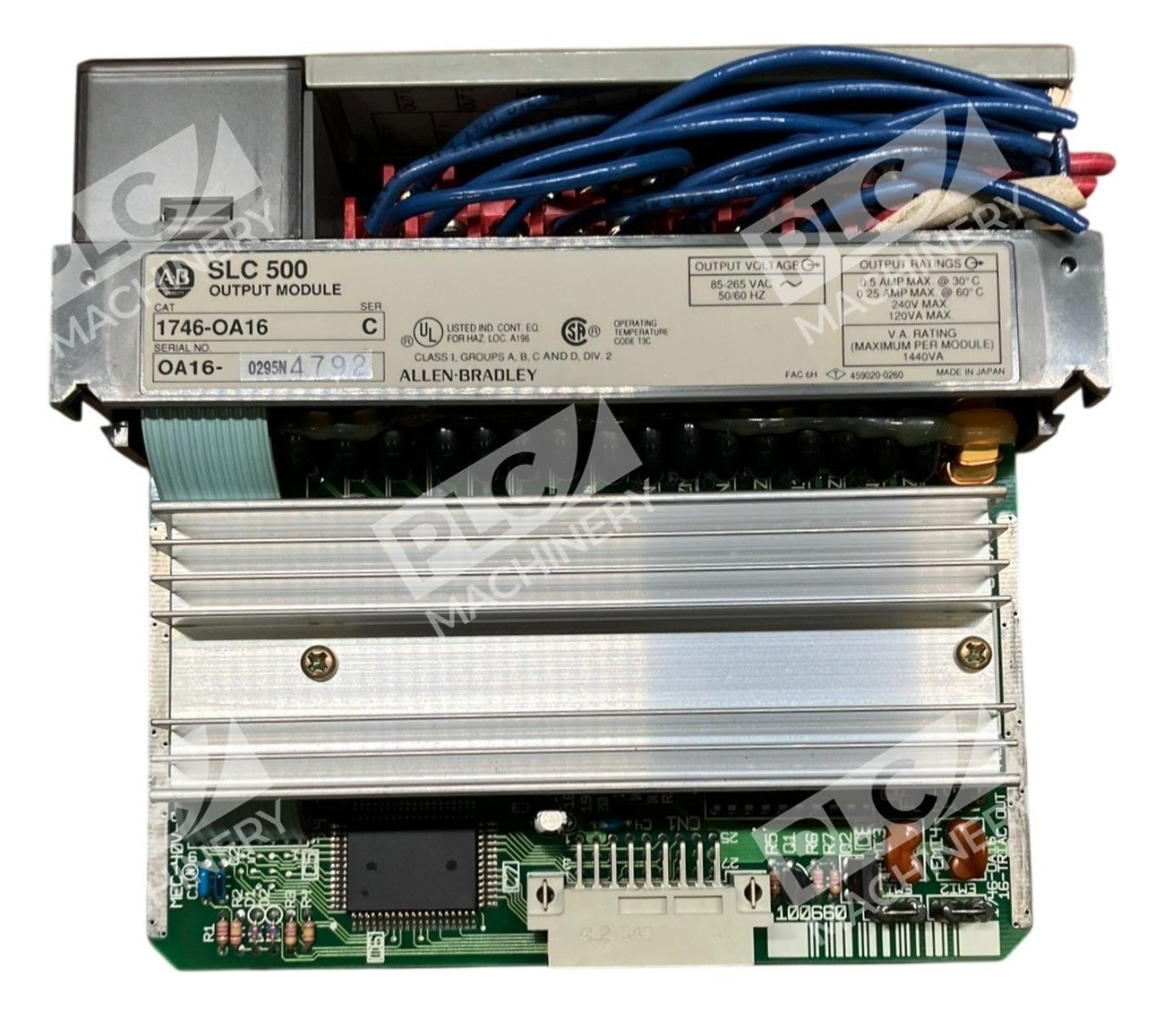

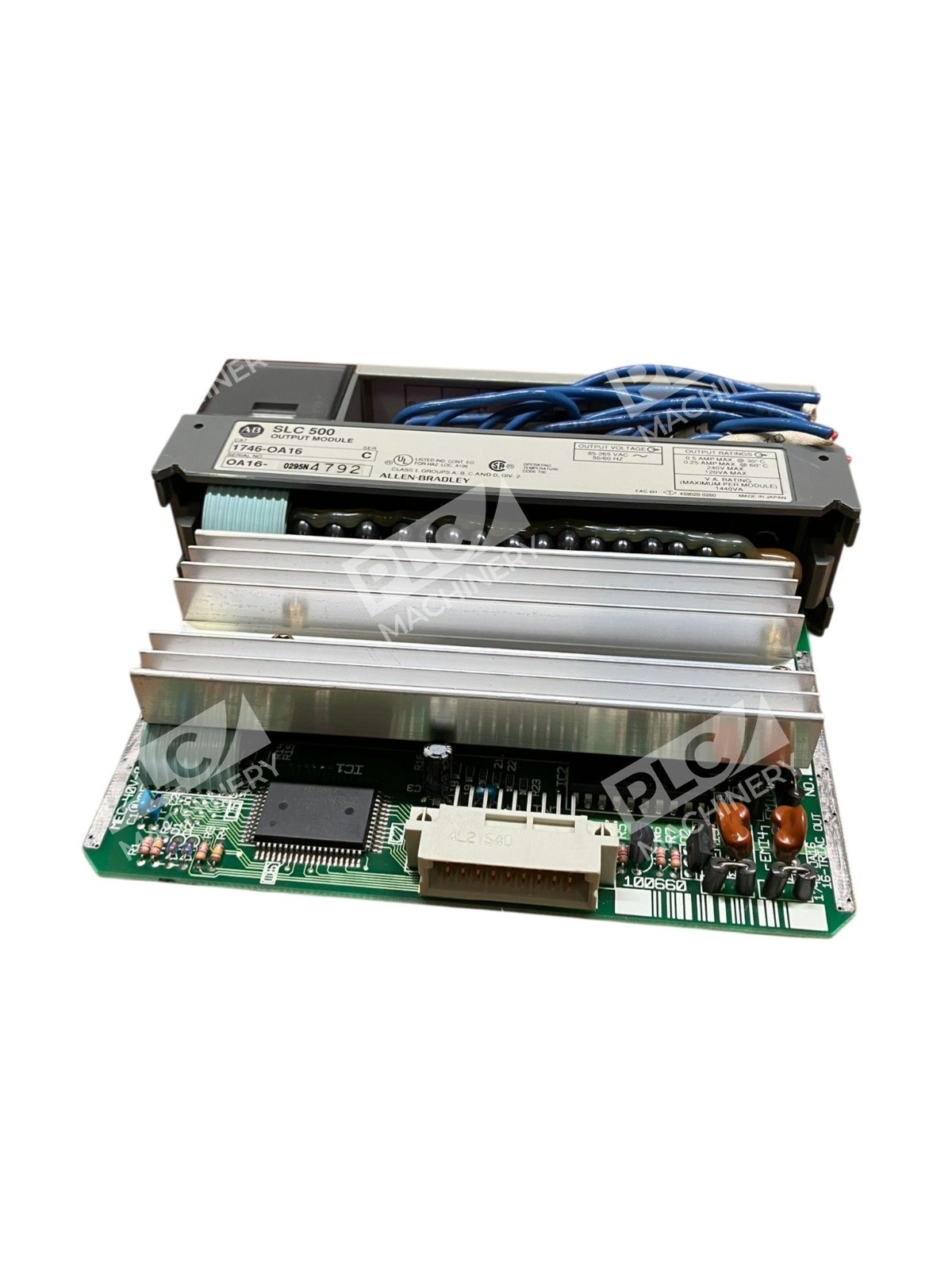

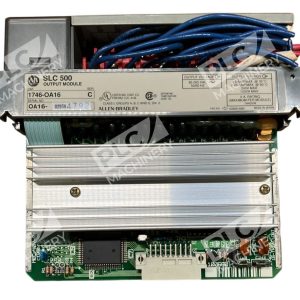

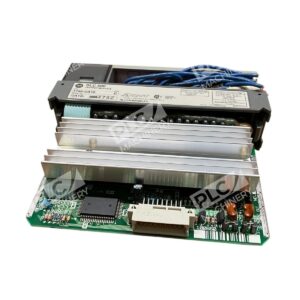

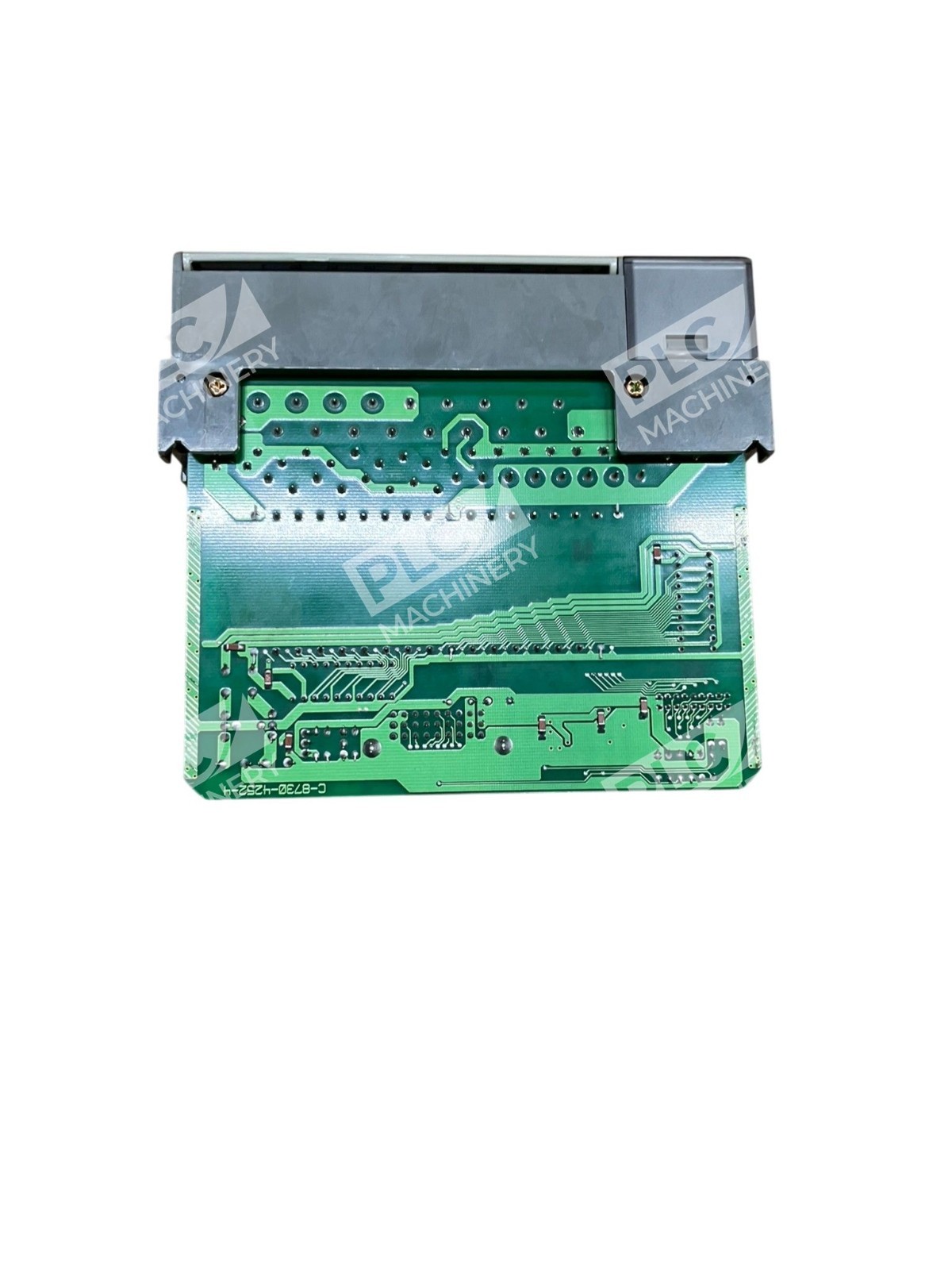

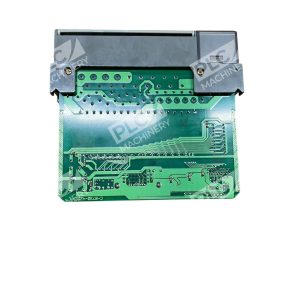

The Allen-Bradley 1746-OA16 is a discrete AC output module designed for the SLC 500 family of programmable logic controllers. This 16-point module provides general-purpose 120/240V AC outputs with an operating voltage range of 85-265V AC at 47-63 Hz. The module features removable terminal blocks and optical coupling for simplified installation and enhanced noise immunity.
Key Features
- 16 Digital AC Outputs: Sixteen (16) AC output channels in Two (2) groups of Eight (8) outputs each
- Removable Terminal Blocks: Eliminates the need to disconnect wires when replacing any of the modules

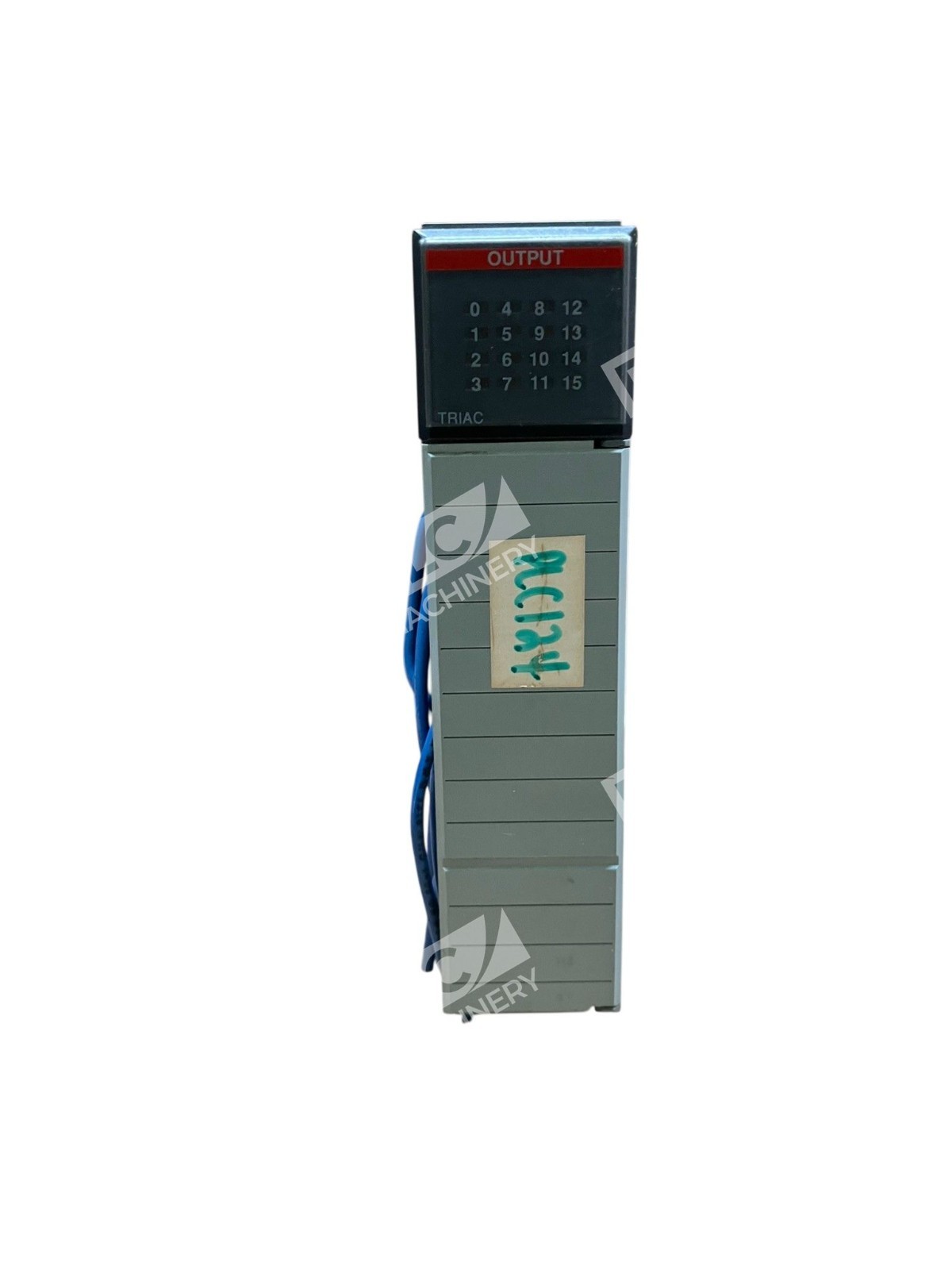

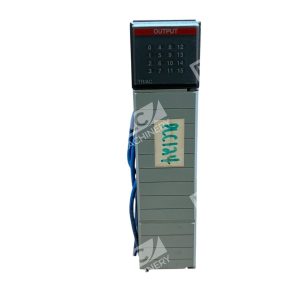

- LED Status Indicators: LED indicators that show output status values
- Filter Circuitry: Filter circuitry and optical coupling for signal noise reduction
- Rack-Mount Design: Single-slot chassis mounting with screw clamp terminals
- Compatible with SLC 500: May be installed as a local and remote I/O module of any SLC500 Programmable Logic Controllers (PLC) processor or CompactLogix and ControlLogix Programmable Automation Controllers (PAC)
Technical Specifications
- Module Type: Digital AC Output
- Number of Outputs: 16 output channels
- Output Voltage: 120-240VAC nominal voltage output with voltage range of 85-264VAC
- Operating Frequency: 47 to 63 Hertz
- Backplane Current: 0.370 Amps at 5 Volts DC
- Continuous Current Per Output: 0.5 Amps at 30 degrees Celsius and 0.25 Amps at 60 degrees Celsius
- Minimum Load Current: 10mA
- Signal Delay: 1 millisecond for the on-state and 11 milliseconds for the off-state
- OFF-State Leakage Current: 2 milliamps maximum
- Operating Temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
- Humidity: 5 to 95% noncondensing relative humidity
- Terminal Style: Screw Clamp Terminals
- Mounting Style: Rack Mount (Chassis)
- Weight: 0.60 lbs
- Typical I/O Memory: 16-bit per module
Typical Applications
SLC 500 programmable controllers provide excellent value with extensive capabilities to address a broad range of applications including material handling, HVAC control, high speed assembly operations, small process control, simple motion control, and SCADA. The 1746-OA16 is commonly used in relay output replacement, solenoid control, pump/motor starter circuits, alarm and indicator lamp control, and industrial process automation systems.
Compatibility & Replacements
Compatible With
- SLC 500 Fixed and Modular Processors
- Allen-Bradley CompactLogix PAC
- Allen-Bradley ControlLogix PAC
- SLC 500 Backplane Chassis (single-slot mounting)
- Ladder Logic programming via RSLogix 500
Replaces / Drop-In Replacement For
- 1746-OA16E, 1746-OA16D, 1746OA16A, 1746OA16B, 1746OA16F (series variations of the same module)
Works With
- RSLogix 500 programming software
- SLC 500 platform
- Allen-Bradley I/O chassis and backplane
- Standard screw-terminal wiring practices
