Overview

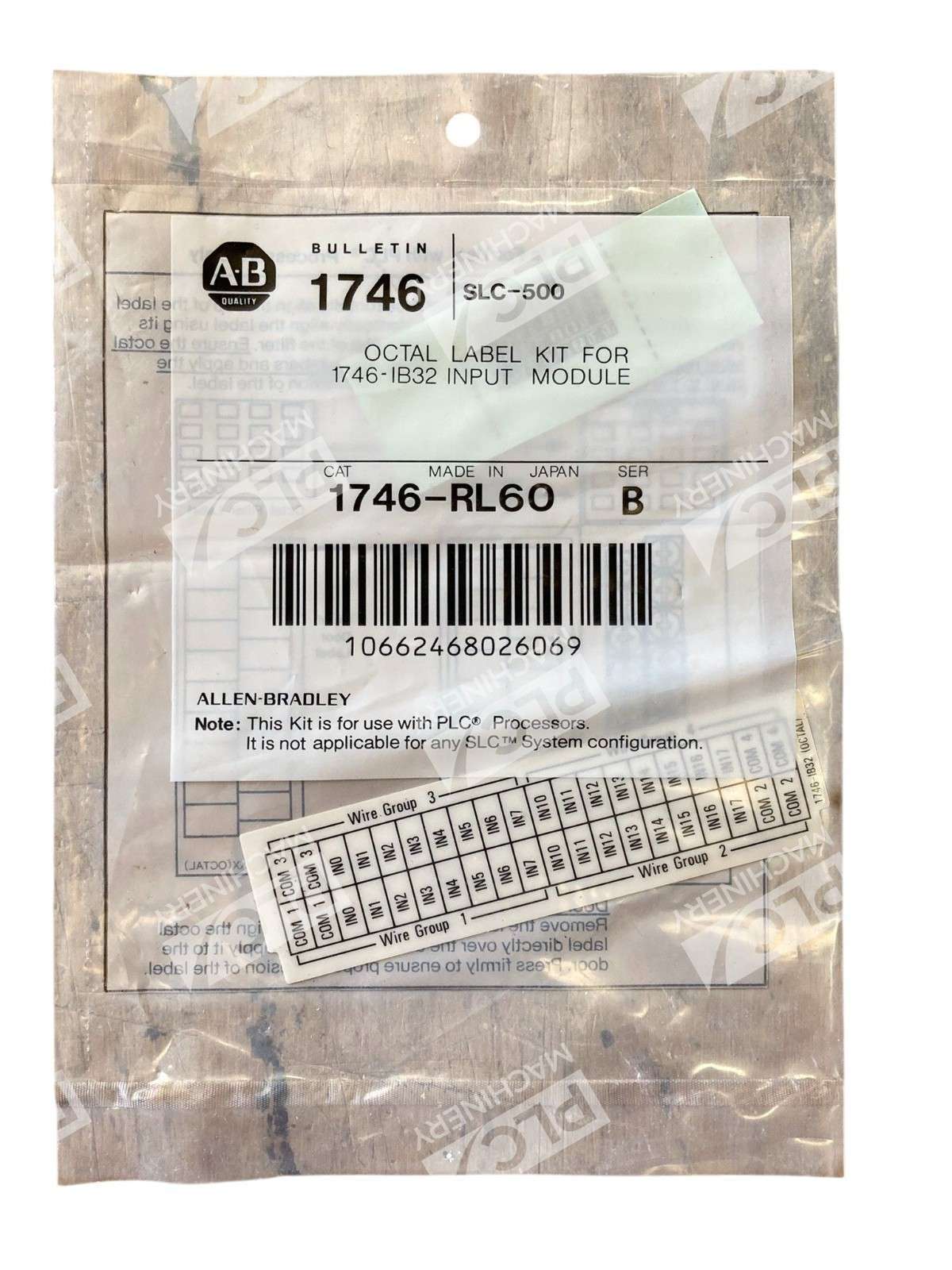

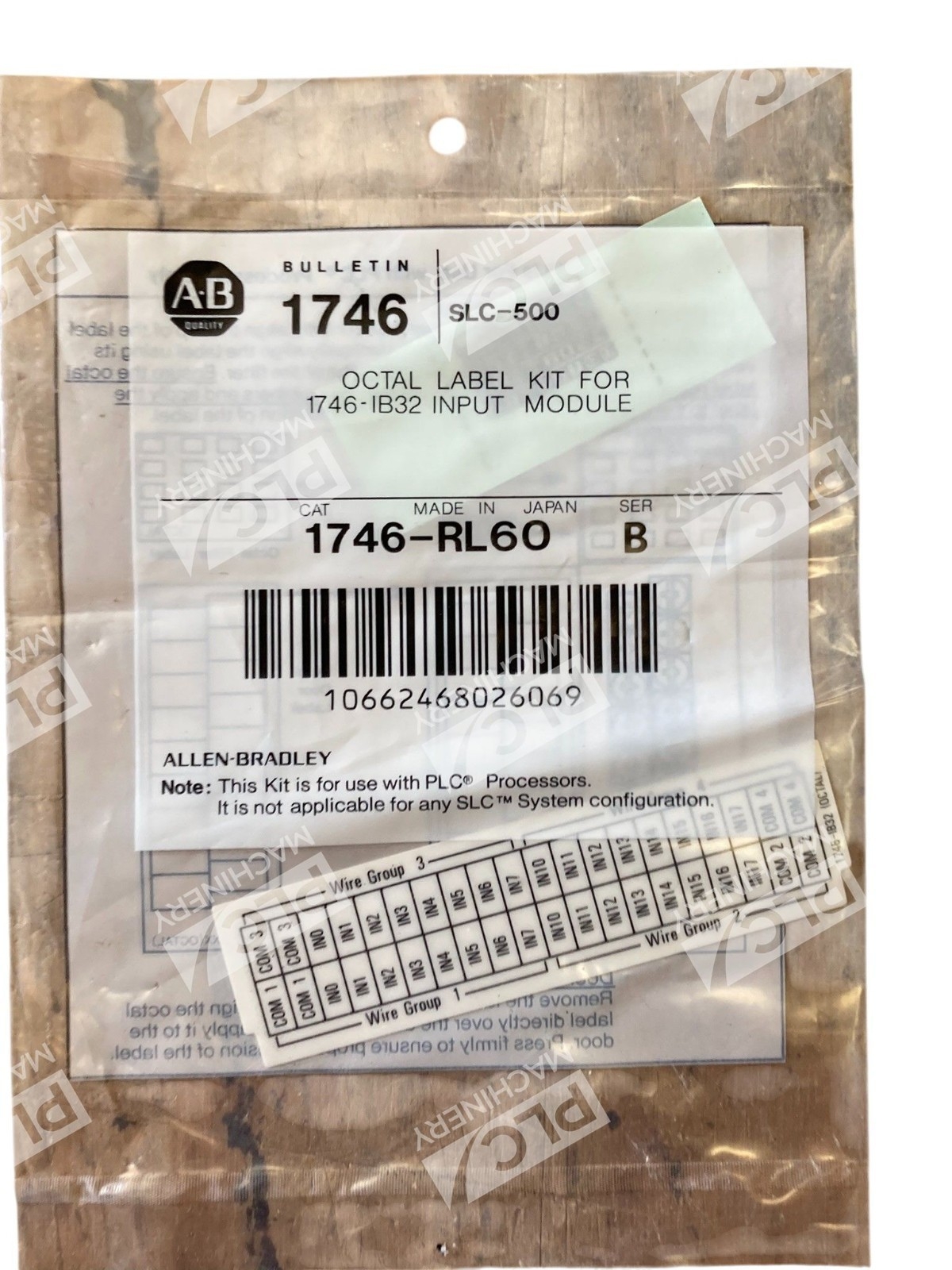

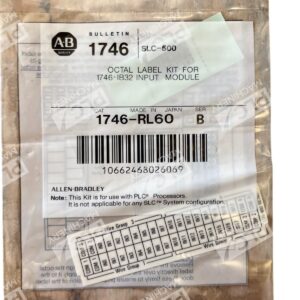

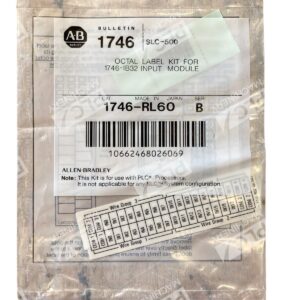

The Allen-Bradley 1746-RL60 octal label kit is a replacement accessory designed specifically for the 1746-IB32 input module in the SLC-500 modular I/O platform. Octal label kits are available from Allen-Bradley distributors and ordered based on the catalog number of the I/O module. Octal numbering provides clear wire identification for both decimal and octal addressing schemes used in SLC-500 systems. This label kit helps technicians quickly identify and reference input terminal points, reducing configuration time and improving system maintainability.
Key Features
- Purpose-built for 1746-IB32 input module terminals
- Installation requires maximum torque of 0.6 Nm (5.3 in-lbs)
- Supports both decimal and octal numbering schemes for I/O addressing
- Durable label adhesion for industrial control environments
- Included with some I/O modules; also available separately through distributors
Technical Specifications
Octal label kits are included with I/O modules and can be obtained through Allen-Bradley distributors. The kit contains pre-formatted labels that adhere to terminal blocks on compatible SLC-500 input modules. Proper installation ensures clear visibility of wiring connections for both initial commissioning and future troubleshooting.
Typical Applications
- SLC-500 modular I/O system organization and labeling
- Replacement labels for worn or damaged octal identifiers
- Multi-language and multi-site automation projects requiring standardized labeling
- System upgrades and retrofits where module substitution occurs
- Control cabinet commissioning and documentation
Compatibility & Replacements
Compatible With
- Allen-Bradley 1746-IB32 input module
- SLC-500 discrete I/O modular chassis
- SLC-500 programming software (RS-Logix 500)
- All SLC-500 processors and communication networks
Replaces / Drop-In Replacement For
- Original or worn octal label sets for 1746-IB32 modules
- Equivalent octal labeling kits from industrial suppliers
Works With
- RS-Logix 500 programming environment
- Studio 5000 (with SLC-500 legacy module support)
- Allen-Bradley SLC-500 discrete I/O addressing schemes
- Standard 19-position terminal blocks on input modules
