Overview

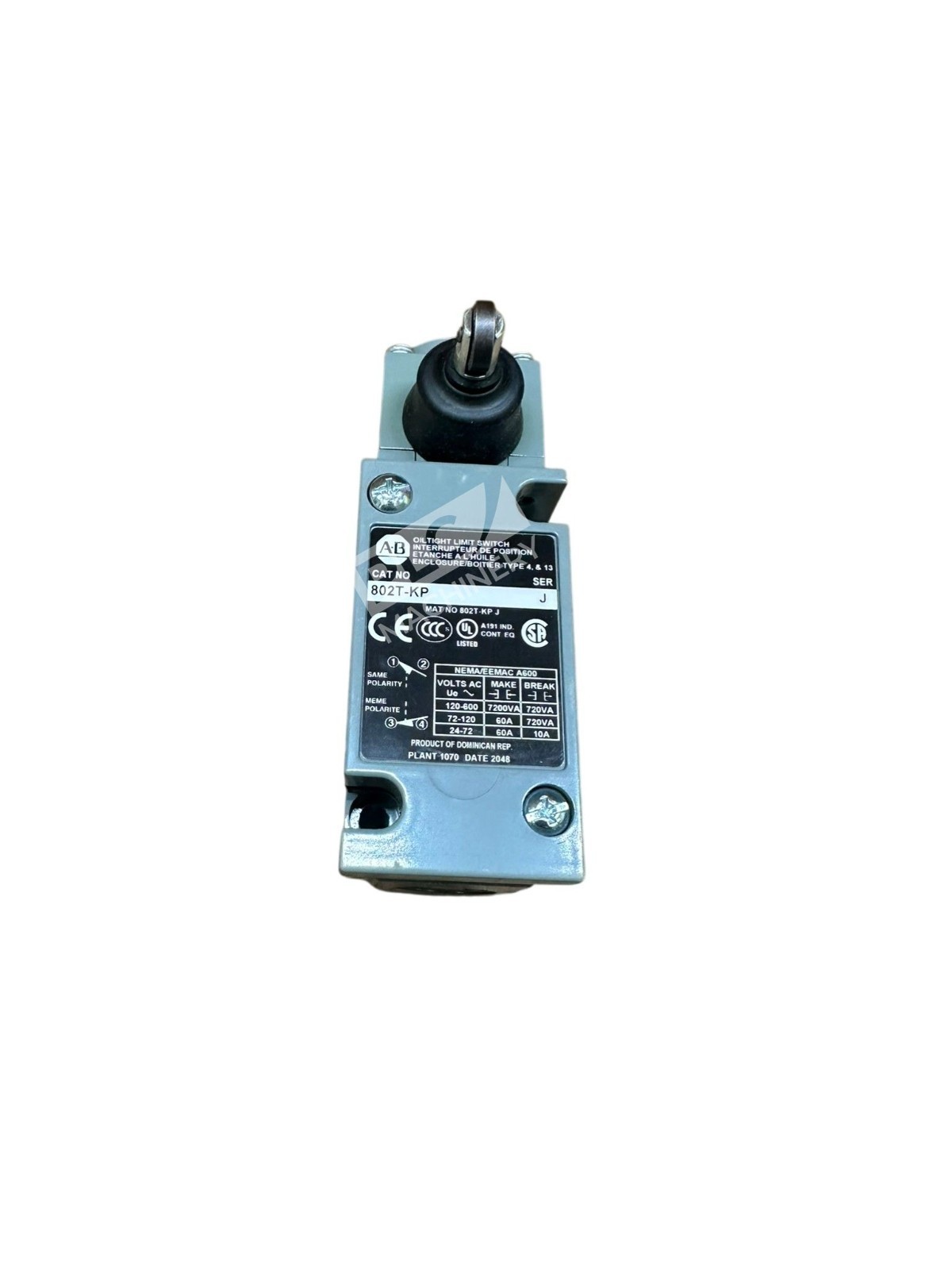

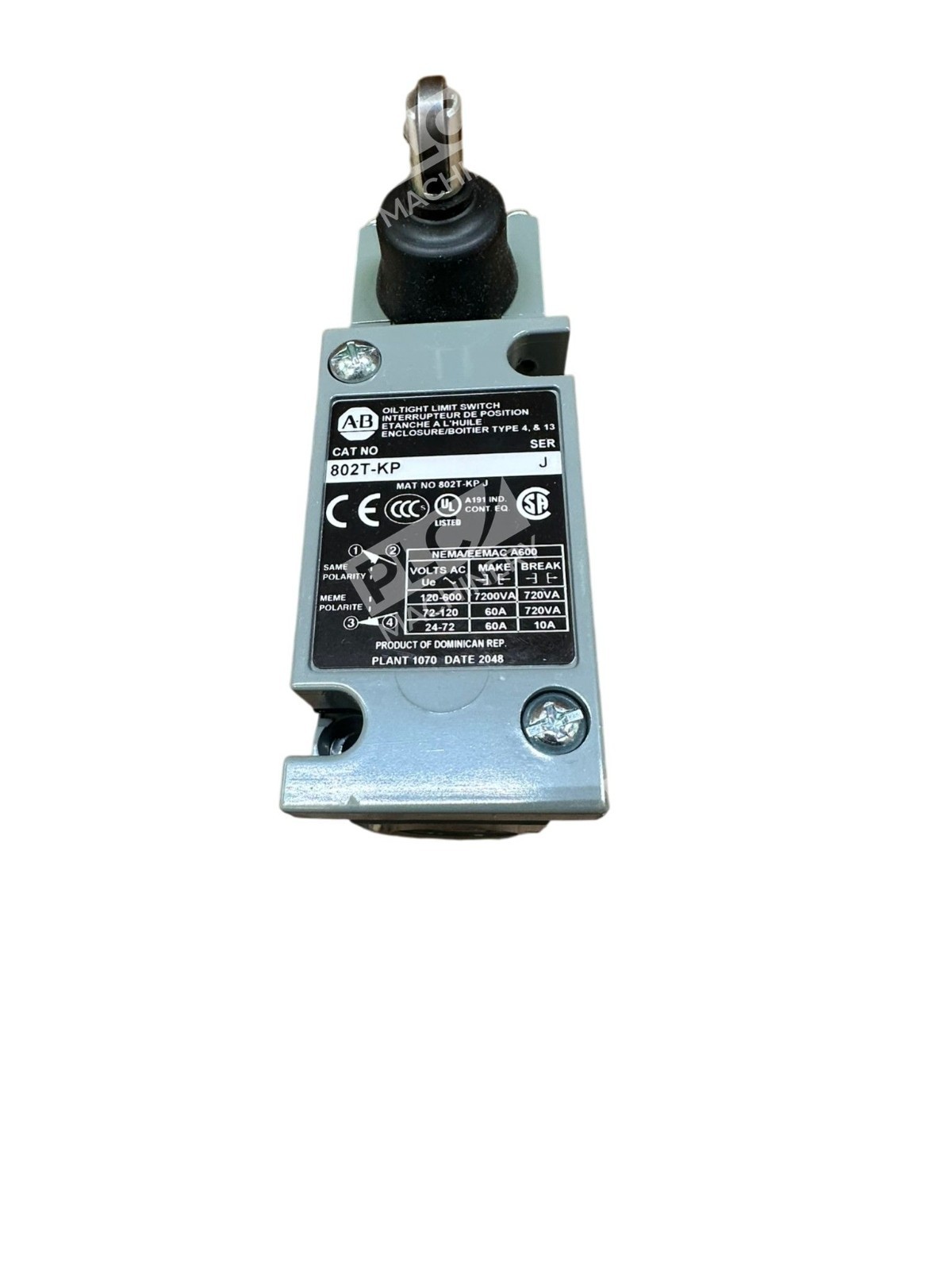

The Allen-Bradley 802T-KP is a metal plug-in oiltight limit switch engineered for position sensing in industrial automation and process control. With NEMA Type 4 and Type 13 oiltight construction, this switch operates reliably in harsh environments including oil spray, moisture, and contamination. The vertical side push roller actuator and 2-circuit contact configuration make it suitable for machine guarding, conveyor systems, and heavy manufacturing automation.
Key Features
- Metal plug-in design for easy field replacement without rewiring
- Vertical side push roller actuator with precise mechanical action
- 2-circuit, 2-pole contact configuration rated for A600 at 600V
- NEMA 4 and NEMA 13 oiltight construction resists oil, coolant, and washdown spray
- Conduit entry connection type for secure wiring integration
- Operating temperature range -18°C to +110°C for industrial environment durability
Technical Specifications
- Actuator Type: Vertical Side Push Roller
- Connection Type: Plug-in
- Contact Configuration: 2 Circuits
- Poles: 2 Pole
- Contact Rating: A600 at 600V
- Enclosure: Metal
- Protection Rating: NEMA 4, NEMA 13 (Oiltight)
- Operating Temperature: -18°C to +110°C (0°F to 230°F)
- Certifications: UL, CSA, CE, CCC, KC
- Wiring Entry: Conduit Entry
- Shipping Weight: 0.142 kg (5 oz)
Typical Applications
- Machine guarding and safety interlocks in manufacturing
- Conveyor system position sensing and emergency stops
- Automated gate and door closure detection
- Production equipment limit detection in food processing and beverage lines
- Industrial equipment with coolant or oil spray environments
- Hydraulic and pneumatic actuator position feedback
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC and industrial control systems
- Rockwell Automation automation platforms
- NEMA-standard 600V AC industrial control circuits
- Standard industrial 24VDC control networks
- Conduit-based electrical distribution systems
Replaces / Drop-In Replacement For
- 802T-K (horizontal side push roller variant requires electrical configuration review)
- Verify compatibility with your system integrator before ordering for direct drop-in applications
Works With
- Rockwell Automation control systems and industrial controllers
- NEMA-rated electrical distribution enclosures
- Standard plug-in limit switch modular architectures
- Industrial control relay logic and hardwired safety circuits
