Overview

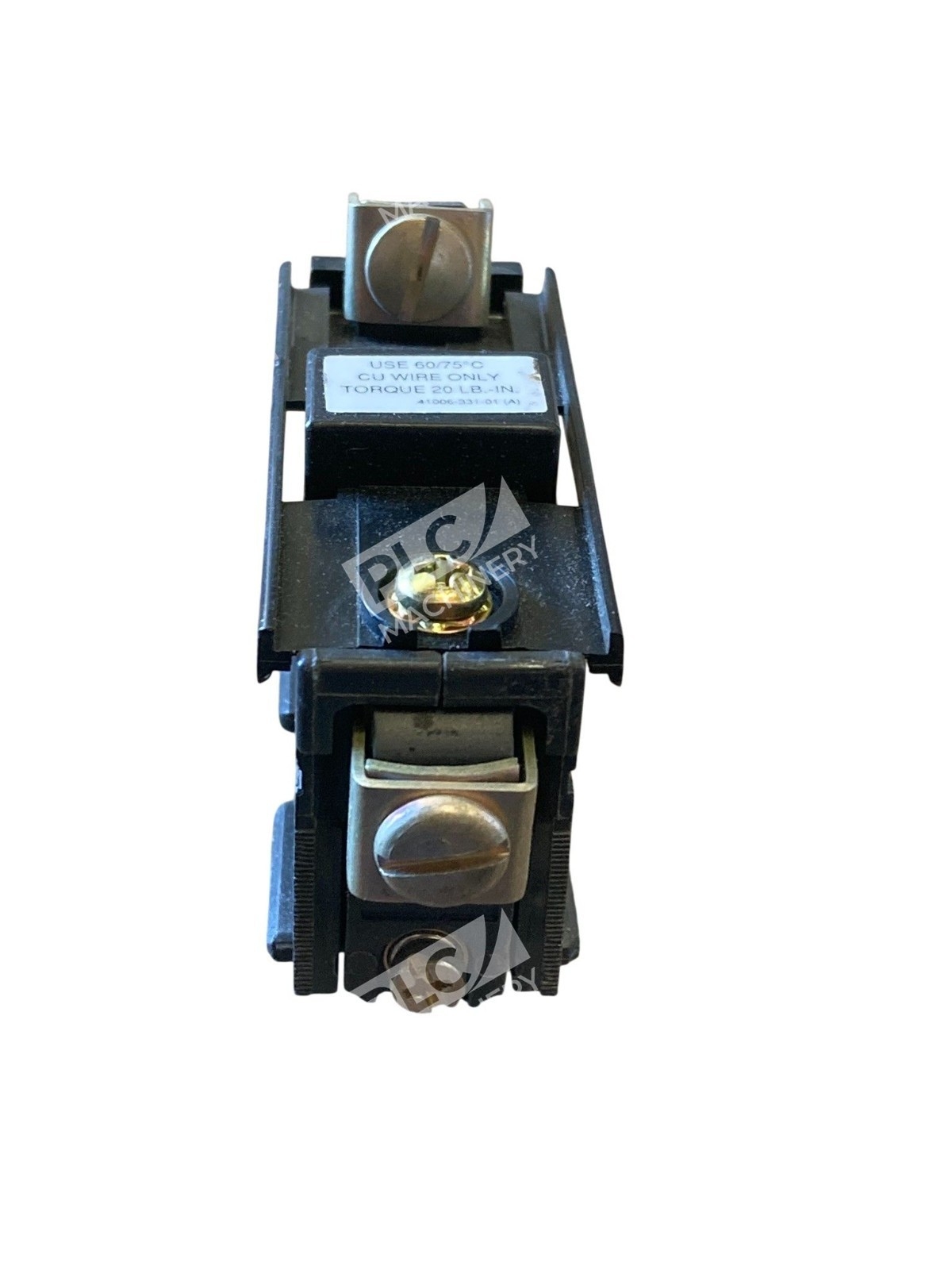

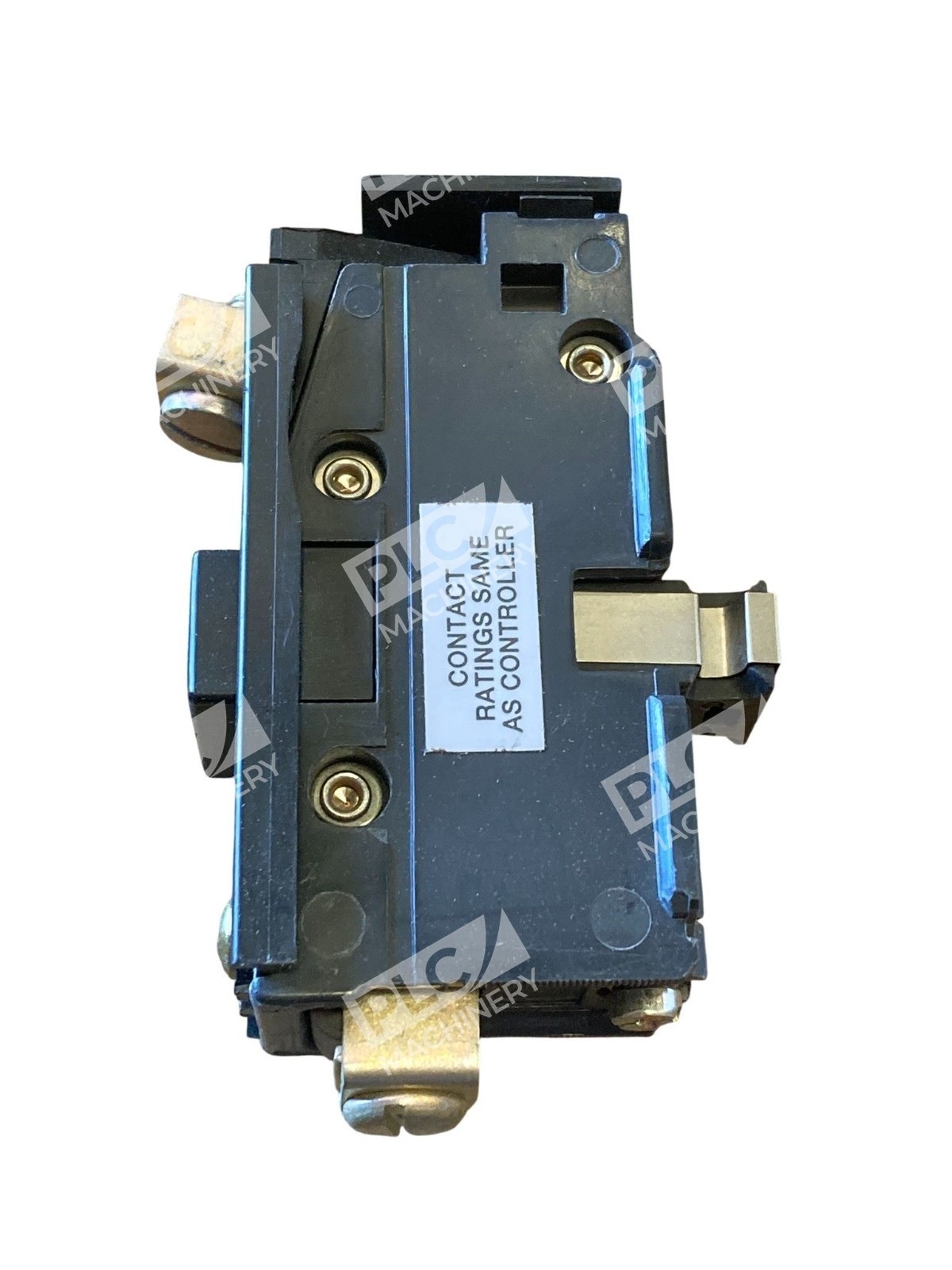

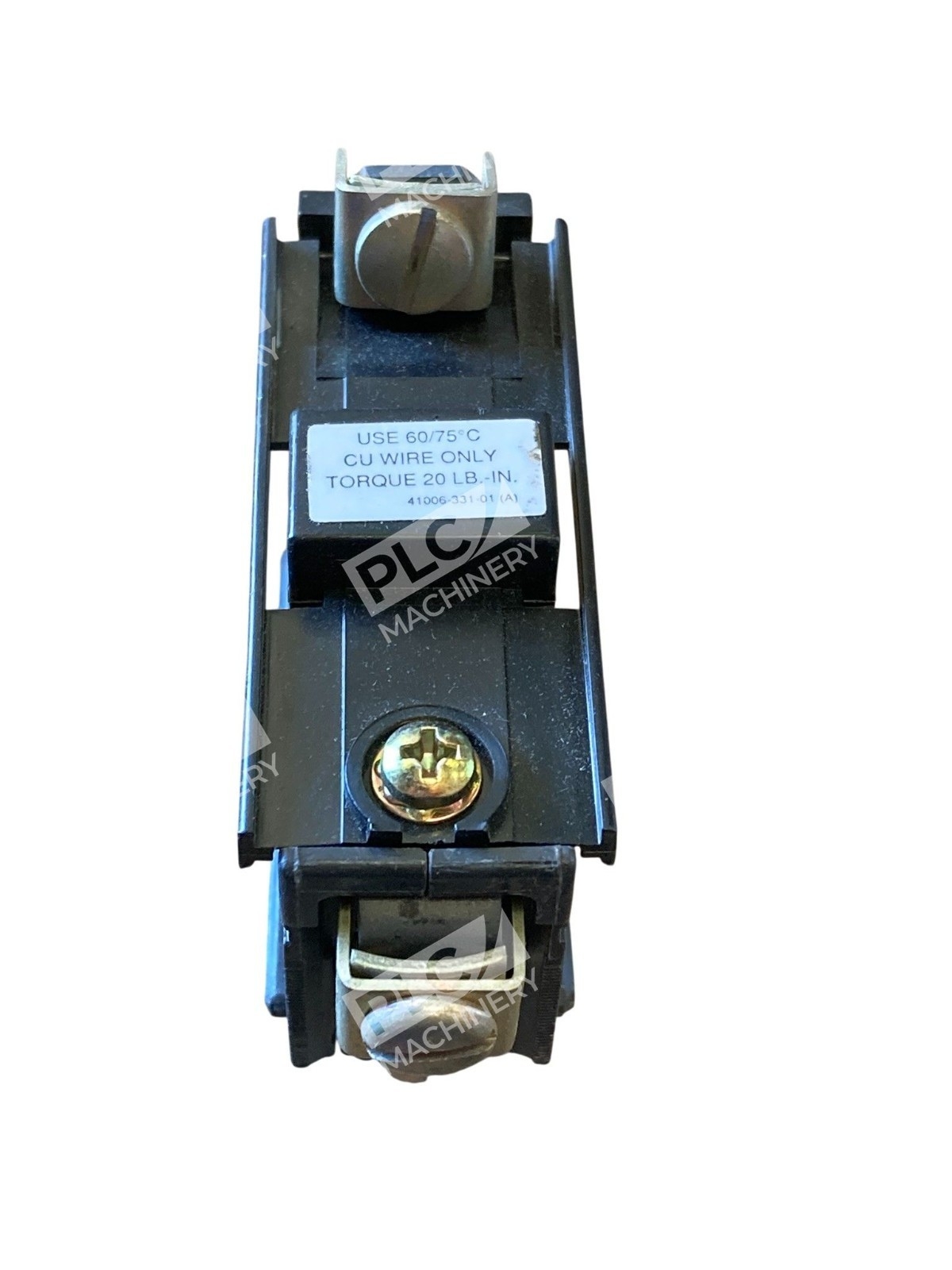

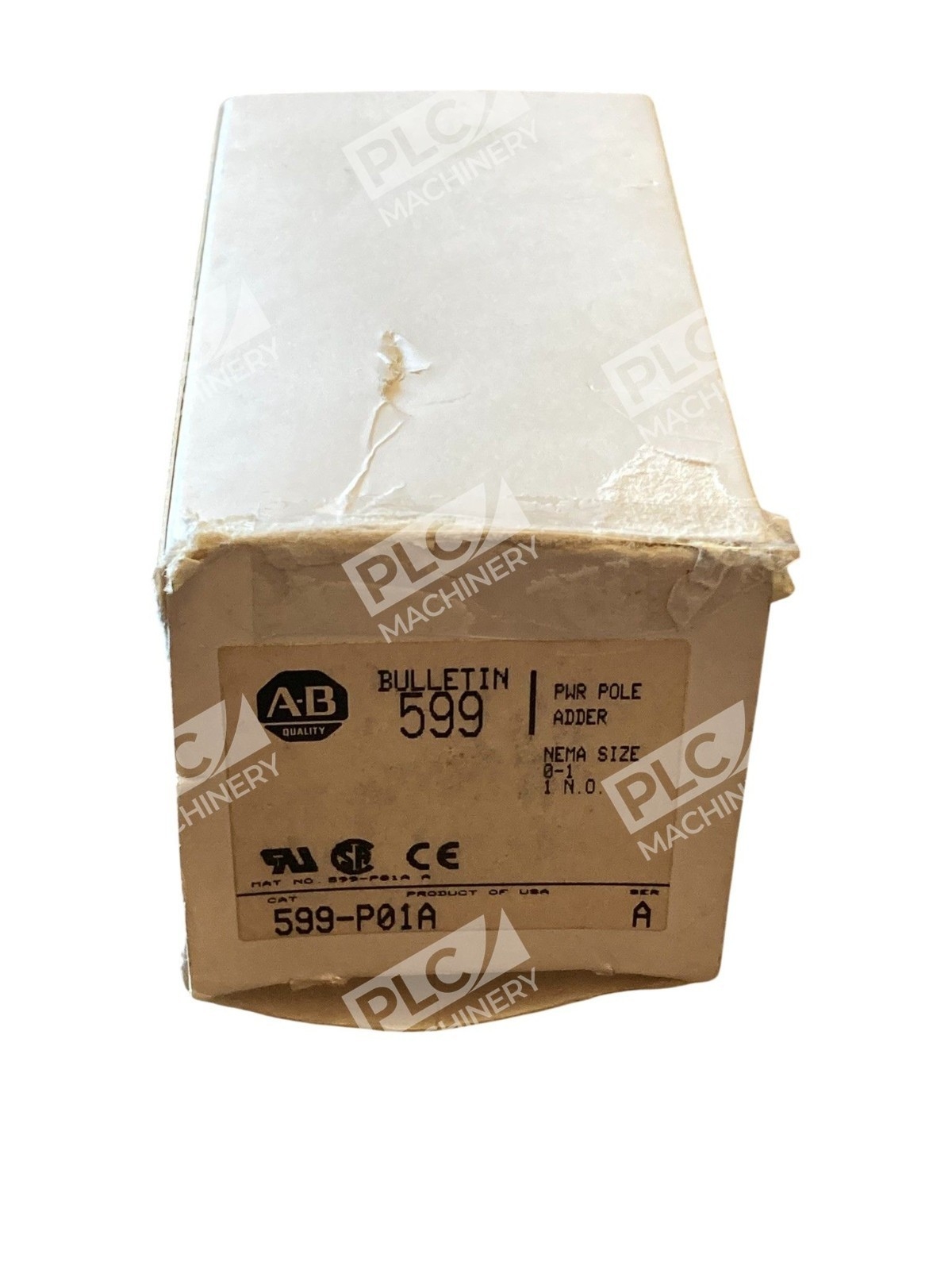

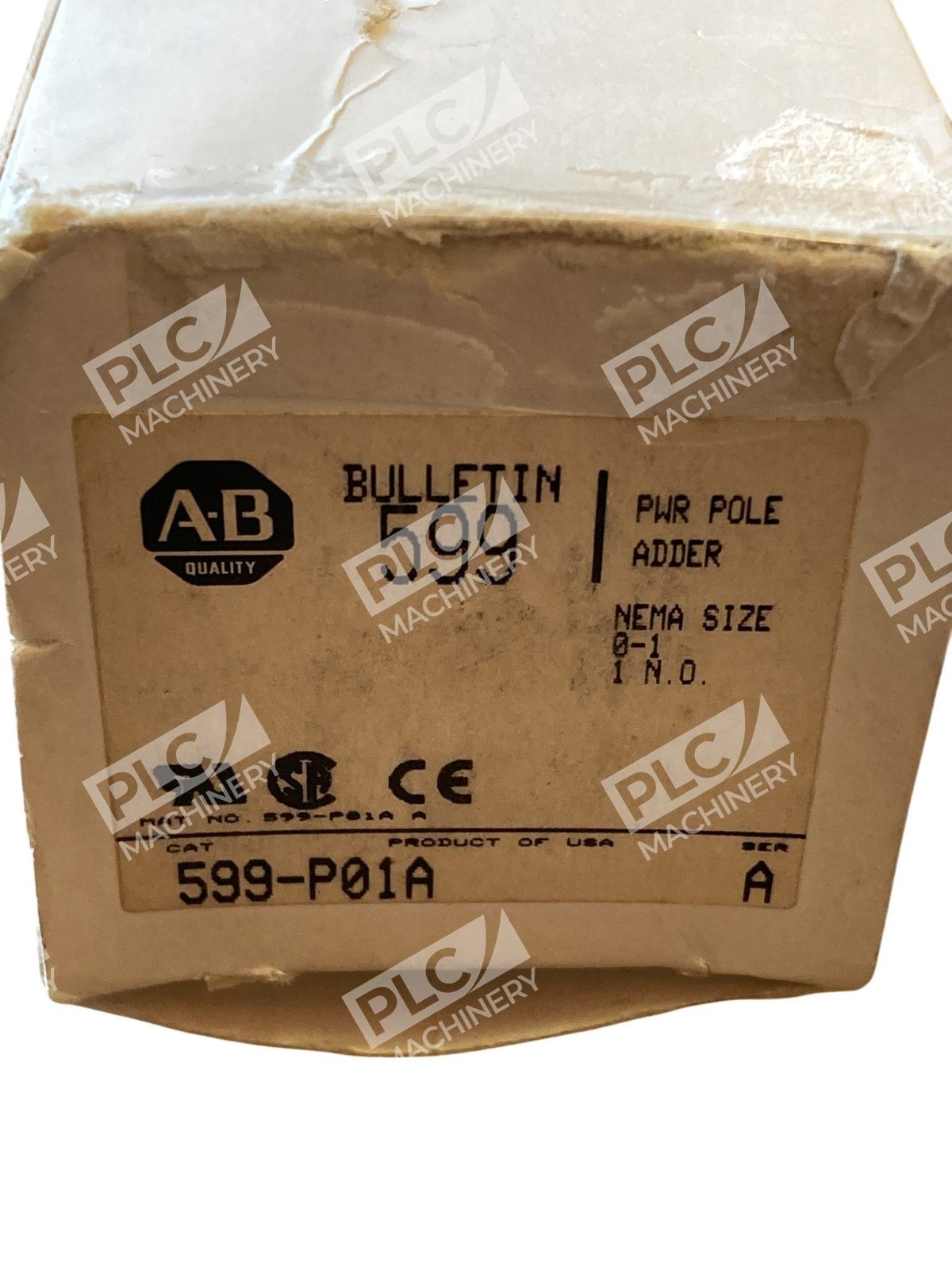

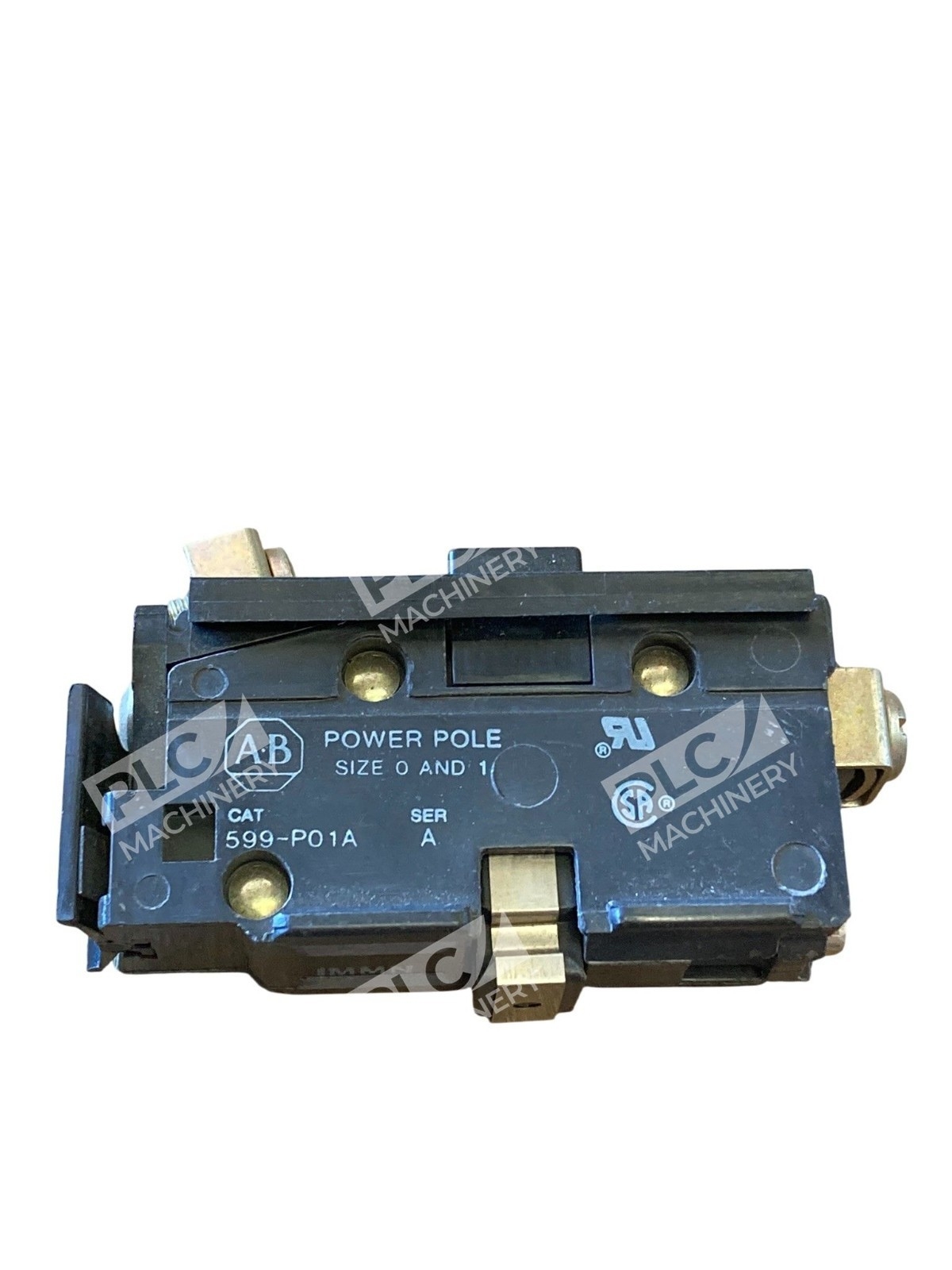

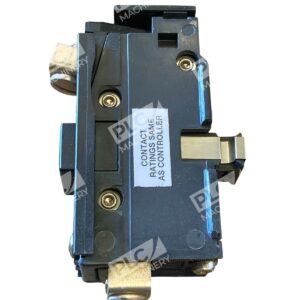

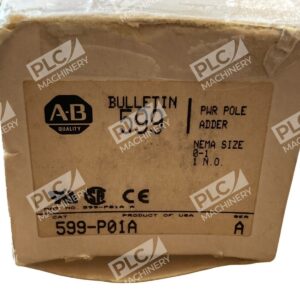

The Allen-Bradley 599-P01A power pole adder is a Bulletin 500 accessory designed to expand the contact capability of NEMA size 0 and size 1 contactors and motor starters. This field-installed component provides 1 normally open contact, fits size 0 and 1 500 Line except 500L and FL, has a maximum voltage rating of 600V, and a maximum current rating of 27A. It is commonly used in industrial motor control systems where additional pole capacity is required for complex switching logic.
Key Features
- 1 Normally Open (N.O.) contact configuration for flexible control logic
- 600V maximum voltage rating
- 27A maximum current rating
- Compatible with NEMA size 0-1 starters per Bulletin 500 specifications
- Field-installable design requiring no factory assembly
- Rugged construction for harsh industrial environments
Technical Specifications
Voltage/Current: Maximum operating voltage of 600V AC, continuous current rating of 27A per pole. Contact Type: 1 N.O. (Normally Open) contact block. Mounting: Field installation on compatible NEMA 0-1 Series 500 contactors. Series: Bulletin 500 Line. Temperature: Suitable for standard industrial environments (–20°C to +60°C). Standards: UL and CSA certified for North American industrial use.
Typical Applications
- Motor starting and speed control systems requiring supplemental contacts
- HVAC equipment control circuits
- Pump and compressor starter circuits
- Manufacturing and process automation systems
- Lighting and load management circuits in industrial facilities
- Retrofit installations where existing contactor logic must be expanded
Compatibility & Replacements
Compatible With
- Allen-Bradley Series 500 contactors (NEMA size 0-1)
- Allen-Bradley 509 full-voltage starters (NEMA size 0-1)
- Allen-Bradley 500F feed-through contactors (NEMA size 0-1)
- IEC equivalent NEMA size applications
- AC motor control circuits rated up to 600V
Replaces / Drop-In Replacement For
The Allen-Bradley 599-P01A is the standard 1 N.O. pole adder for NEMA 0-1 applications. When a contactor pole fails or additional contact capacity is needed, this part provides a direct drop-in solution. Verify part number matches your existing contactor catalog for seamless integration.
Works With
- Series 500 contactors and motor starters across all NEMA size 0-1 configurations
- Standard AC induction motor control circuits
- Direct-on-line (DOL) starter configurations
- Soft-start and reduced-voltage controller supplementary contact circuits
- Industrial control relay logic networks
