Overview

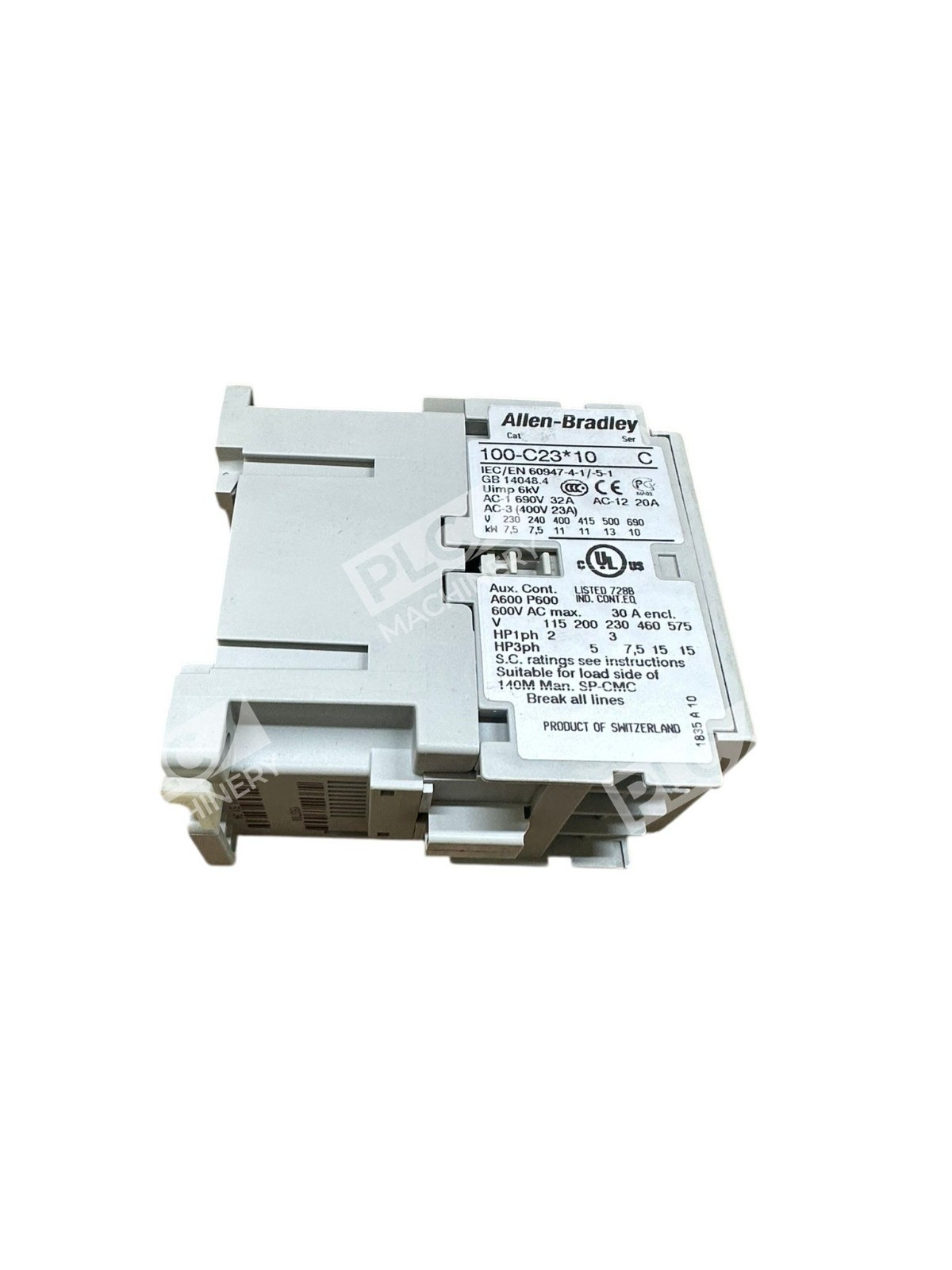

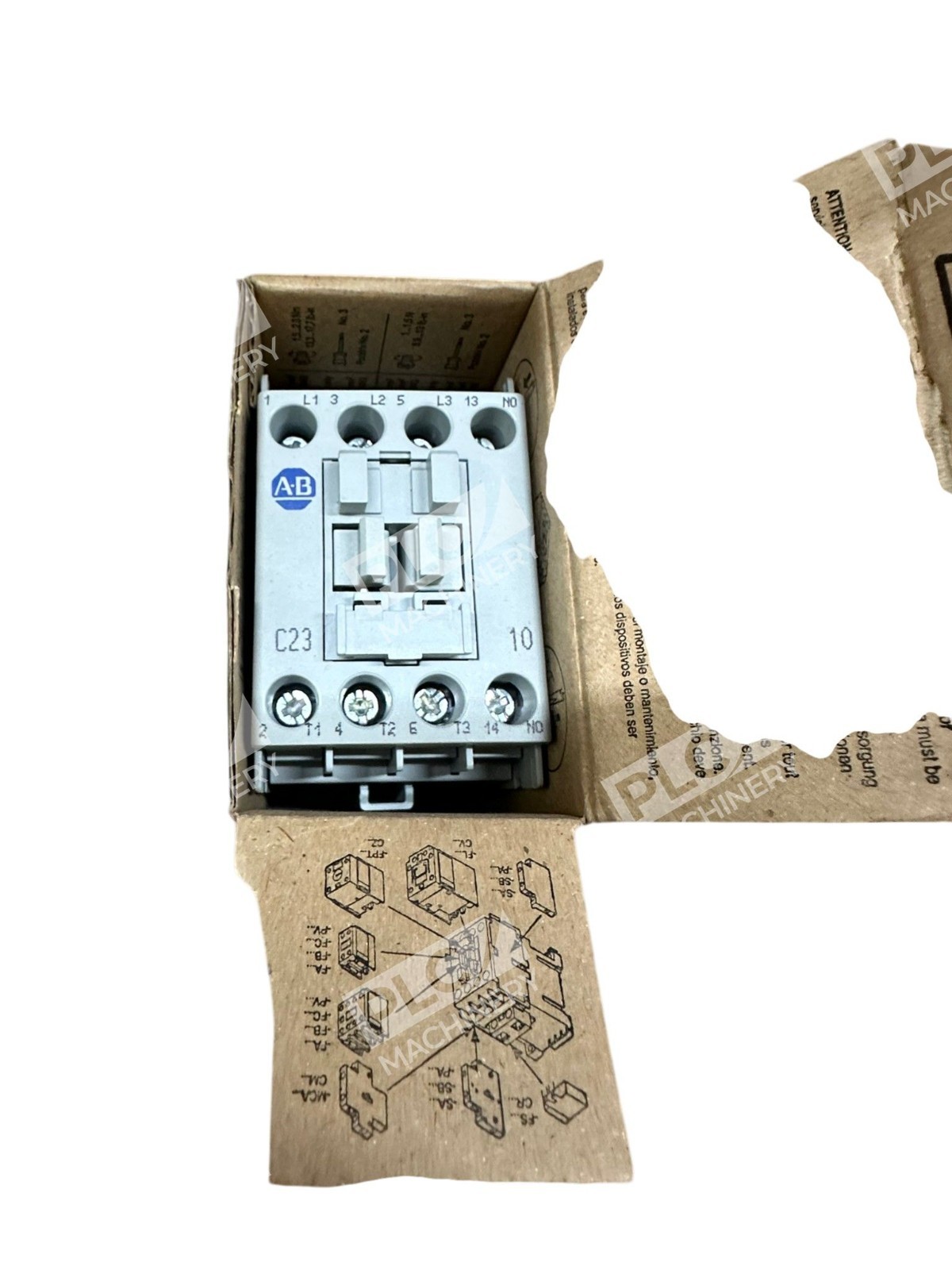

The Allen-Bradley 100-C23A10 is a compact 3-pole IEC contactor from Rockwell Automation’s Bulletin 100-C series, engineered for reliable motor control in industrial applications. This unit is rated for 23A at AC-3 duty (squirrel-cage motor starting and stopping) with a 208–240V AC coil and includes 1 normally open (N.O.) auxiliary contact for control circuit feedback and interlocking. The contactor features screw terminals for secure wiring and line-side coil termination, making it suitable for panel mounting on standard 35 mm DIN rail or direct panel installation.
Key Features
- 3-pole main contacts rated 23A AC-3, suitable for motors up to 10 HP at 460V and 5 HP at 230V
- Factory-installed 1 N.O. auxiliary contact for control feedback and interlocking circuits
- 208–240V AC 50/60 Hz coil with line-side coil termination
- Screw terminals (IP20 finger-protected) for safe, secure connectivity
- DIN rail or direct panel mounting for installation flexibility
- Reversible coil terminals allow wiring from either side of the contactor
Technical Specifications
- Frame Size: 100-C (compact IEC contactor)
- Current Rating: 23A AC-3 (40°C ambient); 32A AC-1
- Voltage Rating: 600V AC maximum
- Coil Voltage: 208–240V AC 50/60 Hz (A suffix designation)
- Main Poles: 3 Normally Open
- Auxiliary Contact Configuration: 1 N.O. / 0 N.C. (10 suffix)
- Terminal Type: Screw Terminals
- Coil Termination: Line Side
- Mounting: 35 mm DIN rail or direct panel mounting
- Electrical Standard: UL; IEC-rated
- Operating Ambient Temperature: 40°C rated
Typical Applications
- HVAC system motor starters and pump controls
- Machine tool motor control and circulation pump management
- Industrial conveyor and automation line motor switching
- Fan and blower motor control circuits
- Compressed air and hydraulic pump starting systems
- General-purpose AC motor control in distributed automation panels
Compatibility & Replacements
Compatible With
- Rockwell Automation / Allen-Bradley Bulletin 100-C series auxiliary contact blocks (100-FA front-mount, 100-SA/SB left-side-mount)
- Thermal overload relays: 193-T series (bimetallic, 2.9–25A) and 193-E series (electronic)
- Standard industrial 3-phase AC motor control circuits rated 208–240V
- IEC-compliant motor control applications and UL-listed enclosures
Replaces / Drop-In Replacement For
- Other 100-C23 variants with different coil voltages, if your control circuit uses 208–240V (consult specific part number for compatibility)
- Equivalent contactors requiring 23A AC-3 / 15 HP @ 460V performance
- Note: Verify coil voltage, terminal type, and auxiliary configuration before ordering as a replacement
Works With
- Rockwell Studio 5000 and RSLogix 5000 control software (through standard hardwired control circuits)
- Standard hardwired motor control panels with 208–240V control circuits
- IEC 60947-4-1 compliant industrial control systems
- Optional expansion via snap-on auxiliary contact blocks for additional control logic
