Allen Bradley AB Compact I/O Combination 24VDC Relay 1769-IQ6XOW4 /B

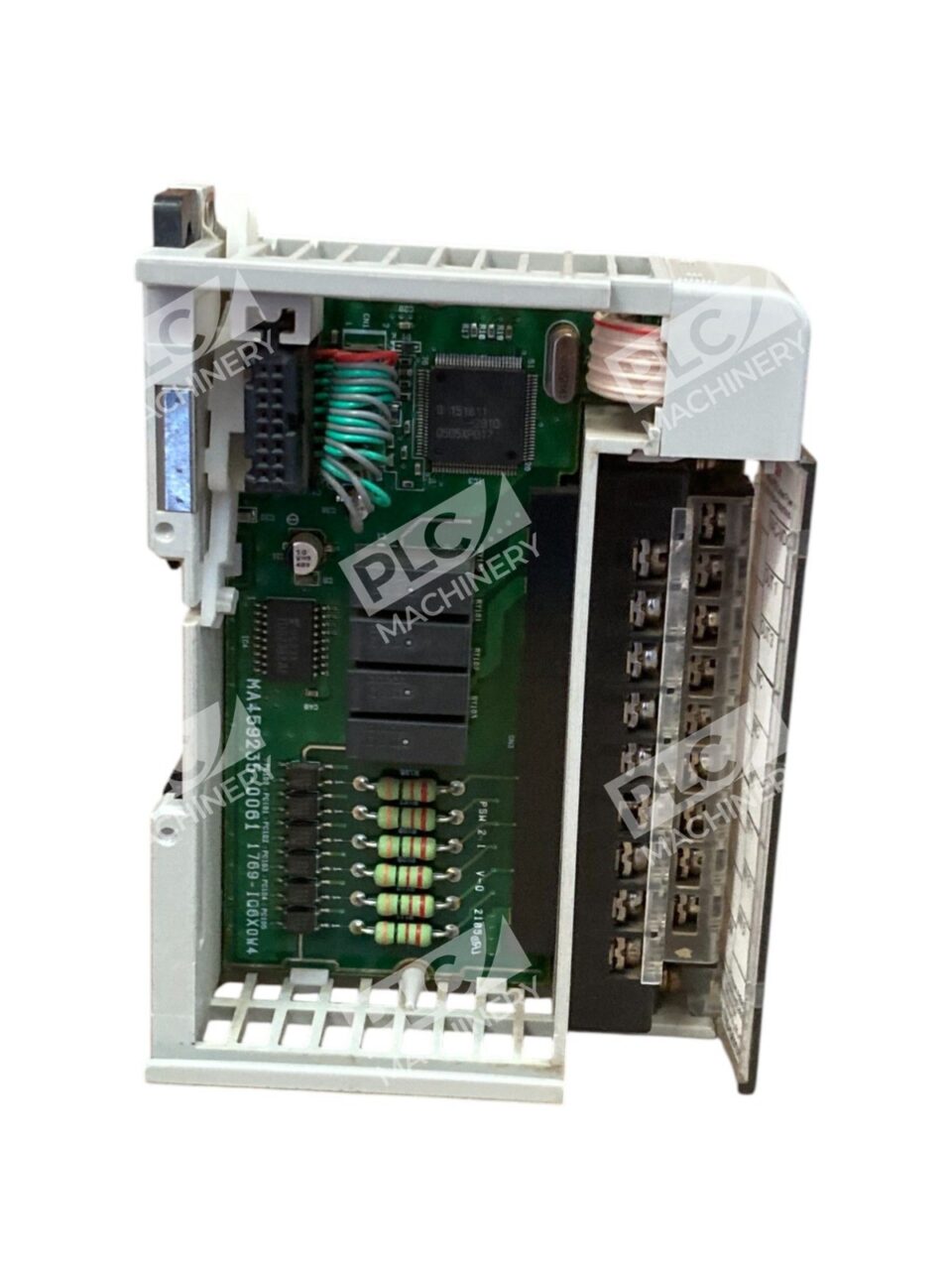

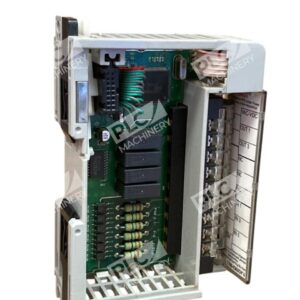

Allen-Bradley 1769-IQ6XOW4 Compact I/O Combination Module

The Allen-Bradley 1769-IQ6XOW4 is a versatile Compact I/O module that integrates both digital input and relay output capabilities, making it an ideal solution for various industrial automation applications. Designed for seamless integration with CompactLogix and MicroLogix 1500 controllers, this module enhances system functionality while optimizing space.

Key Features

• Dual Functionality: Combines six 24V DC digital inputs and four relay outputs in a single module, reducing the need for multiple components.
• Flexible Input Configuration: Supports both sinking and sourcing input types, accommodating diverse wiring requirements.
• Wide Output Range: Relay outputs can handle voltages from 5 to 265V AC and 5 to 125V DC, suitable for various load types.
• Compact Design: With dimensions of approximately 118 mm (4.65 in.) in height, 35 mm (1.38 in.) in width, and 87 mm (3.43 in.) in depth, it is well-suited for installations where space is limited.
• Easy Installation: Supports both DIN rail and panel mounting options, providing flexibility in installation.
• Integrated Status Indicators: Equipped with LED indicators for each input and output channel, facilitating quick diagnostics and monitoring.

Technical Specifications

• Input Channels: 6 digital inputs
• Input Voltage Range: 10–30V DC at 30°C (86°F); 10–26.4V DC at 60°C (140°F)
• Input Current: 8 mA at 24V DC
• Output Channels: 4 relay outputs
• Output Voltage Range: 5–265V AC; 5–125V DC
• Maximum Output Current: 2.5 A per point; 8 A per module
• Isolation Voltage: 1200V AC for 1 second or 1697V DC for 1 second between input group to bus, output group to bus, and input group to output group
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Mounting Options: DIN rail or panel mount
• Weight: Approximately 280 g (0.61 lb)

Applications

The 1769-IQ6XOW4 module is suitable for a wide range of industrial applications, including:

• Machine automation
• Process control systems
• Material handling
• Packaging systems
• HVAC control

Its combination of input and output functions in a compact form factor makes it an efficient choice for systems requiring both monitoring and control capabilities.
