Overview

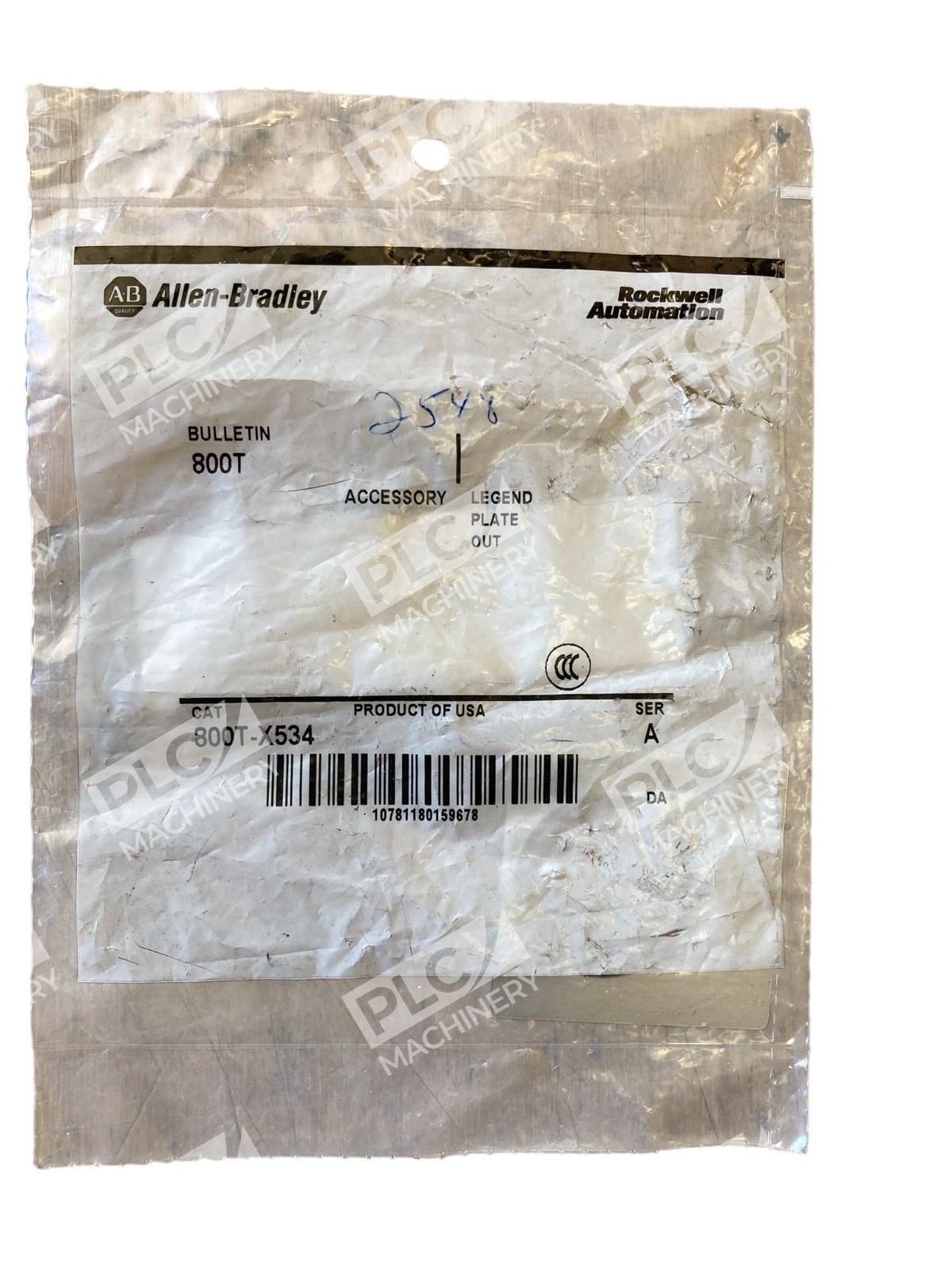

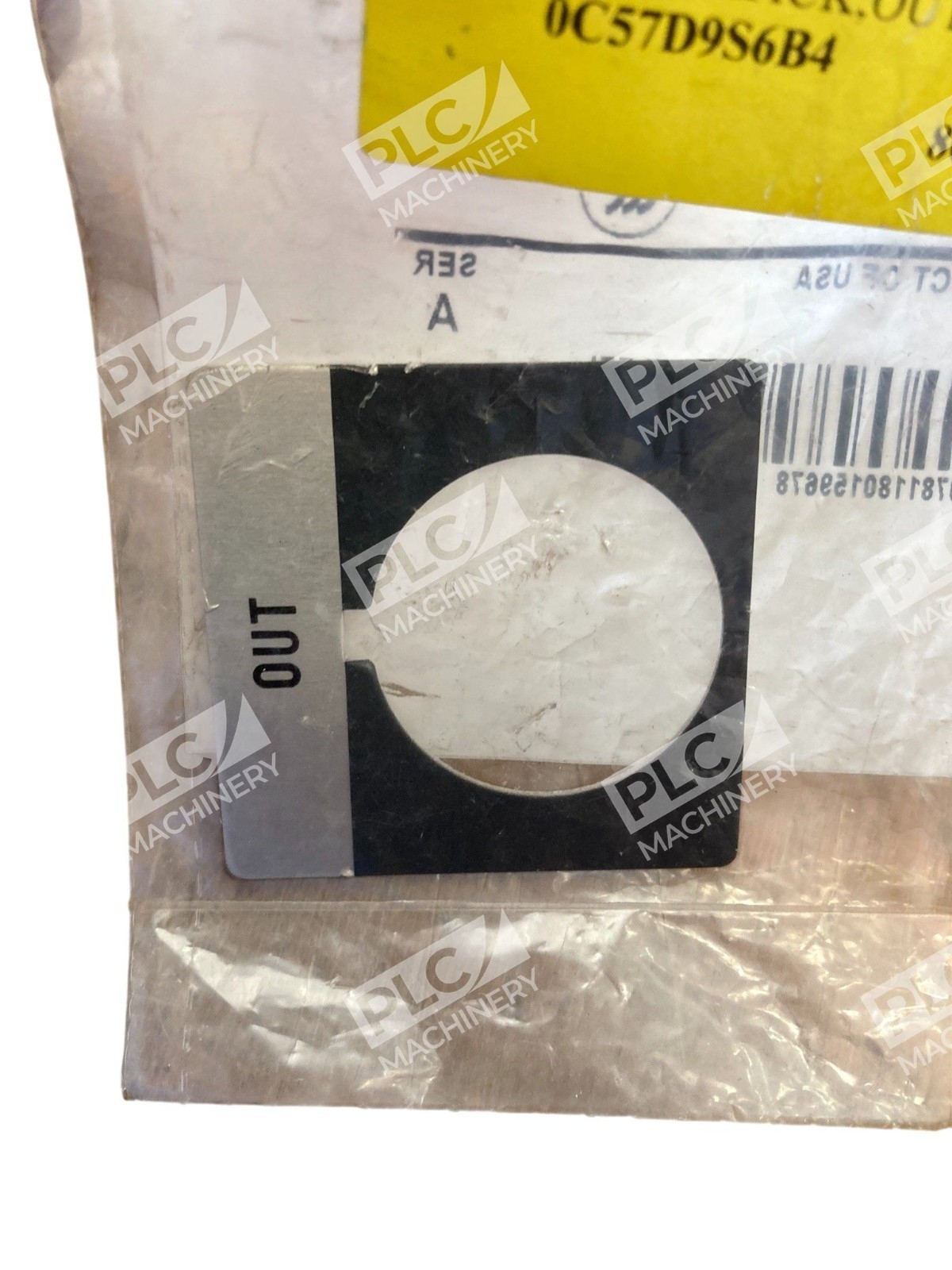

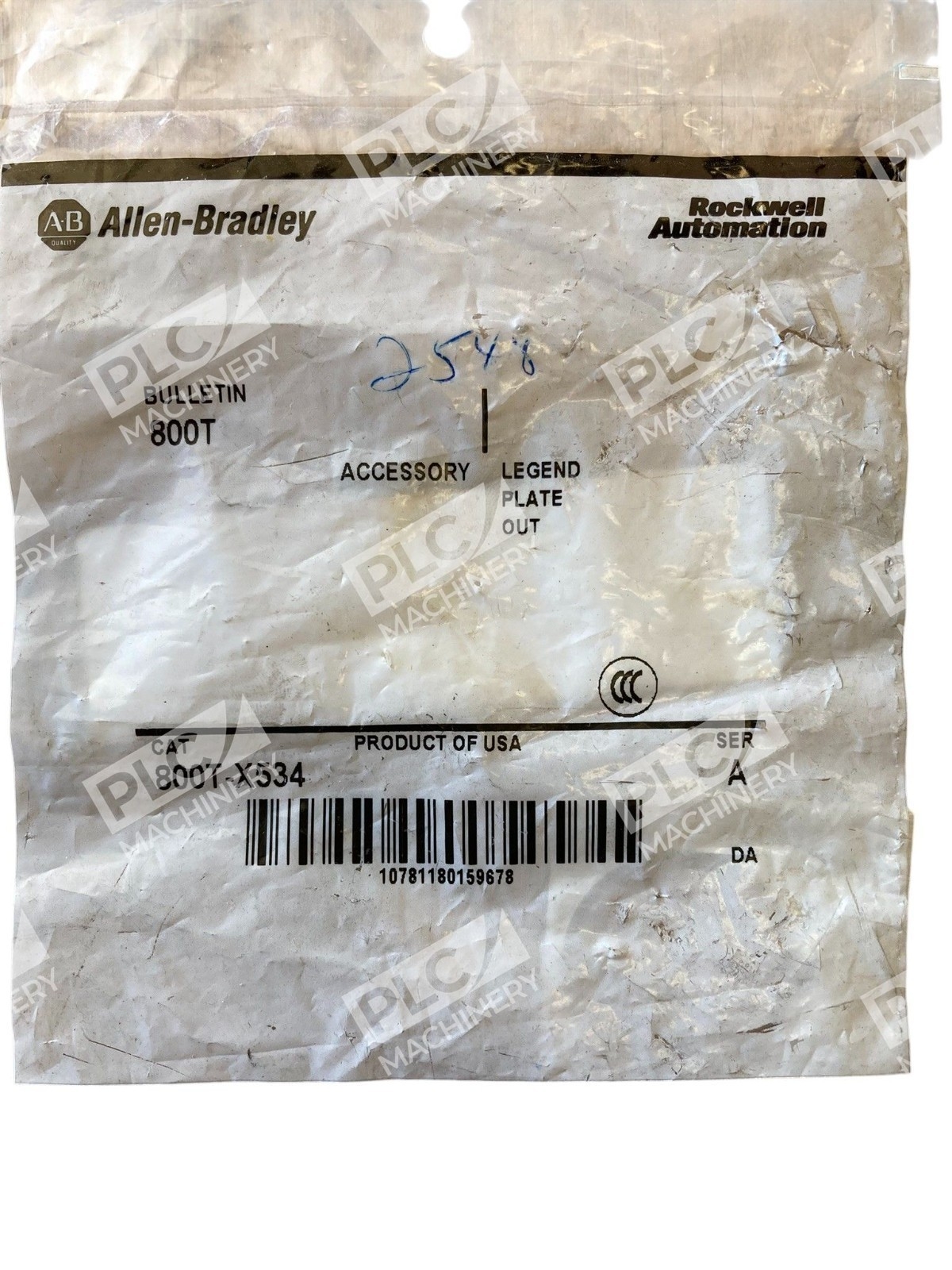

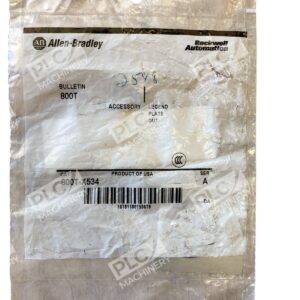

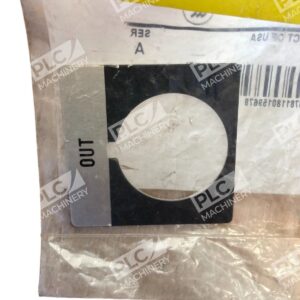

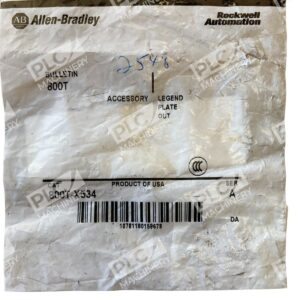

The Allen-Bradley 800T-X534 is a standard legend plate designed for use with 800T and 800TC 30.5mm push button devices. This gray OUT designation plate is an essential accessory for control panel builders and maintenance technicians who need to properly label and identify button functions. The 800T-X534 supports field engraving, allowing customization for specific application requirements.
Key Features
- 30mm push button size compatibility — fits 800T and 800TC devices
- OUT designation — pre-molded for output function identification
- Gray color — standard industrial control panel finish
- Field-engravable design — supports custom labeling and engraving
- Type 4/13 rated aluminum blank construction
- Anodized aluminum top surface (silver) with gray bottom portion
Technical Specifications
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Part Number | 800T-X534 |
| Product Type | Legend Plate Accessory |
| Button Size | 30mm (30.5mm) |
| Designation | OUT (Output) |
| Color | Gray |
| Material | Anodized Aluminum |
| Rating | Type 4/13 Rectangular Blank |
| Package Quantity | 1 |
| UPC | 781180159671 |
| Condition | New in Box |
Typical Applications
- Control panel labeling and device identification
- Output function designation on 800T push button assemblies
- Industrial automation equipment and machinery control
- Machine tool operator interfaces and emergency stop circuits
- NEMA 4/13 enclosure applications
- Custom engraving for multi-language or specialized control schemes
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series 30mm push buttons
- Allen-Bradley 800TC series devices
- Type 4/13 NEMA-rated control enclosures
- Standard industrial control panel assemblies
Replaces / Drop-In Replacement For
The 800T-X534 serves as a direct replacement for OEM legend plates on existing 800T installations. Verify compatibility with your system integrator before ordering if replacing legacy components.
Works With
- Allen-Bradley 800T and 800TC push button devices
- Industrial control panel fabrication systems
- Field engraving and labeling equipment
- NEMA 4/13 certified enclosure designs
