Overview

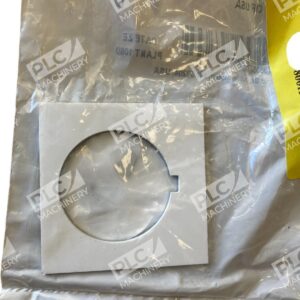

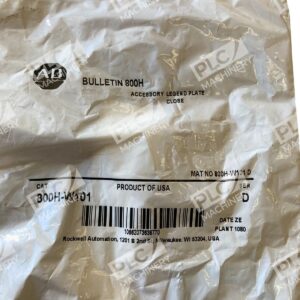

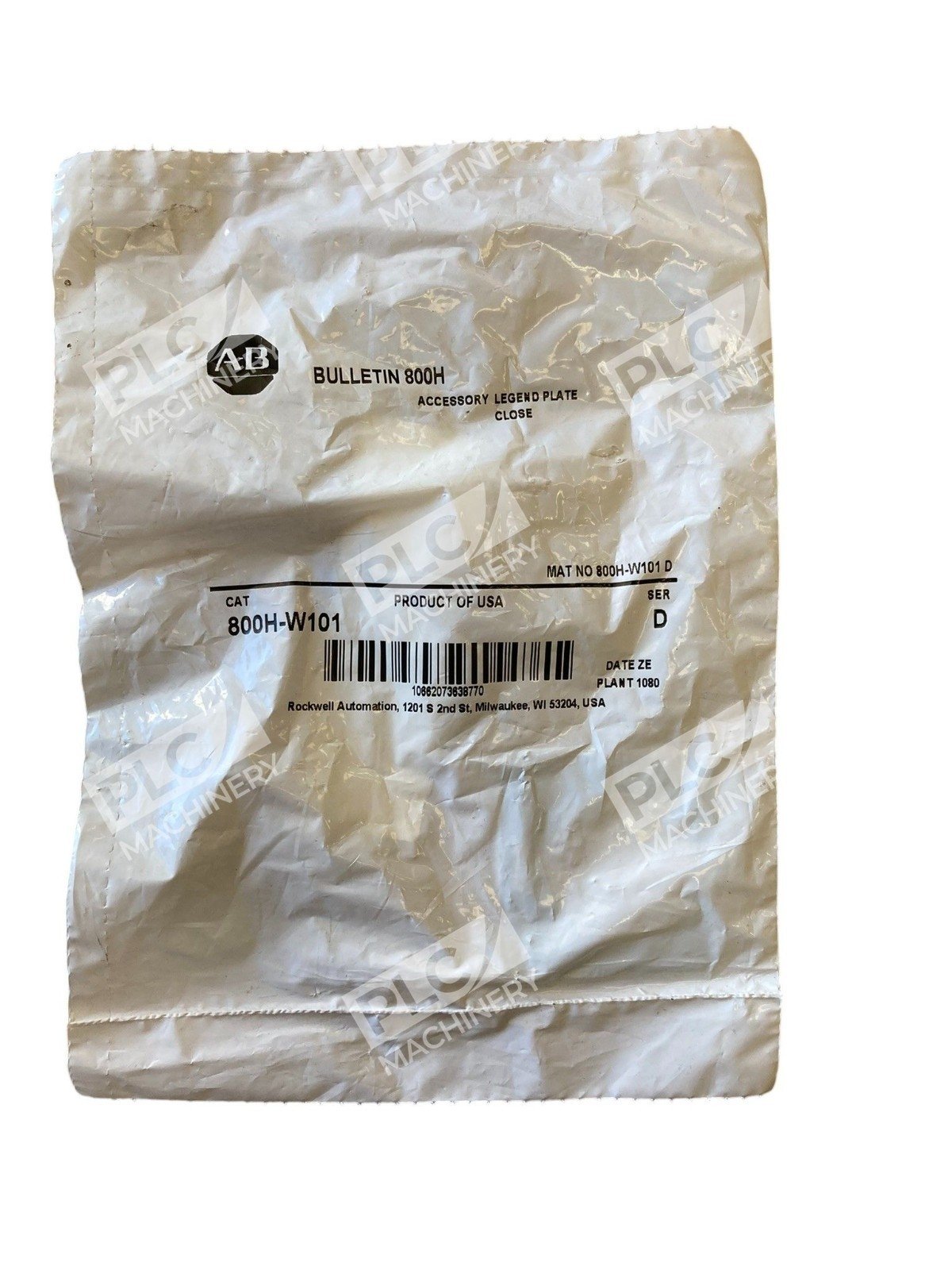

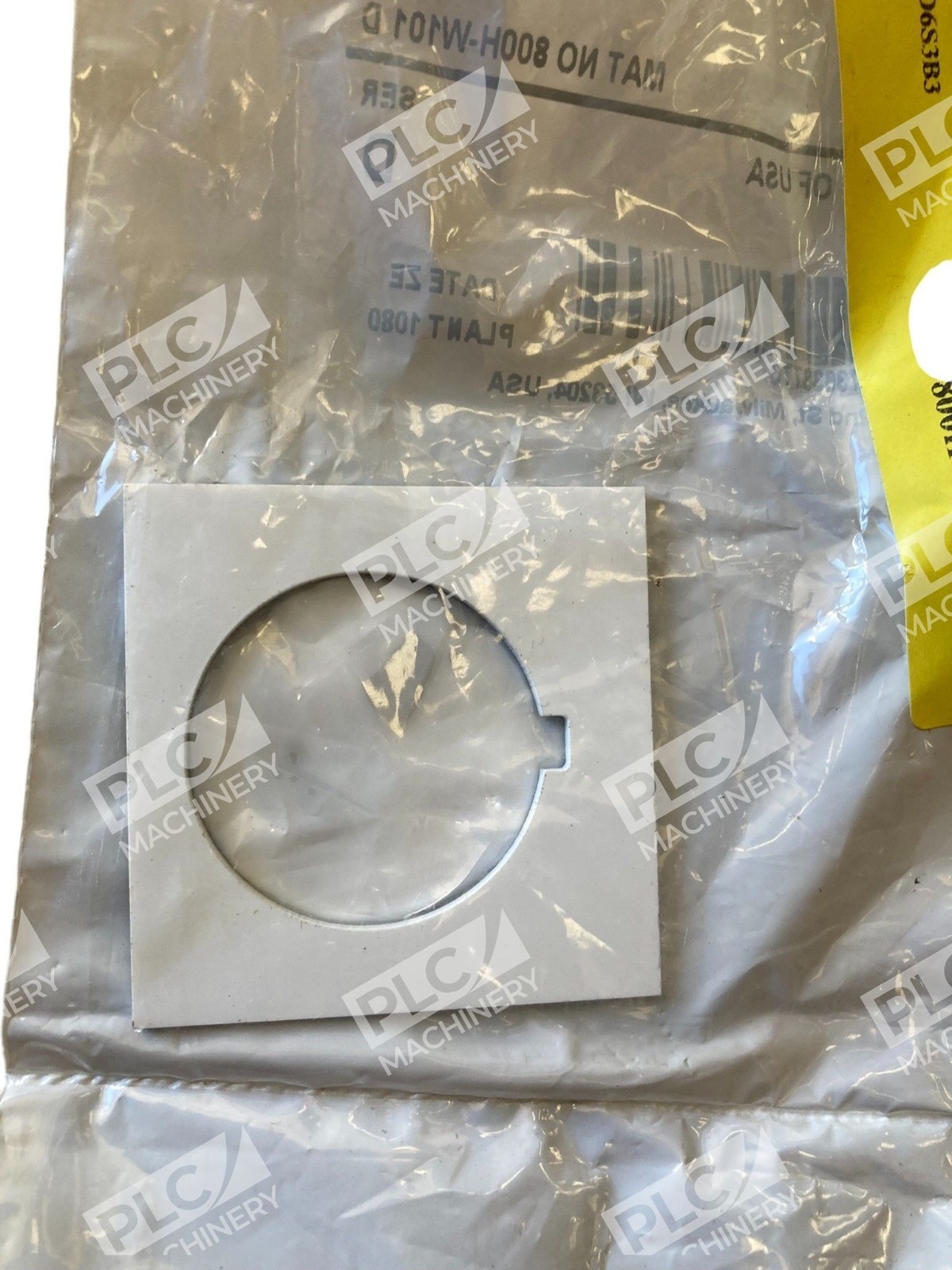

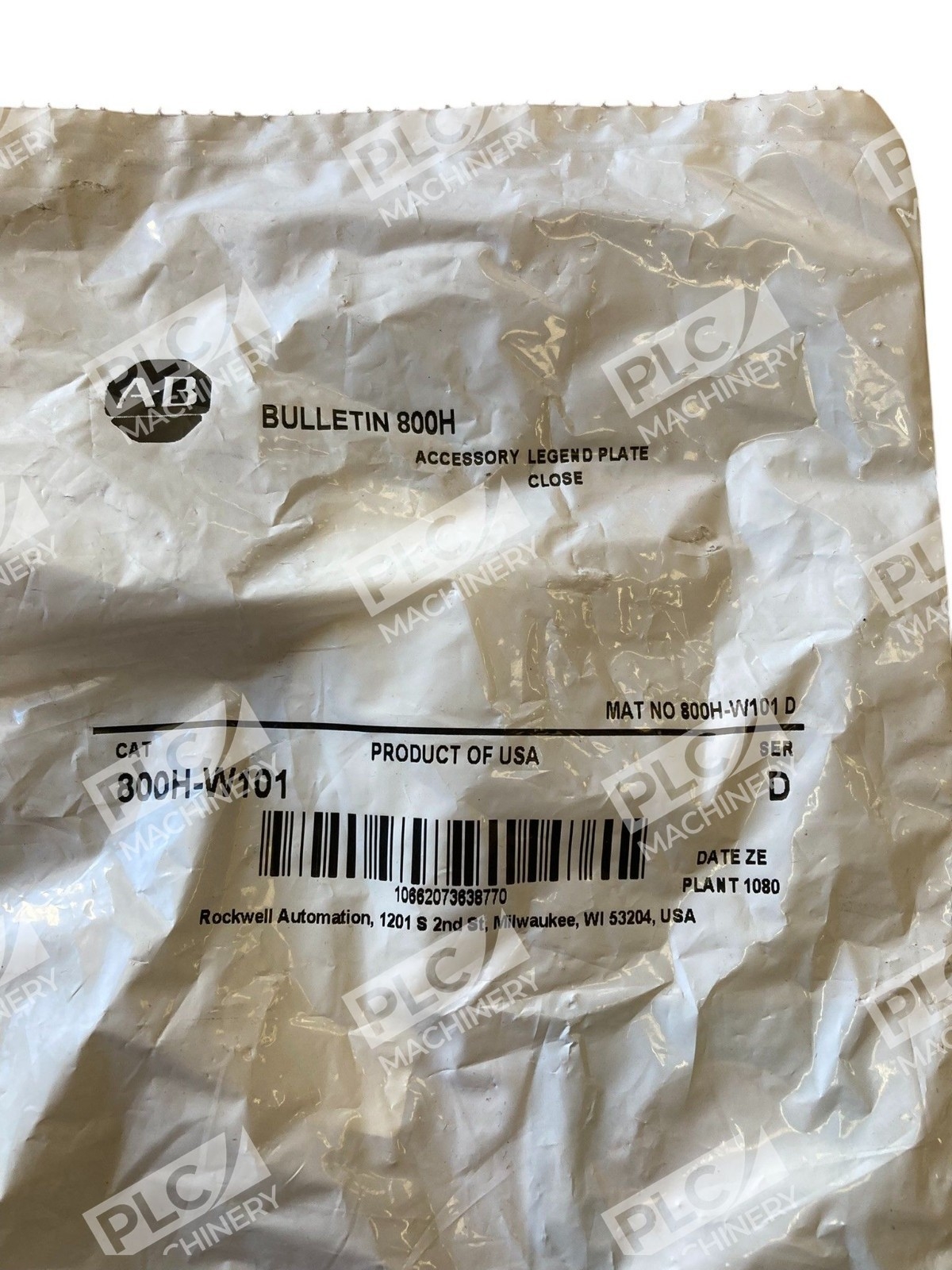

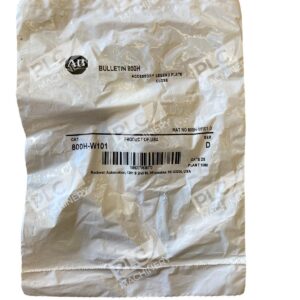

The Allen-Bradley 800H-W101 legend plate is a replacement accessory for 30mm 800H push button stations. This gray legend plate features text reading “CLOSE” and is designed for use in industrial control enclosures rated NEMA 4/4X. It is a standard, non-illuminated plate that provides clear operator identification in demanding plant environments.
Key Features
- Gray plastic construction for durability and corrosion resistance
- Text marking: “CLOSE” for unambiguous function identification
- 30mm size compatible with standard 800H push button housings
- NEMA 4/4X enclosure rating for wash-down and harsh environments
- Standard plate design—no illumination or special features
- Single-unit packaging for inventory simplicity
Technical Specifications
- Manufacturer: Rockwell Automation
- Model: 800H-W101
- Product Type: Legend Plate
- Button Size: 30mm
- Text/Legend: CLOSE
- Color: Gray
- Material: Plastic
- Enclosure Rating: NEMA 4/4X
- UPC: 662073638773
- Weight: 0.001 lb
- Package Quantity: 1 plate per unit
Typical Applications
- Industrial control panels and enclosures
- Machine control stations requiring clear operator instructions
- Wash-down and outdoor equipment
- Water treatment and chemical processing plants
- Food and beverage production facilities
- Replacement legend plates for existing 800H push button systems
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H push button stations (30mm size)
- NEMA 4/4X rated industrial enclosures
- Standard 800H button housings and assemblies
- Multi-button control station layouts
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 800H-W101 legend plates
- Damaged or illegible “CLOSE” text plates on existing 800H stations
- Worn gray legend plates in legacy control systems
Works With
- Allen-Bradley 800H push button control stations
- Rockwell Automation control enclosures and cabinets
- Industrial control systems requiring NEMA-rated push button stations
- Manual operator interface stations for machine control
