Overview

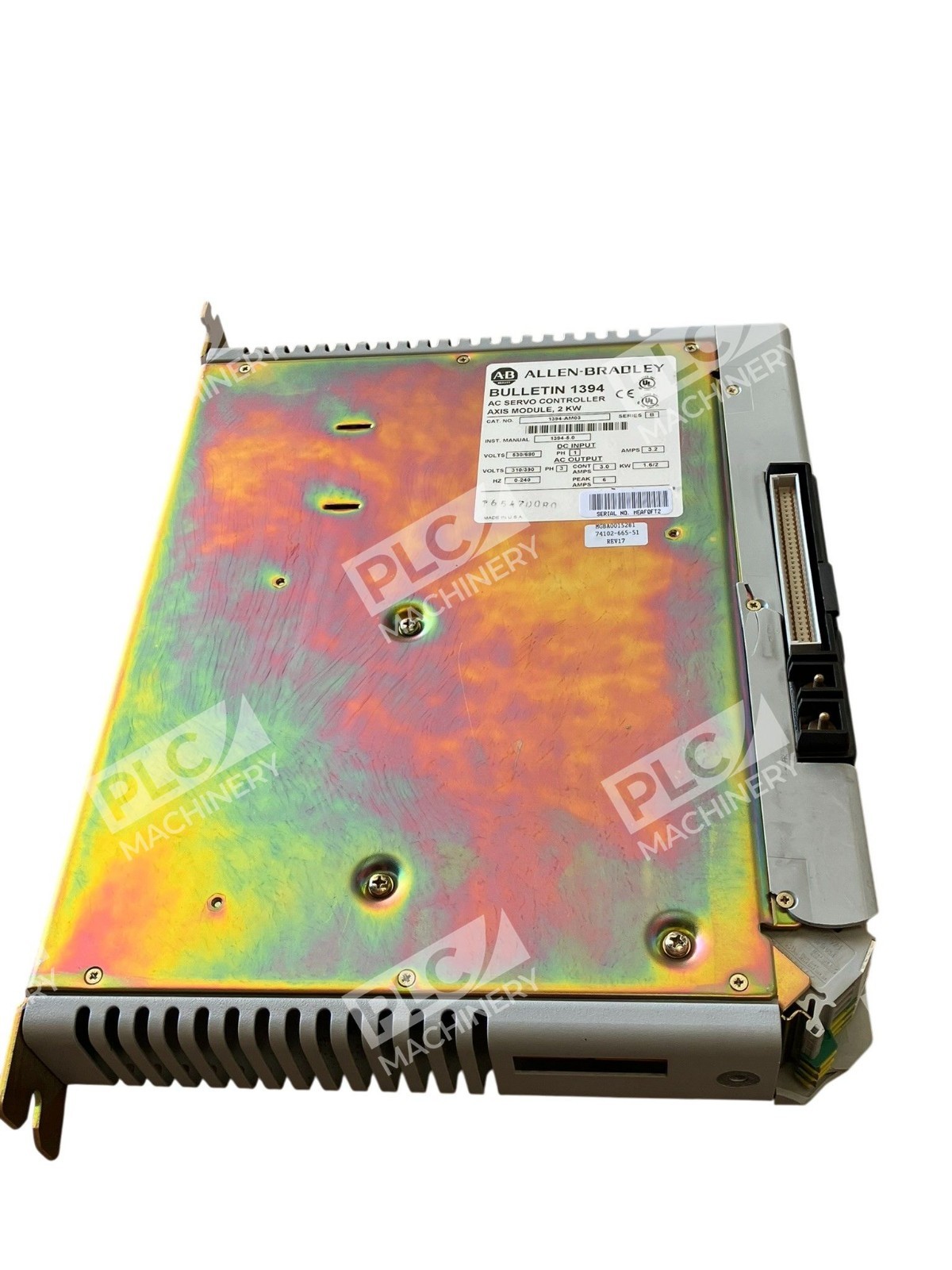

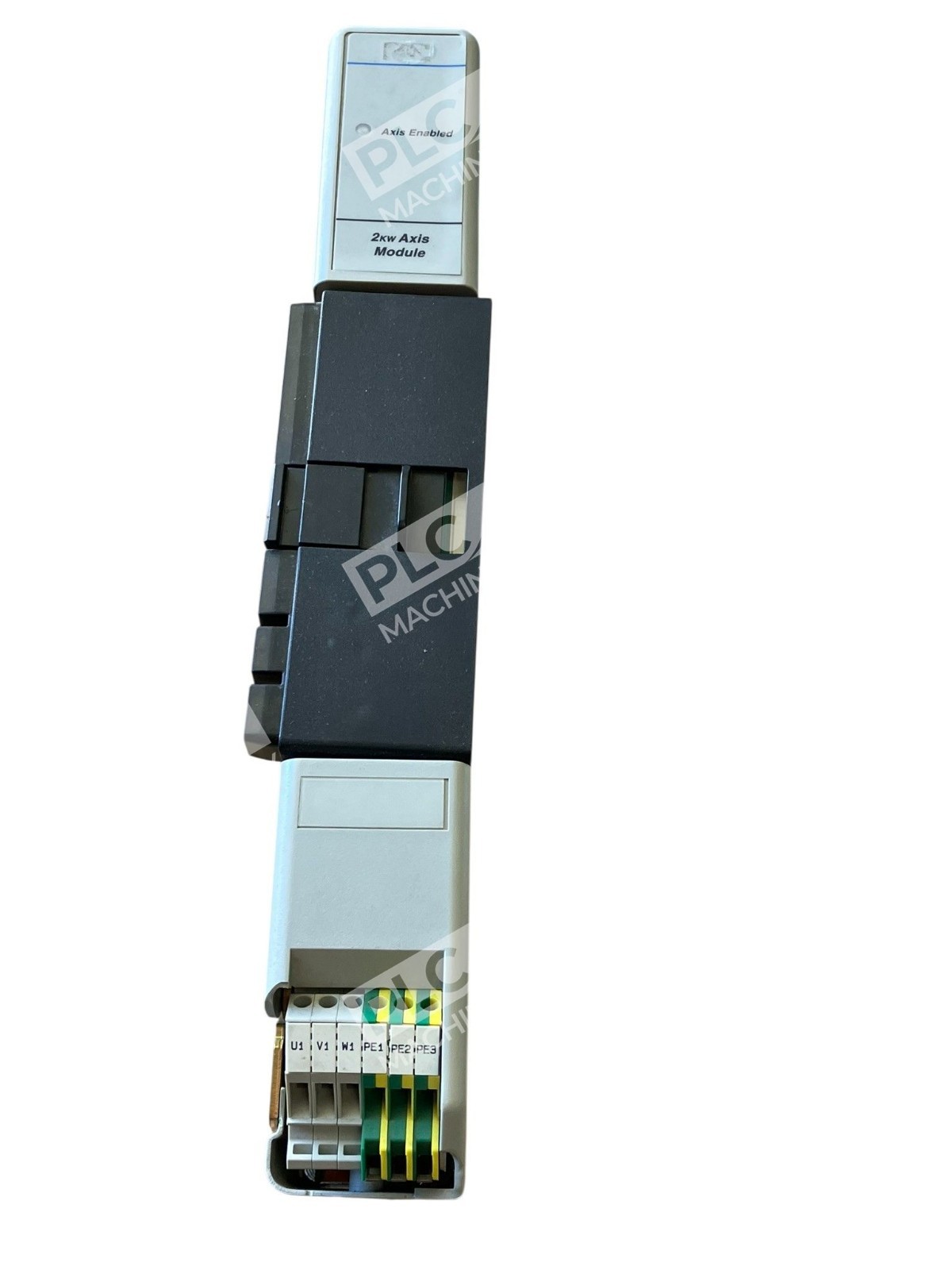

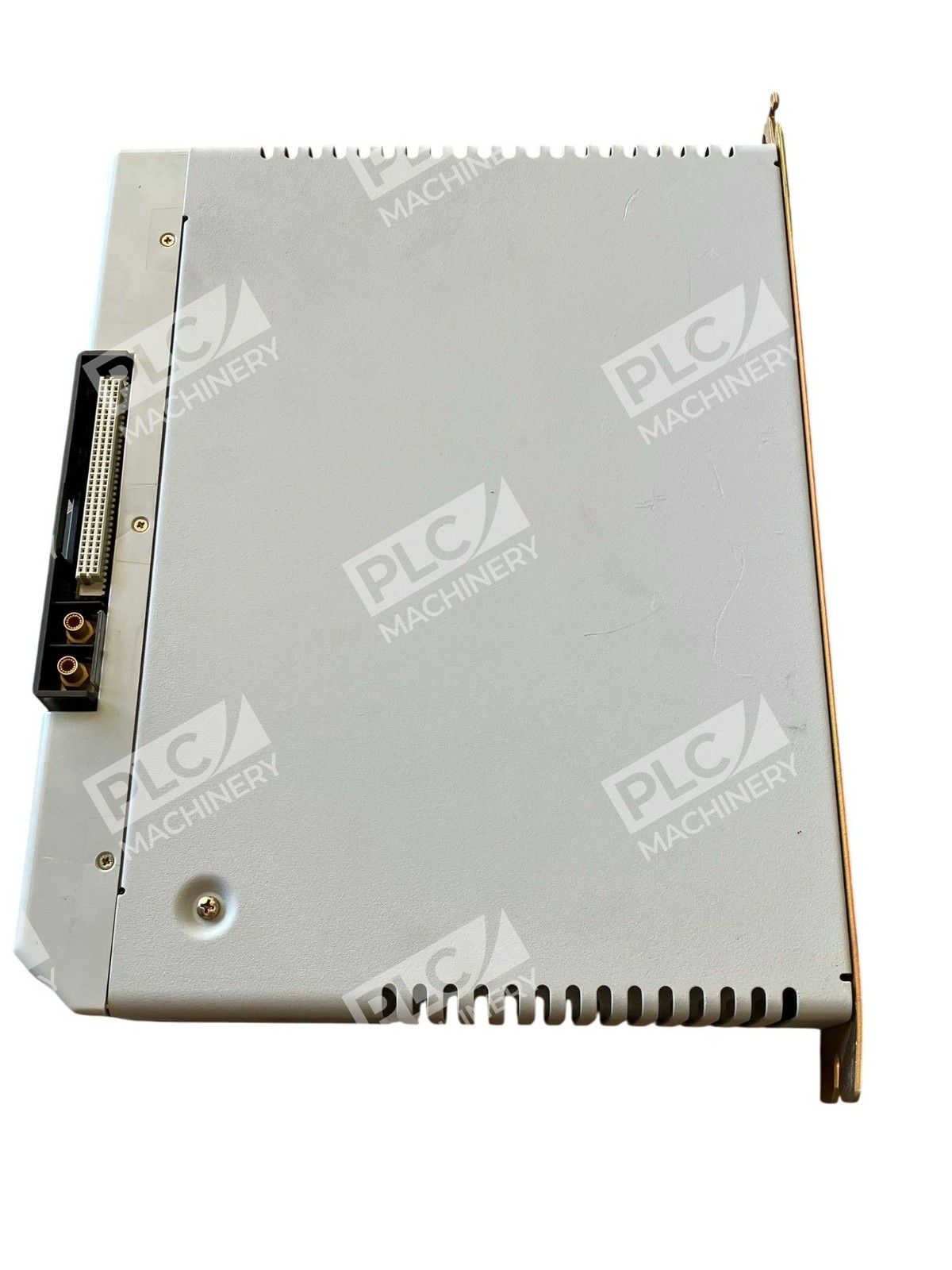

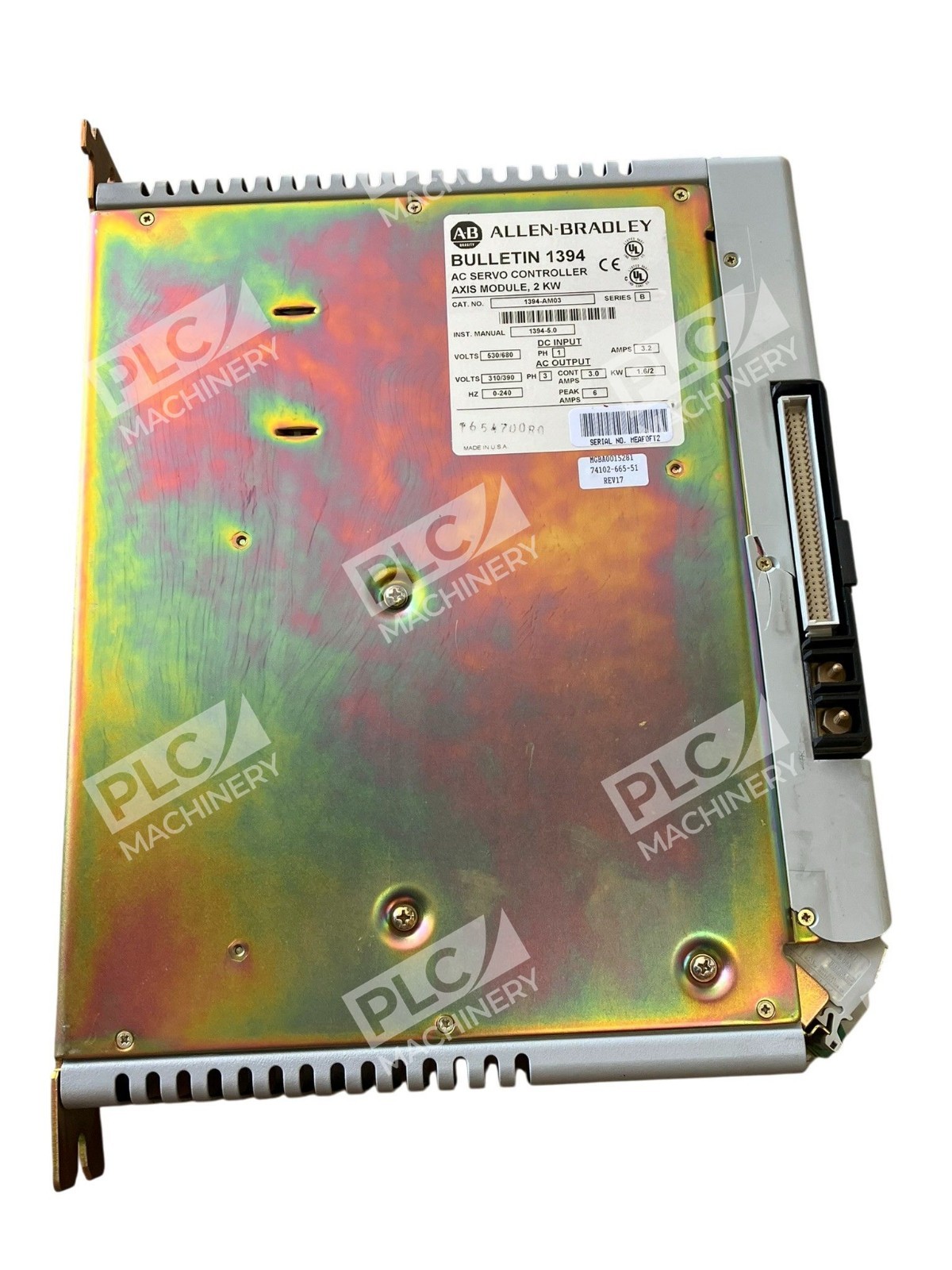

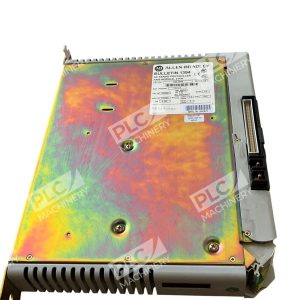

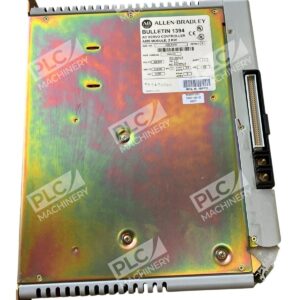

The Allen-Bradley 1394-AM03 is a servo axis amplifier module engineered for digital AC multi-axis motion control systems. As part of the 1394 series, this module converts DC power supplied by a system module into variable AC voltage to drive servo motors with precision. This unit is offered as used surplus inventory, making it cost-effective for facilities seeking replacement or spare components. The 1394-AM03 is compatible with Series A and B systems and integrates seamlessly into modular 1394 system configurations via slide-and-lock connectors.
Key Features
- 2 kilowatt continuous power output for single or multi-axis servo motor control
- No heatsink inverter design with IGBT power conversion for efficient DC-to-AC conversion
- Slide-and-lock connector mechanism eliminates up to 100 wire terminals and reduces panel space
- Digitally adjustable velocity and current loop compensation for system inertia accommodation
- Speed regulation of 0–0.05% with 100% torque disturbance capability
- Digital fault and diagnostic utilities for comprehensive system monitoring
- Thermal overload detection and advanced protective features including soft current limiting
Technical Specifications

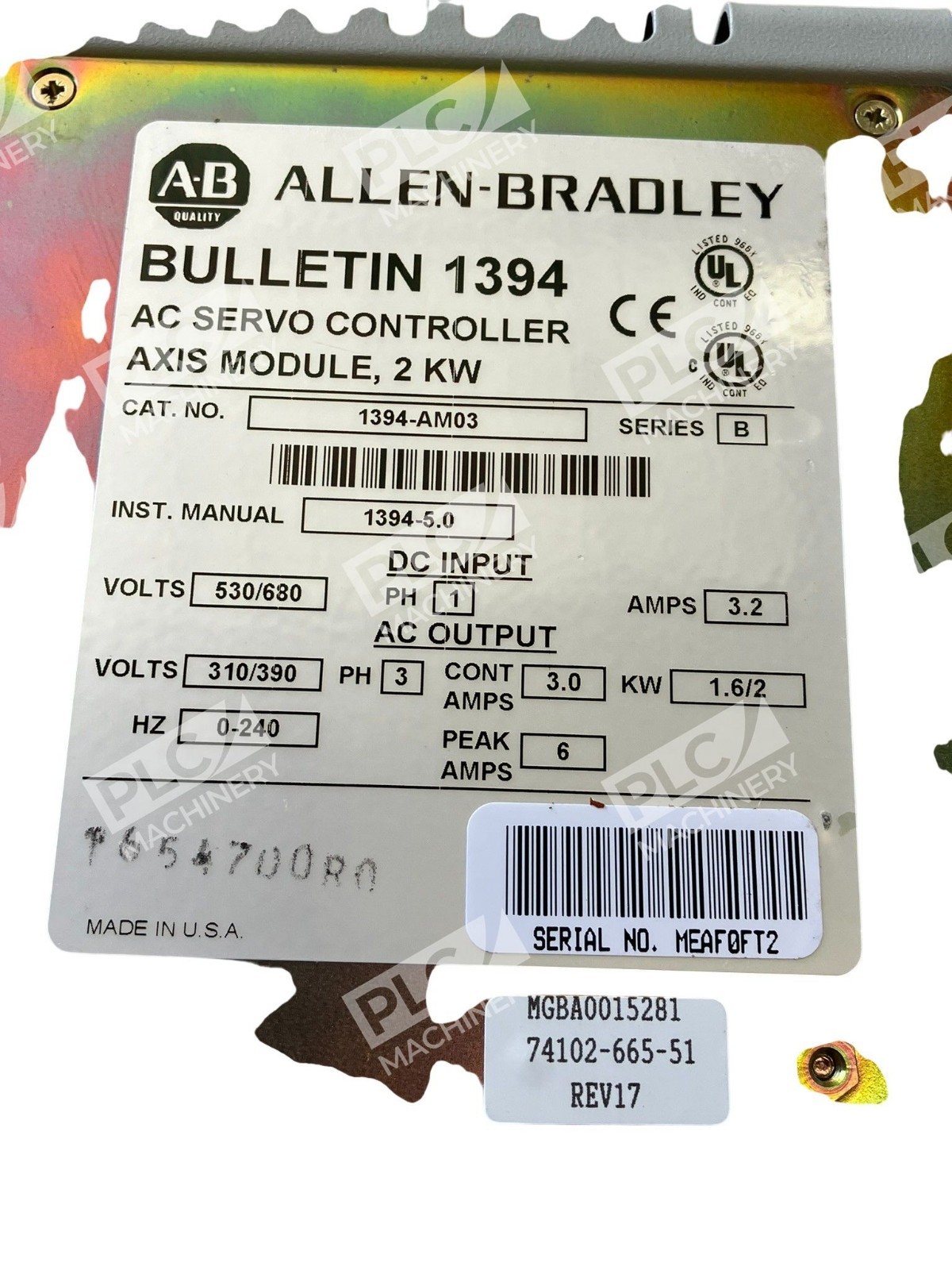

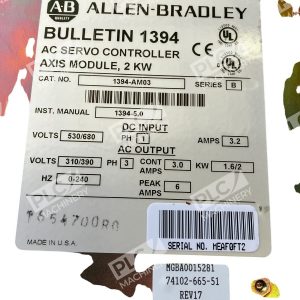

- Power Output: 1.6 kW (continuous at 360–380V) / 2 kW (continuous at 460V nominal)
- Input Voltage: 530–680V DC
- Continuous Current: 3 amperes (RMS)
- Peak Current: 6 amperes (RMS, 1 second)
- Efficiency: 98%
- Static Gain: 1.28 A/mV
- Capacitance: 110 microfarads
- Modulation Frequency: 5 kilohertz ±10%
- Speed Regulation: 0–0.05% of base speed
- Drift: 0.03 RPM per degree Celsius
- Dimensions: 13.78 × 11.02 × 1.97 inches
- Weight: 11.02 pounds (5 kg)
- Series: A, B
Typical Applications
The 1394-AM03 is widely deployed in demanding industrial automation environments requiring precise, repeatable servo motion control:
- Material handling systems and automated conveyor networks
- High-speed packaging machinery and filling equipment
- Press load/unload applications and metal forming
- Converting and web-handling operations
- Multi-axis CNC motion control
- Any application requiring frequent power monitoring or power cycling
Compatibility & Replacements
Compatible With
- Allen-Bradley 1394 GMC (Integrated Motion Controller) systems
- Allen-Bradley 1394 GMC Turbo configurations
- 1394 system modules (via slide-and-lock connectors)
- Standard IMC™ Class Compact motion control solutions
- SERCOS and analog servo configurations
- Systems utilizing 360–480V three-phase AC input power
Replaces / Drop-In Replacement For
- Series A and B systems within the 1394 family
- One axis module is required per servo motor in a 1394 system (up to 4 modules per system)
- Direct replacement in systems previously running 1394-AM03 series units
Works With
- Allen-Bradley system modules (1394 series power supply units)
- Rockwell Automation motion control software and configuration tools
- SERCOS protocol for servo motor feedback
- Analog servo control feedback systems
- Three-phase AC power sources (360–480V nominal)
