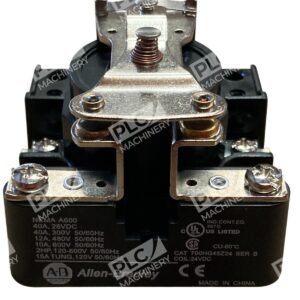

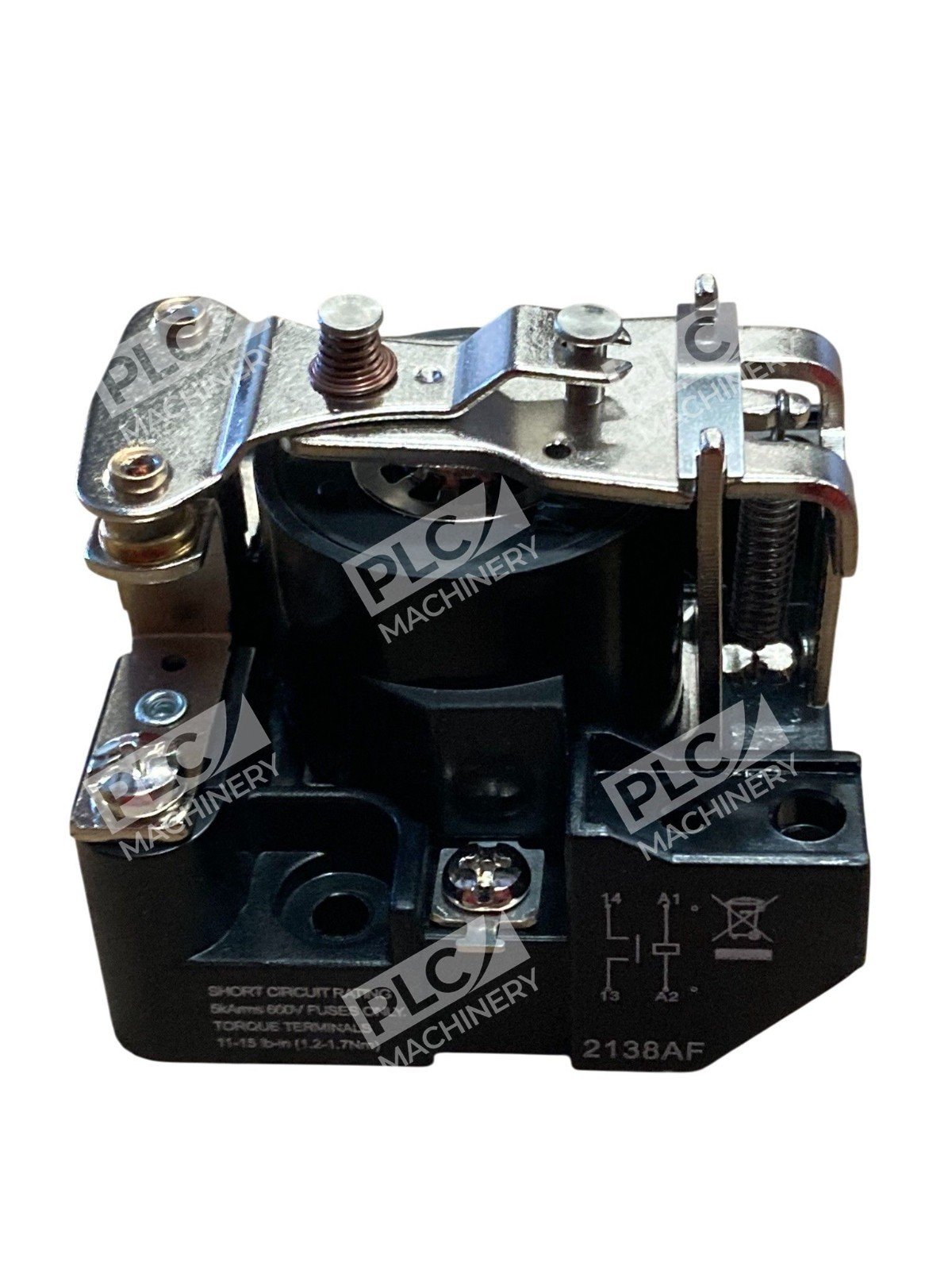

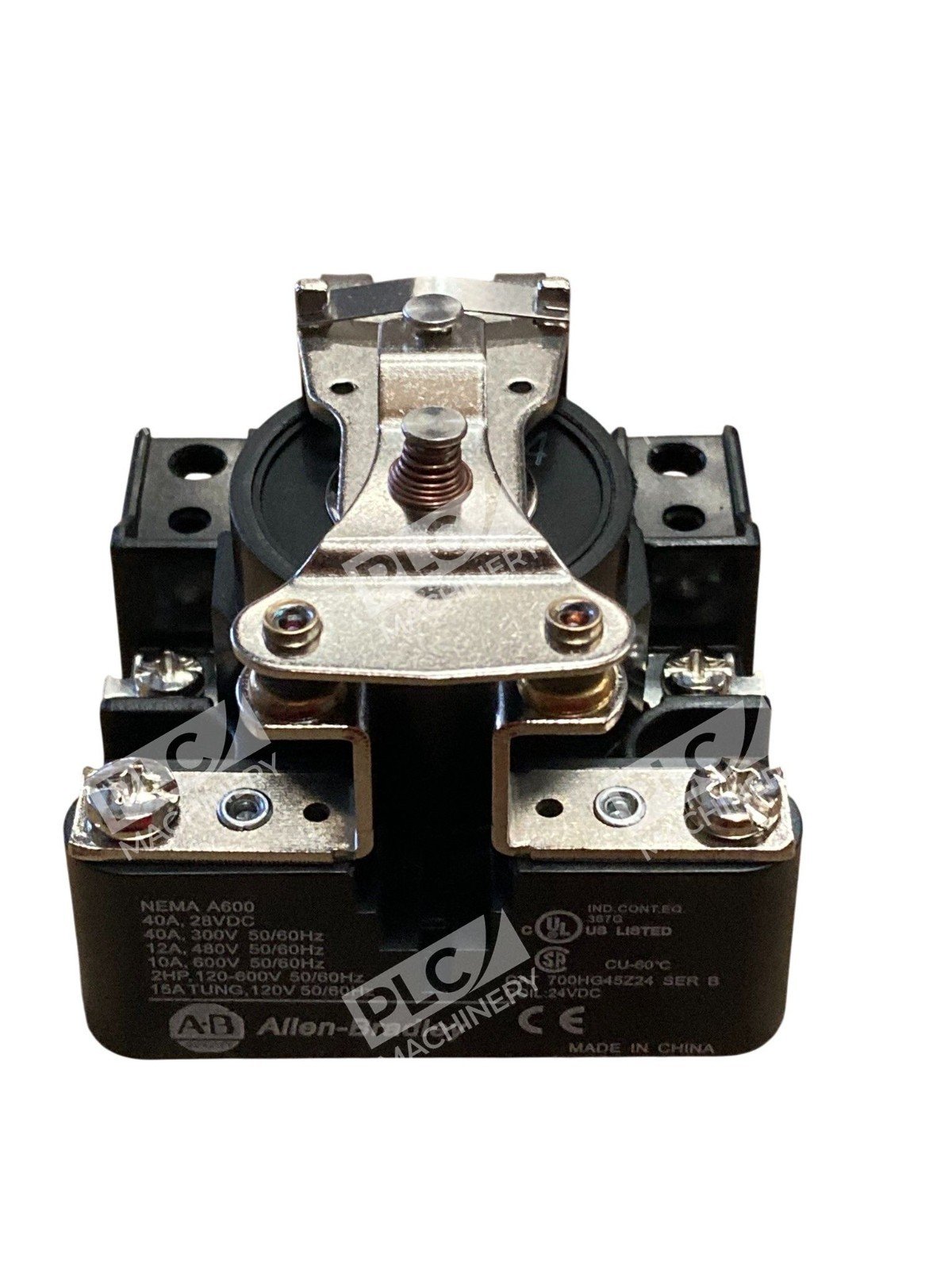

The Allen-Bradley 700-HG45Z24 is a robust open-style power relay designed for demanding industrial applications.
Key Features
- High Current Capacity: Capable of handling up to 40 A, making it suitable for heavy-duty operations.
- Single-Pole, Single-Throw Normally Open (SPST-NO) Contact: Ensures straightforward and reliable switching.
- 24V DC Coil Voltage: Optimized for systems operating at 24V DC, providing efficient performance.
- Panel Mount Configuration: Designed for easy integration into control panels.
- Durable Contact Material: Features silver cadmium oxide (AgCdO) contacts for enhanced conductivity and longevity.
Technical Specifications
- Nominal Current: 40 A
- Voltage Type for Actuating: DC
- Rated Control Supply Voltage at DC: 24 V
- Type of Electric Connection: Screw connection
- Rated Thermal Current (Ith): 40 A
- Degree of Protection (IP): IP00
- Dimensions:
- Width: 63.5 mm
- Height: 64.3 mm
- Depth: 57.2 mm
- Operating Temperature Range: -30°C to +55°C
Applications
This relay is ideal for various industrial applications requiring high current switching, such as motor control, lighting systems, and heavy machinery operations.
Certifications
The 700-HG45Z24 complies with international standards, including CE, CSA, KC, and UL, ensuring safety and reliability in diverse operational environments.
For detailed technical information, refer to the product’s technical data sheet.
