Overview

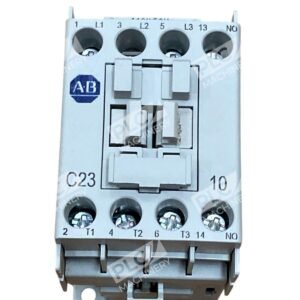

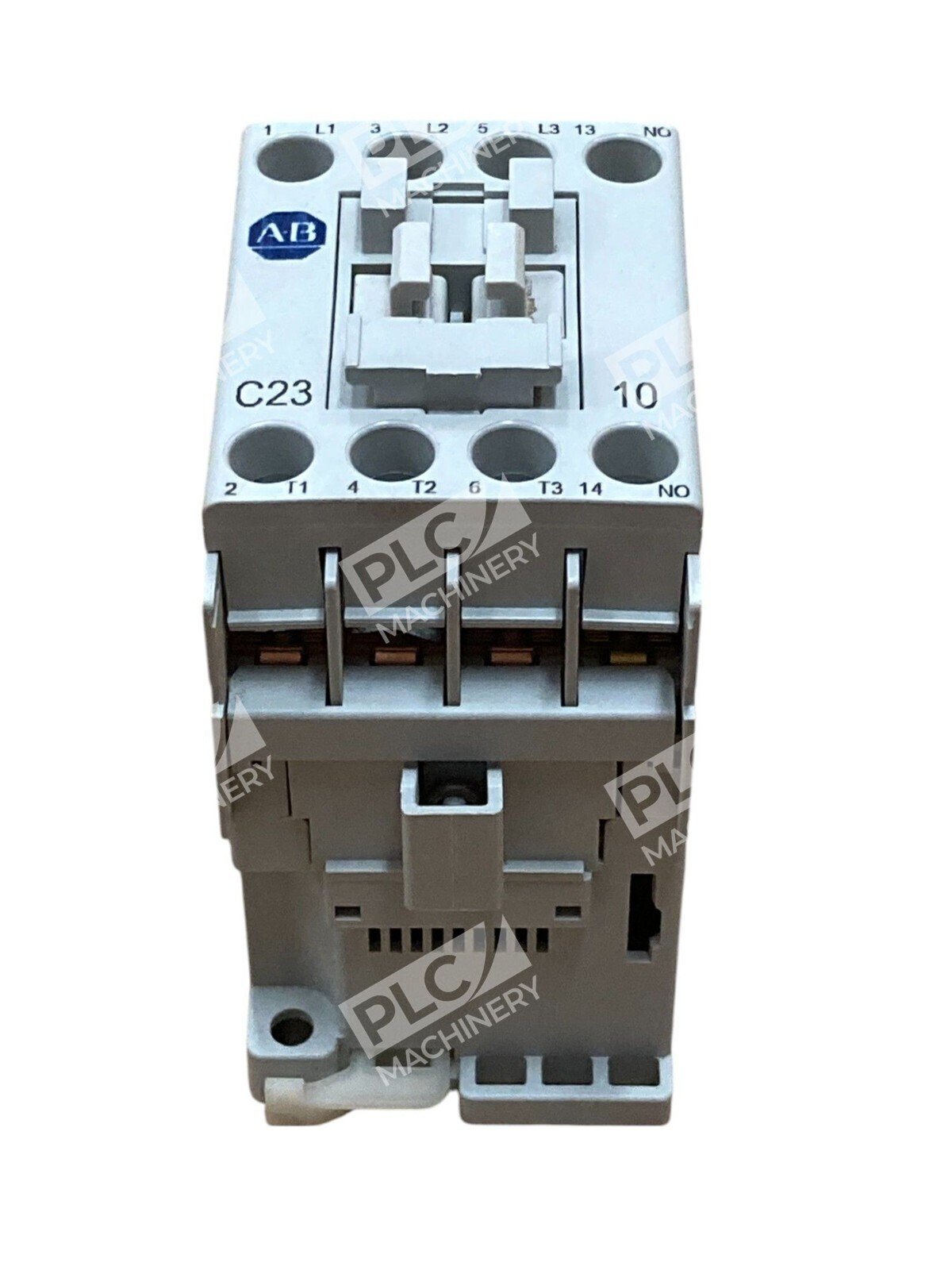

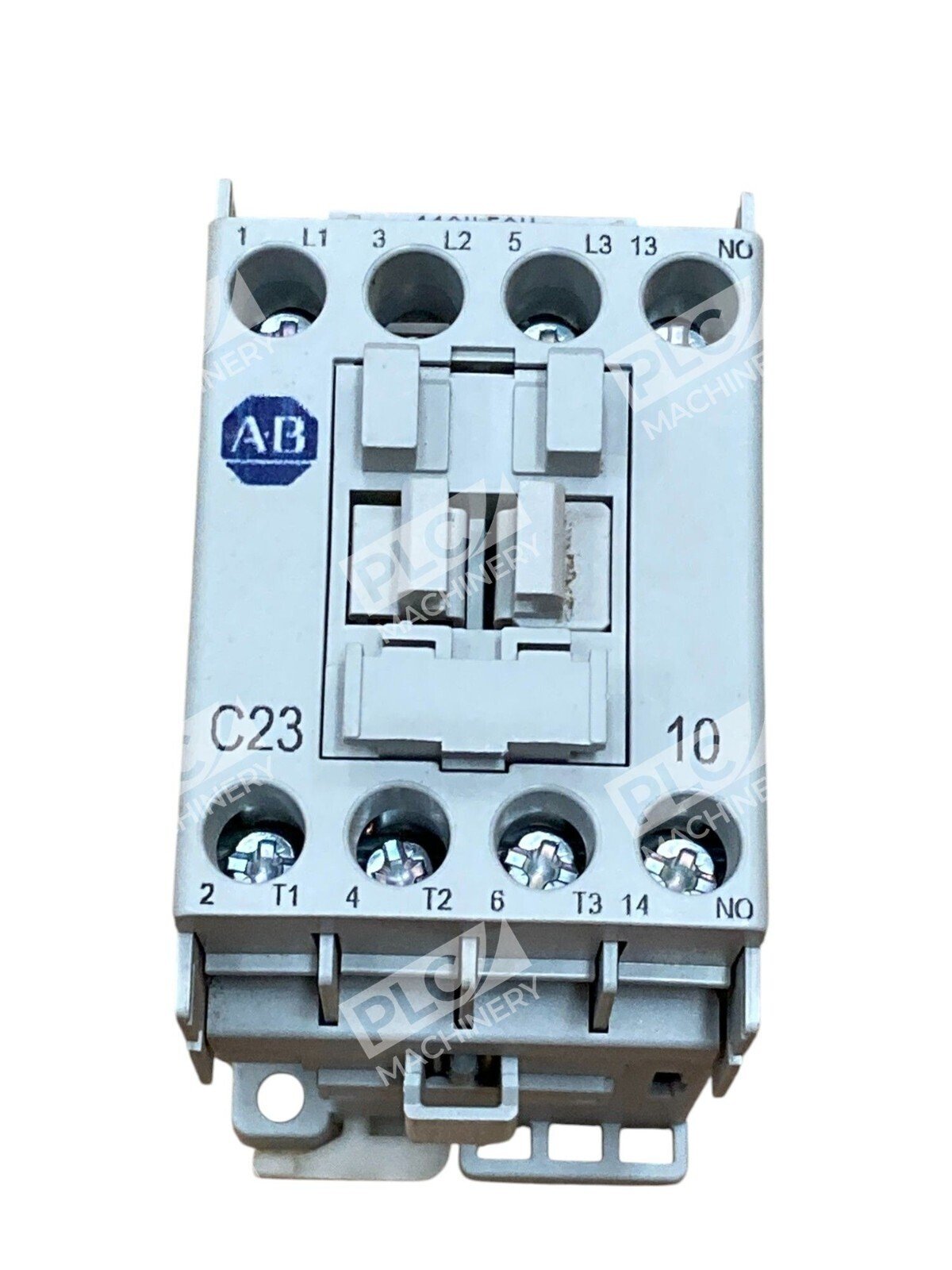

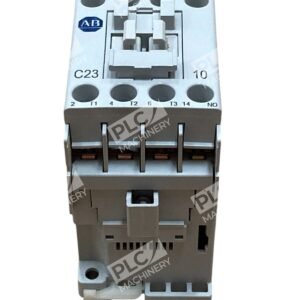

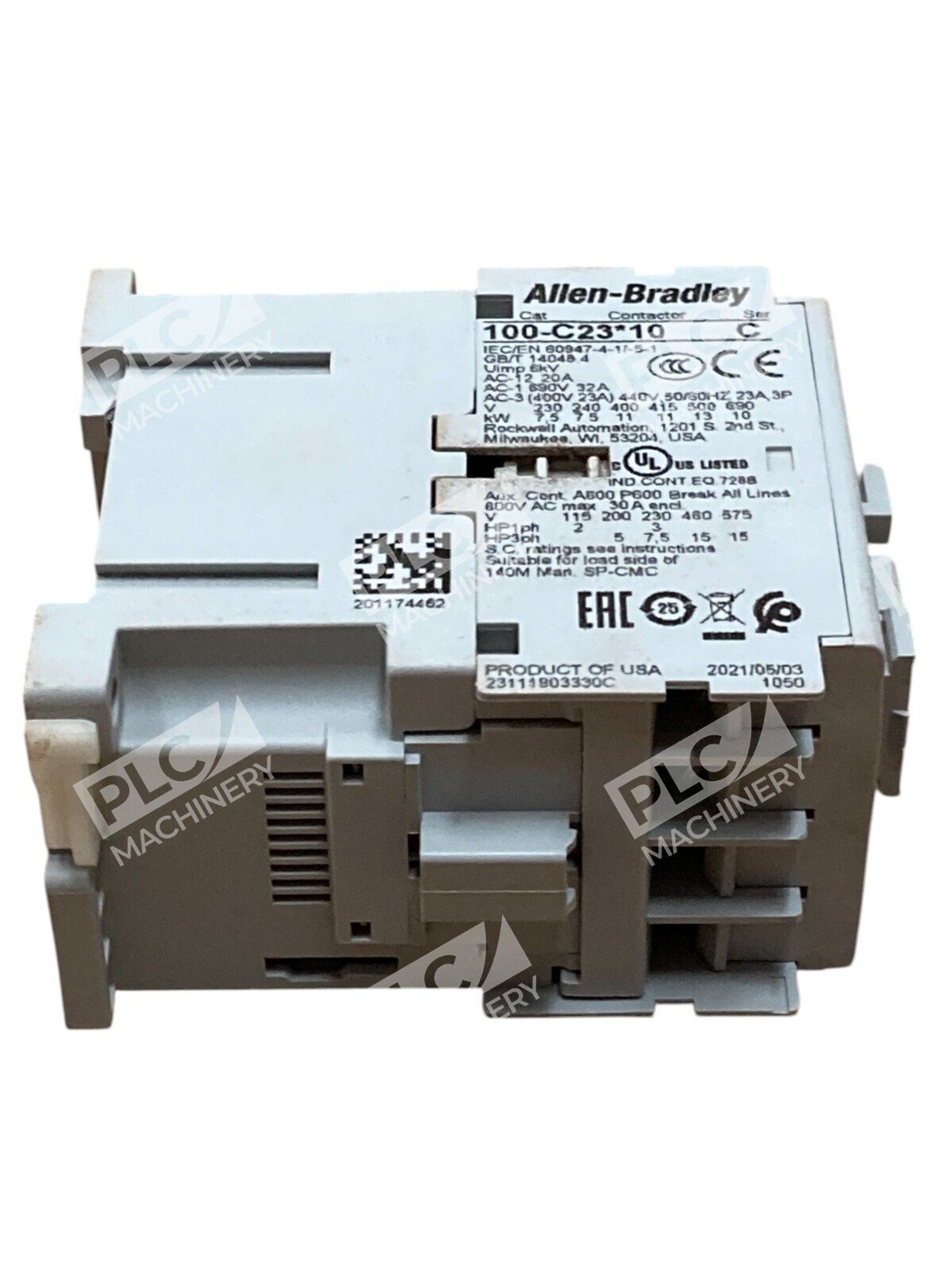

The Allen-Bradley 100-C23D10 is an IEC standard contactor designed for reliable motor control in industrial automation applications. This 3-pole unit delivers 23 amps at rated capacity and operates on 110V 50Hz or 120V 60Hz control coils, making it compatible with both international and North American power systems. As part of the Bulletin 100-C family, the 100-C23D10 combines compact footprint with proven reliability.
Key Features
- Space-saving design: Compact dimensions ideal for panel mounting and modular starter systems
- IP2X finger protection: Enhanced safety with enclosed contact design
- Built-in surge suppression: Protects coil circuits from voltage spikes and extends component life
- Reversible coil terminations: Flexible line-side or load-side wiring configuration
- RoHS compliant: Meets environmental and regulatory standards
- 1 NO auxiliary contact: Integrated status feedback for control logic integration
Technical Specifications
- Current Rating: 23 A at AC3 duty
- Poles: 3 Normally Open main contacts
- Coil Voltage: 110V 50Hz / 120V 60Hz AC
- Motor Ratings: 7.5 HP @ 230V, 15 HP @ 460V (3-phase)
- Contact Configuration: 1 NO auxiliary + 0 NC
- Terminal Style: Screw (main + coil)
- Coil Termination: Line-side (reversible to load-side)
- Standards Compliance: IEC/EN 60947-4-1 / IEC/EN 60947-5-1
- Drop-out Time: 18–23 ms (50% faster than standard coils)
- Enclosure Rating: Open type
Typical Applications
The 100-C23D10 is widely deployed in:
- Three-phase AC motor starters and reversing duty
- Pump and fan control systems
- Compressor and HVAC equipment control
- General industrial machinery automation
- Modular starter assemblies paired with thermal overload relays
Compatibility & Replacements
The 100-C23D10 integrates seamlessly with the Bulletin 100-C and 104-C contactor family ecosystem. It pairs directly with Bulletin 193 solid-state overload relays, timing modules (electronic and pneumatic), and coil-mounted control accessories. Standard screw terminals allow integration into existing panel layouts without rewiring. When specifying replacements or upgrades, verify coil voltage and contact configuration to ensure drop-in compatibility with your control circuit.
